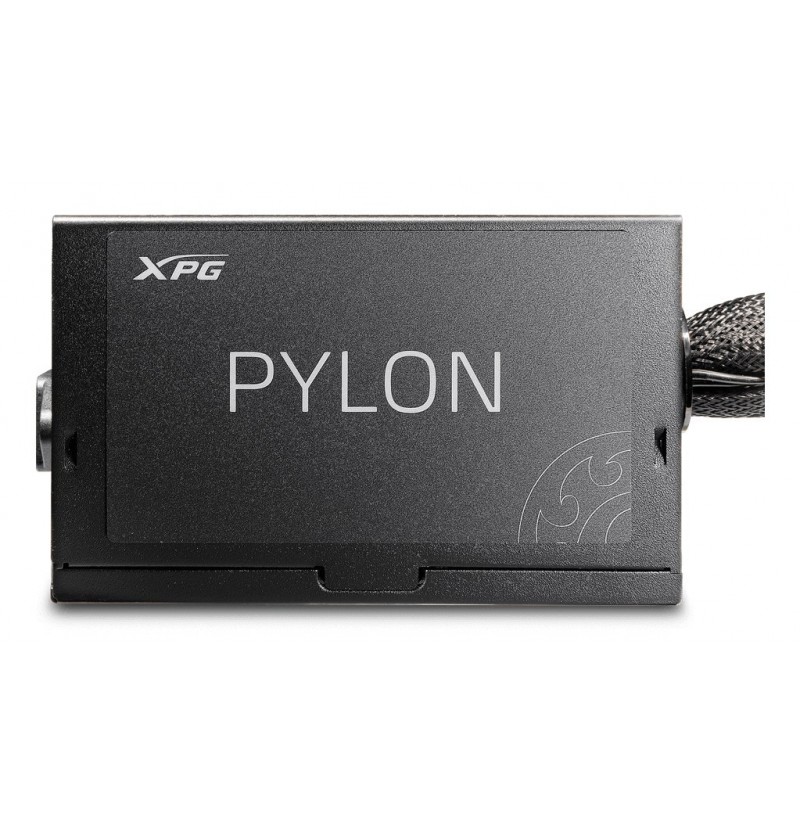

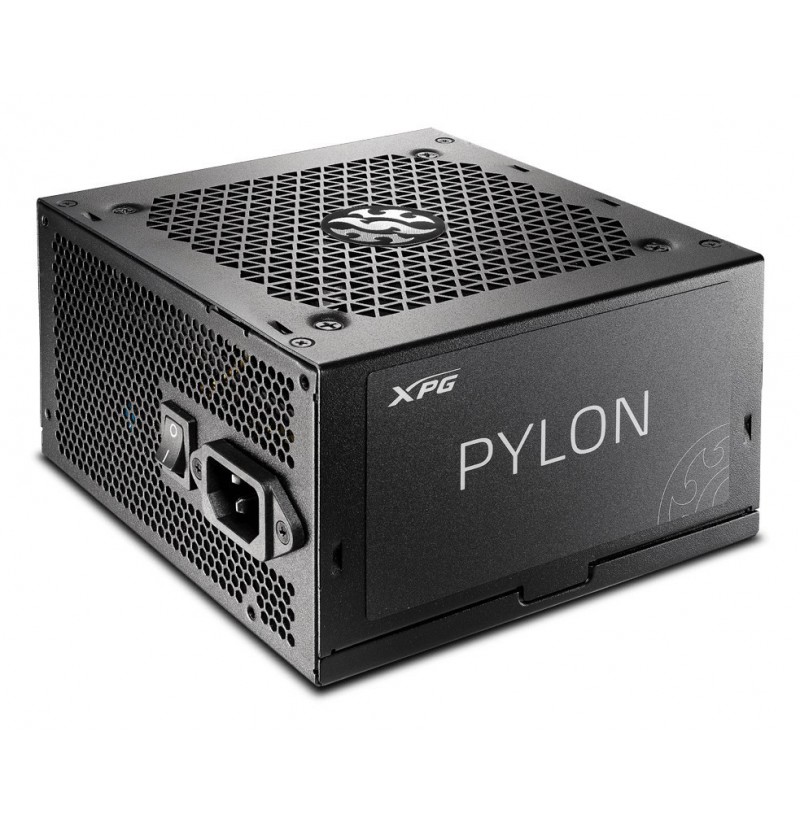

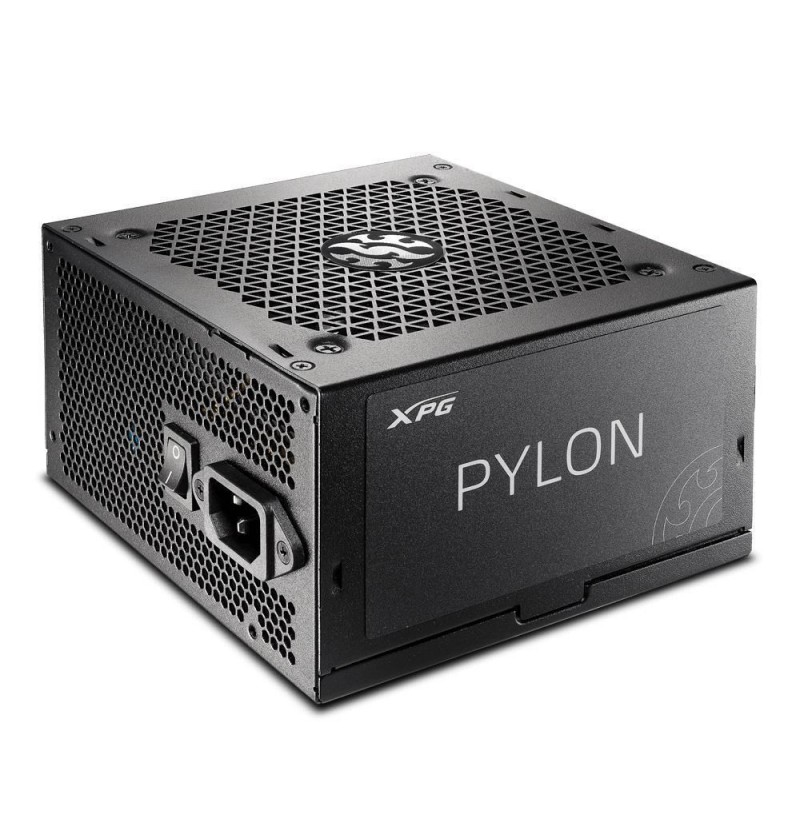

XPG PYLON 650W Power Supply

Sustainability certificates: ErP
Sustainability compliance: Yes
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Black
AC input frequency: 50 - 60 Hz
Combined power (+3.3V): 110 W
Total power: 650 W
Power Factor Correction (PFC) type: Active
Power factor: 0.99
Max output current (+12V): 54 A
Power protection features: Overheating, Over power, Short circuit, Over voltage, Under voltage, Over current
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A
AC input voltage: 100 - 240 V
Combined power (+5V): 110 W
Max output current (+5Vsb): 2.5 A
Input current: 8/4 A
Combined power (+5Vsb): 12.5 W
Combined power (+12V): 648 W
Max output current (+5V): 20 A
Depth: 150 mm
Height: 86 mm
Width: 140 mm
Bearing technology: FDB
ATX version: 2.4
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC

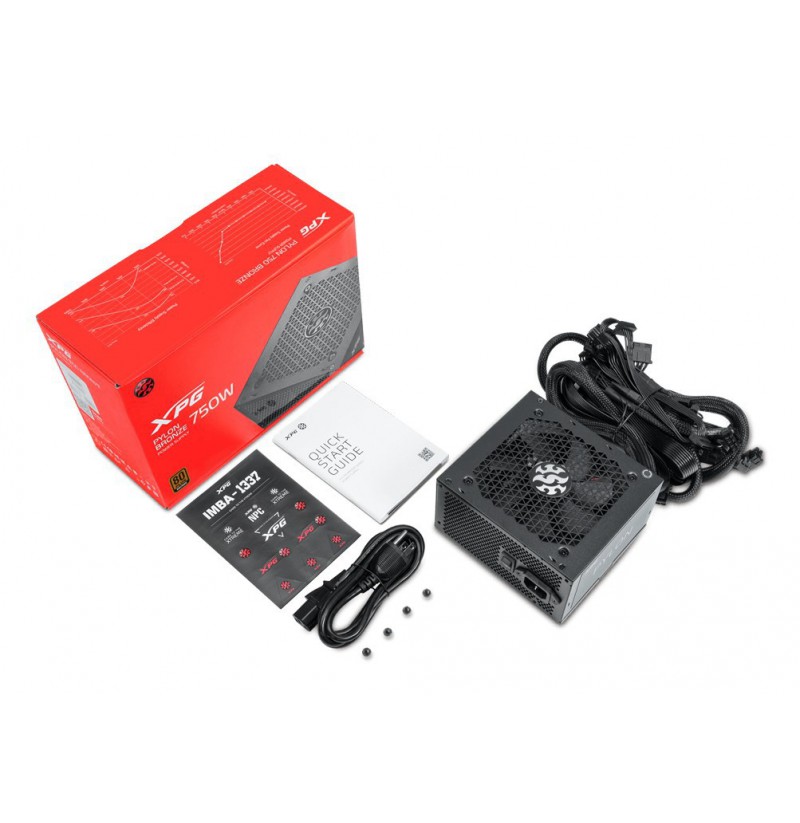

Cables included: AC
Certification: CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC
Compliance certificates: RoHS
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
ATX Power connector (24-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of SATA power connectors: 5
Harmonized System (HS) code: 84733020
