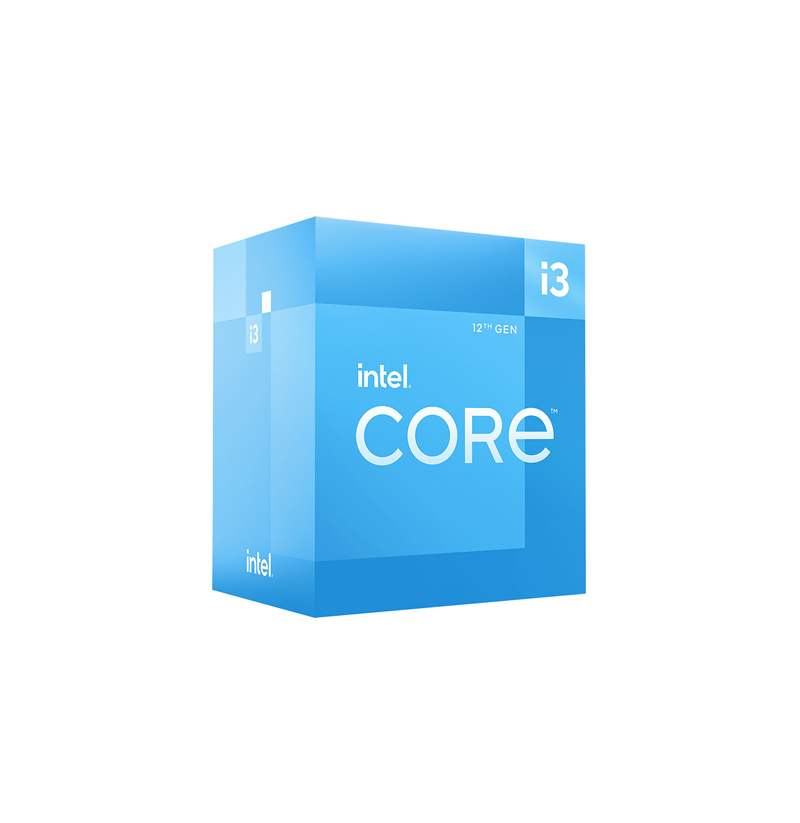

Intel | i3-12100F | 3.30 GHz | FCLGA1700 | Processor threads 8 | Intel Core i3 | Processor cores 4

Status: Launched
Launch date: Q1'22
Processor threads: 8
Processor family: Intel® Core™ i3
Memory bandwidth supported by processor (max): 76.8 GB/s
Processor socket: LGA 1700
Processor boost frequency: 4.3 GHz
Processor codename: Alder Lake
Processor operating modes: 64-bit
Processor ARK ID: 132223
Processor cache type: Smart Cache
Cooler included: Yes
Bus type: DMI4
Processor model: i3-12100F
Processor cores: 4
Processor cache: 12 MB
Processor manufacturer: Intel
Performance cores: 4
Processor generation: 12th gen Intel® Core™ i3
Maximum turbo power: 89 W
Maximum number of DMI lanes: 8
Processor base power: 58 W
Performance-core boost frequency: 4.3 GHz
Performance-core base frequency: 3.3 GHz
Discrete graphics card: No
On-board graphics card: No
Discrete graphics card model: Not available
On-board graphics card model: Not available
PCI Express configurations: 1x16+1x4, 2x8+1x4
Thermal Monitoring Technologies: Yes
PCI Express slots version: 4.0, 5.0
CPU configuration (max): 1
Thermal solution specification: PCG 2020C
Execute Disable Bit: Yes
Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
Embedded options available: No
Maximum number of PCI Express lanes: 20
Idle States: Yes
Market segment: Desktop
Scalability: 1S
Export Control Classification Number (ECCN): 5A992.C
Commodity Classification Automated Tracking System (CCATS): G167599
Use conditions: PC/Client/Tablet
Direct Media Interface (DMI) Revision: 4.0
Memory bandwidth (max): 76.8 GB/s
Non-ECC: Yes
Memory channels: Dual-channel
Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
Maximum internal memory supported by processor: 128 GB
Tjunction: 100 °C
Processor package size: 45 x 37.5 mm
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Optane™ Memory Ready: Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Turbo Boost Max Technology 3.0: No
Intel Enhanced Halt State: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Boot Guard: Yes
Intel® Volume Management Device (VMD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Mode-based Execute Control (MBE): Yes
Intel® OS Guard: Yes
Intel® Secure Key: Yes
Intel® Speed Shift Technology: Yes
Intel 64: Yes
Intel® Thread Director: No
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Maximum internal memory: 128 GB
L2 cache: 5120 KB
Harmonized System (HS) code: 85423119
Warnings: Avoid mounting with the power supply running., Do not use excessive force when assembling or disassembling the processor., Be careful during assembly to avoid damaging the CPU pins or socket.
