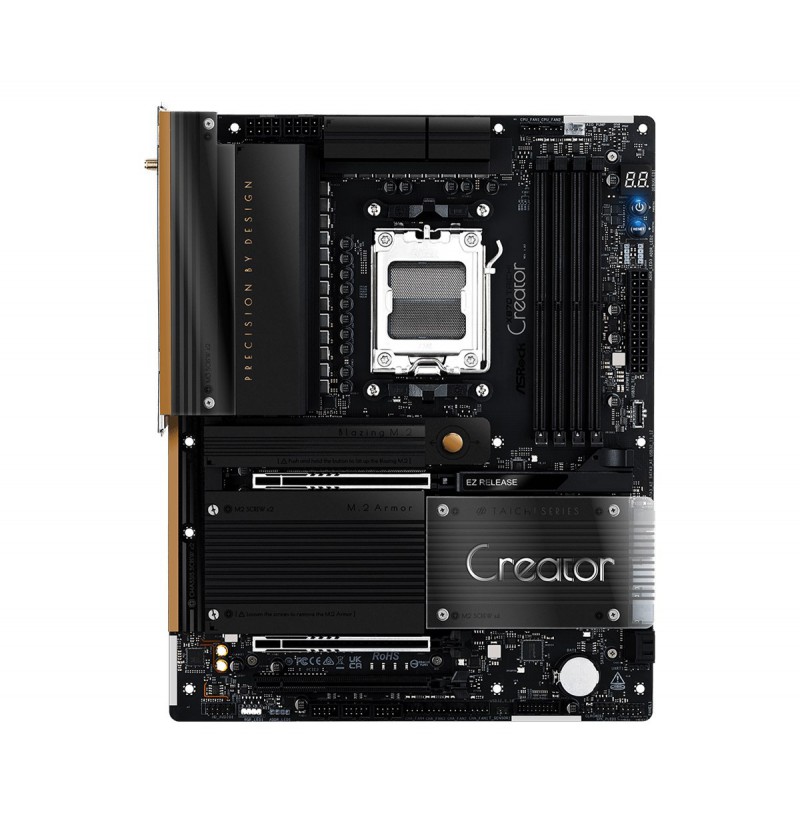

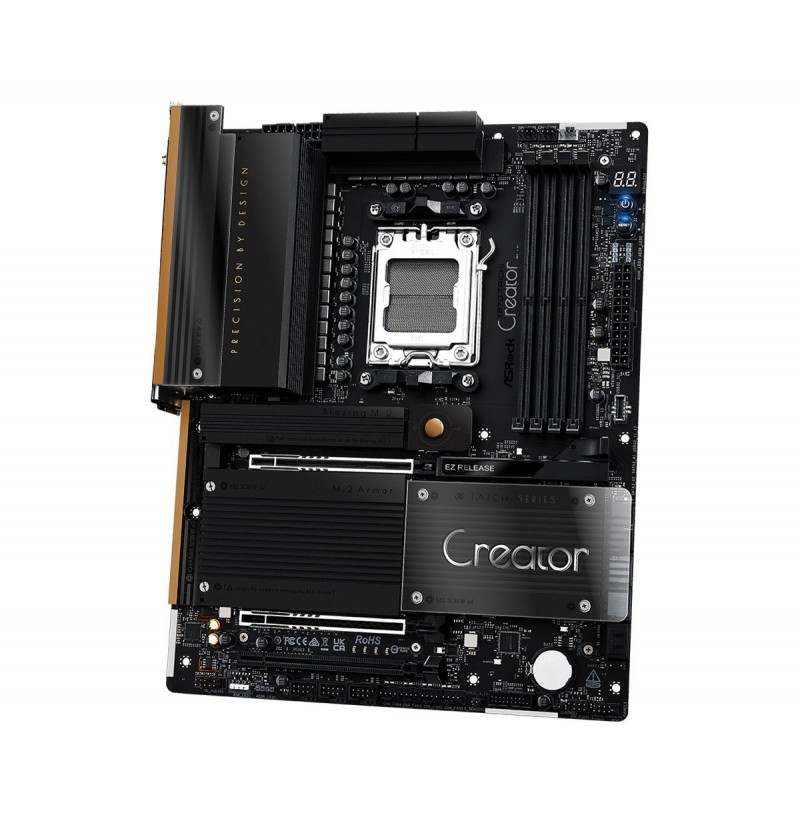

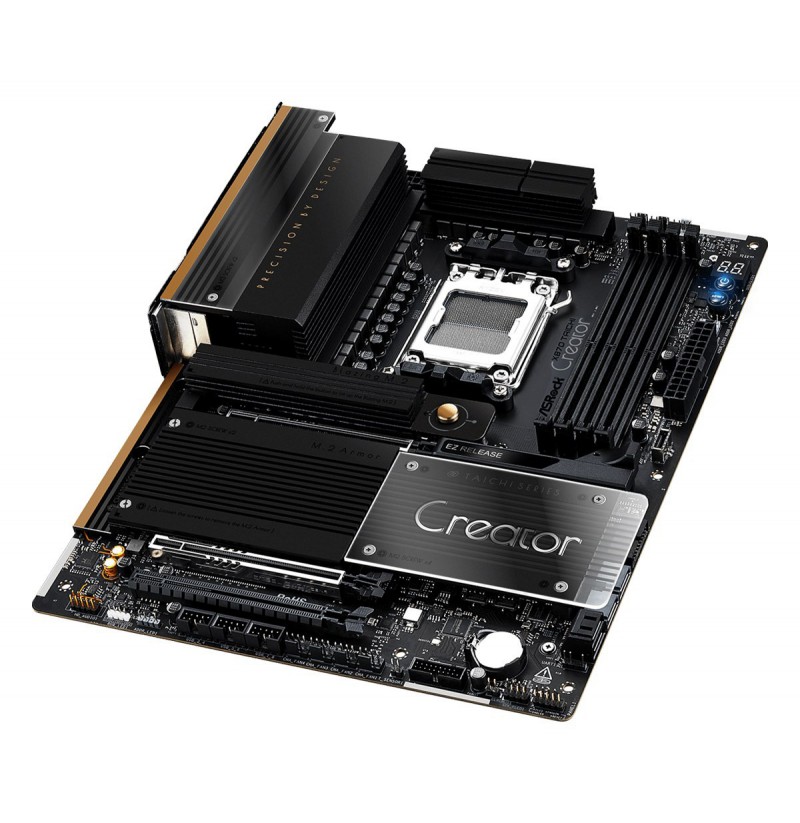

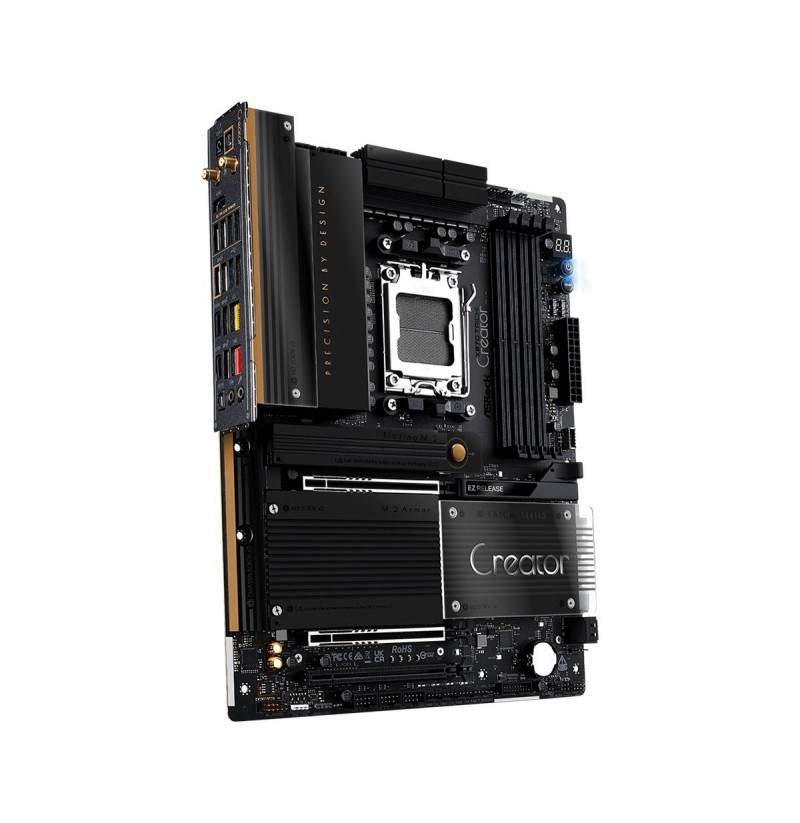

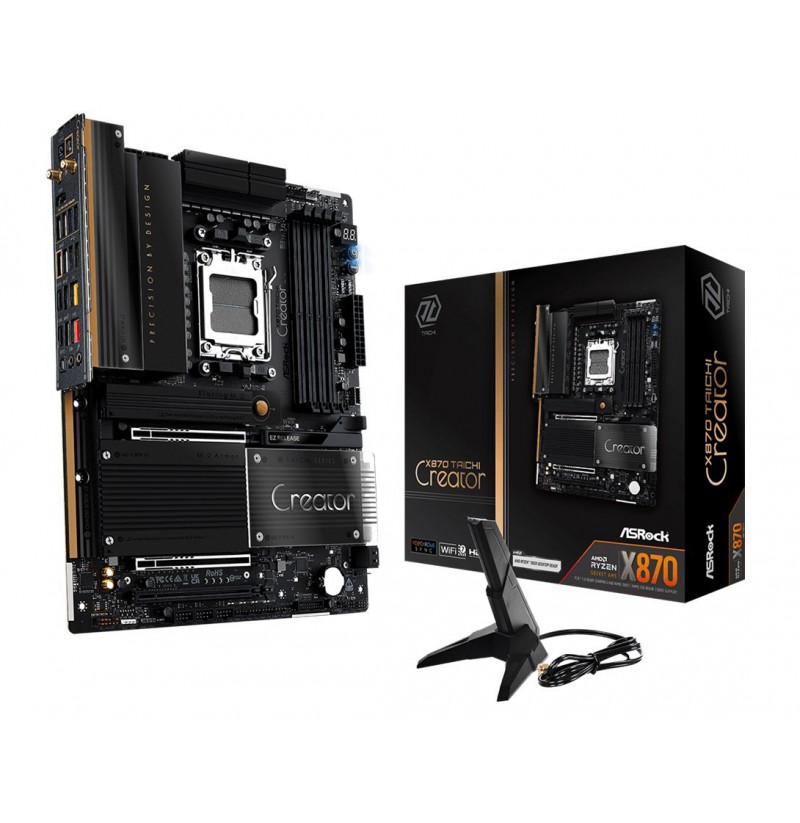

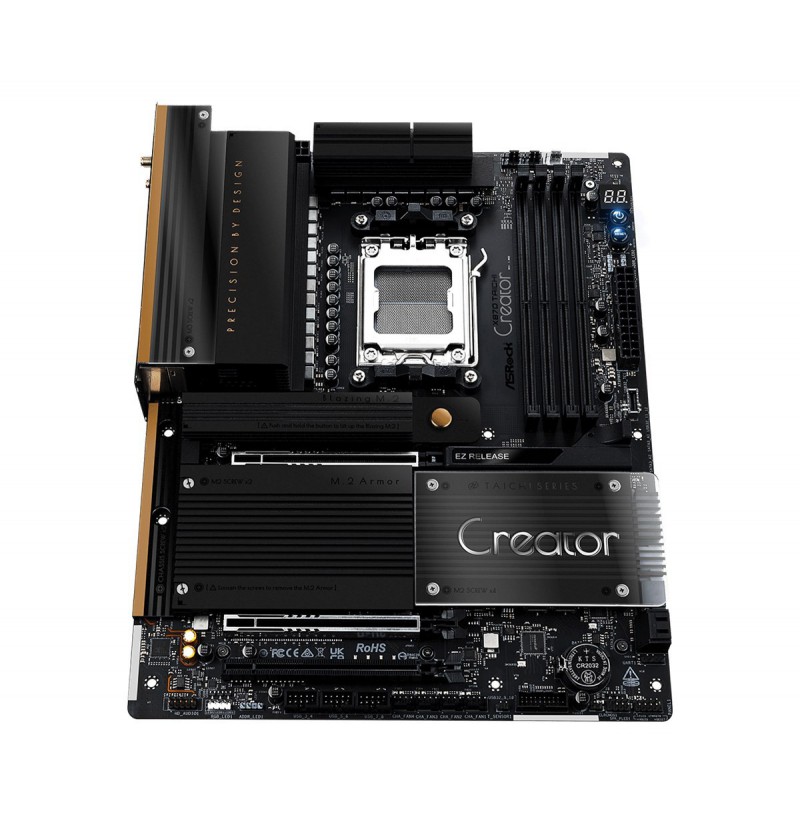

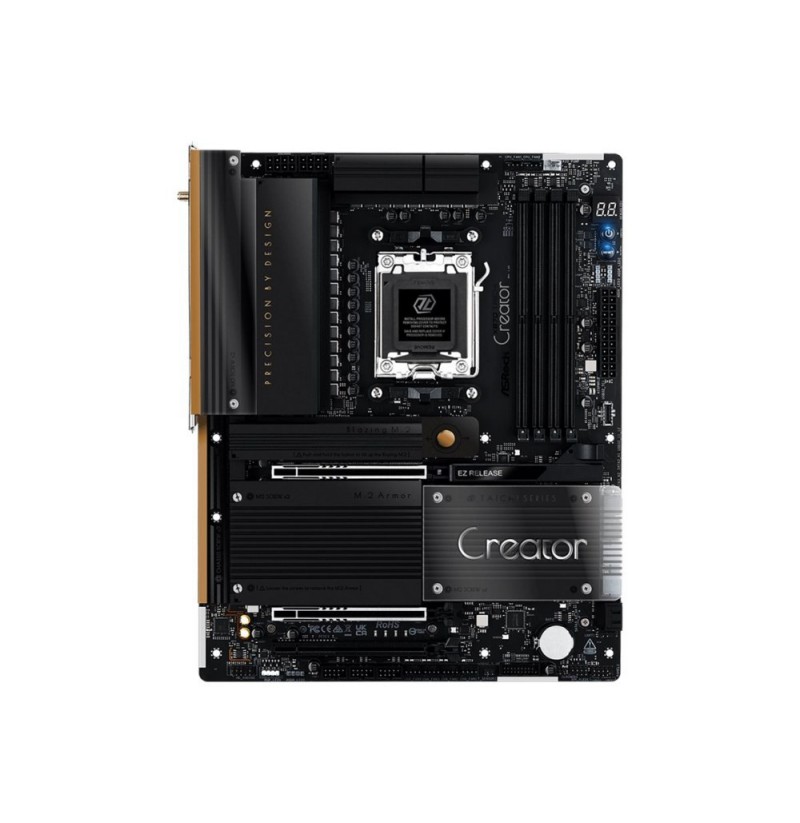

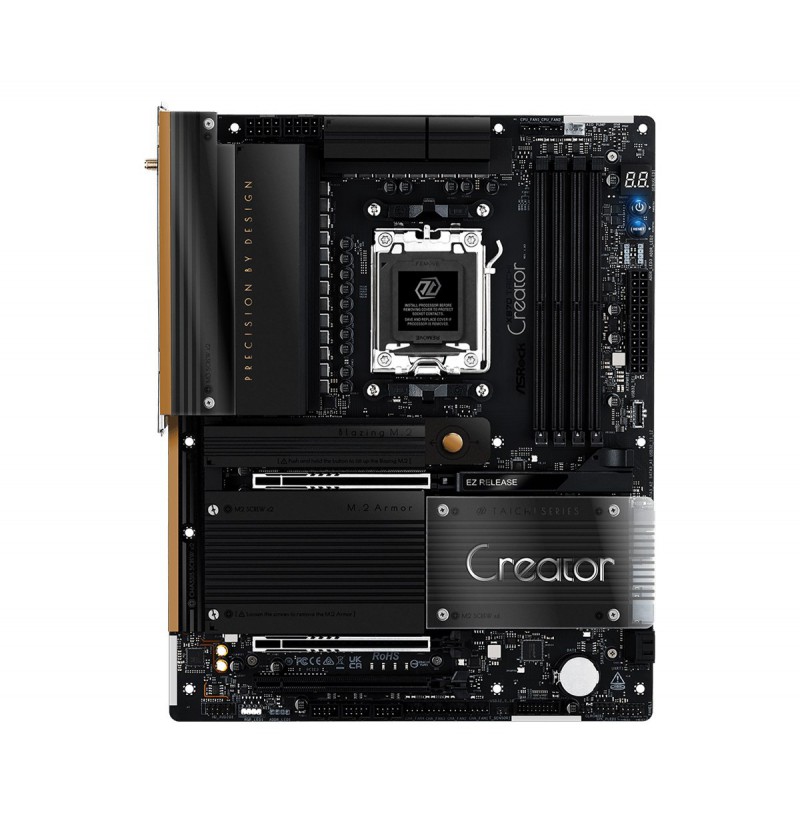

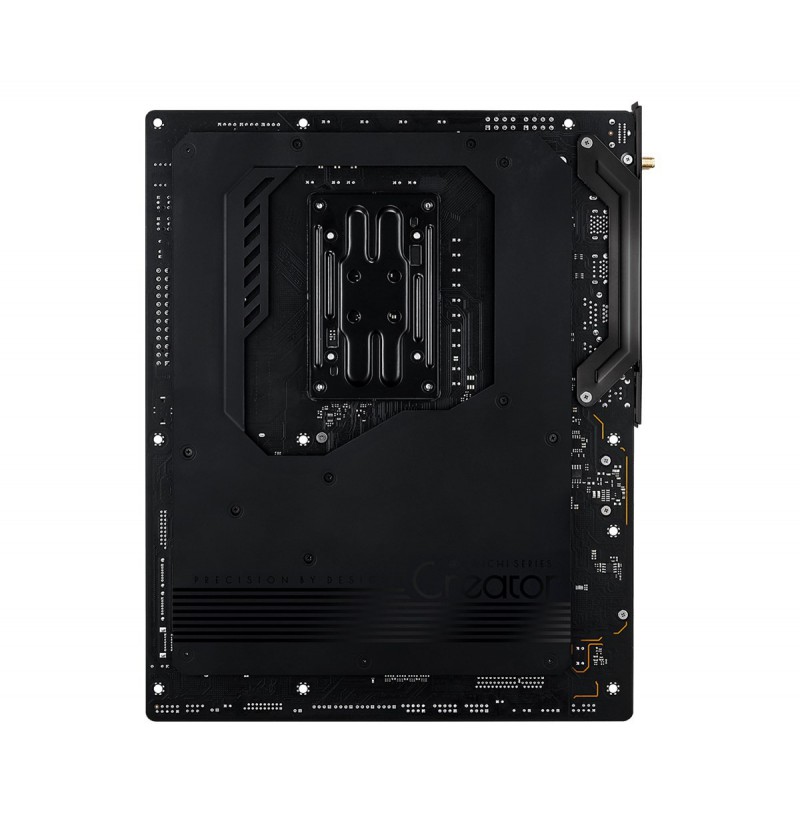

Asrock X870 Taichi Creator AMD X870 Socket AM5 ATX

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset: AMD X870
Audio chip: Realtek ALC4082
Motherboard form factor: ATX
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: AMD
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
ECC сompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory clock speeds: 8000 MHz
Maximum internal memory: 256 GB
Width: 305 mm
Depth: 244 mm
Bluetooth version: 5.4
Ethernet interface type: 10 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, 802.11b
Bluetooth: Yes
LAN controller: Marvell AQC113
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
Number of EPS power connectors (8-pin): 2
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 3
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
BIOS type: EFI AMI
BIOS memory size: 512 Mbit
Antenna included: Yes
Cables included: SATA
RAID support: Yes
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Headphone outputs: 1
Microphone in: Yes

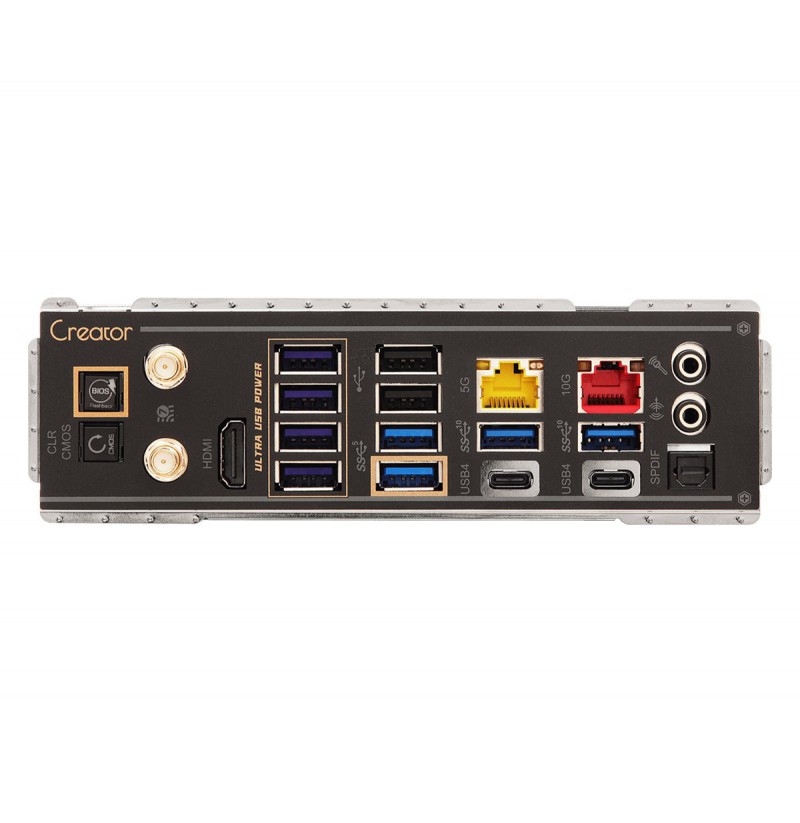

USB4 Gen 3x2 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
S/PDIF out port: Yes
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
