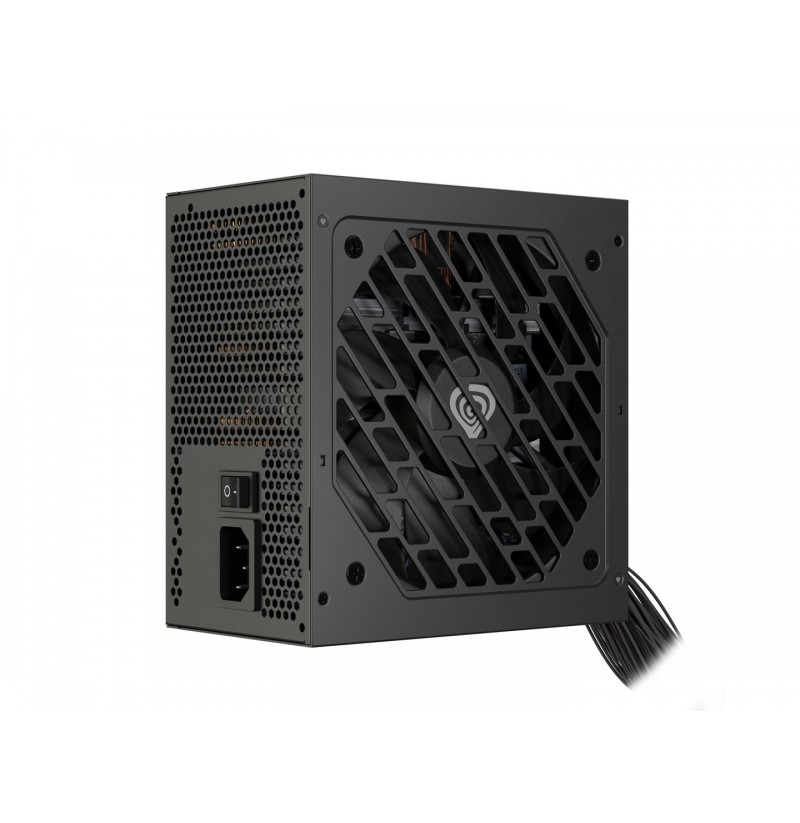

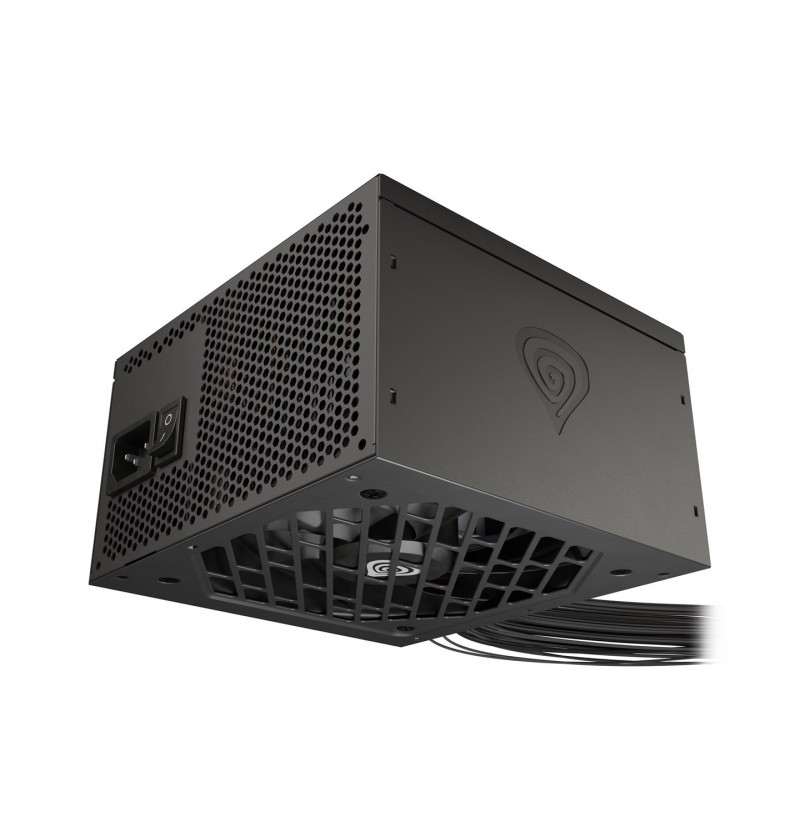

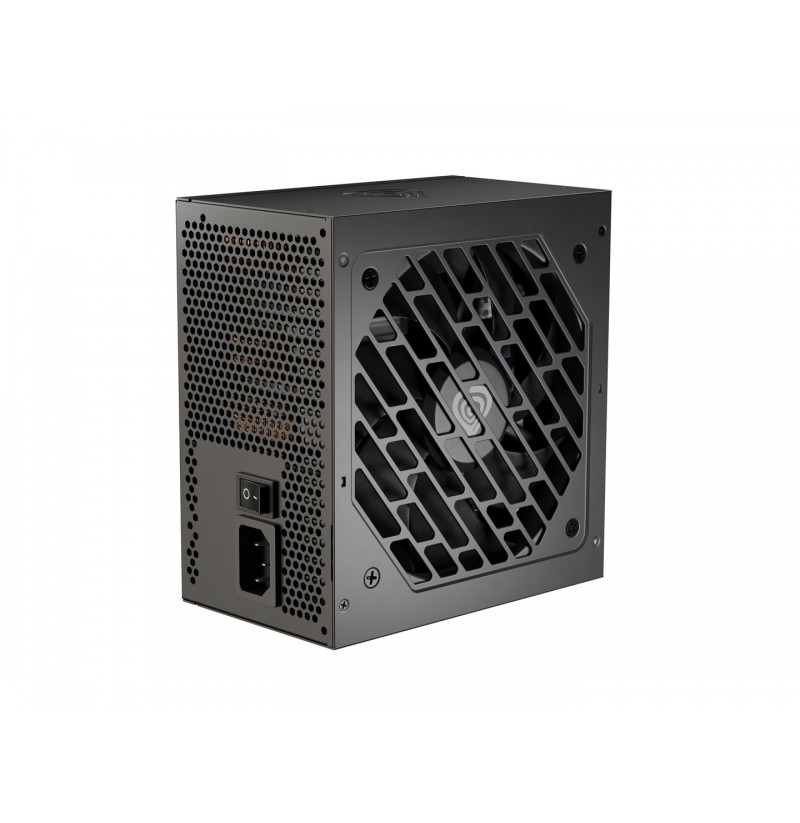

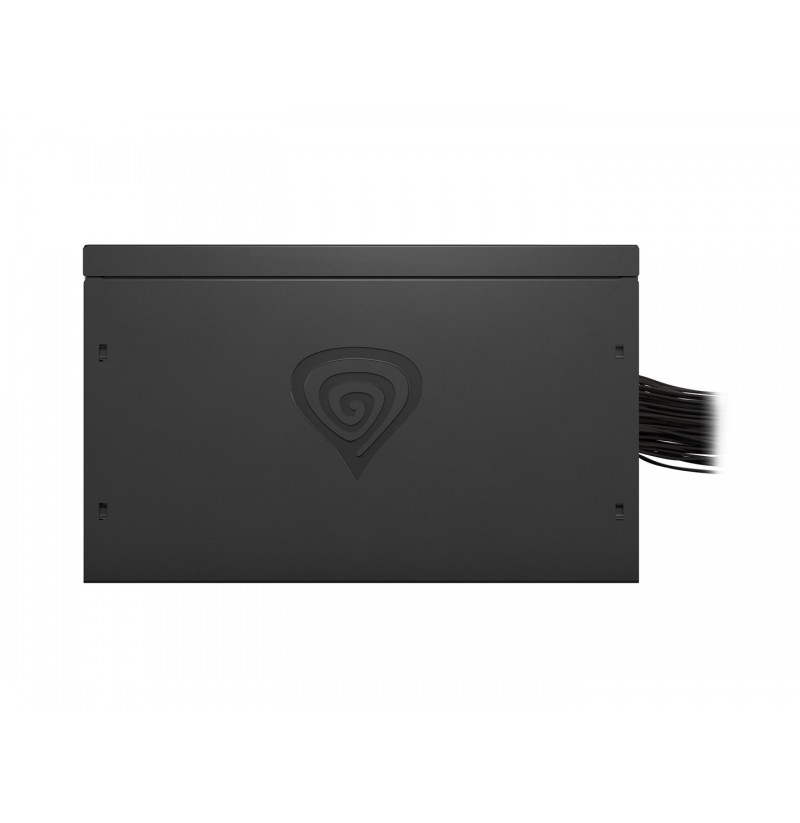

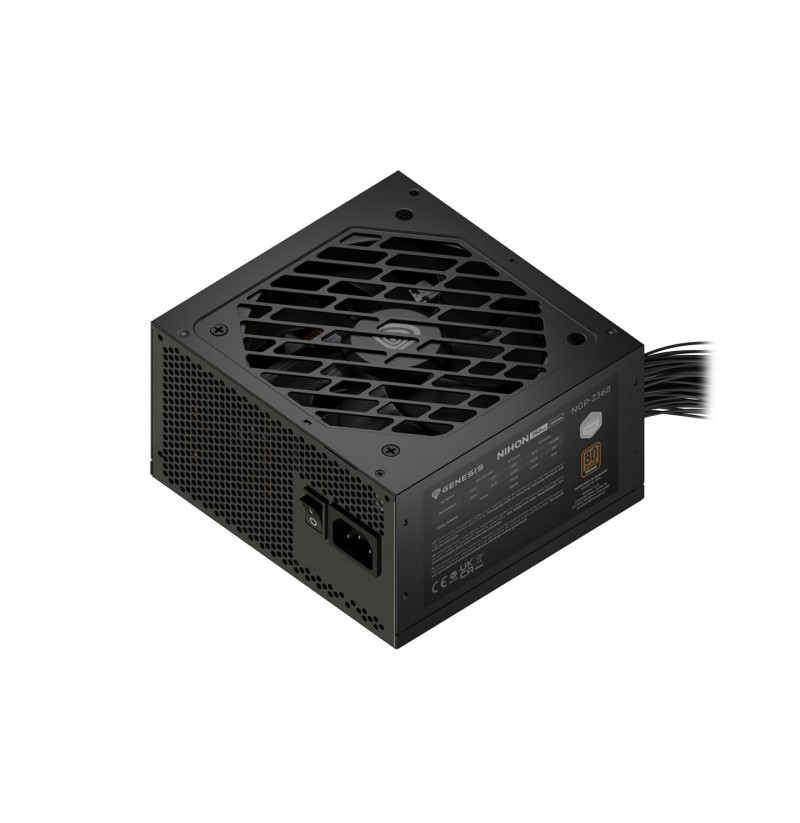

GENESIS Nihon 750NM power supply unit 750 W 20+4 pin ATX ATX Black

Illumination: No
Cooling type: Active
Product colour: Black

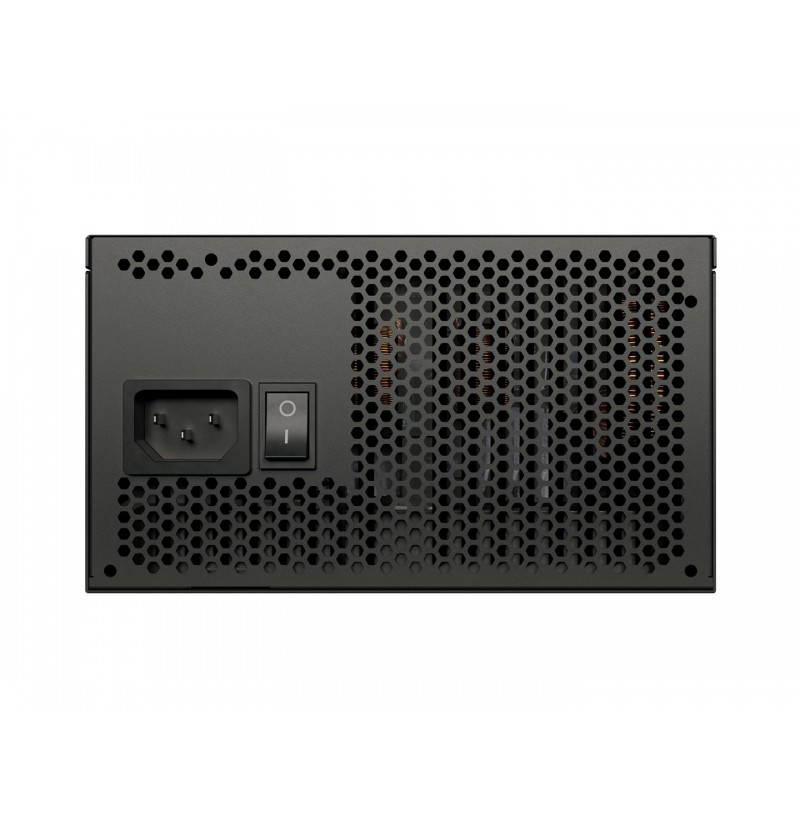

On/off switch: Yes

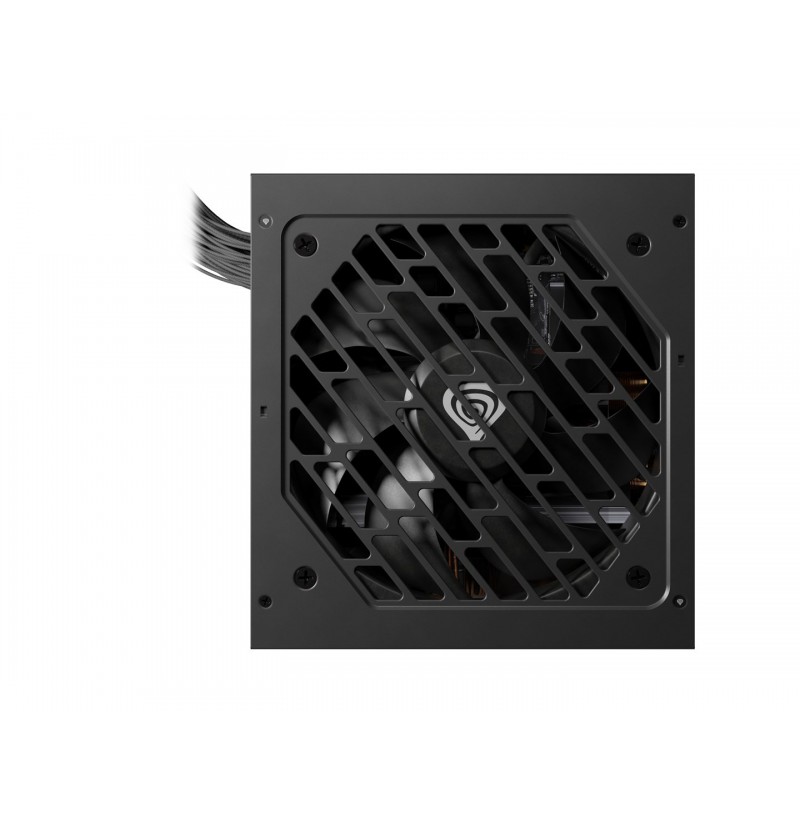

Number of fans: 1 fan(s)
Fan diameter: 12 cm

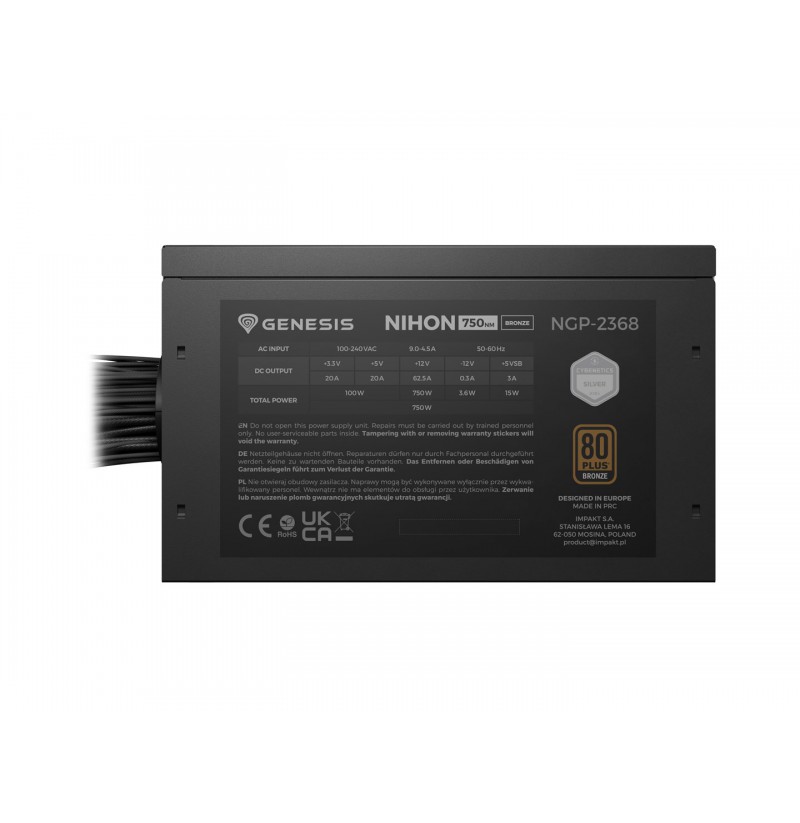

Combined power (+12V): 750 W
Max output current (+3.3V): 20 A
Power protection features: Under voltage, Over current, Short circuit, Overheating, Surge & inrush protection (SIP), Over power, Surge & inrush, No load operation, Surge and inrush
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
AC input voltage: 100 - 240 V
Efficiency: 88%
Combined power (+5V): 100 W
AC input frequency: 50/60 Hz
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Combined power (+3.3V): 100 W
Max output current (+12V): 62.5 A
Power Factor Correction (PFC) type: Active
Total power: 750 W
Input current: 9 - 4.5 A
Max output current (+5V): 20 A
Operating temperature (T-T): 0 - 40 °C
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Weight: 2.13 kg
Noise level: 24.7 dB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 80000 h
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 3.1
Cybenetics certification: Silver
Cybenetics noise rating: Standard++
Package weight: 2.52 kg
Package width: 240 mm
Package height: 125 mm
Package depth: 290 mm

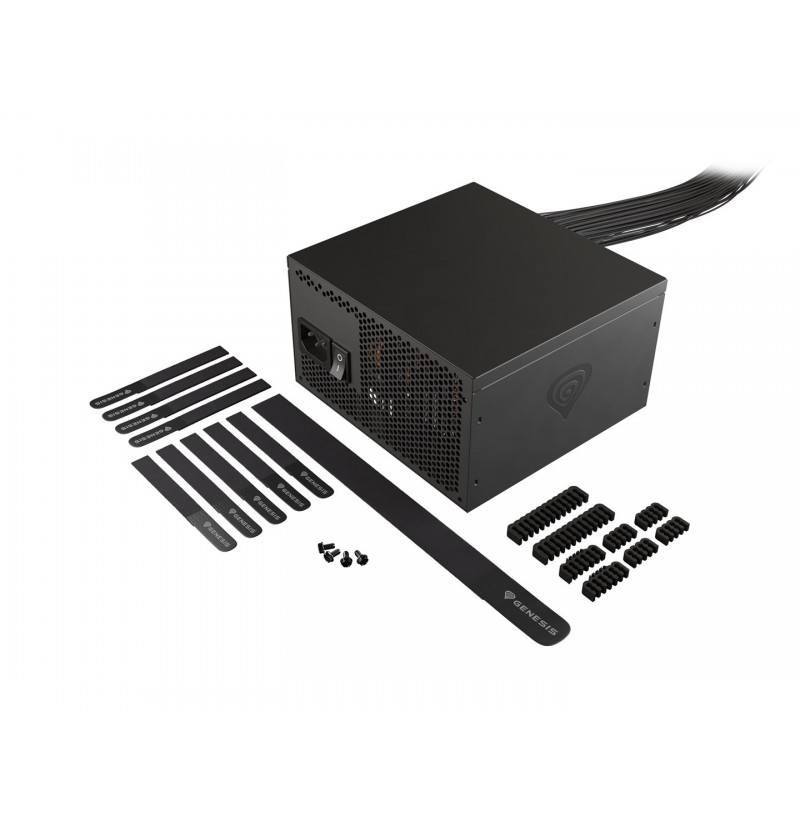

Packaging content: User guide, Set of assembly elements, Velcro bands, Cable combs
Cables included: AC
Compliance certificates: UKCA, RoHS, CE
Number of EPS connectors: 2
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 3
Motherboard power cable length: 55 cm
SATA power cable length: 550, 450, 650 mm
Peripheral (Molex) power connectors (4-pin): 2
CPU power cable length: 85 cm
Motherboard power connector: 20+4 pin ATX
Number of SATA power cables: 2
PCI Express connector: Yes
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 67 cm
Peripheral (Molex) power cable length: 750 mm
