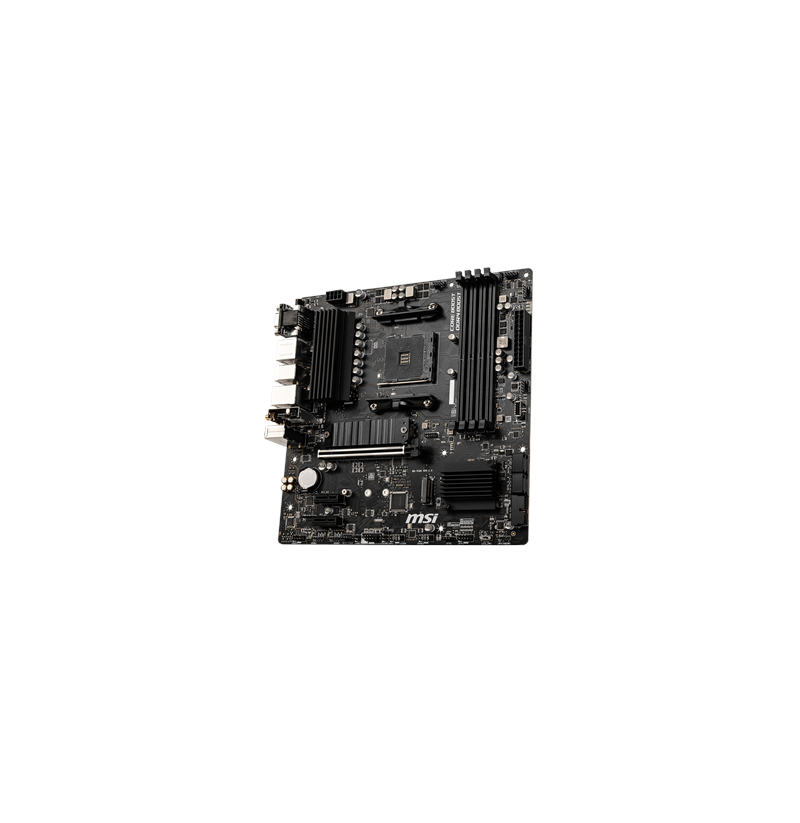

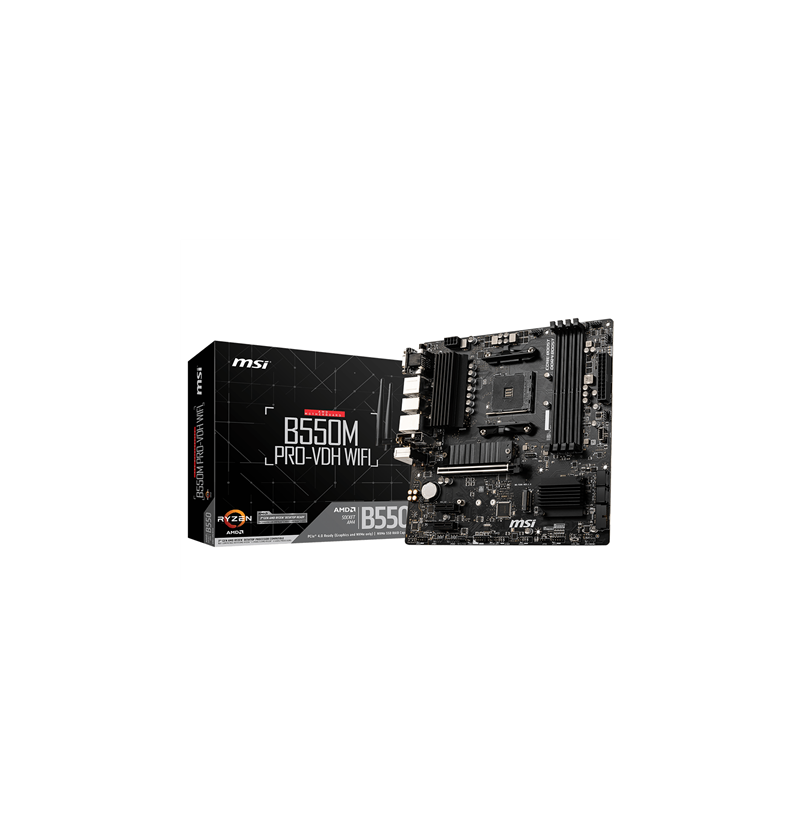

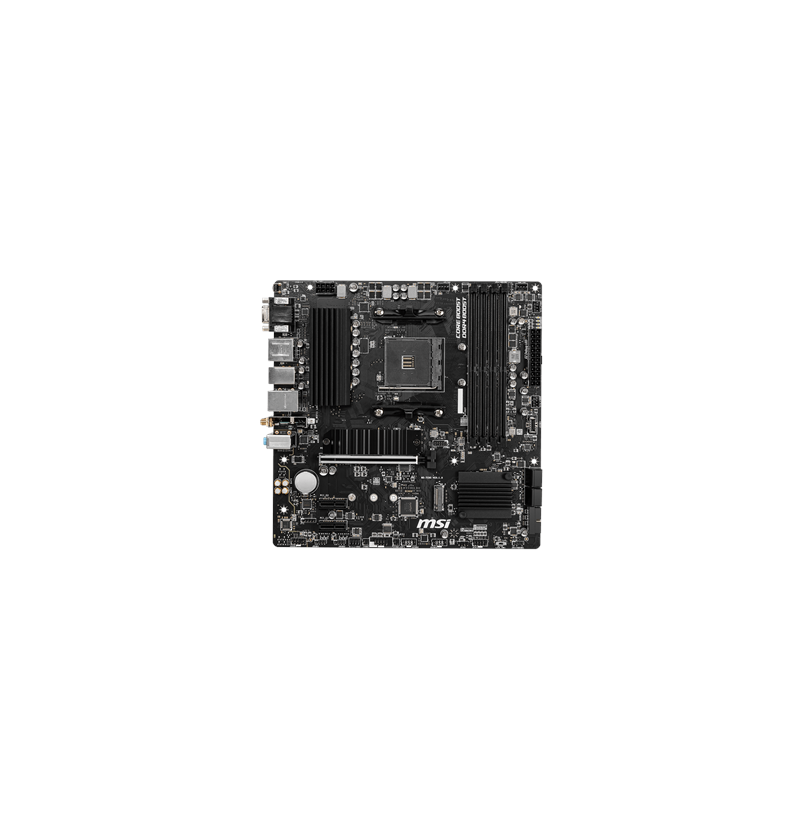

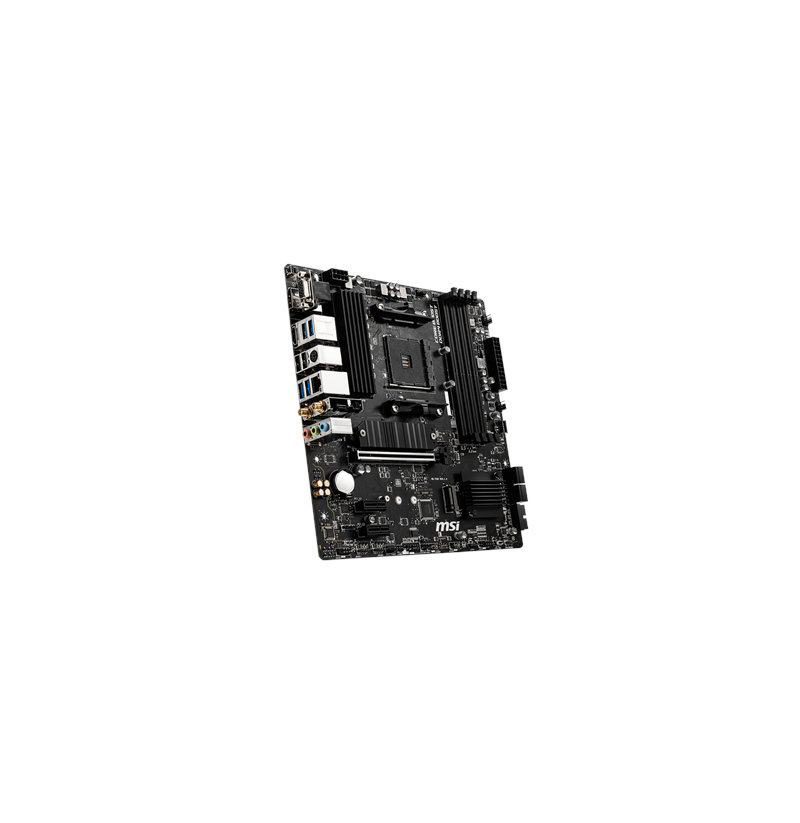

MSI B550M PRO-VDH WIFI motherboard Socket AM4 micro ATX AMD B550

Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
Parallel processing technology support: Not supported
Motherboard chipset: AMD B550
Audio chip: Realtek ALC892
Product colour: Black
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Number of mounting holes: 8
Supported memory clock speeds: 3866, 4133, 4000, 2667, 3733, 4400, 3066, 3000, 3466, 3200 MHz, 4266, 2400, 2800, 1866, 2933, 3600, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Depth: 244 mm
Width: 244 mm
Height: 65 mm
Bluetooth: Yes
LAN controller: Realtek 8111HN
Ethernet LAN: Yes
Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 4.2
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
CPU fan connector: Yes
Number of SATA III connectors: 4
Serial port headers: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
12V power connector: Yes
Clear CMOS jumper: Yes
Drivers included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
RAID levels: 1, 0, 10
Supported storage drive interfaces: SATA III
RAID support: Yes

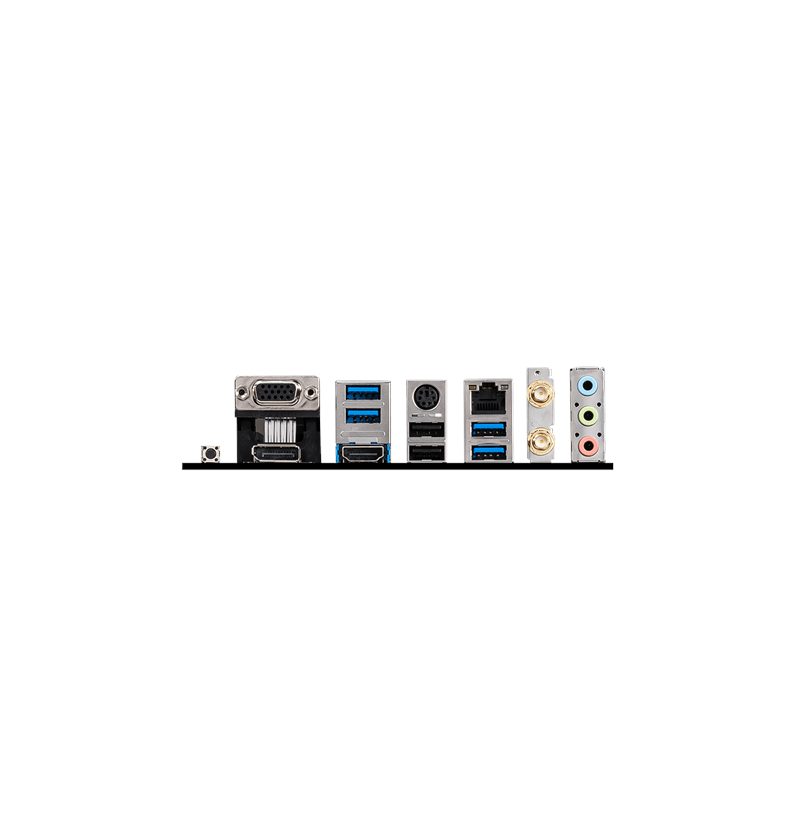

DisplayPorts quantity: 1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
WiFi-AP antenna jack: 2
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Weight: 1 kg
Harmonized System (HS) code: 84733020
Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
