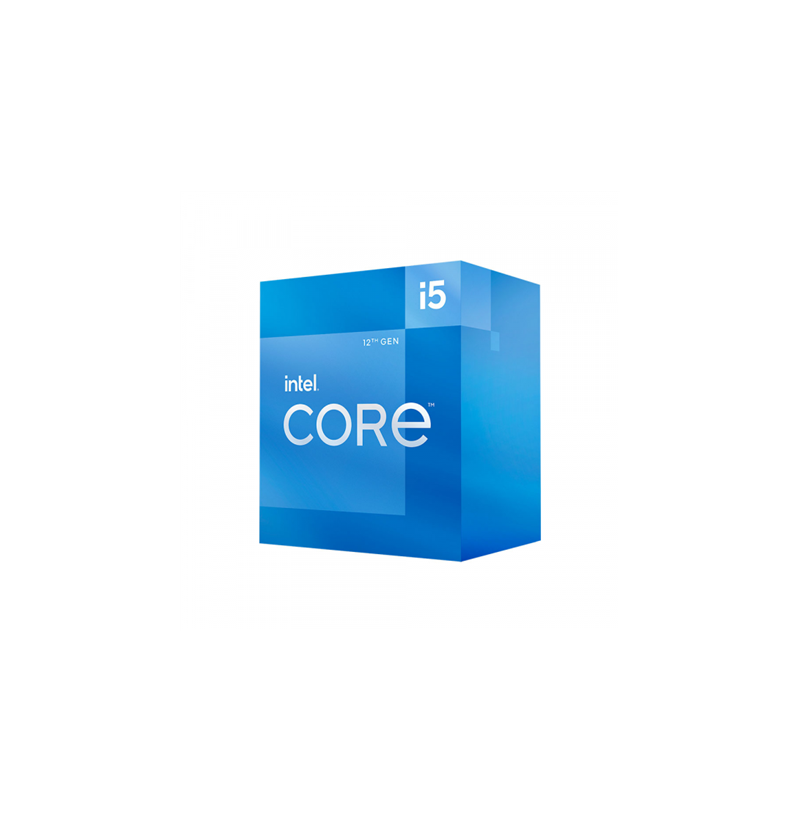

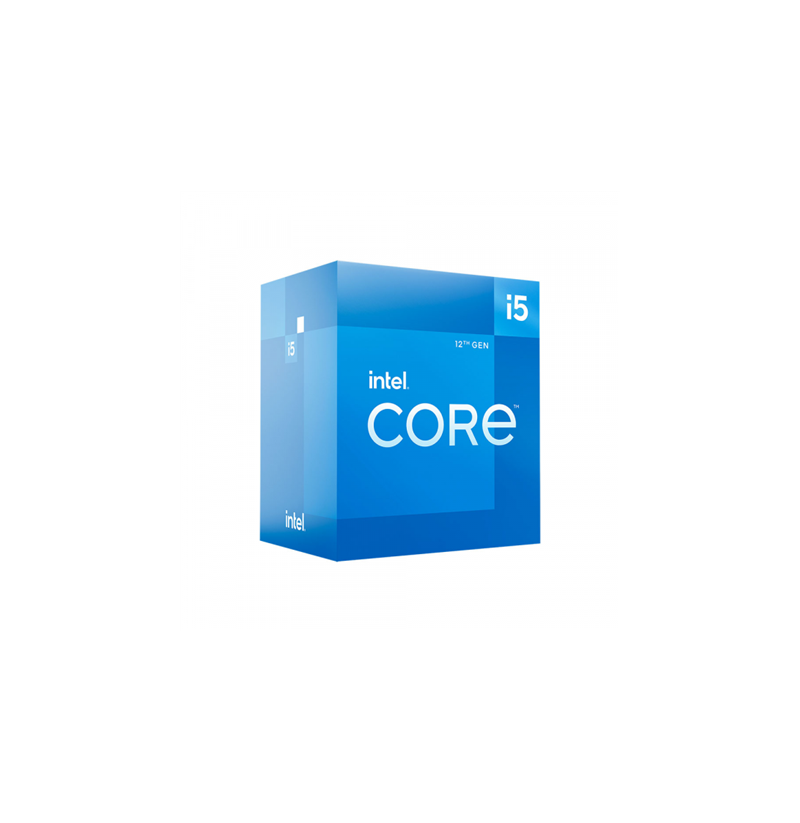

Intel | i5-12400 | 2.5 GHz | LGA1700 | Processor threads 12 | Intel Core i5 | Processor cores 6

Status: Launched
OpenCL version: 2.1
Launch date: Q1'22
Target market: Gaming
Memory bandwidth supported by processor (max): 76.8 GB/s
Processor cache type: Smart Cache
Processor cores: 6
Processor model: i5-12400
Performance cores: 6
Processor manufacturer: Intel
Performance-core base frequency: 2.5 GHz
Processor threads: 12
Processor codename: Alder Lake
Performance-core boost frequency: 4.4 GHz
Processor operating modes: 64-bit
Cooler included: Yes
Processor cache: 18 MB
Processor socket: LGA 1700
Box: Yes
Processor family: Intel® Core™ i5
Bus type: DMI4
Processor generation: 12th gen Intel® Core™ i5
Processor base power: 65 W
Maximum number of DMI lanes: 8
Maximum turbo power: 117 W
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
Discrete graphics card: No
Number of displays supported (on-board graphics): 4
Number of execution units: 24
On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels
On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
Discrete graphics card model: Not available
On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels
On-board graphics card: Yes
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz
On-board graphics card dynamic frequency (max): 1450 MHz
On-board graphics card OpenGL version: 4.5
On-board graphics card base frequency: 300 MHz
On-board graphics card model: Intel UHD Graphics 730
On-board graphics card DirectX version: 12.0
On-board graphics card ID: 0x4692 / 0x4682
On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a
Multi-Format Codec Engines: 1
Maximum number of PCI Express lanes: 20
PCI Express slots version: 5.0, 4.0
Harmonized System (HS) code: 8542310001
Supported instruction sets: AVX 2.0, SSE4.2, SSE4.1
Commodity Classification Automated Tracking System (CCATS): G167599
Scalability: 1S
Embedded options available: No
PCI Express configurations: 1x16+1x4, 2x8+1x4
Thermal Monitoring Technologies: Yes
CPU configuration (max): 1
Execute Disable Bit: Yes
Idle States: Yes
Market segment: Desktop
Direct Media Interface (DMI) Revision: 4.0
Export Control Classification Number (ECCN): 5A992CN3
Use conditions: PC/Client/Tablet
Memory bandwidth (max): 76.8 GB/s
Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
Maximum internal memory supported by processor: 128 GB
Memory channels: Dual-channel
Tjunction: 100 °C
Processor package size: 45 x 37.5 mm
Intel® Speed Shift Technology: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Boot Guard: Yes
Intel® Optane™ Memory Ready: Yes
Intel® OS Guard: Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Thread Director: No
Mode-based Execute Control (MBE): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Virtualization Technology (VT-x): Yes
Intel® Secure Key: Yes
Intel® Quick Sync Video Technology: Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel 64: Yes
Intel® Volume Management Device (VMD): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel Turbo Boost Max Technology 3.0: No
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Maximum internal memory: 128 GB
Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
Warnings: Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.
