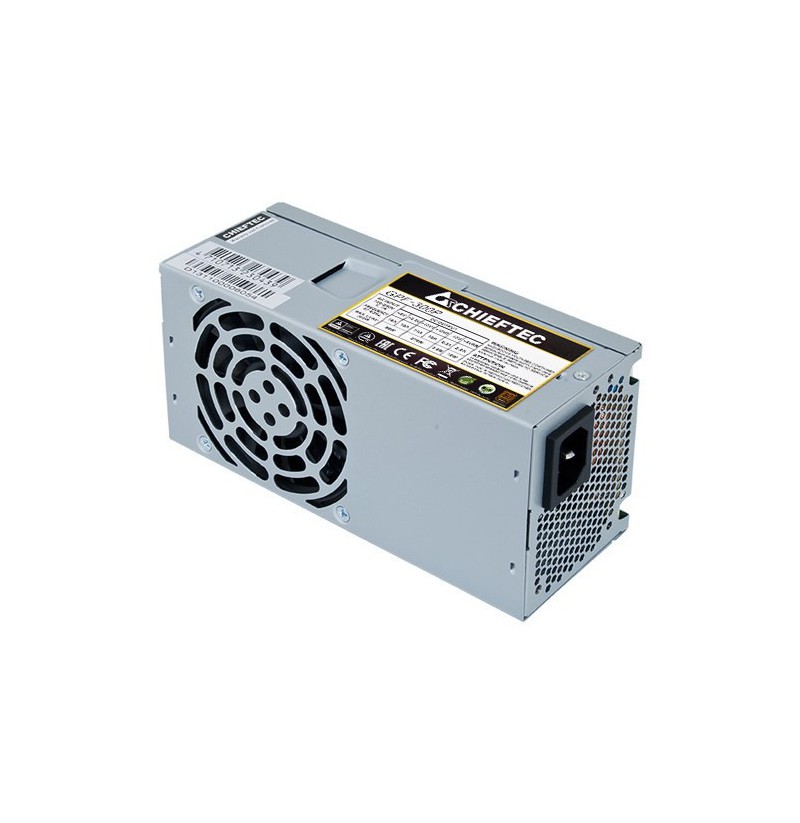

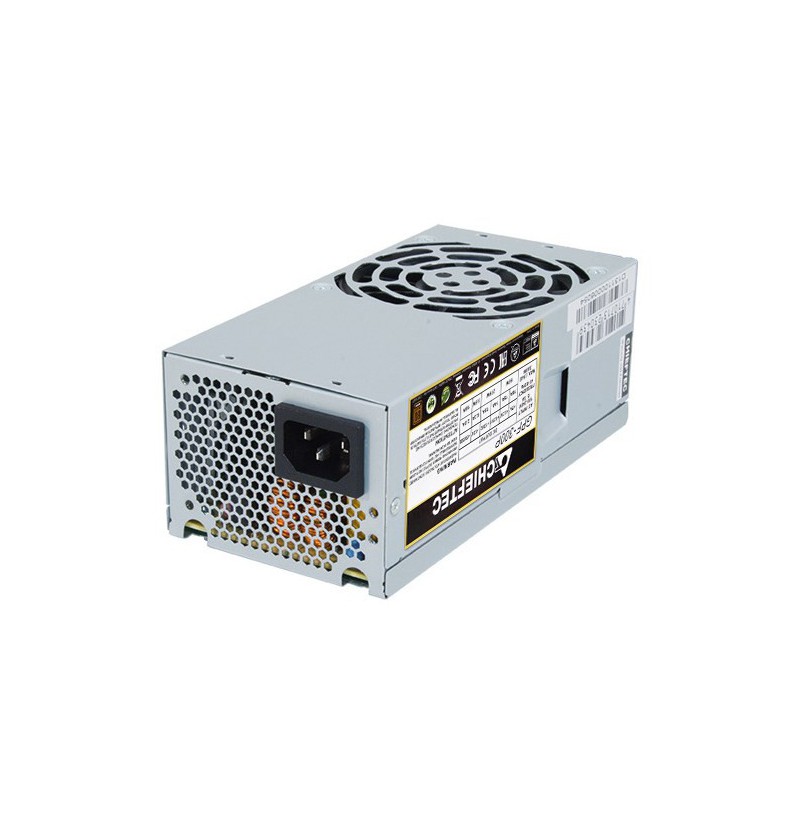

Chieftec Smart GPF-400P power supply unit 400 W 20+4 pin ATX TFX Grey

Number of fans: 1 fan(s)
Product colour: Grey
Cooling type: Active
Fan diameter: 8 cm
Combined power (+5Vsb): 10 W
Max output current (+5V): 18 A
Combined power (+5V): 105 W
Max output current (+12V2): 17 A
Max output current (-12V): 0.3 A
Max output current (+12V1): 17 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Max output current (+5Vsb): 2 A
Power protection features: Short circuit, Over voltage, Overheating, Overload, Under voltage
Total power: 400 W
Combined power (-12V): 3.6 W
Efficiency: 85%
Combined power (+12V): 336 W
Max output current (+3.3V): 16 A
Power factor: 0.9
AC input frequency: 47 - 63 Hz
Input current: 6.3 A
AC input voltage: 100 - 240 V
Height: 65 mm
Width: 85 mm
Weight: 1.07 kg
Depth: 175 mm
Power supply unit (PSU) form factor: TFX
Purpose: PC/Server
ATX version: 2.3
Package weight: 1.13 kg
Compliance certificates: RoHS, CE, EAC, Federal Communications Commission (FCC)
Peripheral (Molex) power cable length: 150 mm, 350
Motherboard power cable length: 30 cm
EPS power connector (4+4 pin): Yes
CPU power cable length: 35 cm
Floppy drive power connector: 1
Motherboard power connector: 20+4 pin ATX
Floppy disk drive cable length: 15 cm
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Non-Modular
SATA power cable length: 350, 150 mm
