Deepcool PSU PF500 500 W, 80 PLUS Padidinti

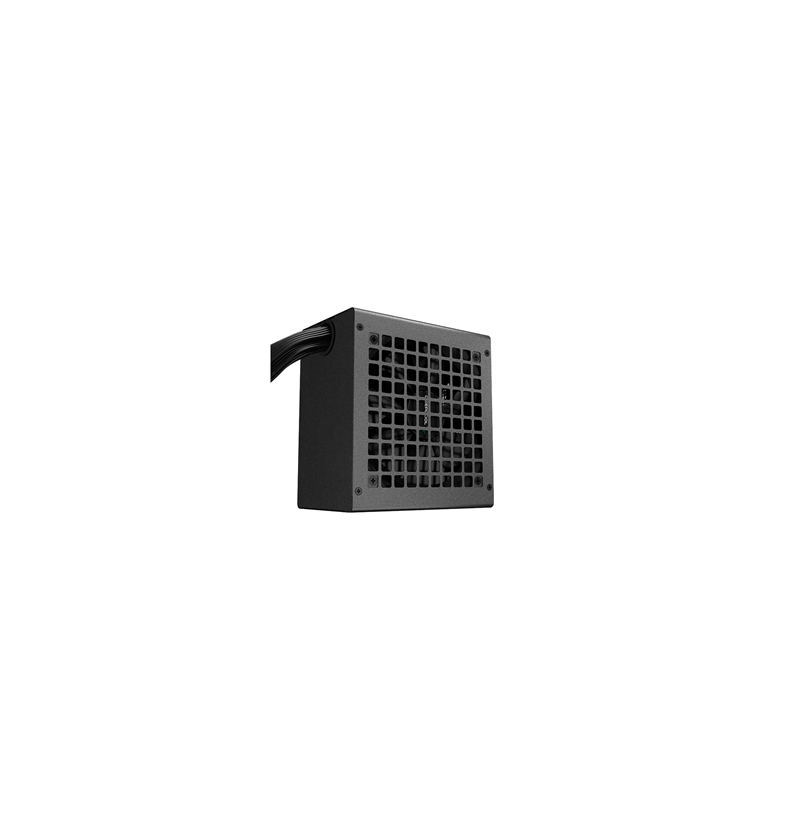

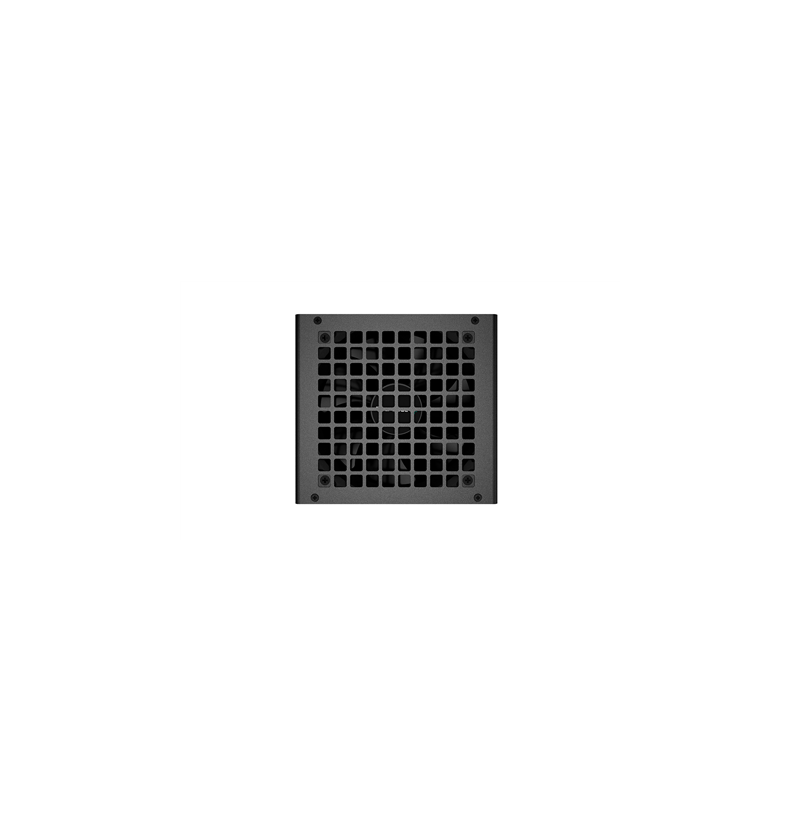

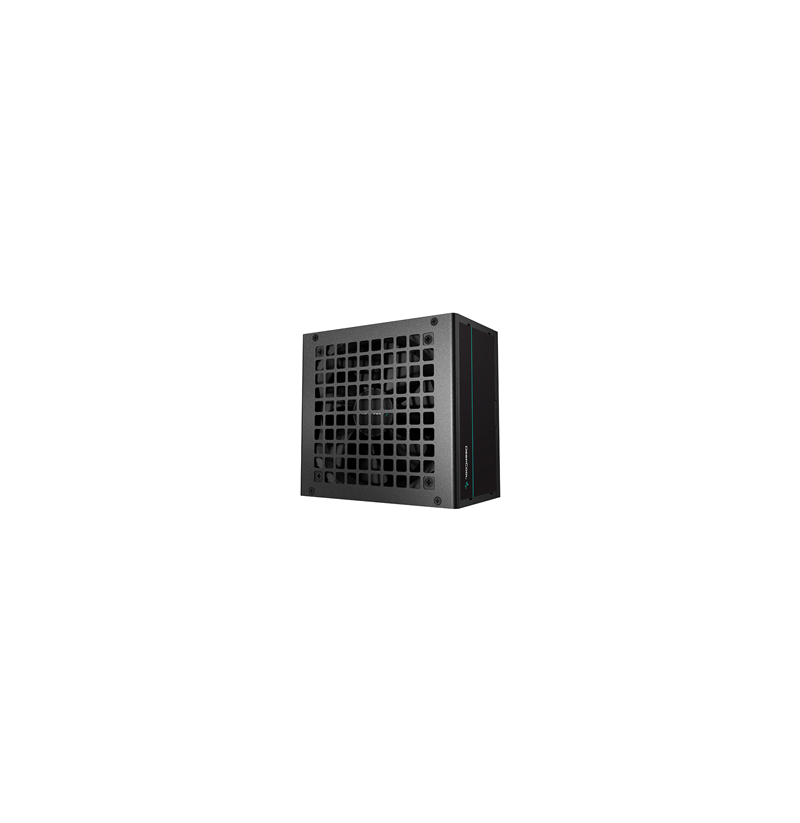

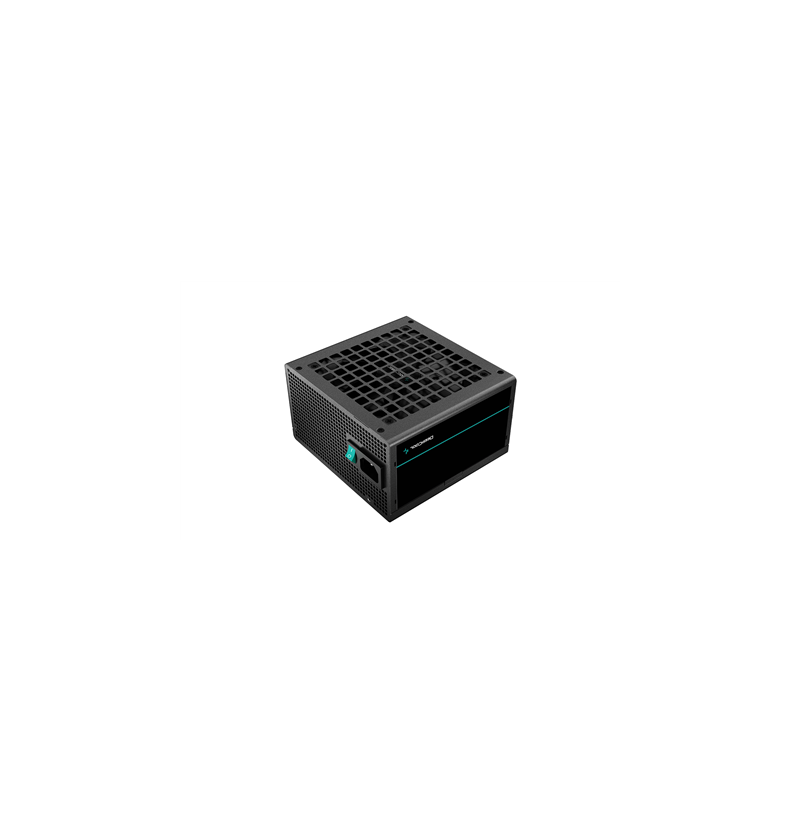

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black

43,11 €

R-PF500D-HA0B-EU

6933412711254

Galimas pasirinkimas

 pristatymas 5...7 d.d.


On/off switch: Yes
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Efficiency: 85%
Max output current (+3.3V): 15 A
Combined power (-12V): 3.6 W
Power protection features: Under voltage, Over power, Short circuit, Over voltage
Hold time: 16 ms
Max output current (+5V): 15 A
Total power: 500 W
Combined power (+12V): 480 W
Max output current (-12V): 0.3 A
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Max output current (+12V): 40 A
AC input frequency: 50 Hz
Max output current (+5Vsb): 2.5 A
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Purpose: PC/Server
80 PLUS certification: 80 PLUS
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Mean time between failures (MTBF): 100000 h
Package type: Box
Cables included: AC
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 450, 900 mm, 600, 750 mm
Motherboard power cable length: 55 cm
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 4
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 2
