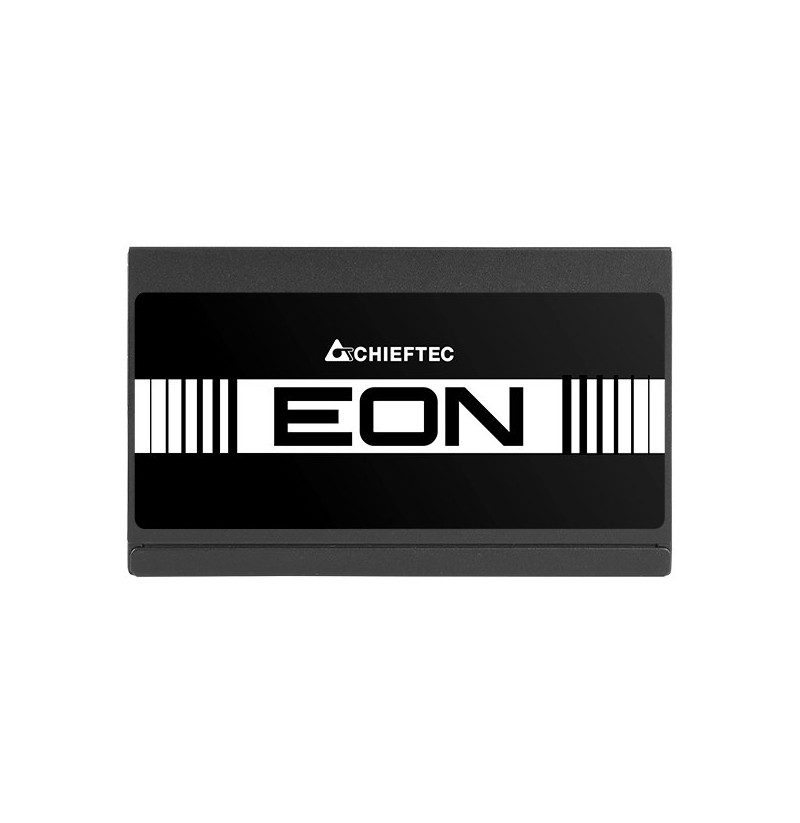

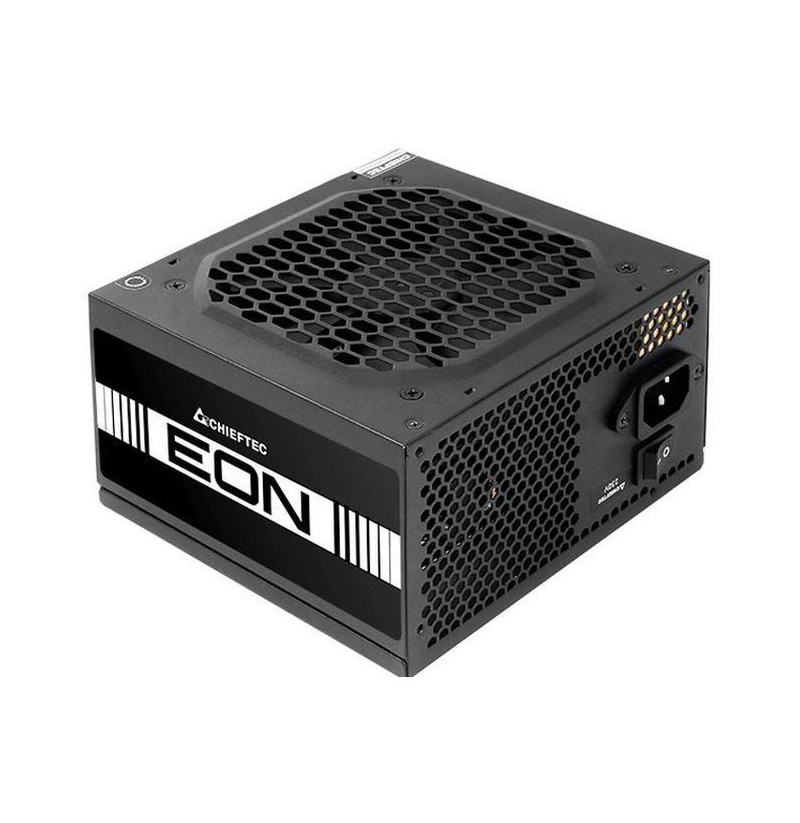

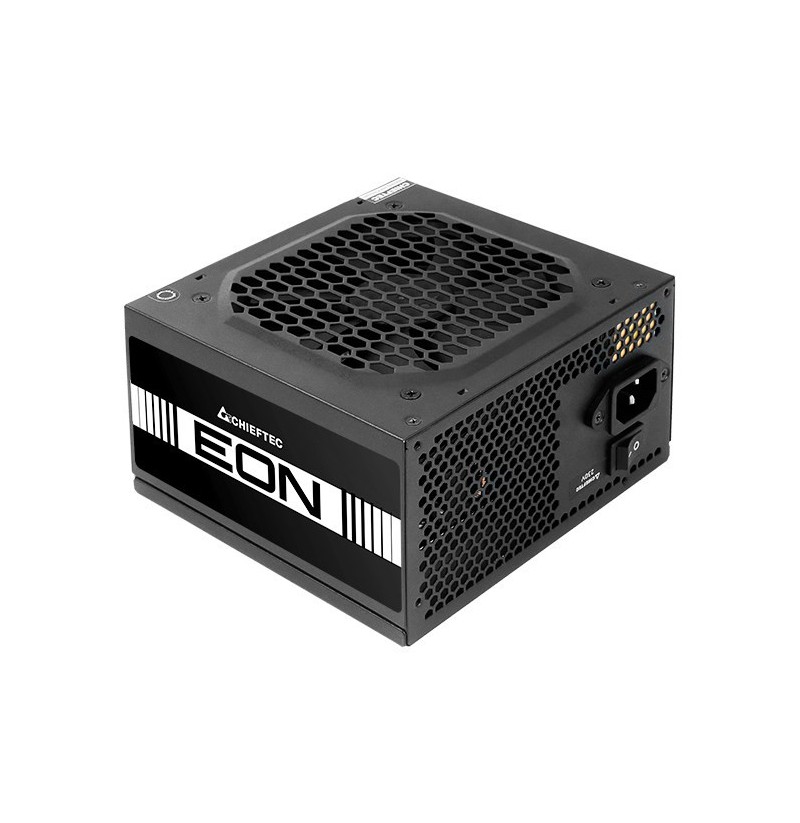

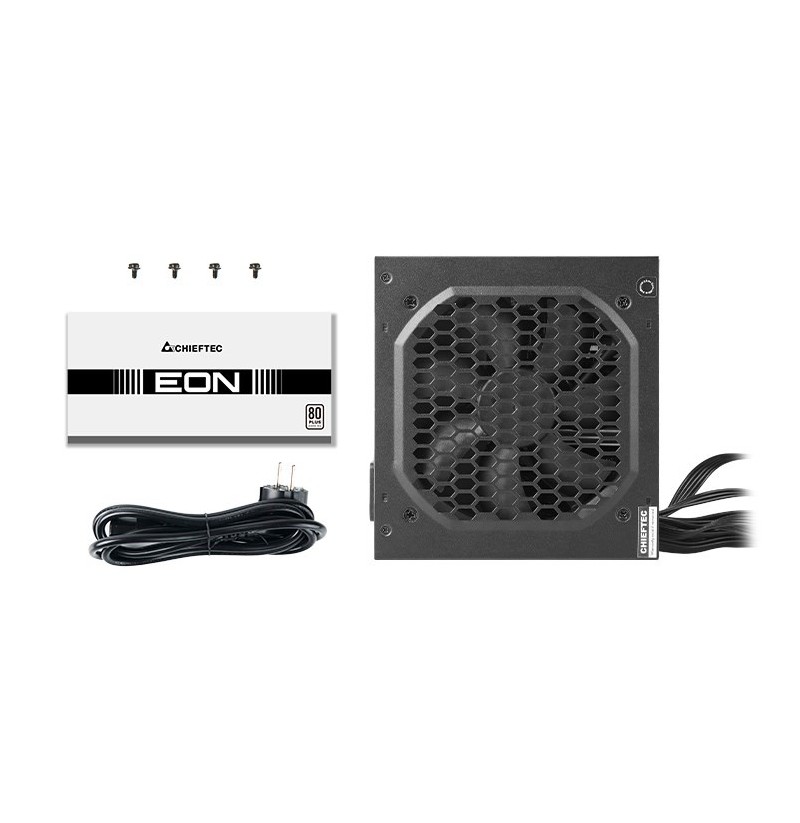

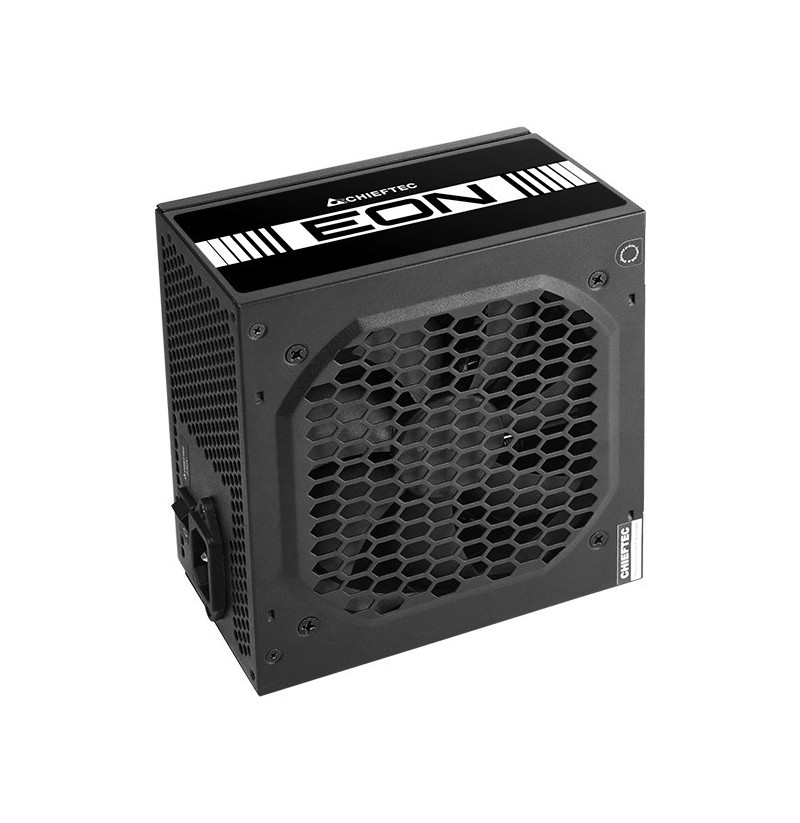

Chieftec EON 500W ATX Retail 80 PLUS W

Sustainability certificates: ErP
Product colour: Black

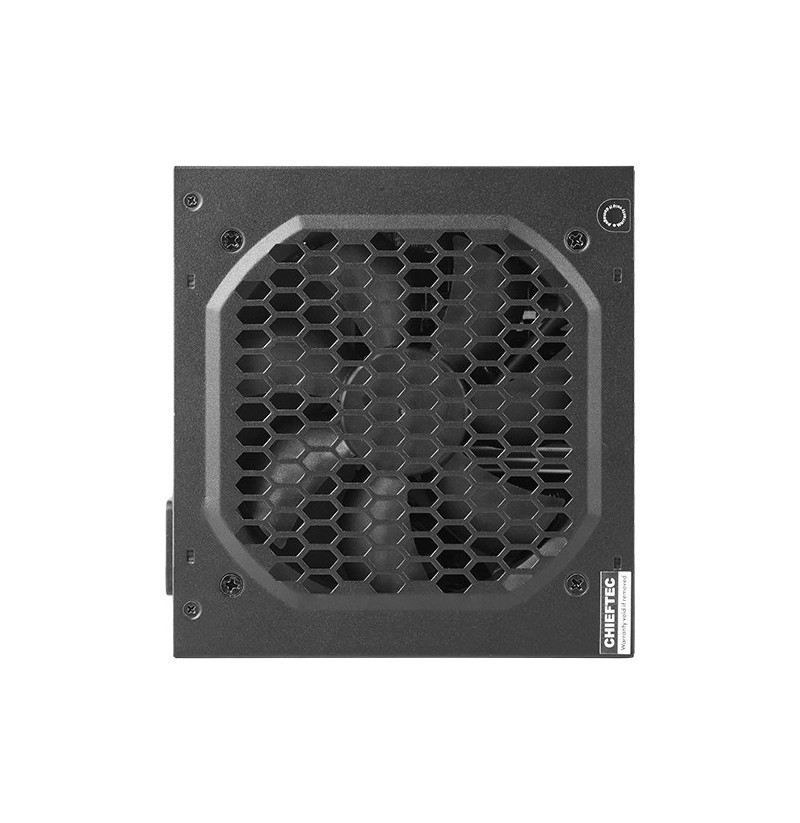

Fan diameter: 12 cm
Cooling type: Active

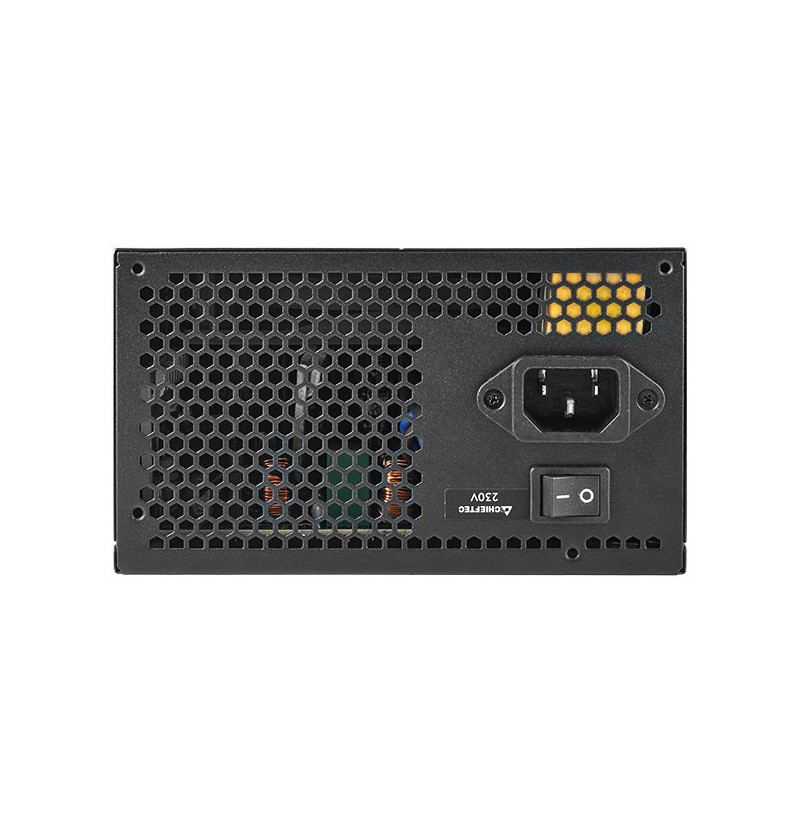

On/off switch: Yes
Total power: 500 W
Power protection features: Surge and inrush, Short circuit, Surge protection
Max output current (+12V1): 37 A
Power factor: 0.9
Combined power (+3.3V): 100 W
AC input voltage: 200 - 240 V
Combined power (+5Vsb): 12.5 W
Input current: 3.5 A
Max output current (+5V): 20 A
Combined power (-12V): 4.8 W
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.4 A
Combined power (+12V): 444 W
Max output current (+3.3V): 20 A
AC input frequency: 50 Hz
Combined power (+5V): 100 W
Weight: 1.2 kg
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Power supply unit (PSU) form factor: ATX
Purpose: PC/Server
ATX version: 2.3
Supported motherboard form factors: ATX
80 PLUS certification: 80 PLUS
Package weight: 1.45 kg
Package type: Box
Compliance certificates: CB, EAC, RoHS, CE
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
SATA power cable length: 450 mm, 750 mm, 600 mm
Number of SATA power connectors: 4
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power cable length: 65 cm
Peripheral (Molex) power cable length: 150, 450 mm
Warranty period: 2 year(s)
Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Do not open the case - risk of electric shock.
Hazard pictogram(s): GHS09: Environmental hazard, GHS02: Flammable, GHS07: Harmful
