Nauja Thermaltake TR2 S power supply unit 500 W 20+4 pin ATX ATX Padidinti

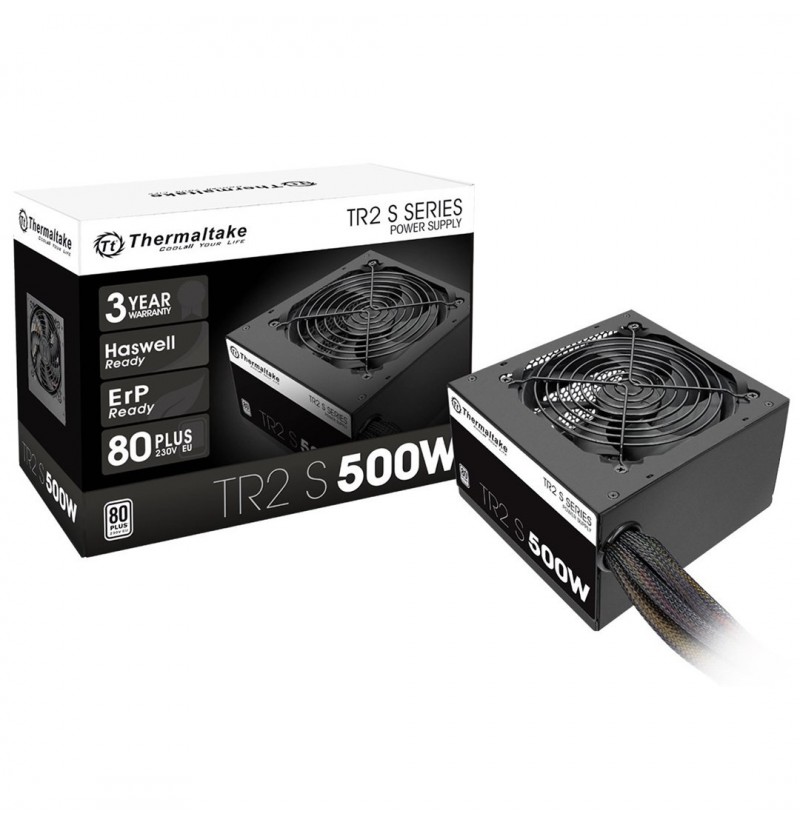

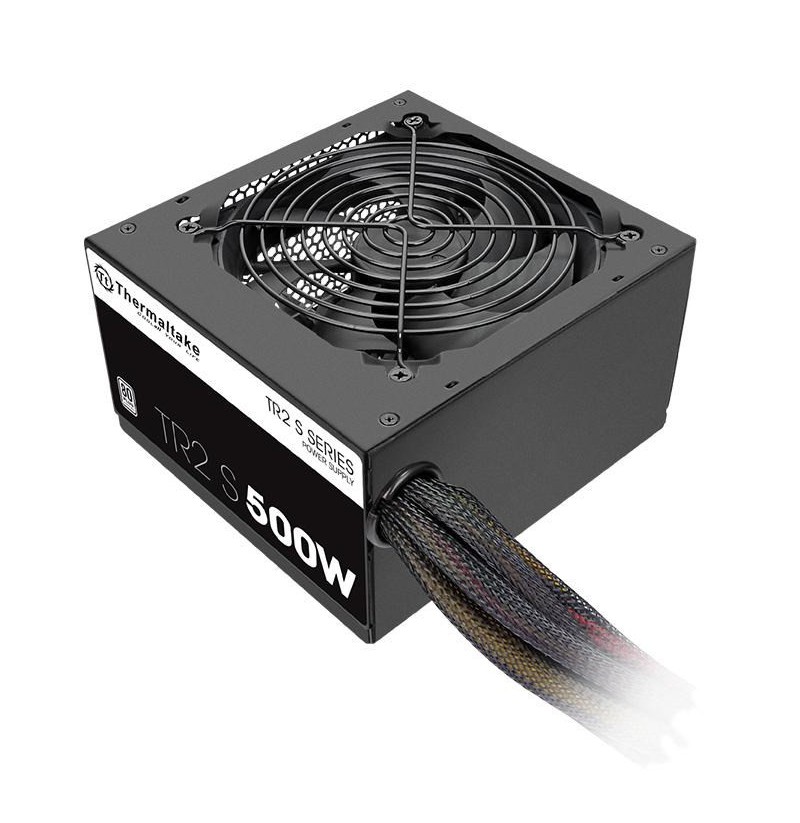

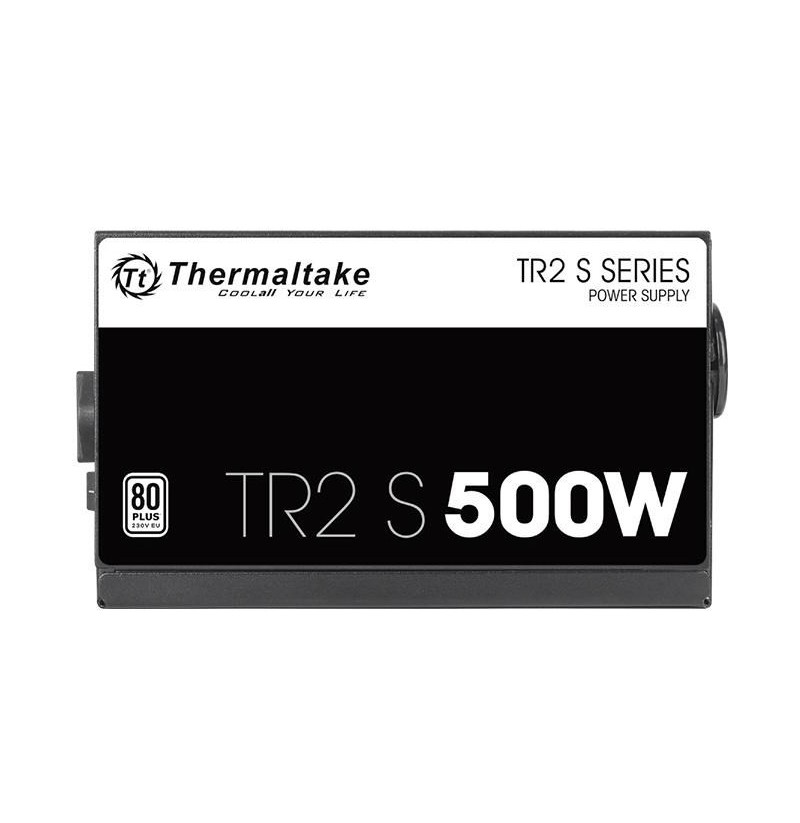

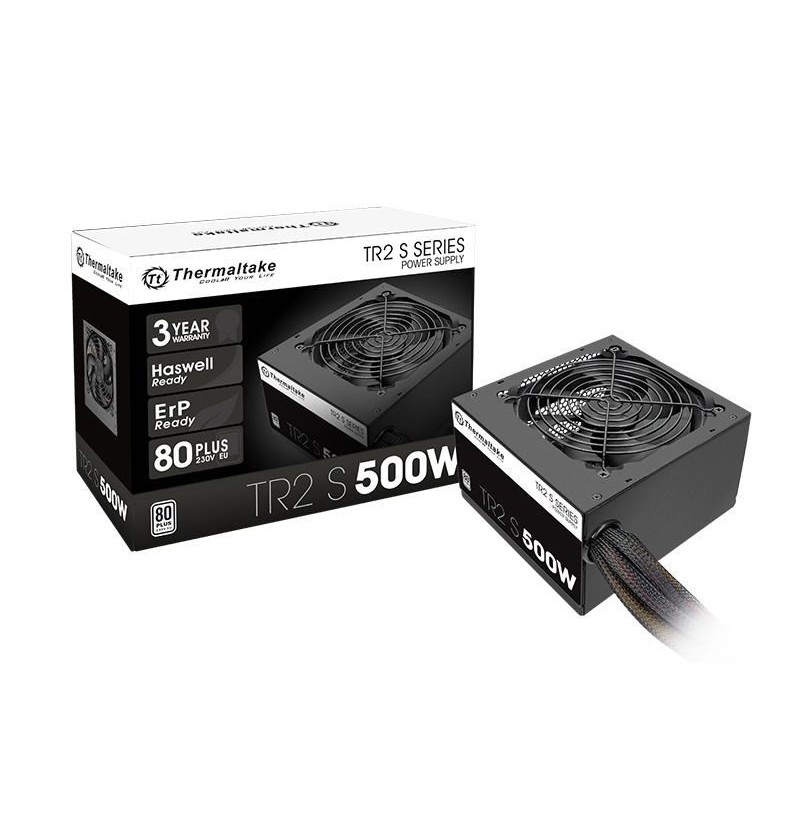

Thermaltake TR2 S power supply unit 500 W 20+4 pin ATX ATX

62,93 €

4717964401779

Galimas pasirinkimas

 pristatymas 11...13 d.d.

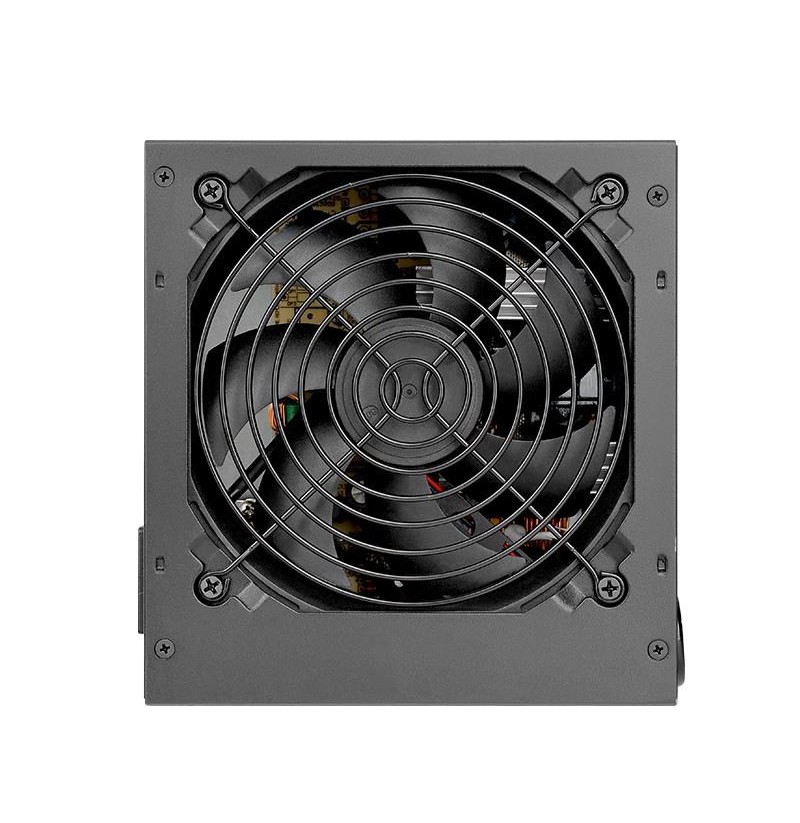

Fan location: Top
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 1800
Combined power (+3.3V): 100 W
Efficiency: 86%
Max output current (-12V): 0.5 A
Hold time: 16 ms
Power Factor Correction (PFC) type: Active
AC input frequency: 50 - 60 Hz
Power Good signal delay range: 100 - 500 ms
Max output current (+12V): 35 A
Combined power (+5V): 100 W
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Total power: 500 W
Combined power (+12V): 420 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
AC input voltage: 230 V
Max output current (+5V): 15 A
Input current: 8 A
Operating relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 5 - 40 °C
Storage relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 55 °C
Depth: 140 mm
Width: 86 mm
Height: 150 mm
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Purpose: PC
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS
Floppy disk drive connector: Yes
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Harmonized System (HS) code: 84733020
