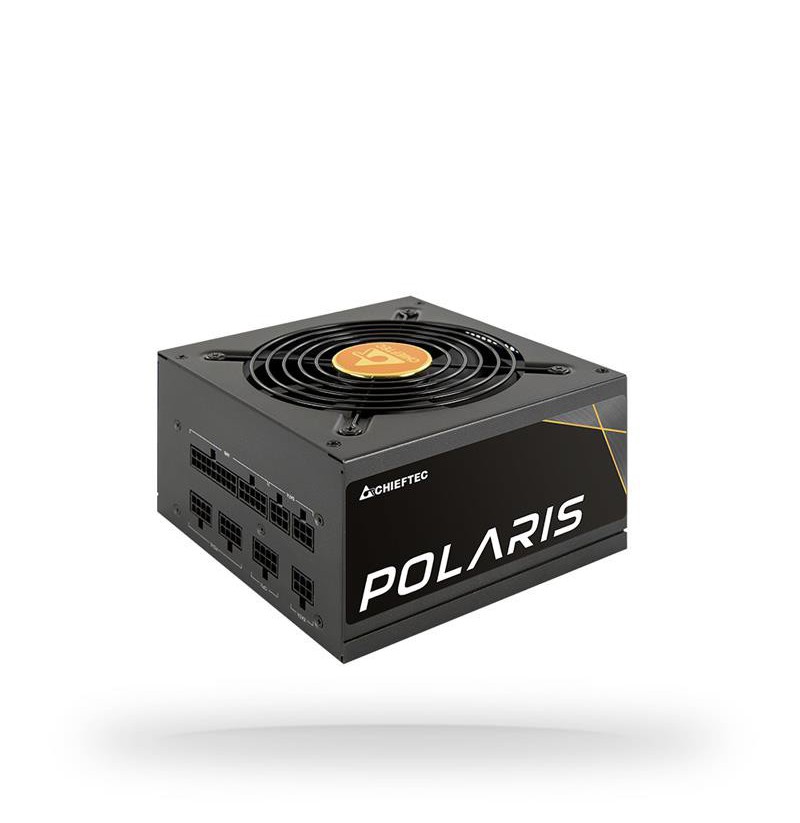

Chieftec Polaris power supply unit 550 W 20+4 pin ATX PS/2 Black

91,36 €

7532630764272

Galimas pasirinkimas

 pristatymas 4...6 d.d.


Sustainability certificates: RoHS
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Black
Fan location: Top
Cooling type: Active
Combined power (+3.3V): 105 W
Max output current (+12V): 45.8 A
Combined power (+5Vsb): 15 W
Power Factor Correction (PFC) type: Active
AC input frequency: 50 - 60 Hz
Combined power (+5V): 105 W
AC input voltage: 100 - 240 V
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Total power: 550 W
Max output current (+5Vsb): 3 A
Combined power (+12V): 550 W
Max output current (+3.3V): 20 A
Input current: 8 A
Power protection features: Overheating, Under voltage, Over current, Short circuit, Over voltage, Overload
Height: 87 mm
Width: 150 mm
Weight: 2.02 kg
Depth: 140 mm
ATX version: 2.4
Power supply unit (PSU) form factor: PS/2
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Package weight: 2.33 kg
Package type: Box
CPU power cable length: 65 cm
Motherboard power connector: 20+4 pin ATX
Floppy drive power connector: 1
PCI Express power cable length: 50 cm
Cabling type: Fully-Modular
Motherboard power cable length: 65 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power cable length: 150, 450 mm
Floppy disk drive connector: Yes
SATA power cable length: 450 mm, 150
CPU power connector (4+4 pin): Yes
Harmonized System (HS) code: 84733020
