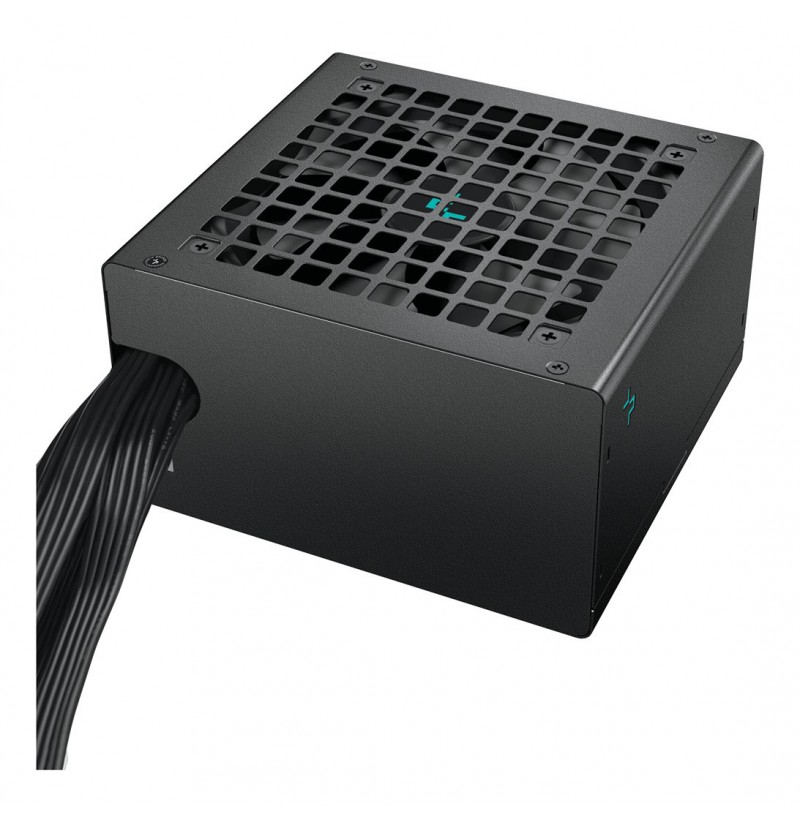

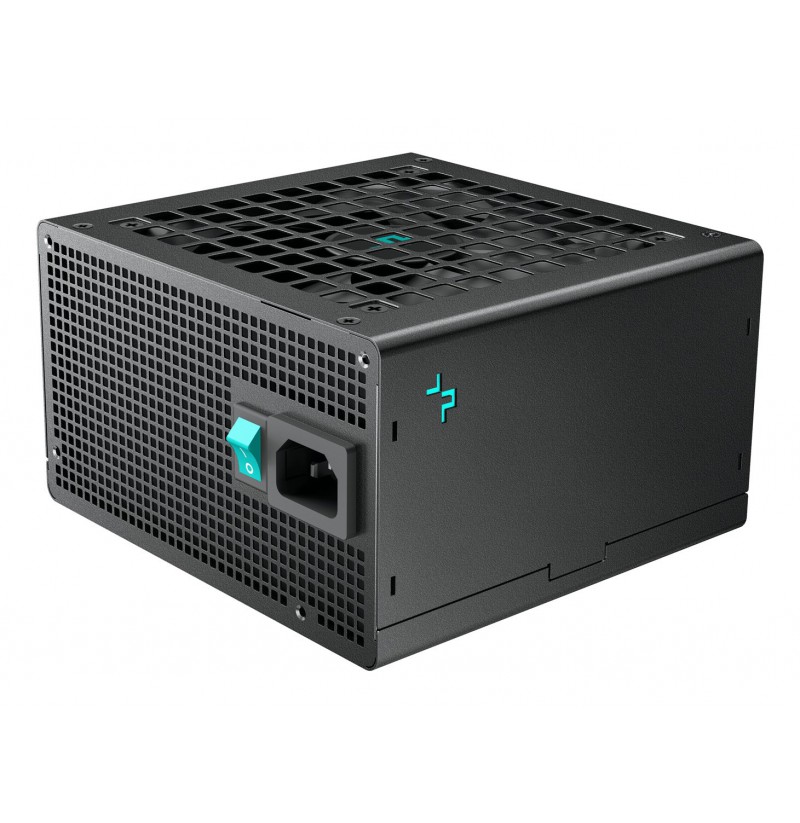

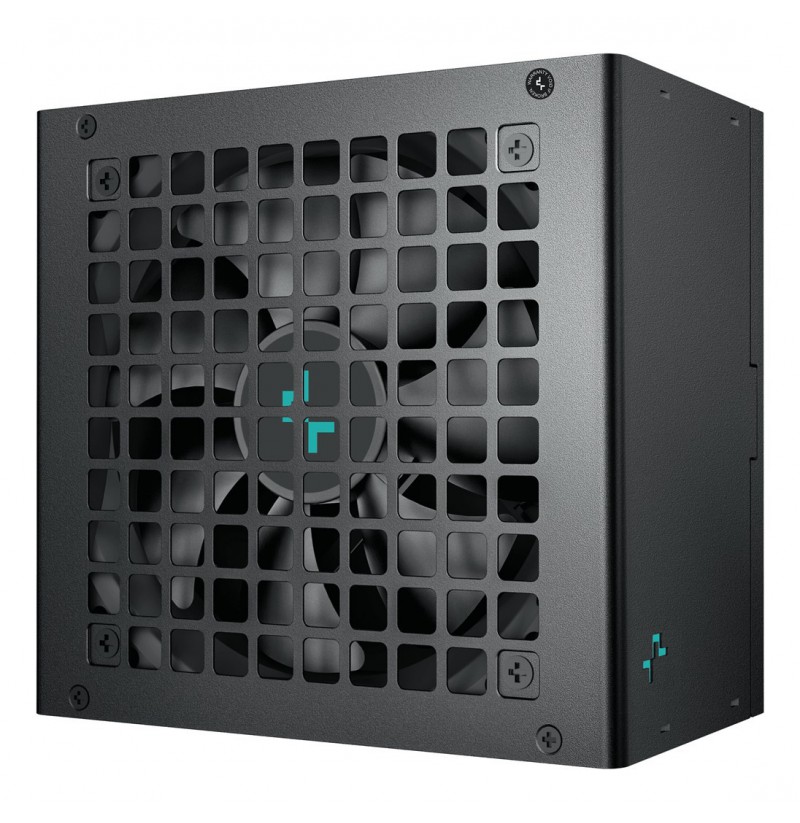

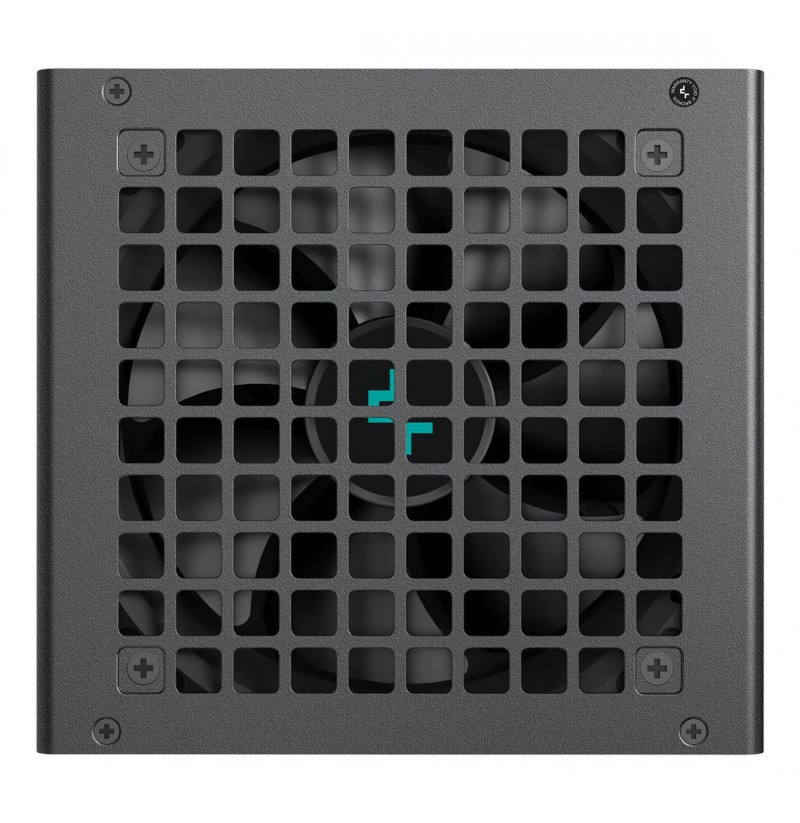

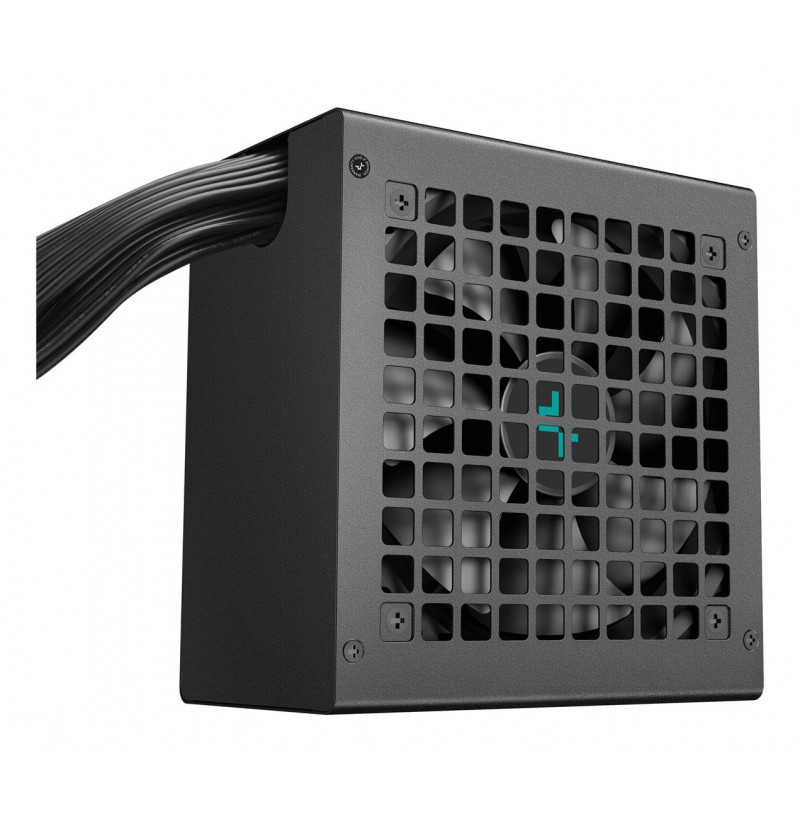

DeepCool PL550D power supply unit 550 W 20+4 pin ATX ATX Black

Sustainability certificates: ErP, Triman
Sustainability compliance: Yes
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Fan location: Top
Input current: 8 - 4 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Max output current (+12V): 45.8 A
Combined power (+3.3V): 100 W
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Combined power (-12V): 3.6 W
Efficiency: 85%
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Total power: 550 W
Power Good signal delay range: 100 - 150 ms
Max output current (-12V): 0.3 A
Power protection features: No load operation, Over power, Over voltage, Under voltage, Over current, Surge & inrush protection (SIP), Overheating, Surge protection
Combined power (+12V): 549.6 W
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Height: 86 mm
Depth: 140 mm
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 3.1
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: HYB
Package type: Box
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Compliance certificates: RoHS, WEEE
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
Number of SATA power connectors: 6
SATA power cable length: 650, 450 mm, 550
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
PCI Express power connectors (16-pin): 1
Country of origin: China
