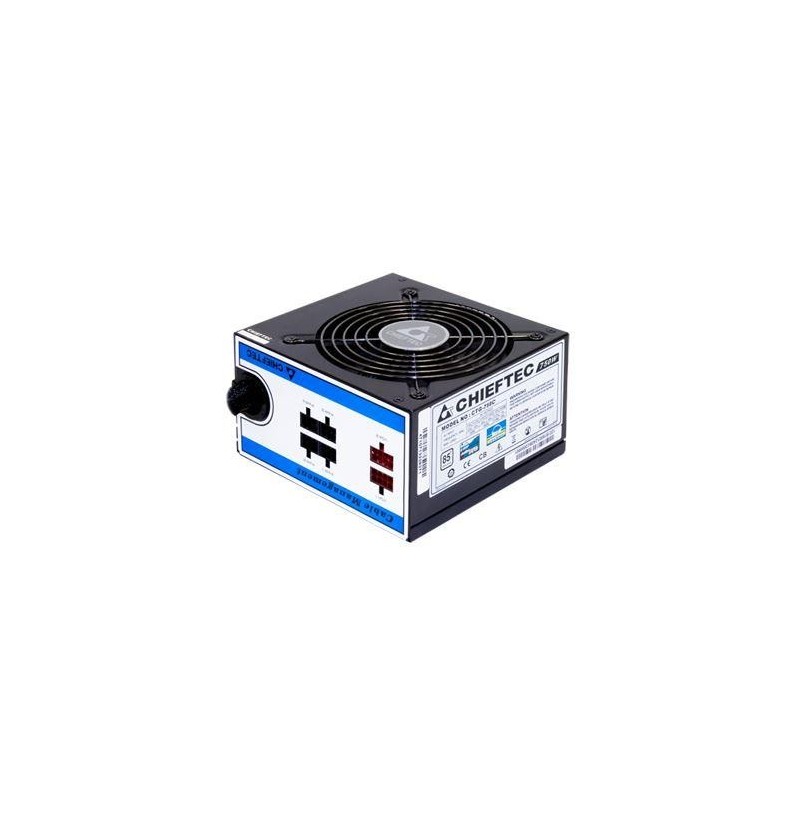

PSU Chieftec CTG-750C, 750W, box Padidinti

CHIEFTEC 750W PSU, 85+,230V W/CABLE MNG

69,60 €

CTG-750C

4710713239388

Galimas pasirinkimas

 3..5 d.d.


Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Product colour: Black
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Total power: 750 W
Efficiency: 85%
AC input frequency: 50 Hz
Power protection features: Short circuit, Over voltage, Overload, Under voltage, Over current, Overheating
AC input voltage: 230 V
Input current: 6 A
Power factor: 0.9
Max output current (+12V1): 35 A
Combined power (+5V): 130 W
Combined power (+12V): 648 W
Max output current (+5V): 22 A
Max output current (+3.3V): 22 A
Max output current (+12V2): 35 A
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (-12V): 0.3 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Height: 87 mm
Depth: 140 mm
Width: 150 mm
Certification: CE, CB, FCC
Purpose: PC
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS
Power supply unit (PSU) form factor: ATX
RoHS compliance: Y
Cabling type: Modular
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 4
Floppy drive power connector: 2
Number of SATA power connectors: 6
CPU power connectors (8-pin): 1
CPU P4 connector (4-pin): 1
Motherboard power connector: 24-pin ATX
