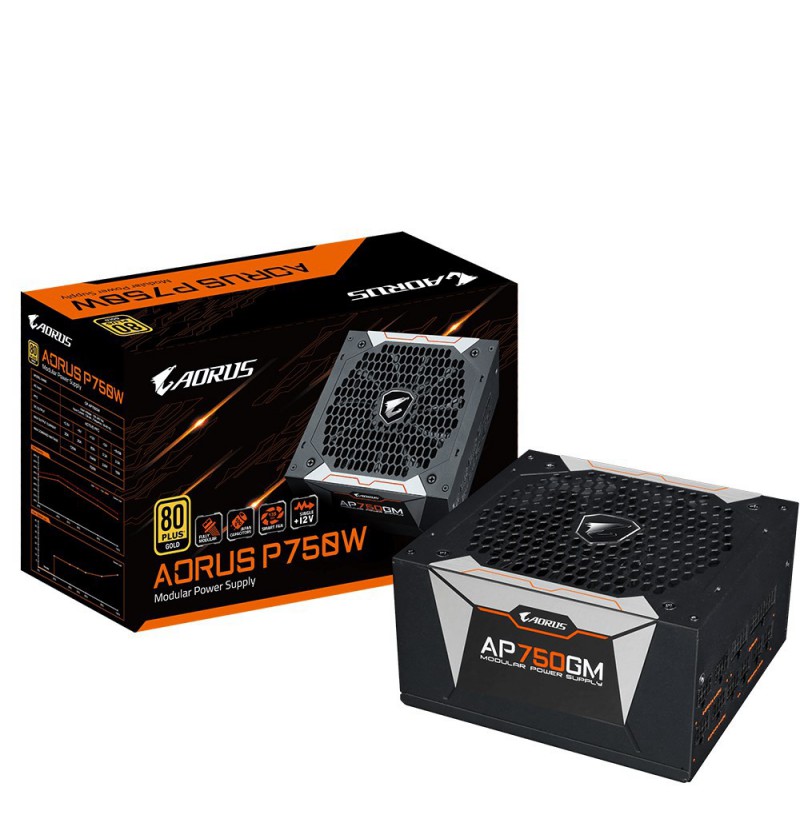

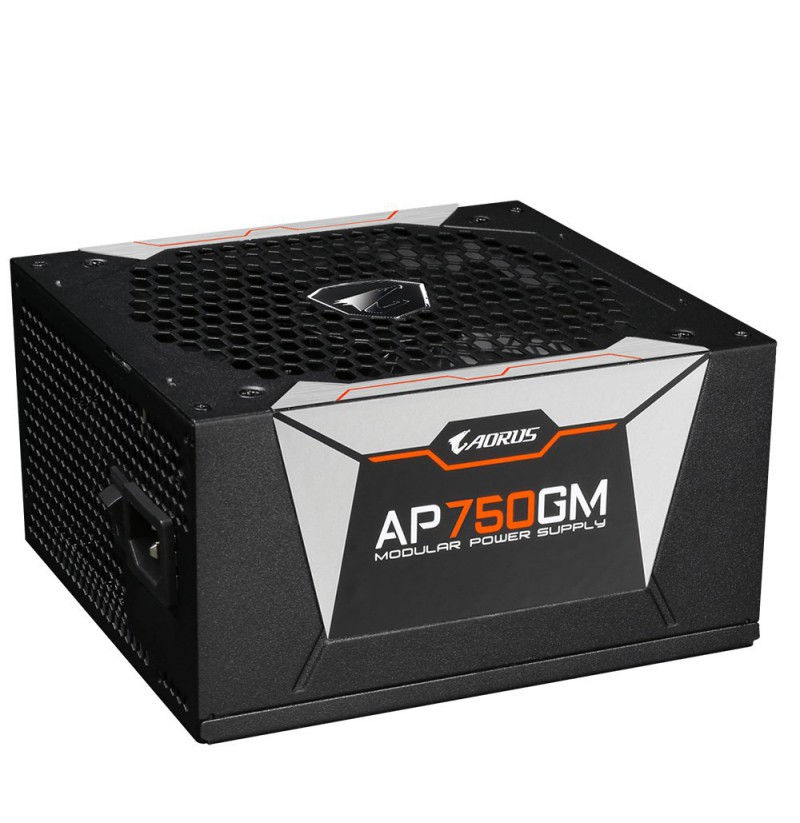

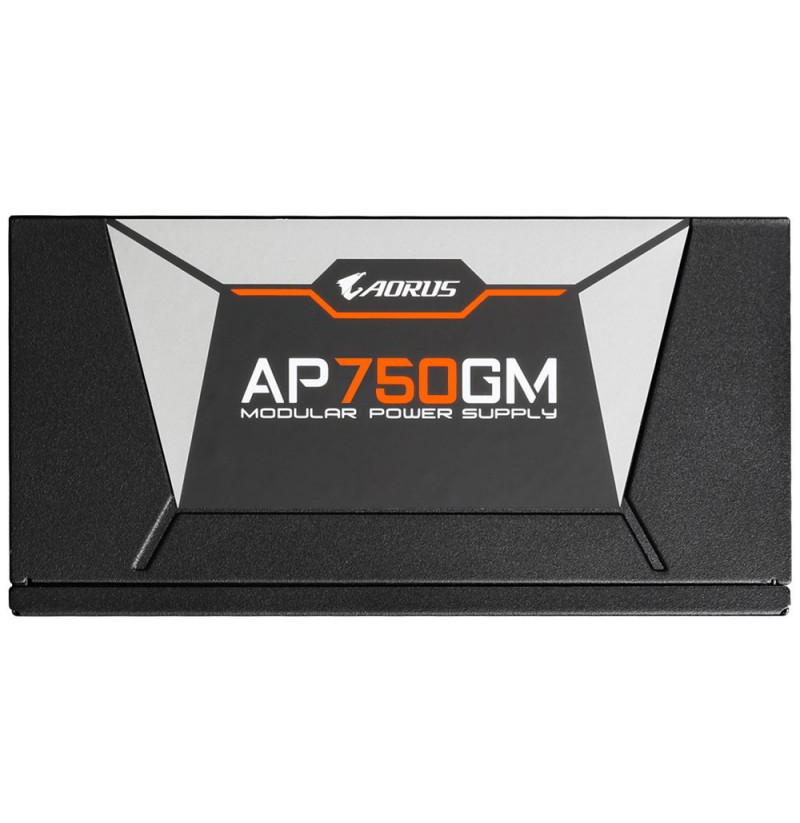

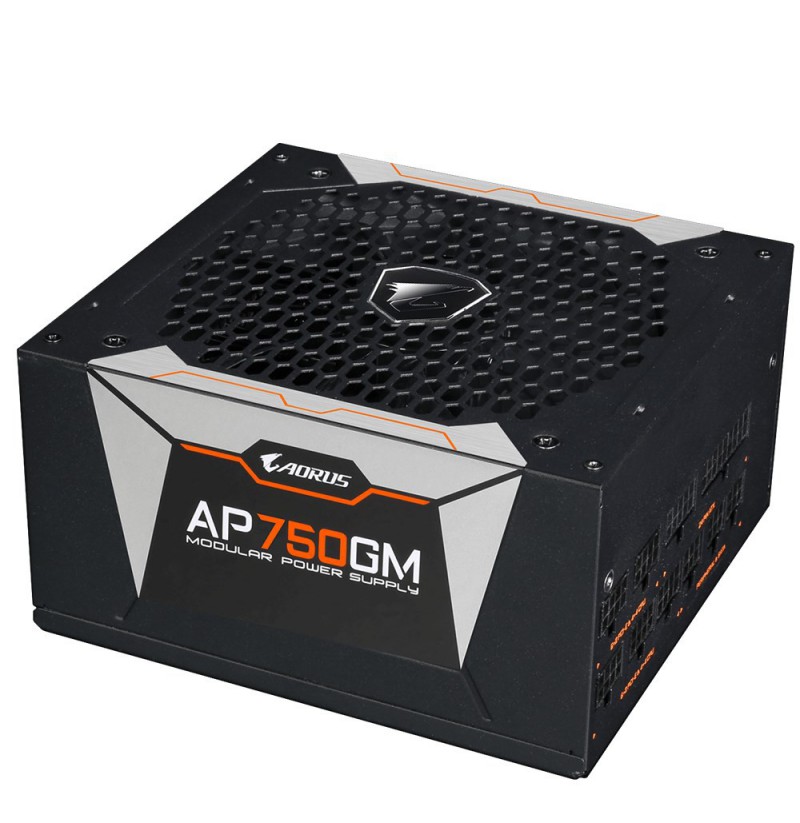

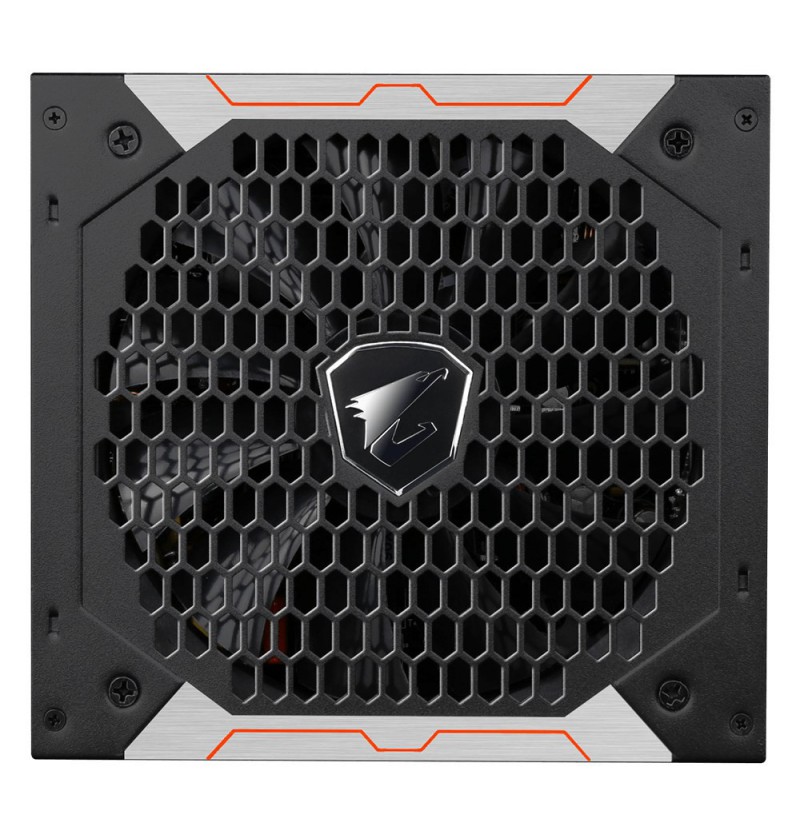

Gigabyte GP-AP750GM power supply unit 750 W 20+4 pin ATX ATX Black Padidinti

Gigabyte AP750GM power supply unit 750 W 20+4 pin ATX ATX Black

108,73 €

GP-AP750GM

4719331551025

Galimas pasirinkimas

 pristatymas 11...13 d.d.

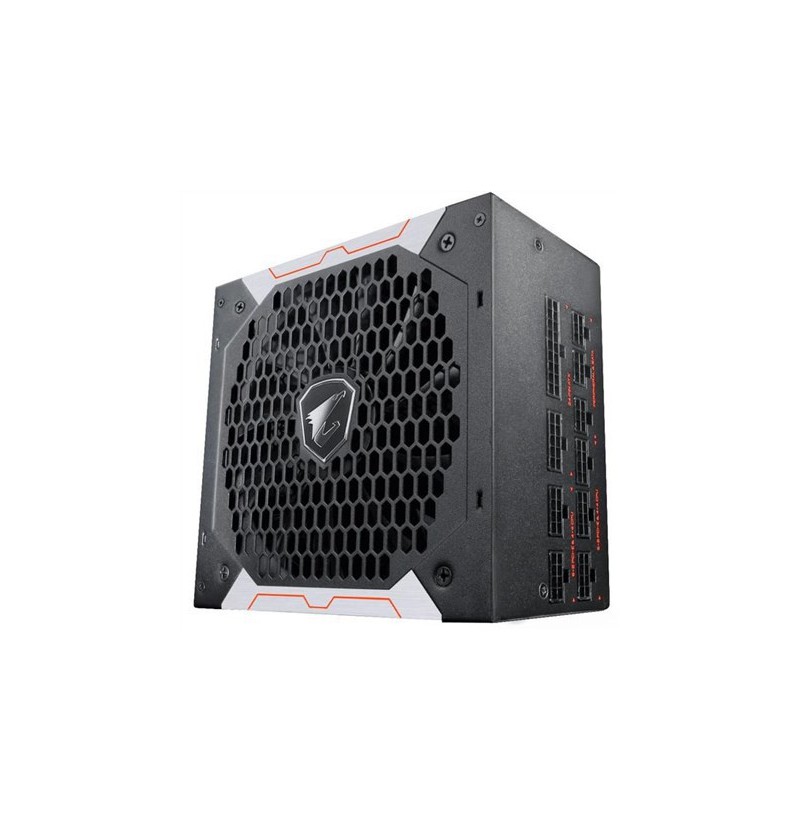

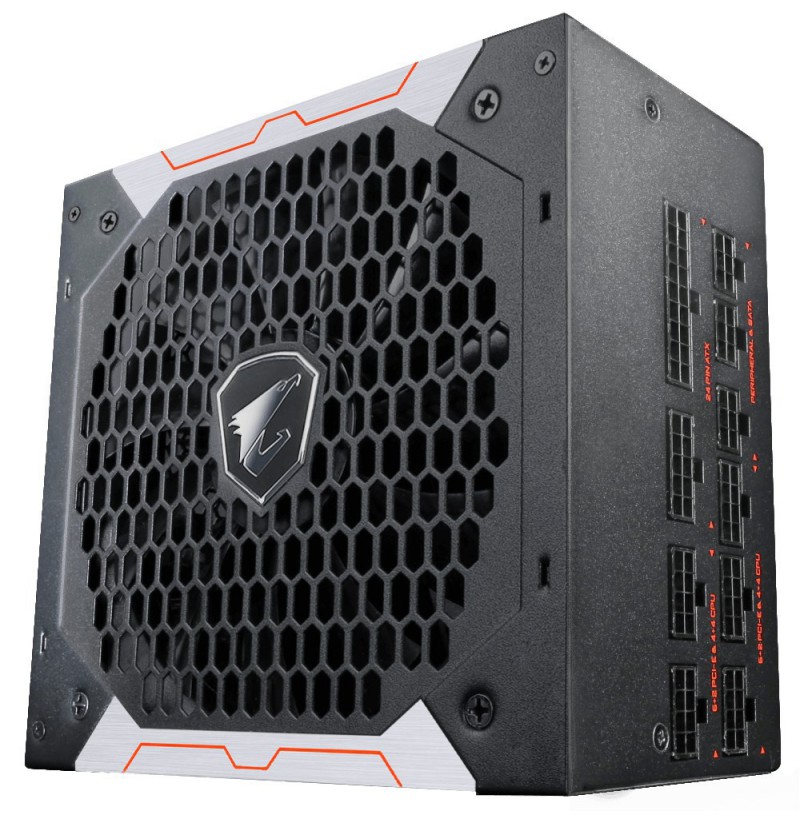

Fan location: Top
Fan diameter: 13.5 cm
Product colour: Black

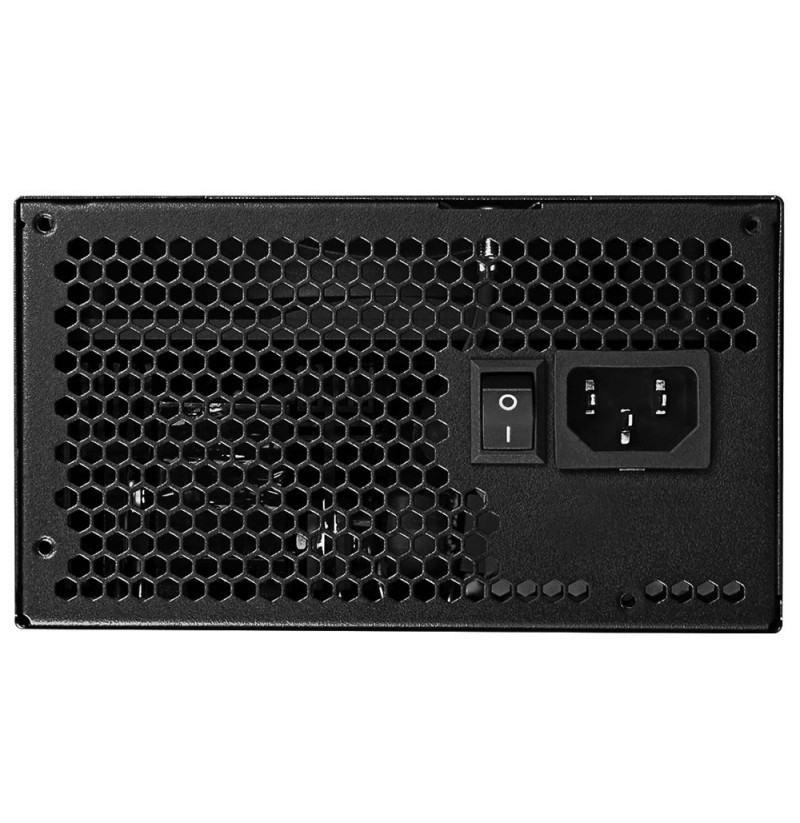

On/off switch: Yes
Number of fans: 1 fan(s)
Combined power (+12V): 744 W
Max output current (+5Vsb): 3 A
Power protection features: Over power, Over voltage, Under voltage, Over current, Overheating, Short circuit
Combined power (+5Vsb): 15 W
Max output current (+12V): 62 A
Total power: 750 W
Combined power (+3.3V): 120 W
Max output current (-12V): 0.3 A
Max output current (+5V): 20 A
Efficiency: 90%
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Combined power (-12V): 3.6 W
Max output current (+3.3V): 20 A
Power factor: 0.9
Combined power (+5V): 120 W
Power Good signal delay range: 100 - 150 ms
AC input voltage: 100 - 240 V
Input current: 10 A
AC input frequency: 47 - 63 Hz
Width: 150 mm
Height: 86 mm
Depth: 160 mm
Mean time between failures (MTBF): 100000 h
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
80 PLUS certification: 80 PLUS Gold

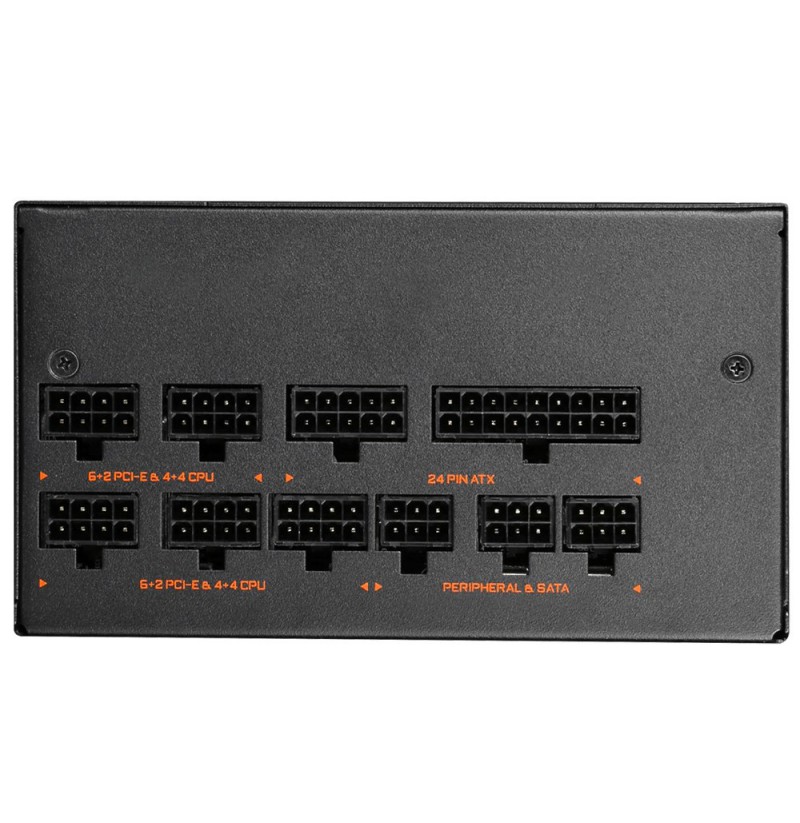

PCI Express power connectors (6+2 pin): 6
Number of SATA power connectors: 6
SATA power cable length: 550 mm, 750, 650 mm, 450 mm
Cabling type: Fully-Modular
Motherboard power cable length: 65 cm
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 2
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Motherboard power connector: 20+4 pin ATX
Floppy disk drive connector: Yes
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 6
Harmonized System (HS) code: 84733020
