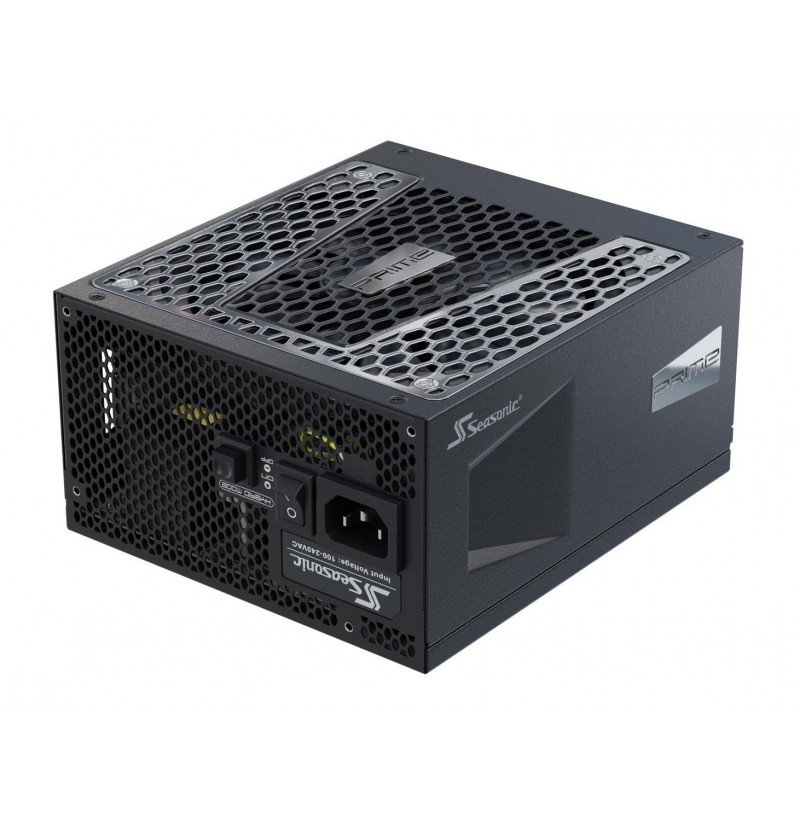

Seasonic Prime TX-1300, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1300 Watt

Fan diameter: 13.5 cm
Product colour: Black
Cooling type: Active
On/off switch: Yes
Number of fans: 1 fan(s)
Max output current (+5Vsb): 3 A
Power protection features: Over current, Short circuit, Over voltage
AC input voltage: 100 - 240 V
Combined power (+3.3V): 125 W
Max output current (+12V): 108 A
Combined power (+12V): 1296 W
AC input frequency: 50 - 60 Hz
Max output current (+5V): 25 A
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Input current: 15 - 7.5 A
Total power: 1300 W
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 50 °C
Height: 86 mm
Width: 150 mm
Depth: 210 mm
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 150000 h
Bearing technology: FDB
80 PLUS certification: 80 PLUS Platinum
Package type: Box

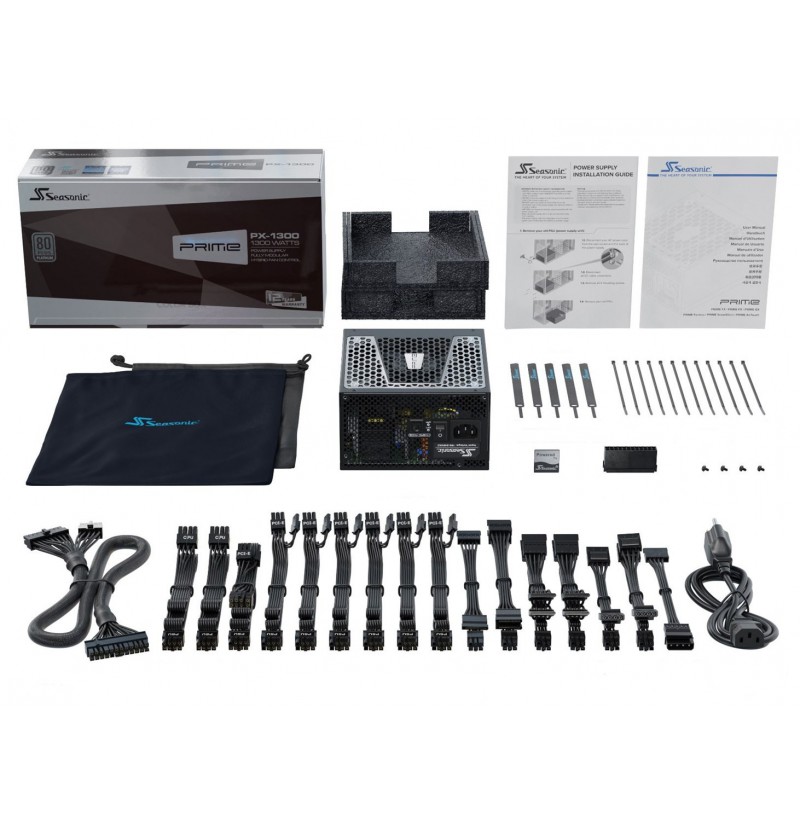

Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Cable tie(s) included: Yes
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Compliance certificates: RoHS
Peripheral (Molex) power connectors (4-pin): 5
Number of SATA power connectors: 14
Motherboard power connector: 20+4 pin ATX

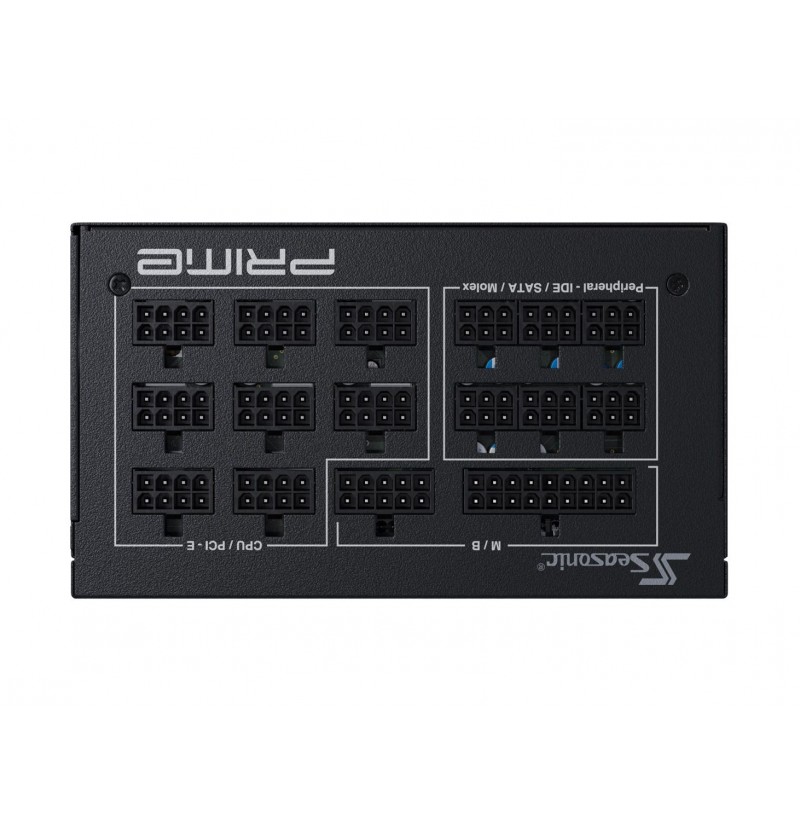

Cabling type: Fully-Modular
Motherboard power cable length: 61 cm
CPU power connector (4+4 pin): Yes
Warnings: Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
