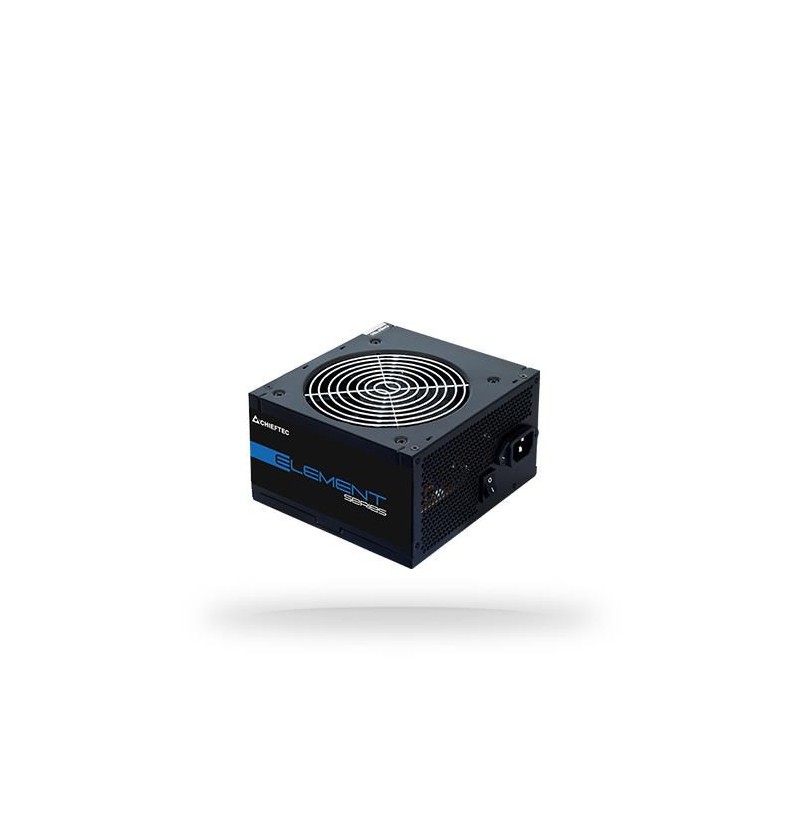

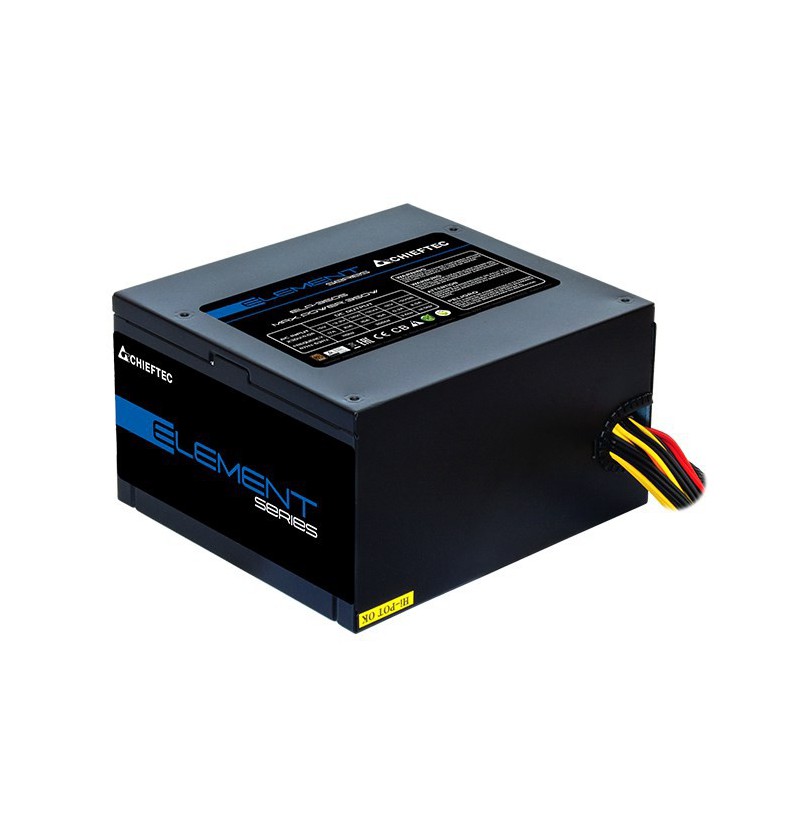

CHIEFTEC ATX POWER SUPPLY ENCLOSURE 600W ELP-600S Padidinti

CHIEFTEC ATX POWER SUPPLY ENCLOSURE 600W ELP-600S

56,92 €

4710713230965

Galimas pasirinkimas

 pristatymas 9...11 d.d.


Number of fans: 1 fan(s)
Product colour: Black
Fan diameter: 12 cm
Max output current (+3.3V): 20 A
Combined power (-12V): 3.6 W
Combined power (+5V): 120 W
Max output current (+5V): 20 A
AC input voltage: 200 - 240 V
Total power: 600 W
Efficiency: 85%
Power factor: 0.9
Input current: 4.5 A
Power protection features: Under voltage, Short circuit, Over voltage, Overload
Max output current (-12V): 0.3 A
Combined power (+12V): 552 W
Max output current (+5Vsb): 2.5 A
AC input frequency: 47 - 63 Hz
Combined power (+5Vsb): 12.5 W
Max output current (+12V): 46 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Width: 140 mm
Depth: 150 mm
Height: 87 mm
Purpose: PC/Server
80 PLUS certification: 80 PLUS Bronze
ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
Floppy disk drive connector: Yes
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 4
Number of PATA power connectors: 1
Floppy drive power connector: 1
Cabling type: Non-Modular
ATX power connector (20+4 pin): Yes
