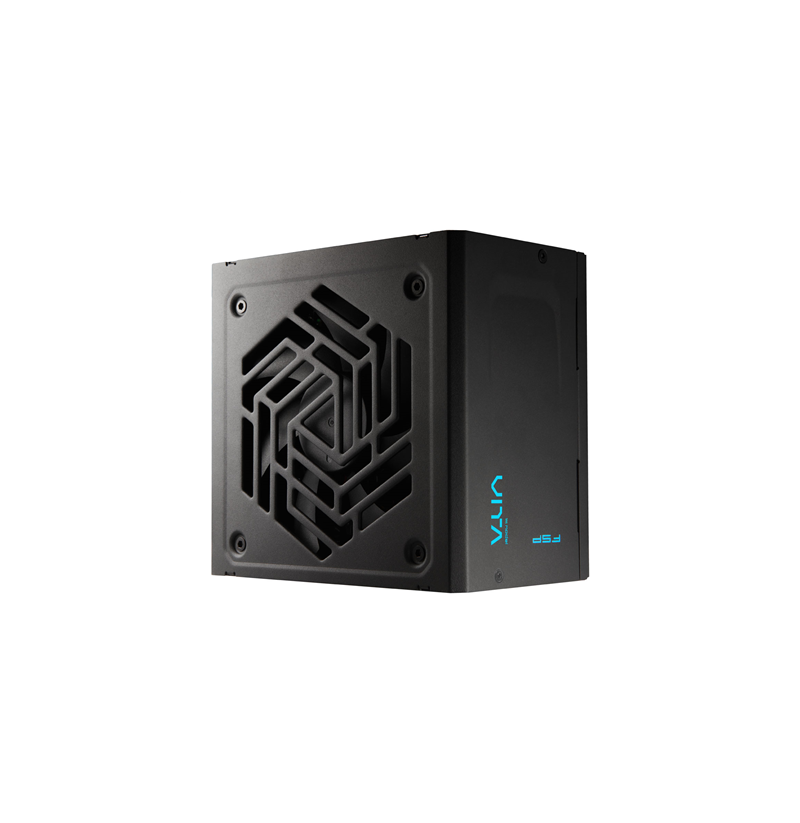

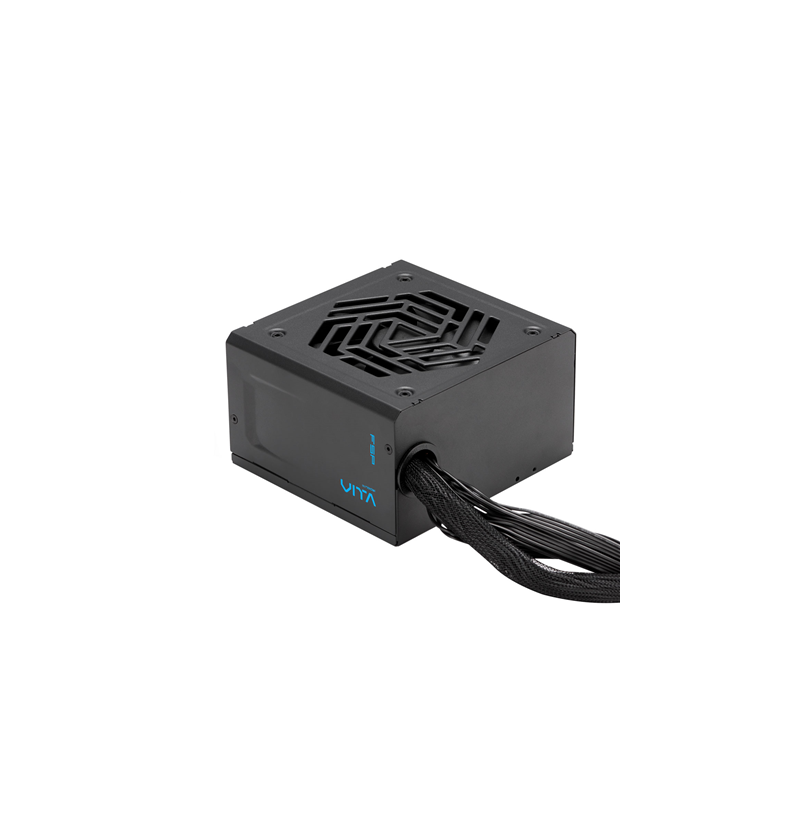

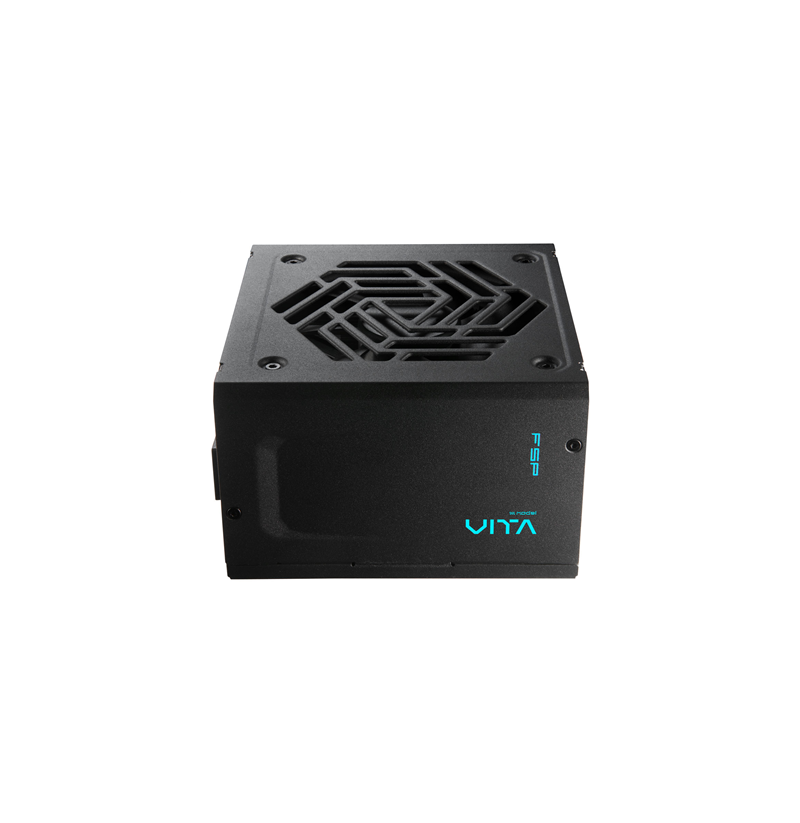

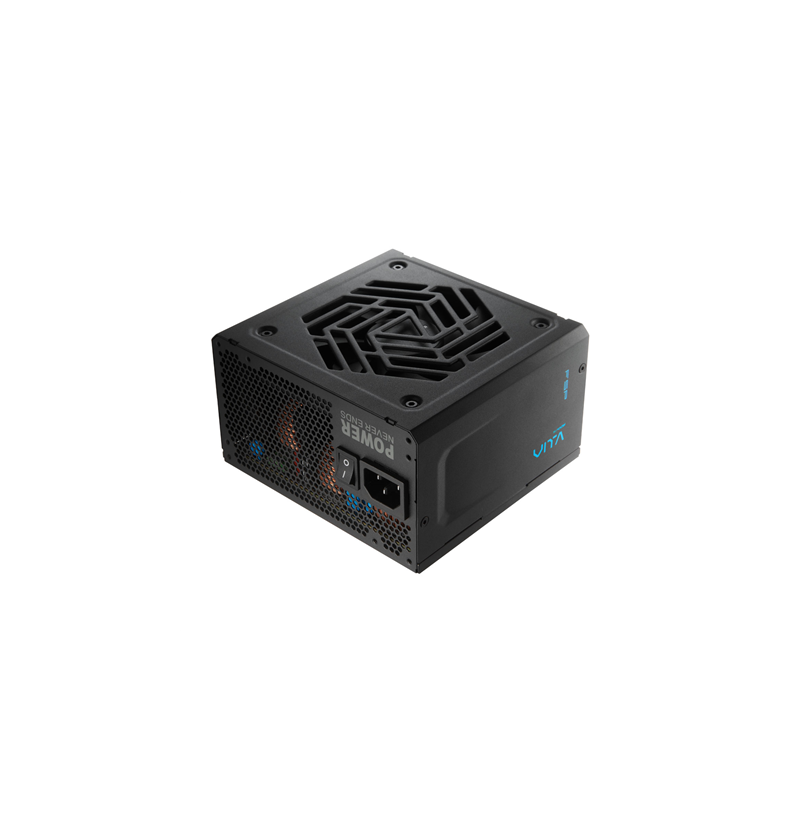

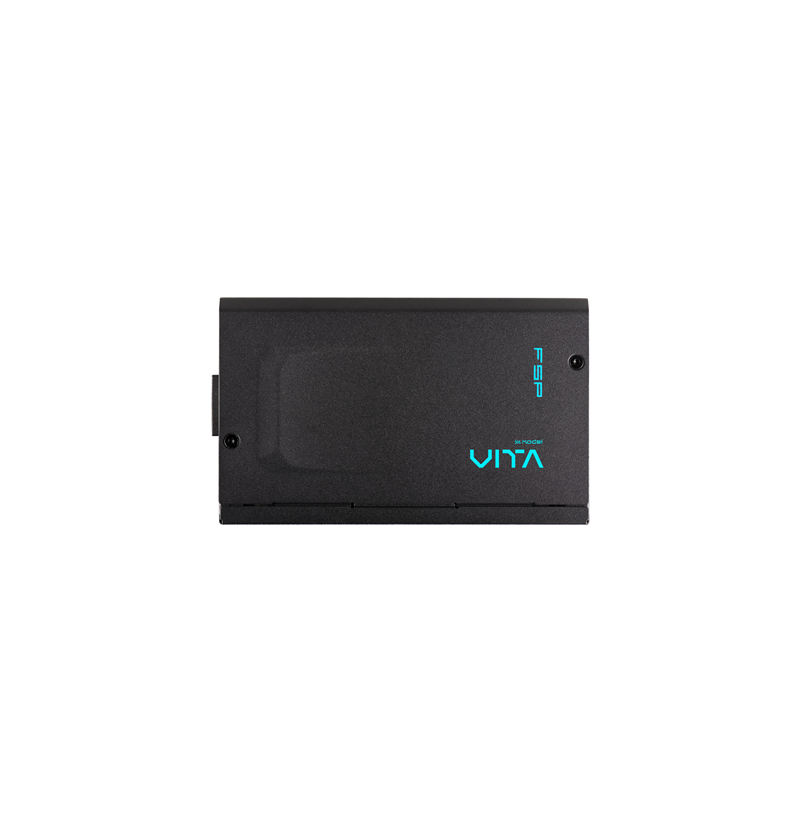

FSP Power Supply | VITA-850GD | 850 W

Cooling type: Active
Product colour: Black
Fan location: Top
Number of fans: 1 fan(s)
Fan diameter: 12 cm
AC input voltage: 100 - 240 V
Max output current (+5V): 20 A
Input current: 11-5.5 A
Combined power (+5Vsb): 15 W
Total power: 850 W
Combined power (-12V): 3.6 W
Combined power (+12V): 850 W
Power protection features: Overheating, Over power, Short circuit, Over voltage, Under voltage, Over current
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Max output current (+12V): 70.83 A
Max output current (-12V): 0.3 A
Combined power (+3.3V): 100 W
Efficiency: 90%
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Height: 86 mm
Depth: 140 mm
Width: 150 mm
80 PLUS certification: 80 PLUS Gold
EPS version: 2.92
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Purpose: PC
Bearing technology: HYB
Cables included: CPU, Peripheral (Molex), SATA
Cabling type: Non-Modular
Peripheral (Molex) power connectors (4-pin): 4
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
CPU power cable length: 70 cm
Number of SATA power connectors: 8
SATA power cable length: 500
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
