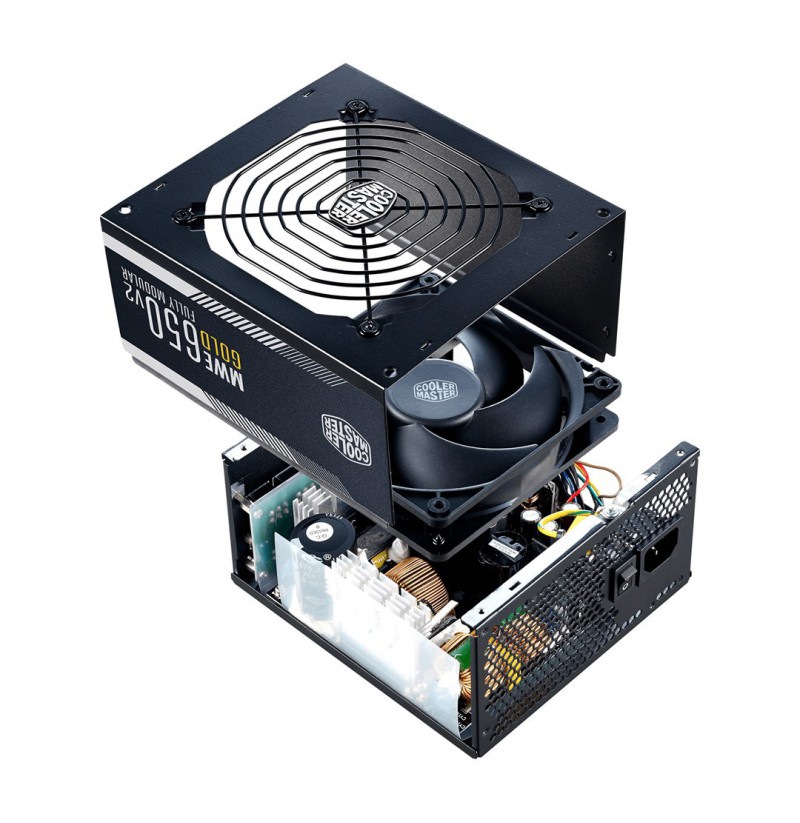

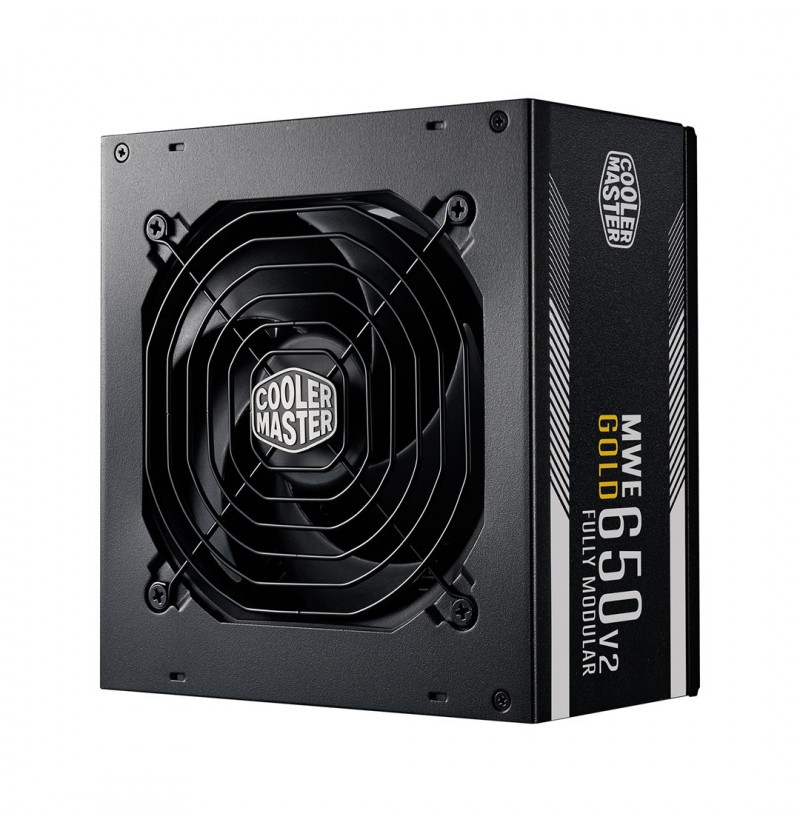

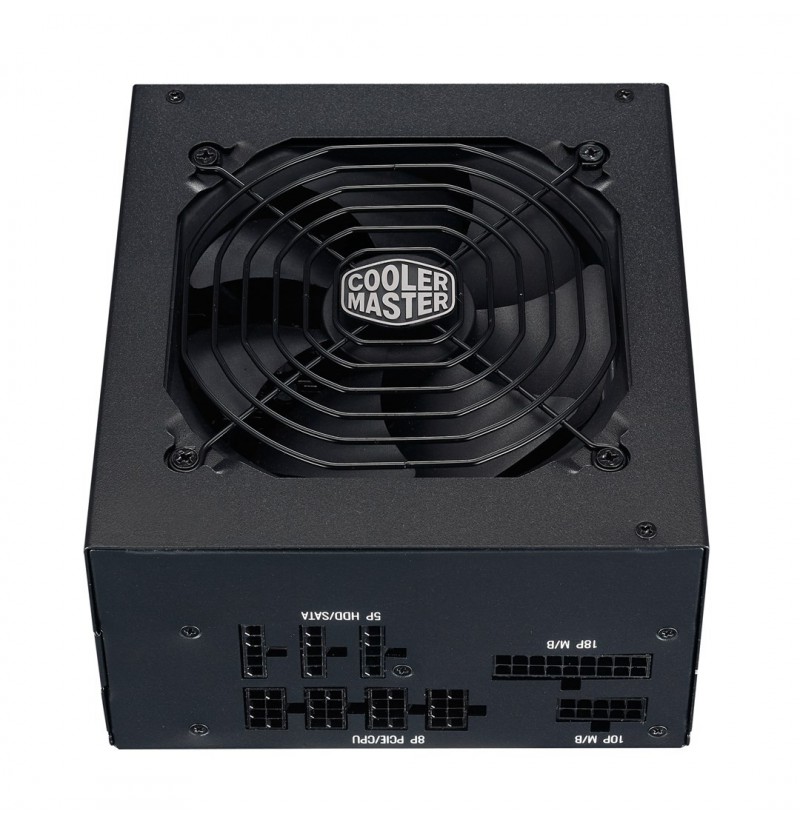

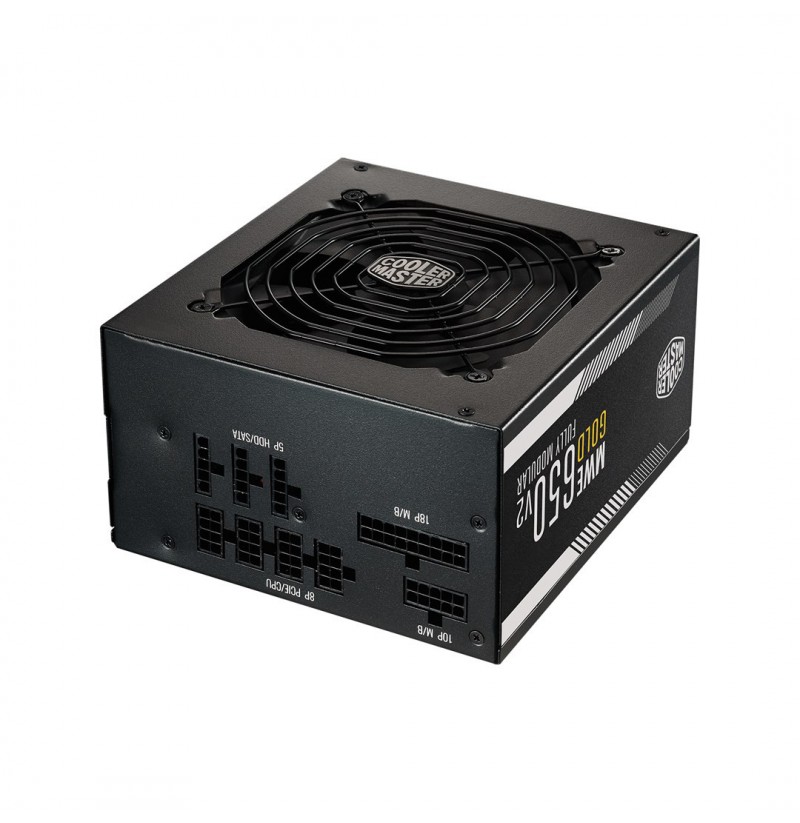

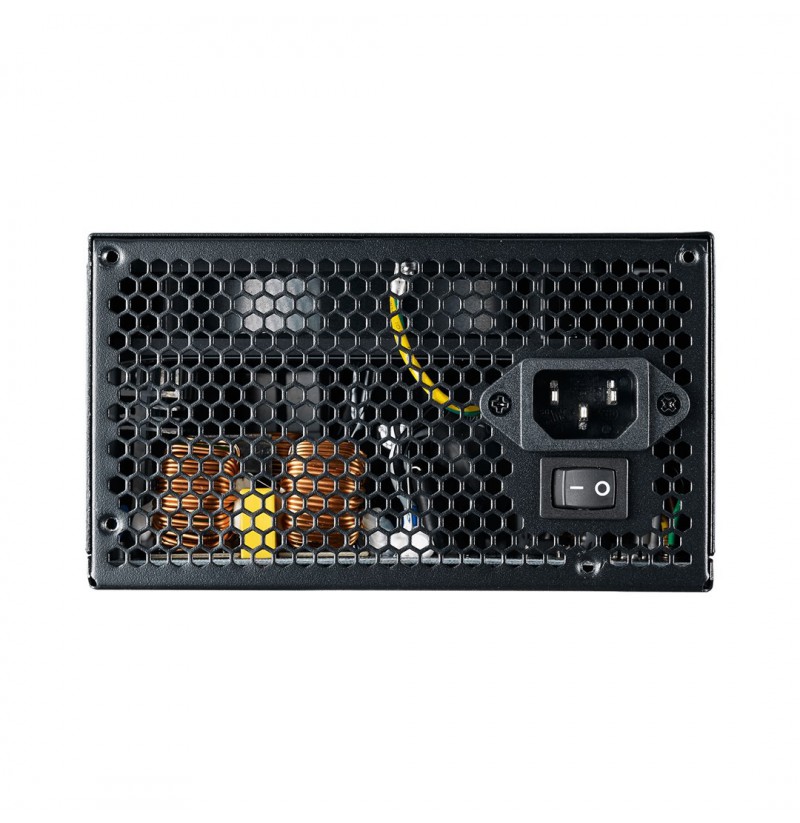

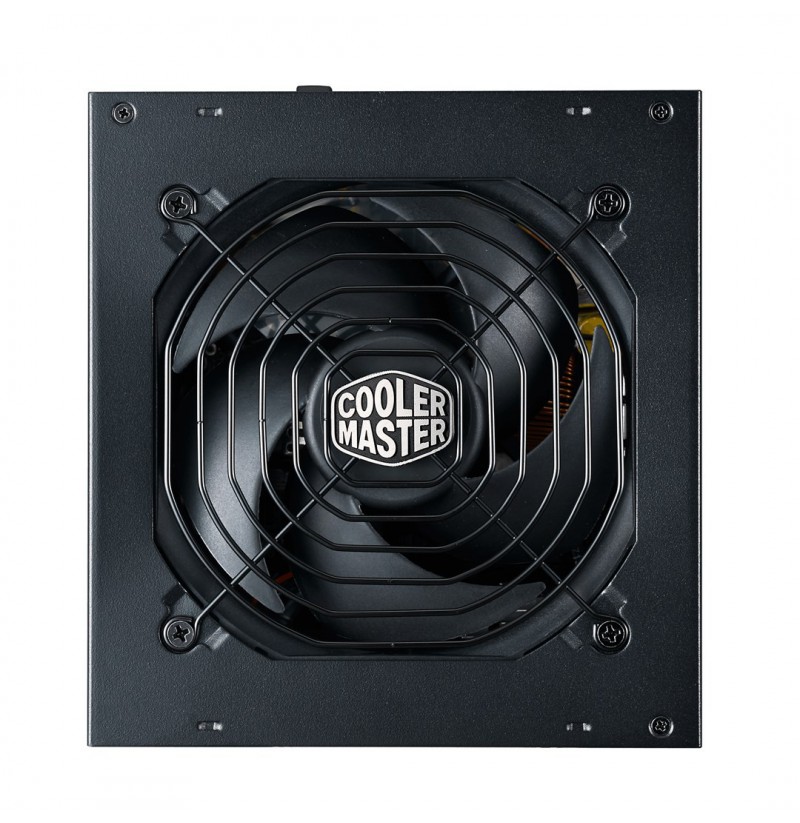

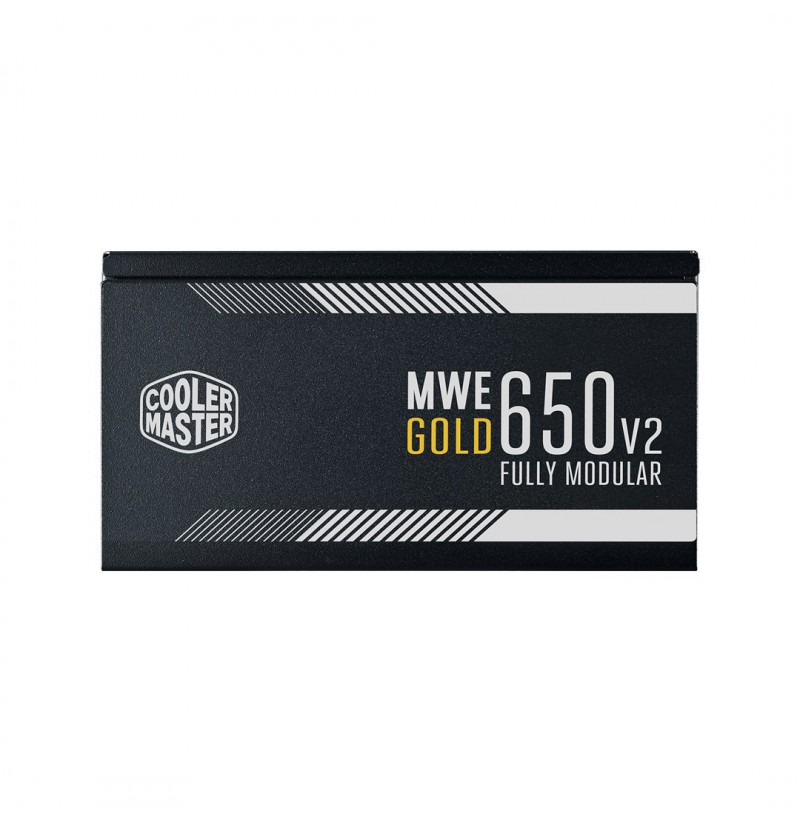

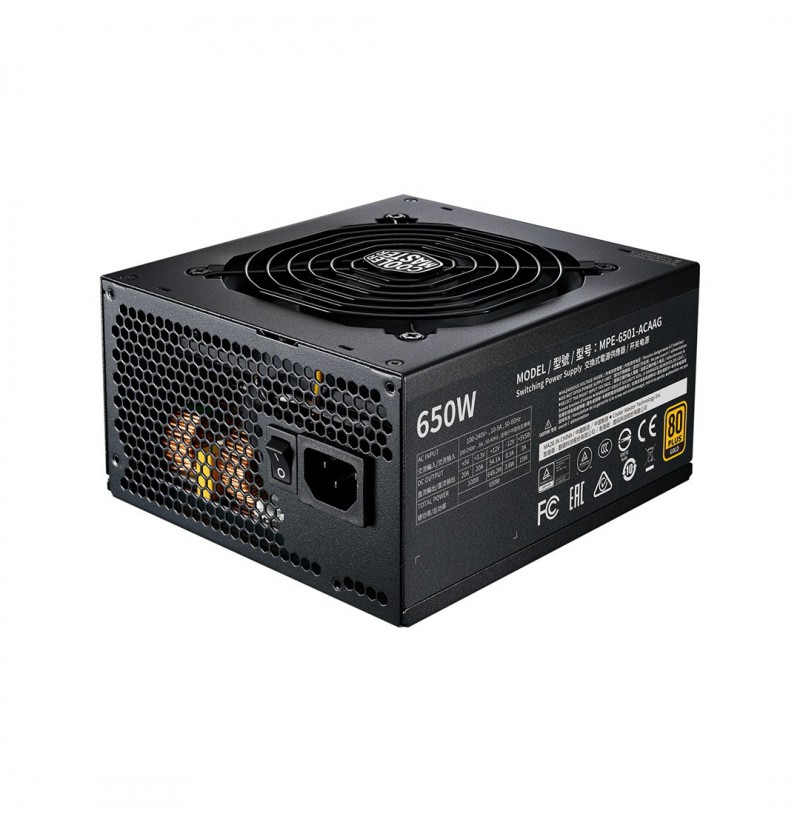

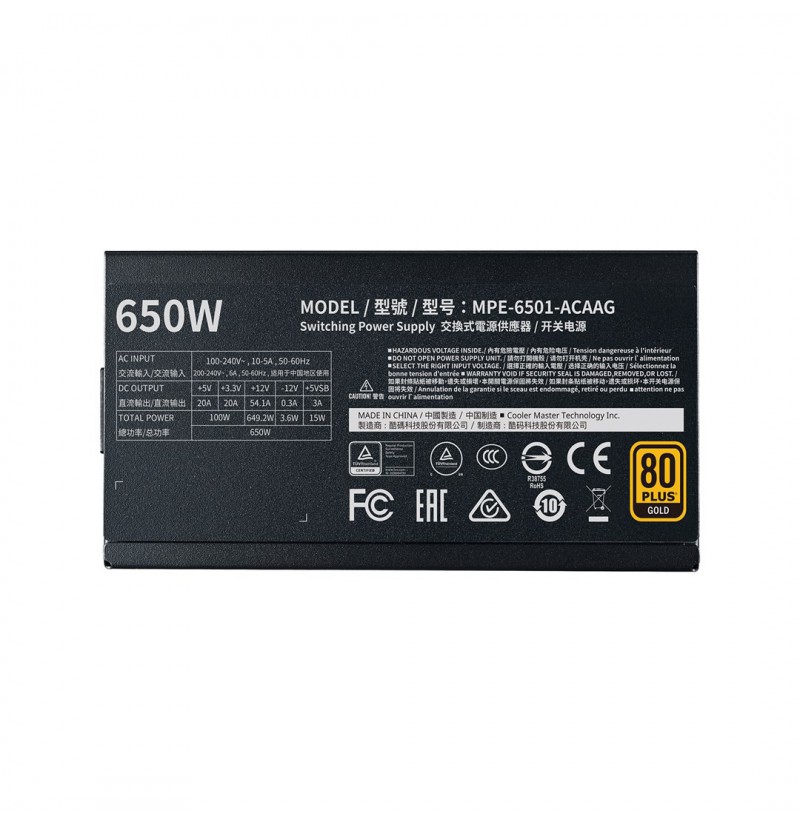

Nauja Cooler Master MWE Gold 650 - V2 Full Modular power supply unit 650 W 24-pin ATX ATX Black Padidinti

Cooler Master MWE Gold 650 - V2 Full Modular power supply unit 650 W 24-pin ATX ATX Black

96,81 €

4719512105597

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Cooling type: Active
Product colour: Black
Fan speed: 0 - 1500 RPM
Fan diameter: 12 cm
Number of fans: 1 fan(s)
AC input voltage: 90 - 264 V
Max output current (+5V): 20 A
AC input frequency: 47 - 63 Hz
Max output current (+5Vsb): 3 A
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (-12V): 0.3 A
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating
Input current: 4 - 8 A
Combined power (+12V): 649.2 W
Hold time: 16 ms
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 54.1 A
Efficiency: 90%
Combined power (+3.3V): 100 W
Total power: 650 W
Combined power (+5Vsb): 15 W
Power Good signal delay range: 100 - 500 ms
Operating temperature (T-T): 0 - 50 °C
Weight: 2.17 kg
Height: 86 mm
Width: 150 mm
Depth: 160 mm
Certification: ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
Power supply unit (PSU) form factor: ATX
Noise level: 23.4 dB
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
ATX version: 2.41
Package width: 194 mm
Package height: 120 mm
Package depth: 310 mm
Package weight: 2.57 kg

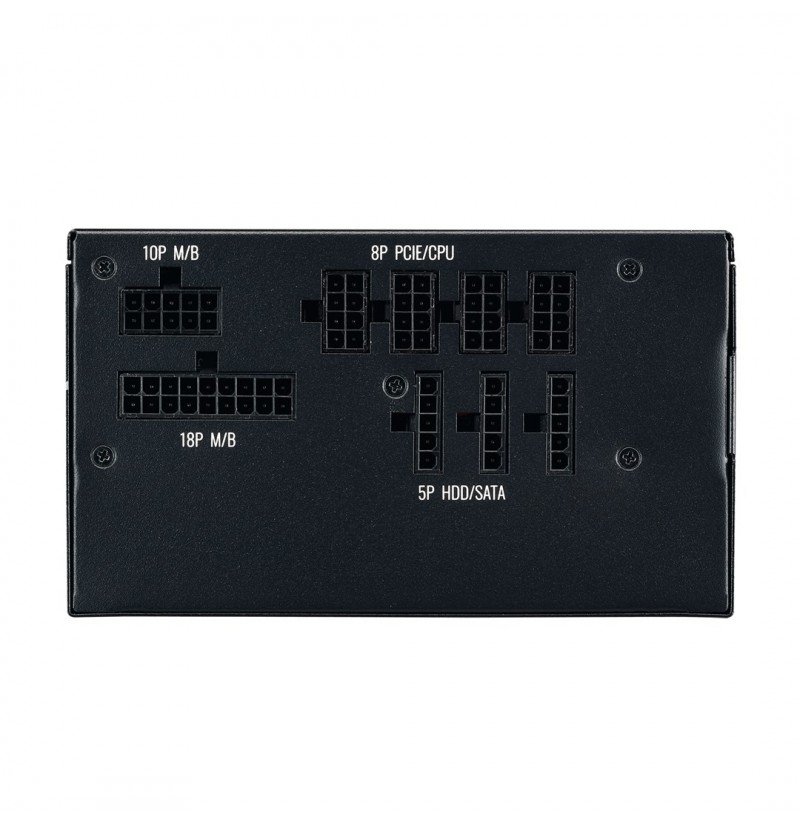

Cabling type: Fully-Modular
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 4
EPS power connector (4+4 pin): Yes
SATA power cable length: 860, 620, 740, 500 mm
PCI Express power cable length: 67 cm
Peripheral (Molex) power cable length: 860 mm, 740 mm, 620, 500 mm
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Motherboard power connector: 24-pin ATX
Master (outer) case width: 325 mm
Master (outer) case length: 620 mm
Products per master (outer) case: 5 pc(s)
Products per pallet: 16 pc(s)
Master (outer) case height: 220 mm
Harmonized System (HS) code: 84733020
