DeepCool PN1200-M (R-PNC00M-FC0B-JGEU)

Cooling type: Active
Product colour: Black
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Efficiency: 90%
Power protection features: No load operation, Under voltage, Short circuit, Over voltage, Over power, Surge & inrush protection (SIP), Overheating, Surge protection
Total power: 1200 W
Power Good signal delay range: 100 - 150 ms
Hold time: 16 ms
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Operating temperature (T-T): 0 - 40 °C
Depth: 150 mm
Height: 86 mm
Width: 150 mm
Bearing technology: FDB
ATX version: 3.1
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Package type: Box
Cables included: AC
Cable tie(s) included: Yes

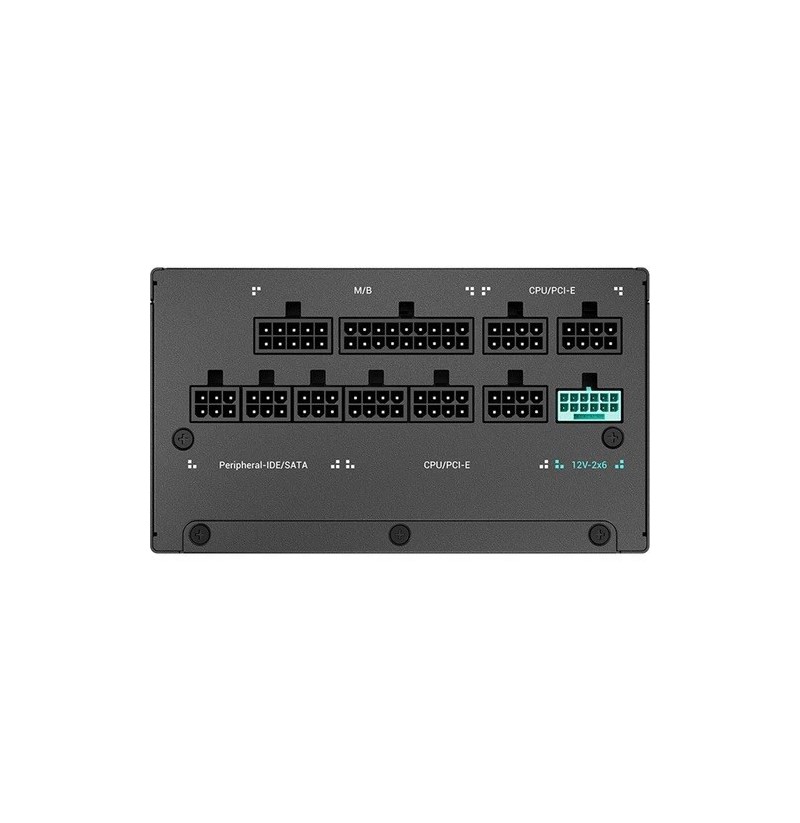

Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 4
CPU power cable length: 70 cm
PCI Express power connectors (6+2 pin): 3
CPU power connector (4+4 pin): 2
ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
PCI Express power connectors (16-pin): 1
Motherboard power connector: 20+4 pin ATX
Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
