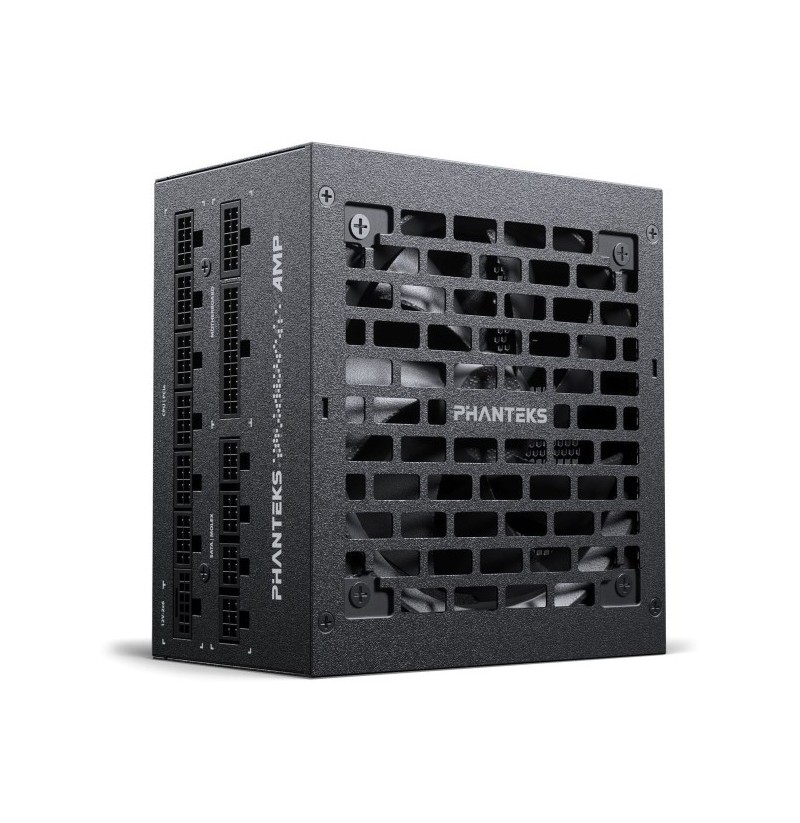

PHANTEKS AMP GH 1200W 80 PLUS Platinum Power Supply, PCIe 5.1, ATX 3.1, 1,200 Watt, black

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Number of fans: 1 fan(s)
Power protection features: Short circuit, Over voltage, Overheating, No load operation, Over power, Under voltage, Over current
Combined power (+12V): 1200 W
AC input voltage: 100 - 240 V
Combined power (+5V): 120 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Max output current (+12V): 100 A
Max output current (+3.3V): 20 A
AC input frequency: 50/60 Hz
Combined power (+3.3V): 120 W
Total power: 1200 W
Input current: 15 - 7.5 A
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Max output current (-12V): 0.3 A
Weight: 2.33 kg
Depth: 150 mm
Width: 140 mm
Height: 86 mm
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Hydraulic
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Mean time between failures (MTBF): 100000 h
Silent mode: Yes
Package weight: 3.81 kg
Cables included: AC, CPU, PCIe, SATA, Peripheral (Molex)
PCI Express connector: Yes
Number of SATA power connectors: 6
Peripheral (Molex) power cable length: 450 mm, 300 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
Motherboard power cable length: 61 cm
Motherboard power connector: 18+10 pin ATX
CPU power cable length: 65 cm
CPU power connector (4+4 pin): Yes
Cabling type: Fully-Modular
SATA power cable length: 300 mm, 450, 150
PCI Express power cable length: 75 cm
Number of SATA power cables: 3
Warranty period: 8 year(s)
