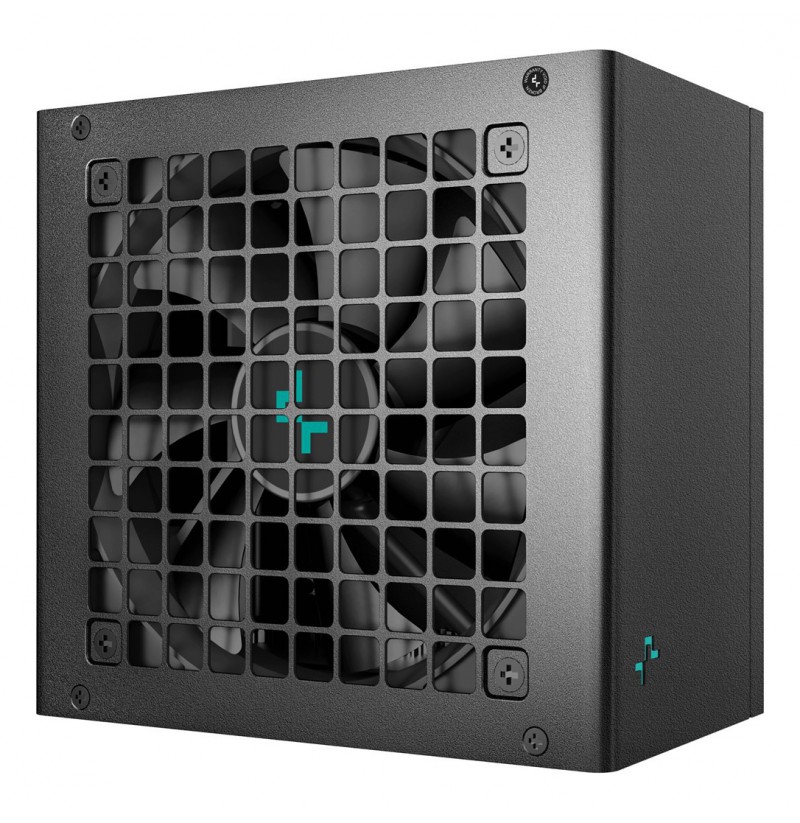

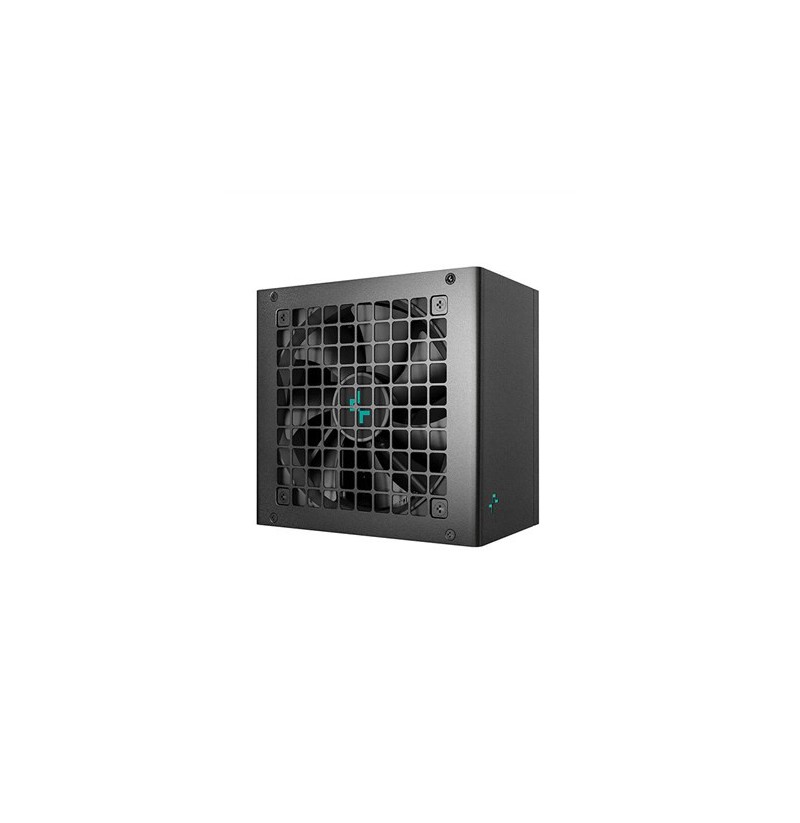

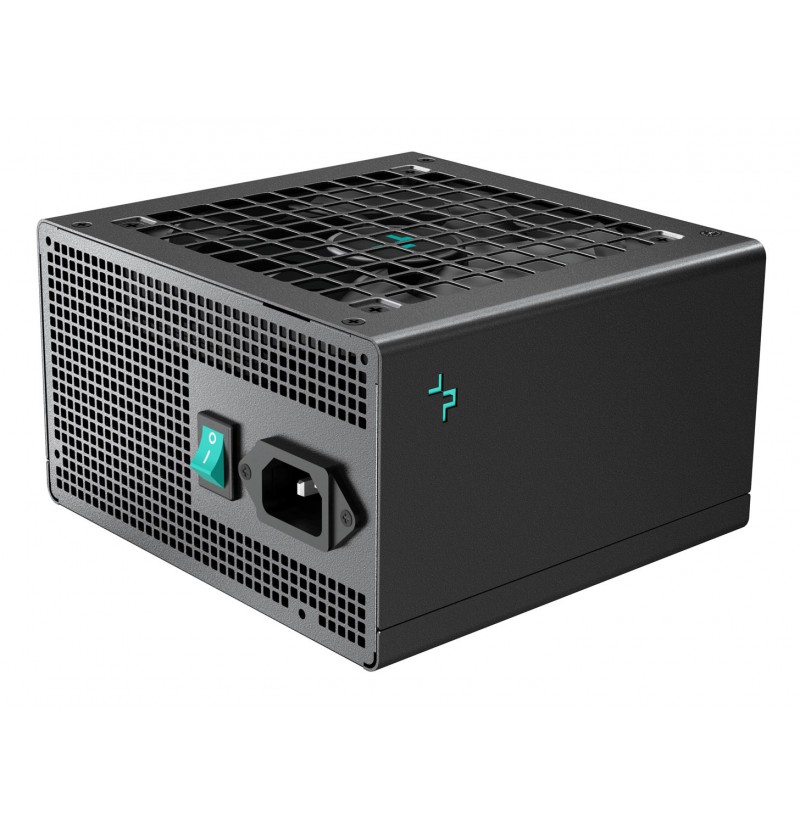

DeepCool PN650M power supply unit 650 W 20+4 pin ATX ATX Black

Sustainability certificates: Triman

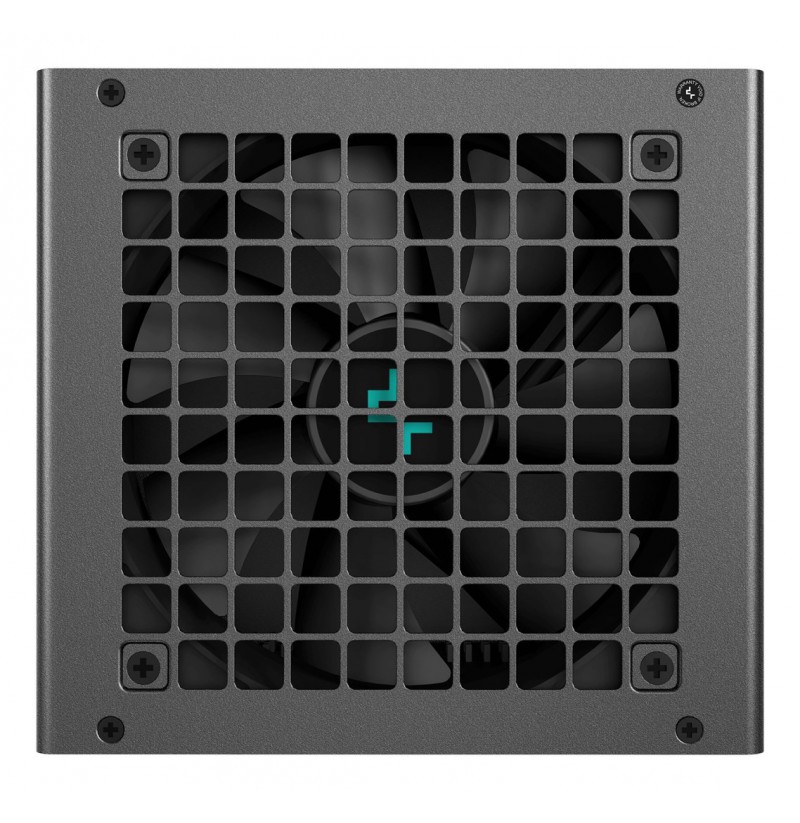

Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
On/off switch: Yes
Product colour: Black
Cooling type: Active

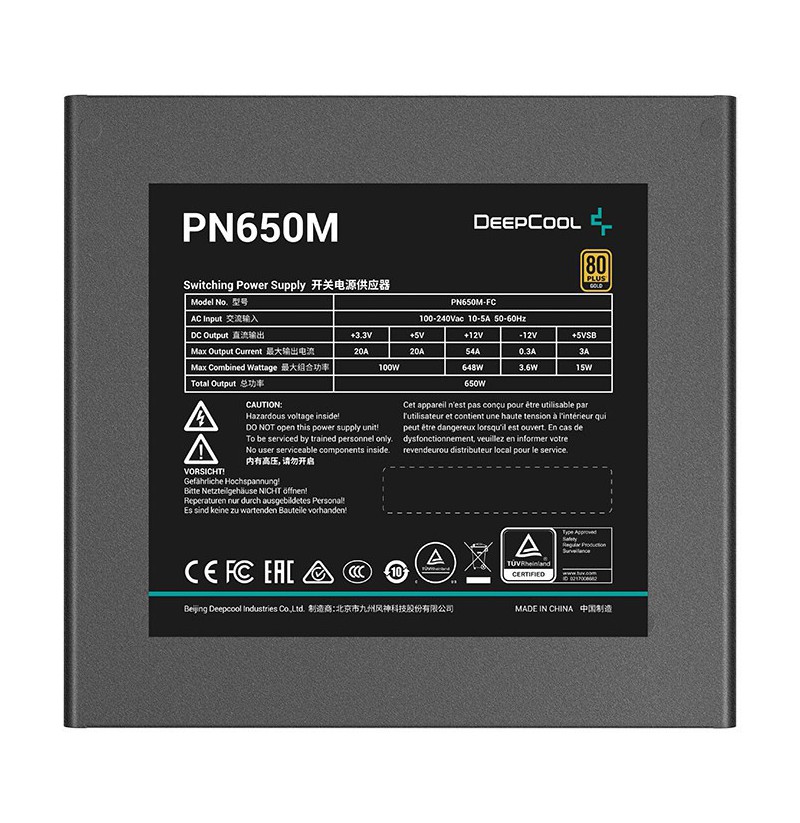

Combined power (+12V): 648 W
Combined power (+5Vsb): 15 W
Combined power (+5V): 100 W
Efficiency: 90%
Max output current (+12V): 54 A
Max output current (+3.3V): 20 A
Power protection features: Surge & inrush protection (SIP), Over power, Under voltage, No load operation, Overheating, Surge protection, Short circuit, Over voltage
Combined power (+3.3V): 100 W
Max output current (+5Vsb): 3 A
Total power: 650 W
Power Factor Correction (PFC) type: Active
Max output current (+5V): 20 A
Hold time: 16 ms
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Input current: 10 - 5 A
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Depth: 140 mm
Height: 86 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Bearing technology: FDB
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Purpose: PC
Package type: Box
Cable tie(s) included: Yes

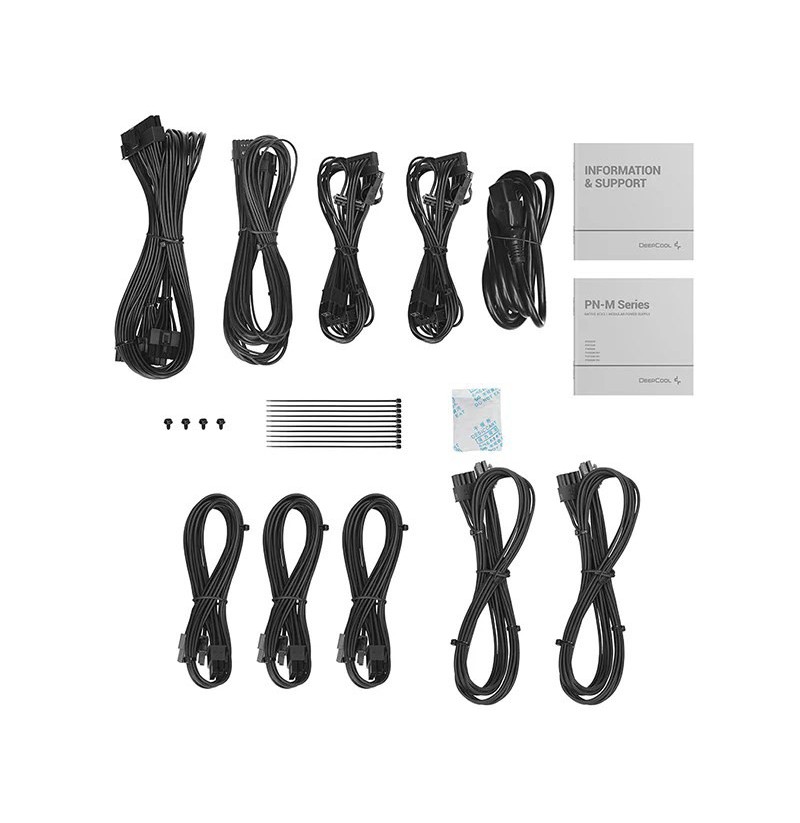

Cables included: AC
Compliance certificates: WEEE, RCM, RoHS, CE, Federal Communications Commission (FCC), CCC, EAC
CPU power cable length: 70 cm
PCI Express power connectors (6+2 pin): 3
SATA power cable length: 450 mm, 750 mm, 550, 650 mm
Motherboard power connector: 20+4 pin ATX

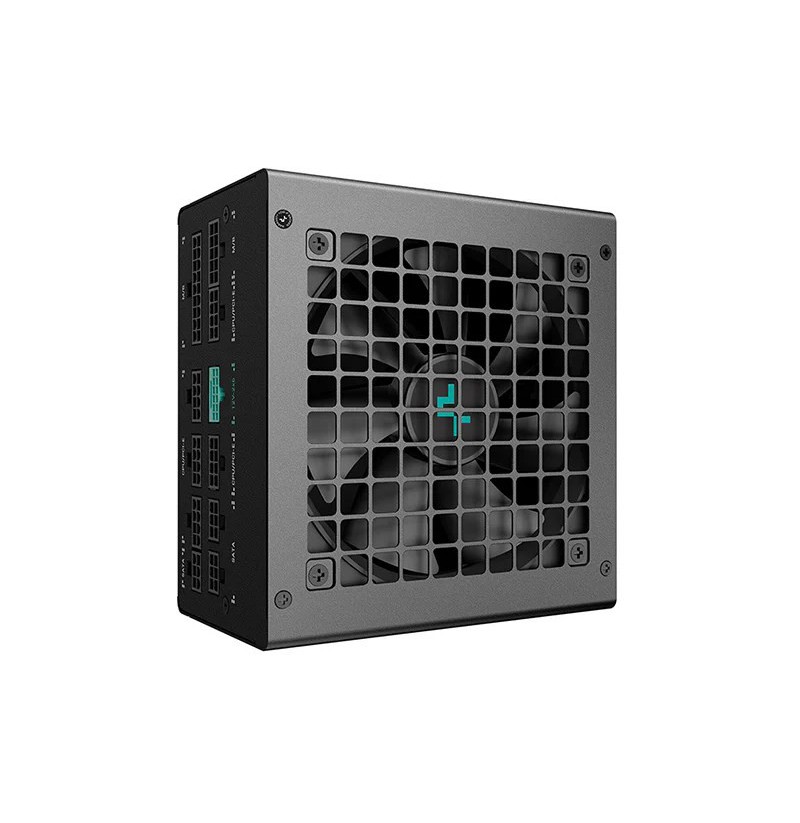

Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 8
Motherboard power cable length: 55 cm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 450 mm
PCI Express power connectors (16-pin): 1
Warranty period: 10 year(s)
