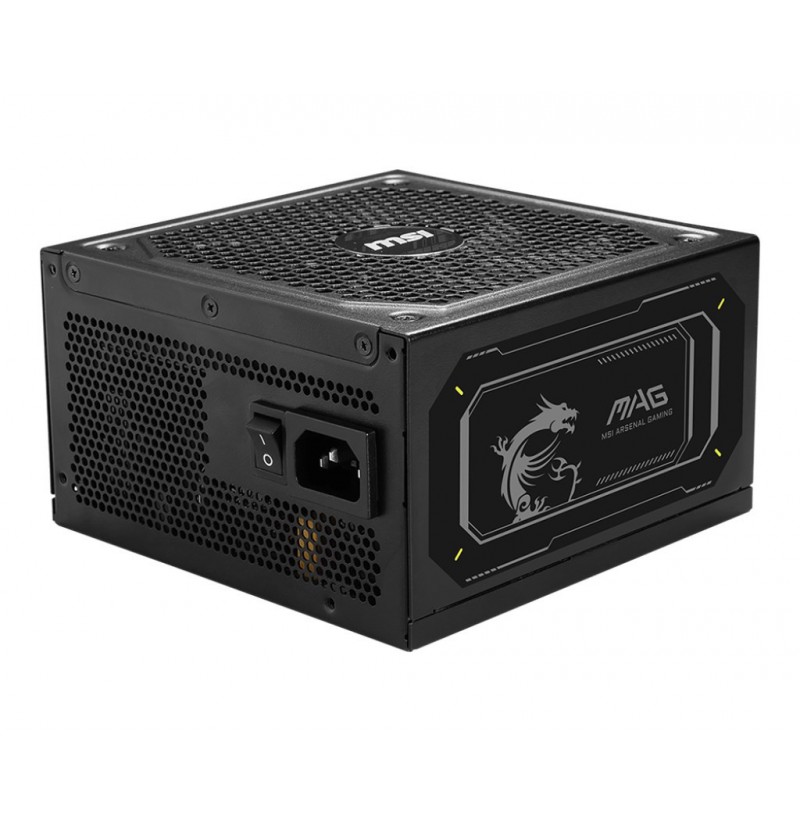

MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black

On/off switch: Yes
Cooling type: Active
Product colour: Black

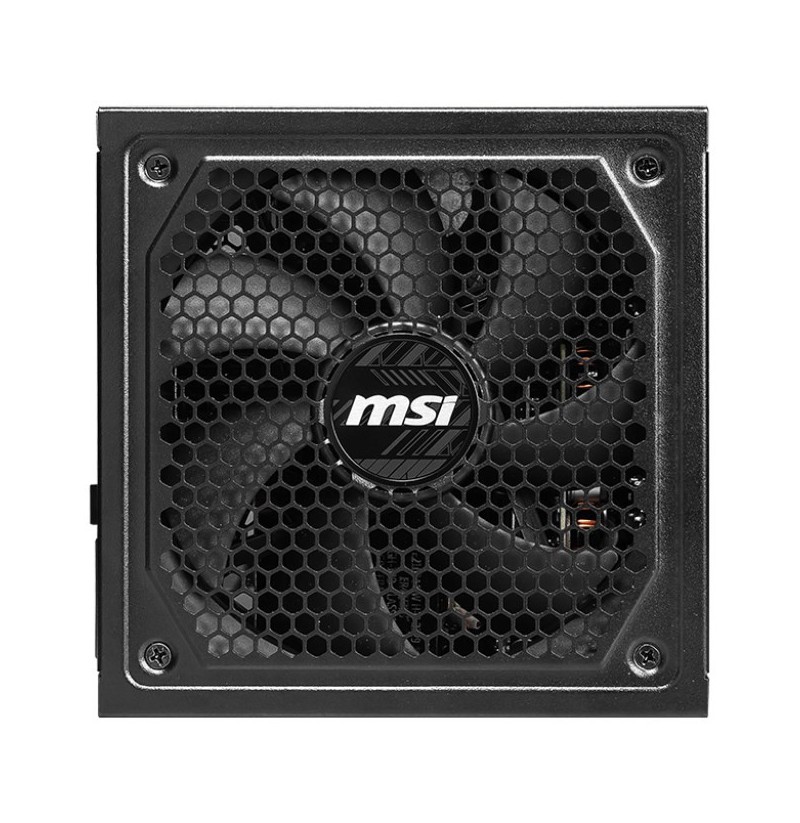

Fan diameter: 13.5 cm
Illumination: No
Fan speed: 500 - 1800 RPM
Number of fans: 1 fan(s)
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Efficiency: 90%
Power protection features: Short circuit, Over voltage, Overheating, Over power, Under voltage, Over current
Max output current (+3.3V): 22 A
Max output current (+5V): 22 A
Combined power (+5Vsb): 15 W
Combined power (+12V): 999.6 W
Max output current (+12V): 83.3 A
Power Factor Correction (PFC) type: Active
Total power: 1000 W
Max output current (-12V): 0.3 A
Number of +12V rail(s): 1
Weight: 169 g
Depth: 150 mm
Width: 150 mm
Height: 86 mm
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Bearing technology: FDB
ATX version: 3.1
Purpose: PC
EPS power connector (8-pin): No

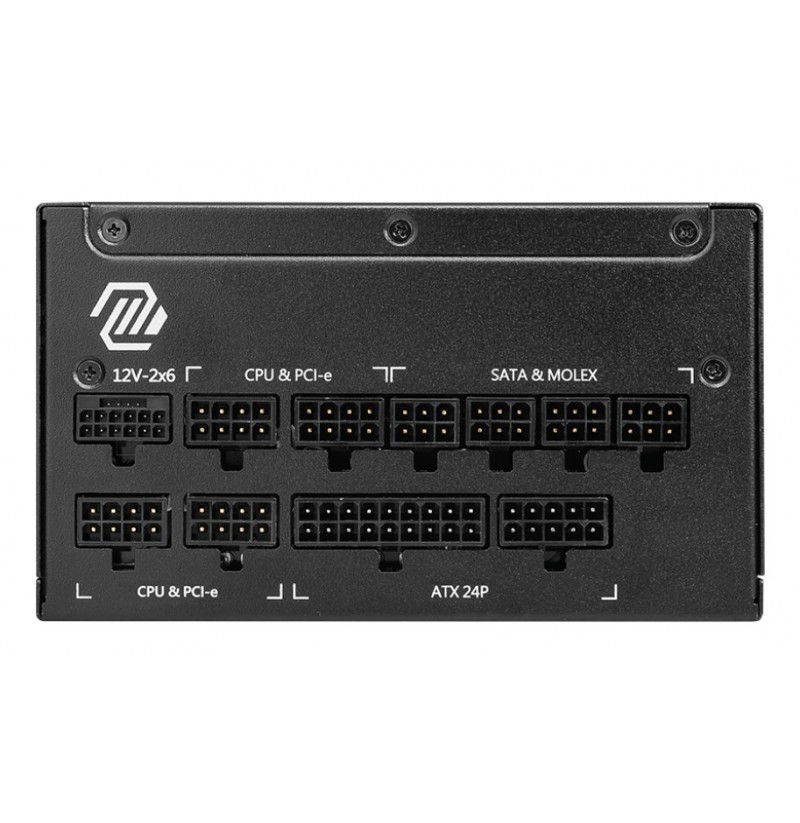

Peripheral (Molex) power connectors (4-pin): 1
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 12
PCI Express power connectors (16-pin): 1

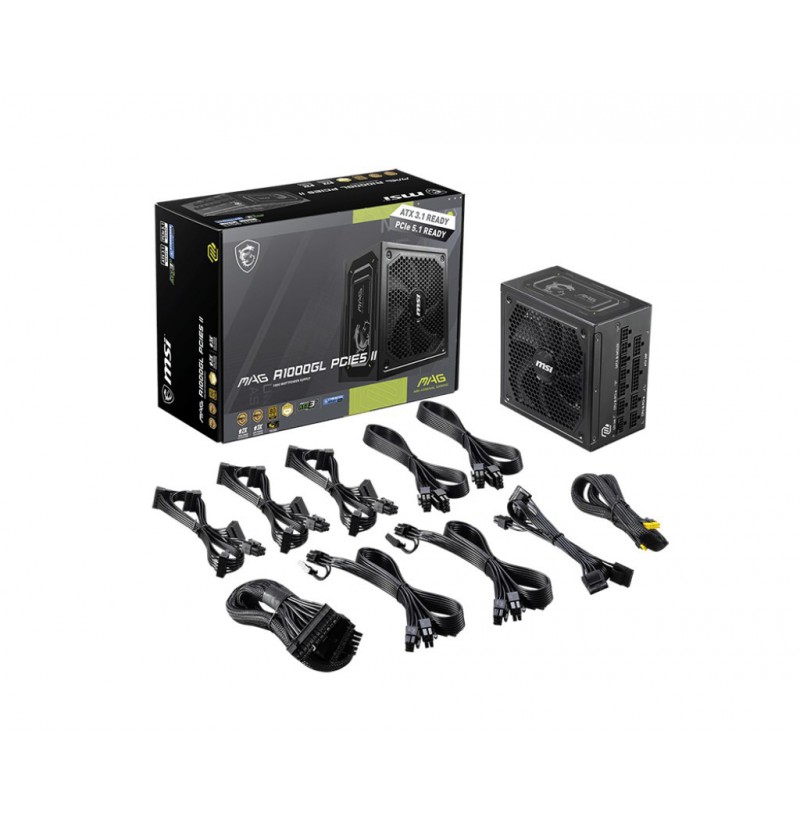

Cabling type: Fully-Modular
EPS power connector (4+4 pin): Yes
Motherboard power connector: 24-pin ATX
SATA power cable length: 150, 500
Peripheral (Molex) power cable length: 450 mm, 500
Motherboard power cable length: 60 cm
