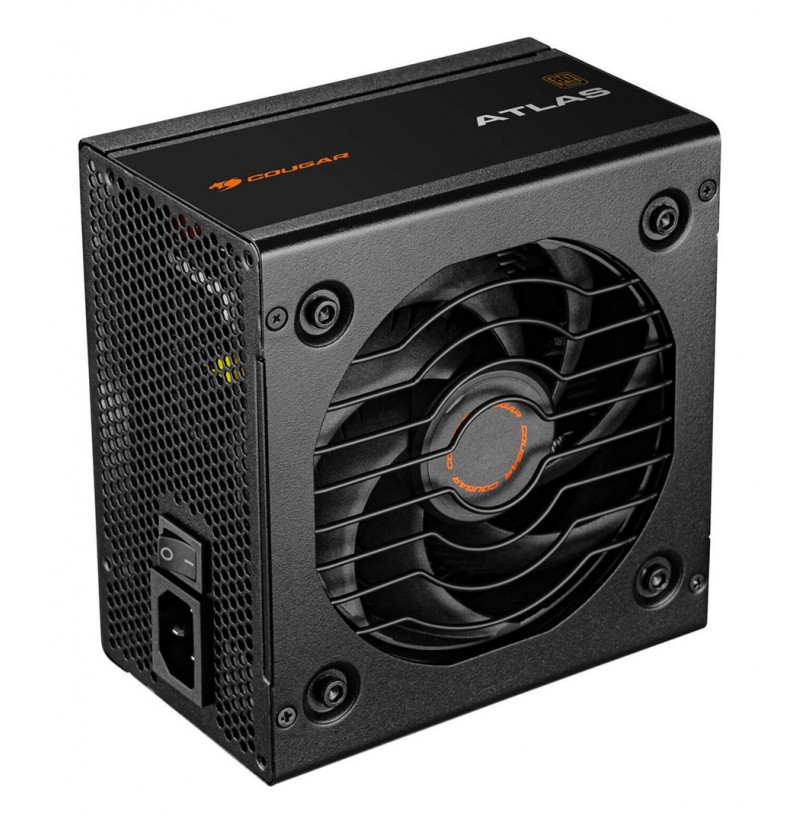

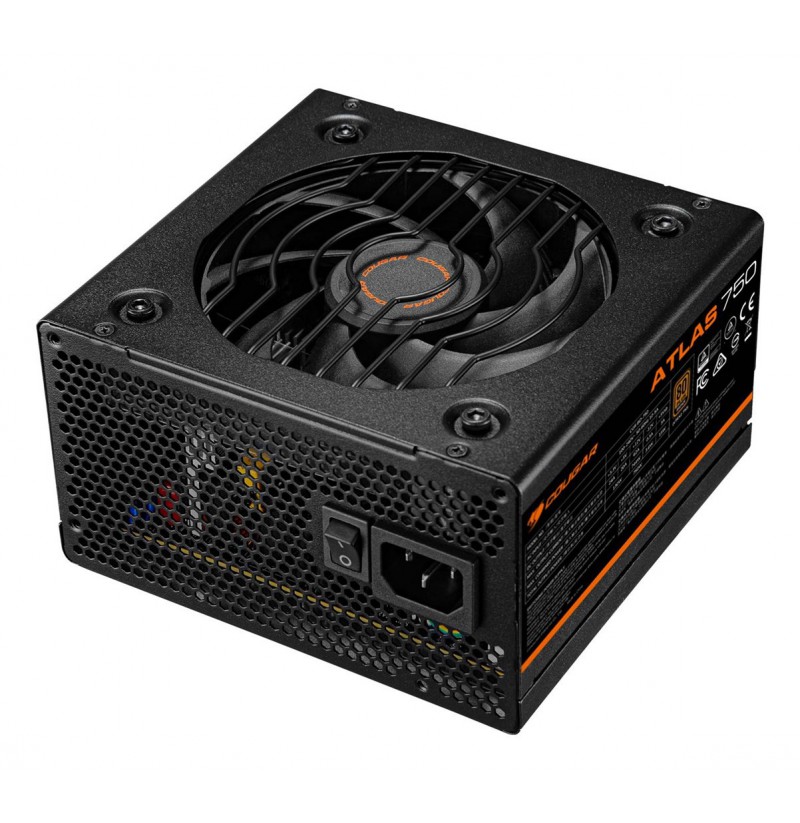

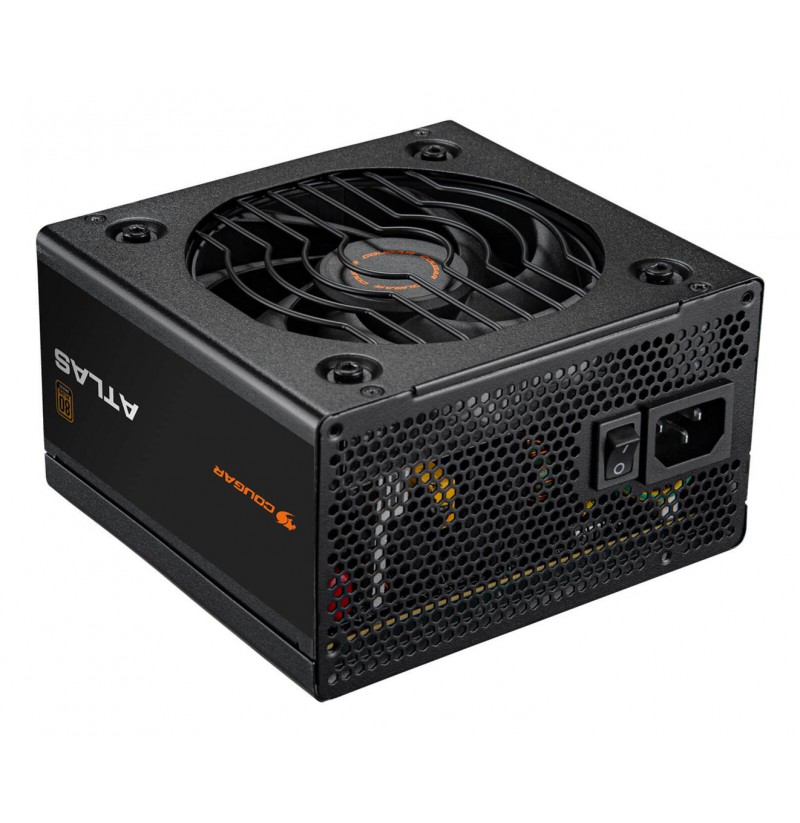

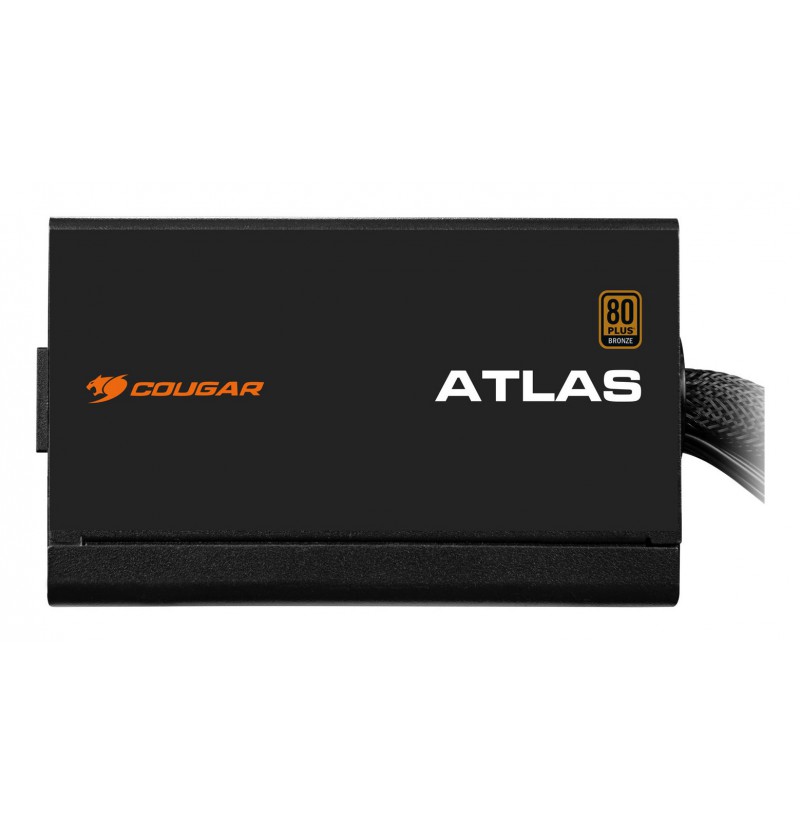

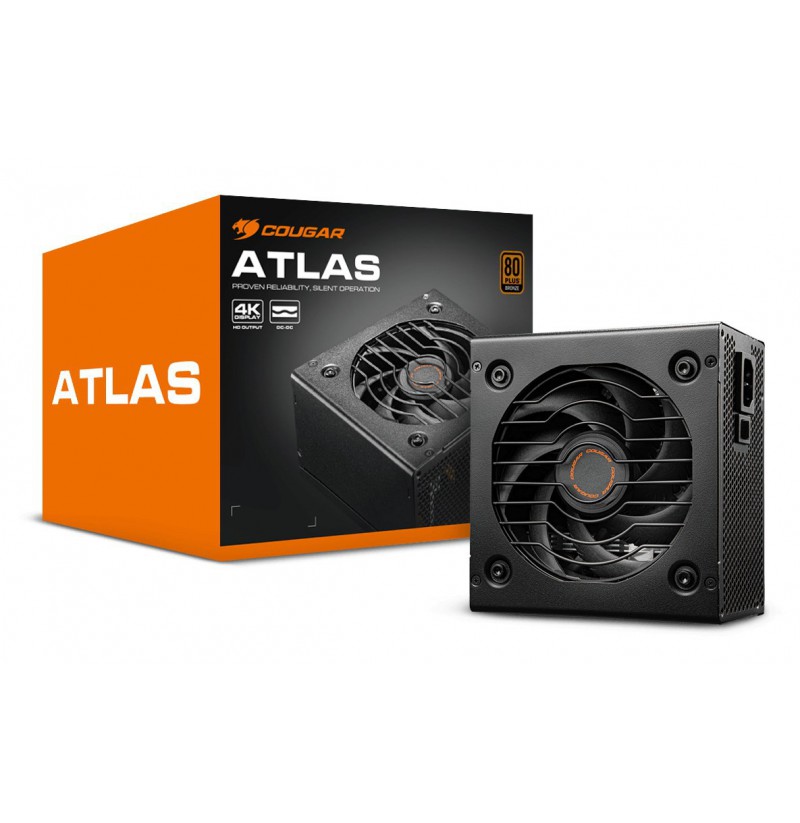

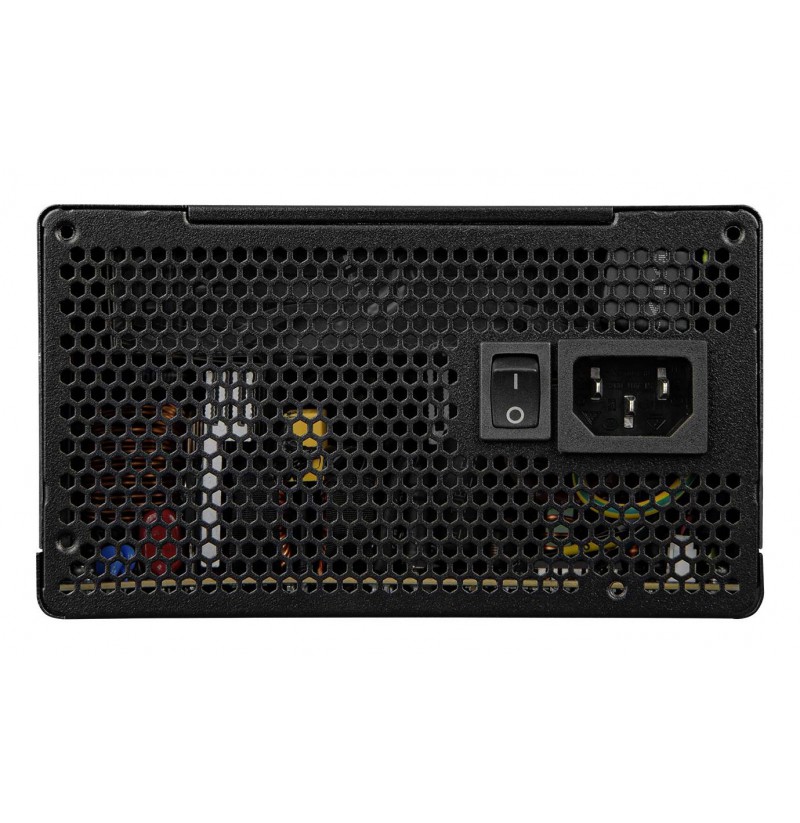

COUGAR ATLAS power supply unit 750 W 20+4 pin ATX Black

Fan diameter: 12 cm
On/off switch: Yes
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Combined power (+5Vsb): 15 W
Max output current (+5V): 22 A
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 3 A
Combined power (+12V): 750 W
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Max output current (+12V): 62.5 A
AC input voltage: 100 - 240 V
Input current: 10 - 5 A
Combined power (+3.3V): 140 W
Maximum input current (@220V): 5 A
Maximum input current (@110V): 10 A
Total power: 750 W
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Efficiency: 86%
Max output current (+3.3V): 22 A
Combined power (+5V): 140 W
Depth: 140 mm
Weight: 1.89 kg
Height: 86 mm
Width: 150 mm
Purpose: PC/Server
80 PLUS certification: 80 PLUS Bronze
Package width: 158 mm
Package height: 165 mm
Package type: Box
Package weight: 2.13 kg
Package depth: 187 mm
Compliance certificates: CCC, Federal Communications Commission (FCC), EAC, RoHS, CE
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 3
CPU power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power cable length: 450 mm
PCI Express power cable length: 45 cm
Cabling type: Non-Modular
Motherboard power cable length: 55 cm
Number of PATA power connectors: 1
PCI Express connector: Yes
