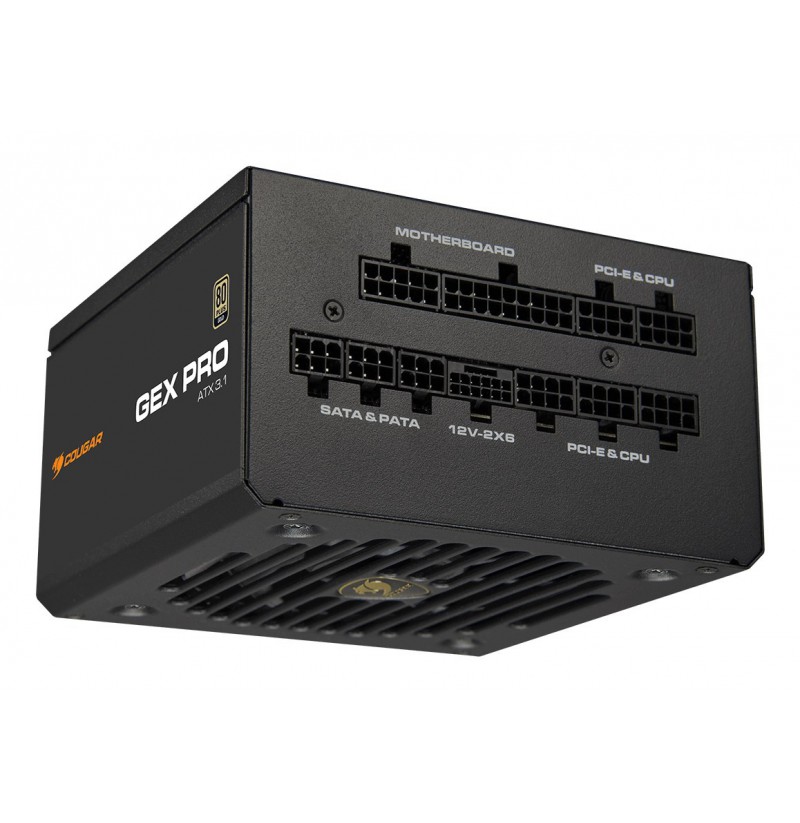

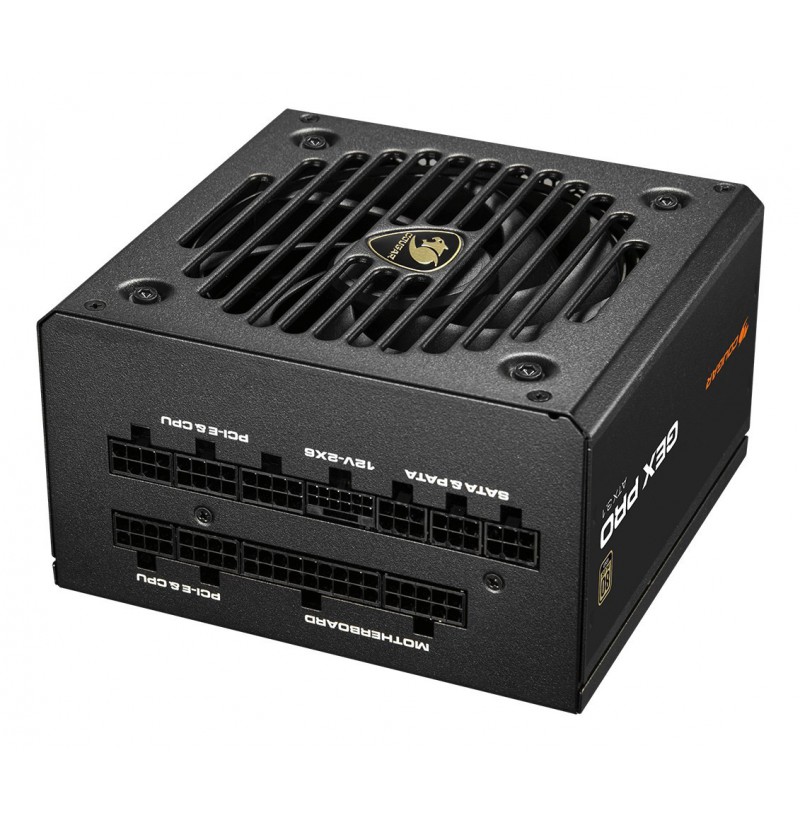

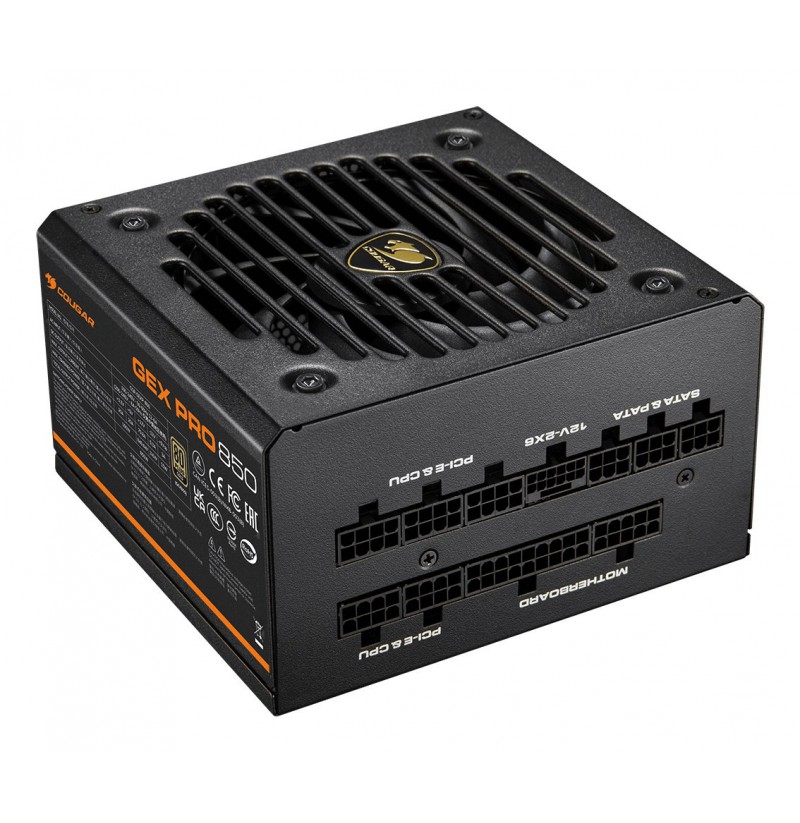

COUGAR CGR GEXP-850 power supply unit 850 W 20+4 pin ATX ATX Black

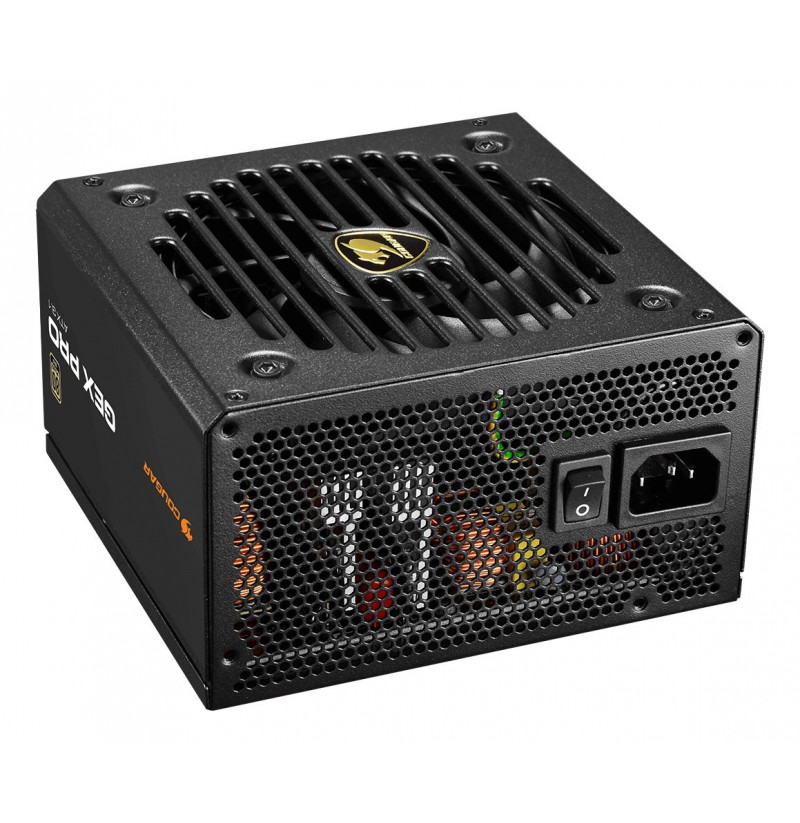

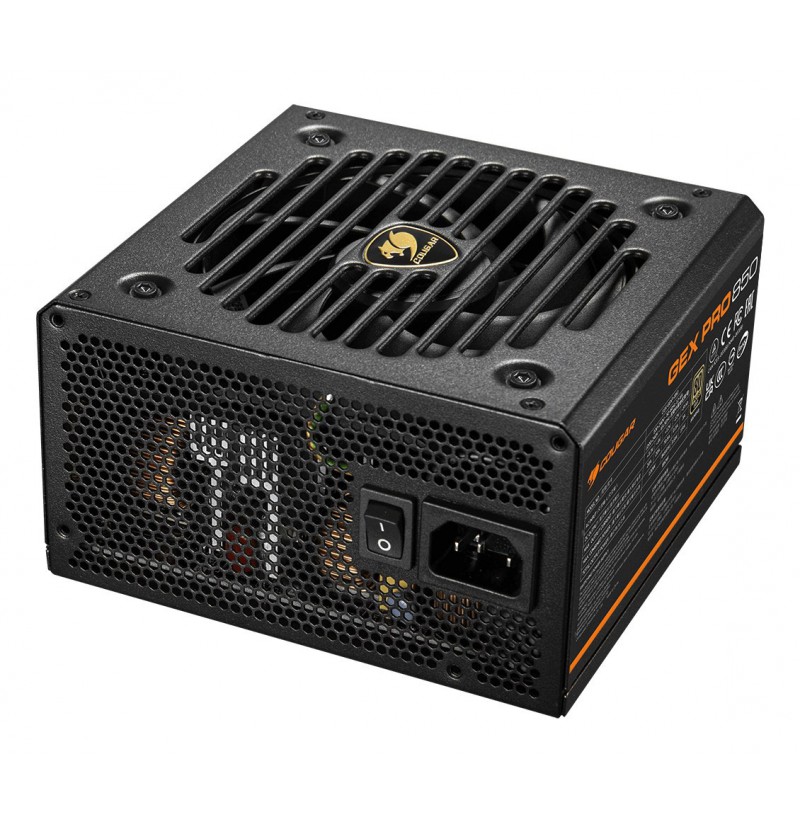

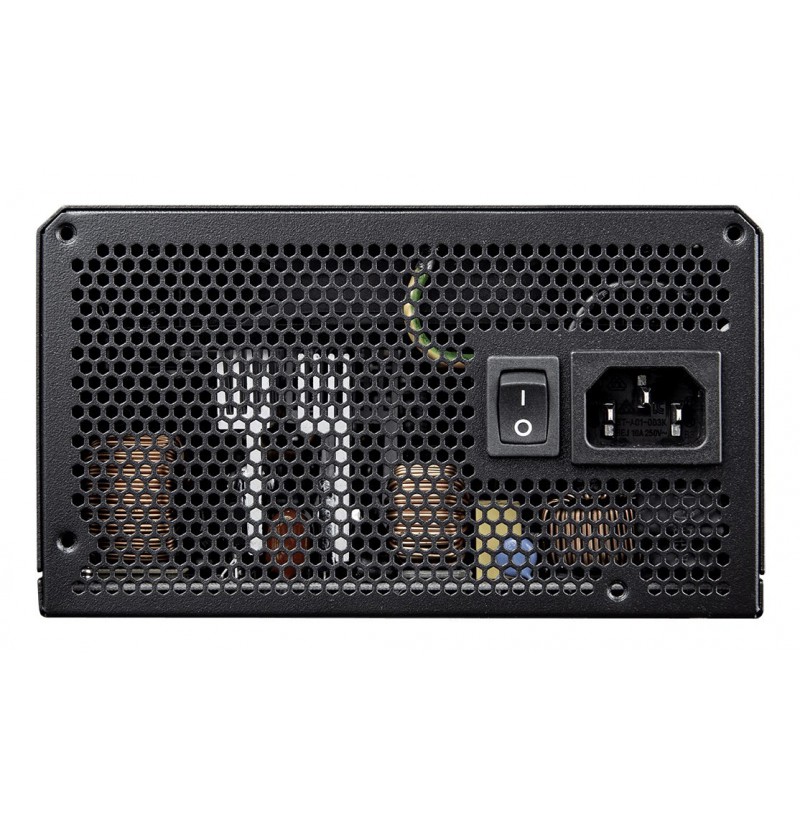

On/off switch: Yes
Product colour: Black

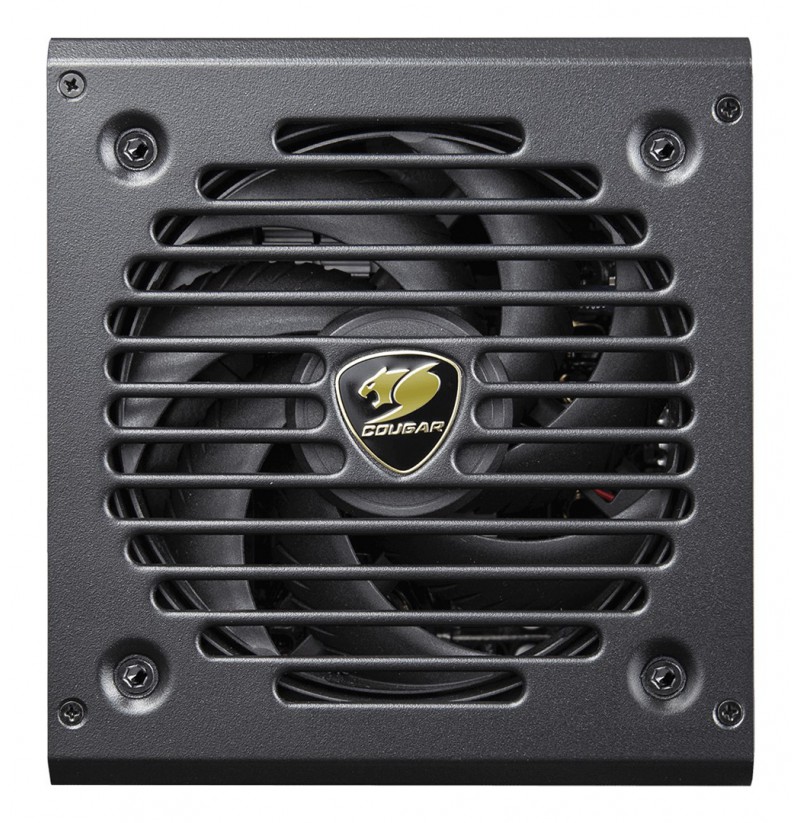

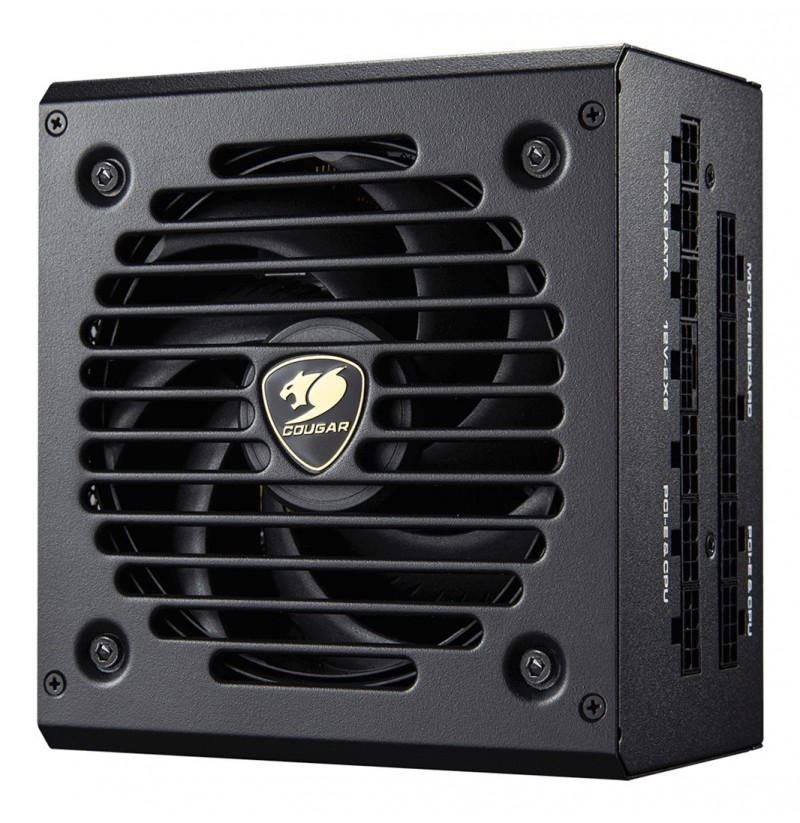

Fan diameter: 12 cm
Fan location: Top
Cooling type: Active
Number of fans: 1 fan(s)
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 3 A
Max output current (+12V): 70.8 A
Combined power (+3.3V): 100 W
Efficiency: 91%
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (-12V): 0.3 A
Power protection features: Short circuit, Over voltage, Overheating, Over power, Under voltage, Over current
Total power: 850 W
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Combined power (+12V): 849.6 W
Input current: 12-6 A
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Operating relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 10 - 40 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 70 °C
Depth: 140 mm
Height: 56 mm
Weight: 2.18 kg
Width: 150 mm
Power supply unit (PSU) form factor: ATX

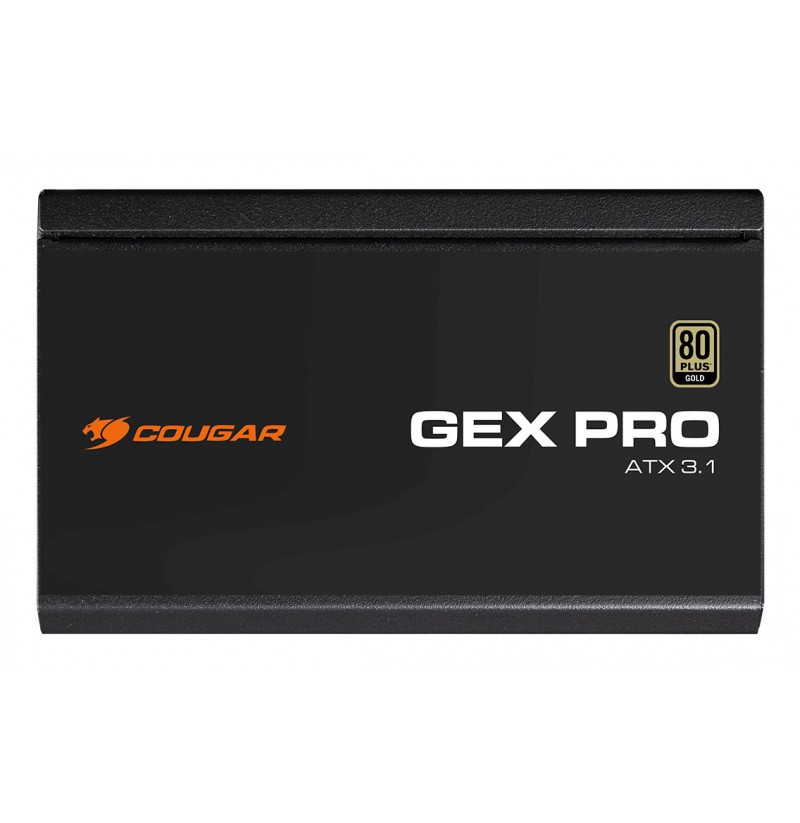

80 PLUS certification: 80 PLUS Gold
Bearing technology: HDB
ATX version: 3.1
Purpose: PC
Mean time between failures (MTBF): 100000 h
Package weight: 2.19 kg
Package type: Box
Package depth: 330 mm
Package width: 215 mm
Package height: 107 mm
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE, EAC, UKCA

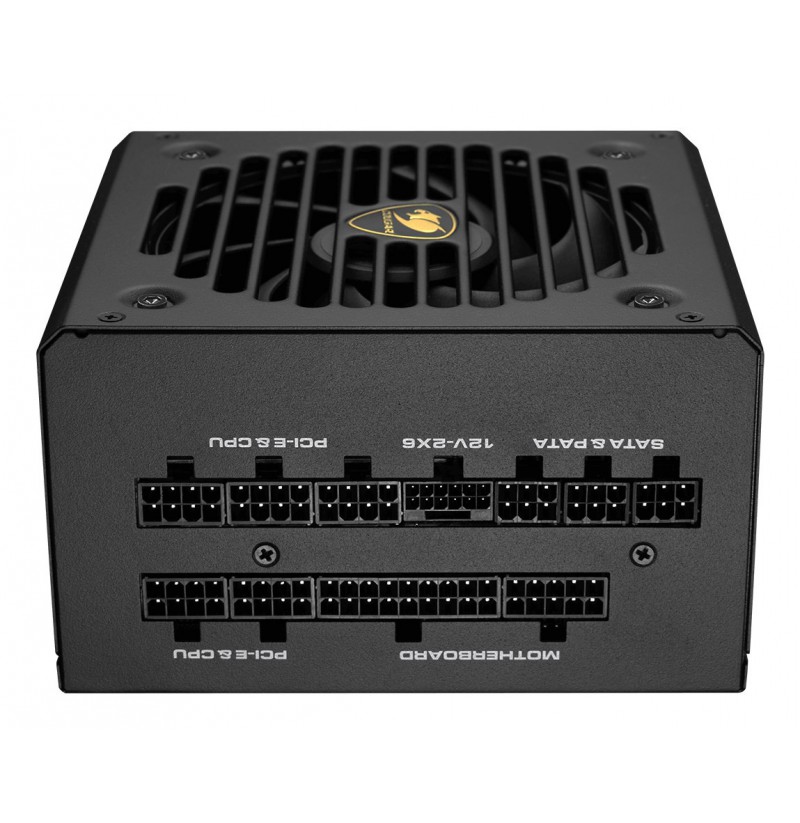

PCI Express power connectors (12+4 pin) cable length: 650 mm
Number of SATA power connectors: 8
SATA power cable length: 640, 520, 400 mm, 760 mm
PCI Express power connectors (12+4 pin): 1

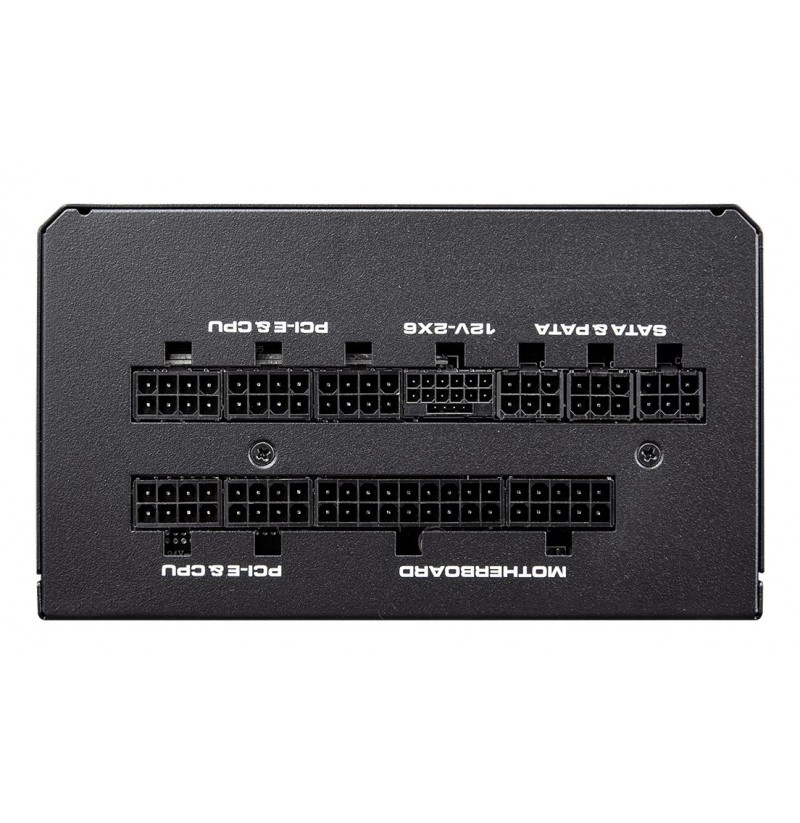

Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Cabling type: Fully-Modular
Number of PATA power connectors: 3
PCI Express power connectors (6+2 pin): 3
CPU power cable length: 70 cm
Motherboard power cable length: 61 cm
PCI Express connector: Yes
