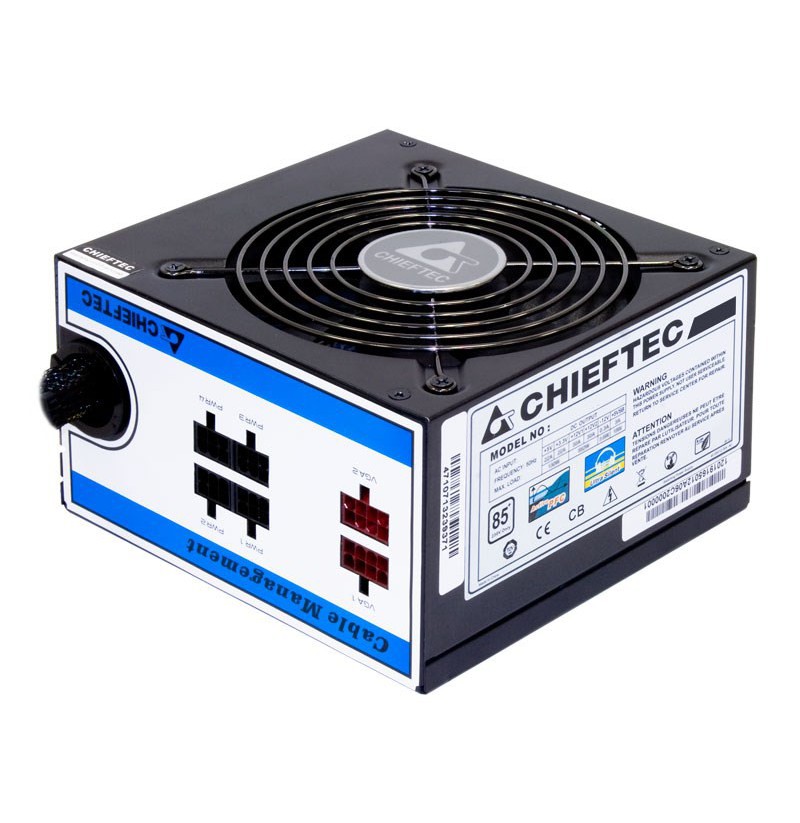

Chieftec CTG-750C power supply unit 750 W ATX Black

Cooling type: Active
Fan location: Top
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Power factor: 0.9
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Efficiency: 85%
Combined power (+12V): 648 W
Max output current (+3.3V): 22 A
AC input frequency: 50 Hz
Max output current (+12V2): 35 A
Max output current (+5Vsb): 3 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Total power: 750 W
Combined power (+5V): 130 W
Max output current (-12V): 0.3 A
AC input voltage: 230 V
Max output current (+5V): 22 A
Input current: 6 A
Combined power (-12V): 3.6 W
Max output current (+12V1): 35 A
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Overload, Overheating
Combined power (+5Vsb): 15 W
Height: 87 mm
Depth: 140 mm
Width: 150 mm
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS
Mean time between failures (MTBF): 100000 h
ATX version: 2.3
Package type: Box
Certification: CE, CB, FCC
Compliance certificates: RoHS
Number of SATA power connectors: 6
EPS power connector (8-pin): Yes
Cabling type: Semi-Modular
CPU P4 connector (4-pin): 1
Floppy drive power connector: 2
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 4
CPU power connectors (8-pin): 1
Motherboard power connector: 24-pin ATX
Harmonized System (HS) code: 84733020
