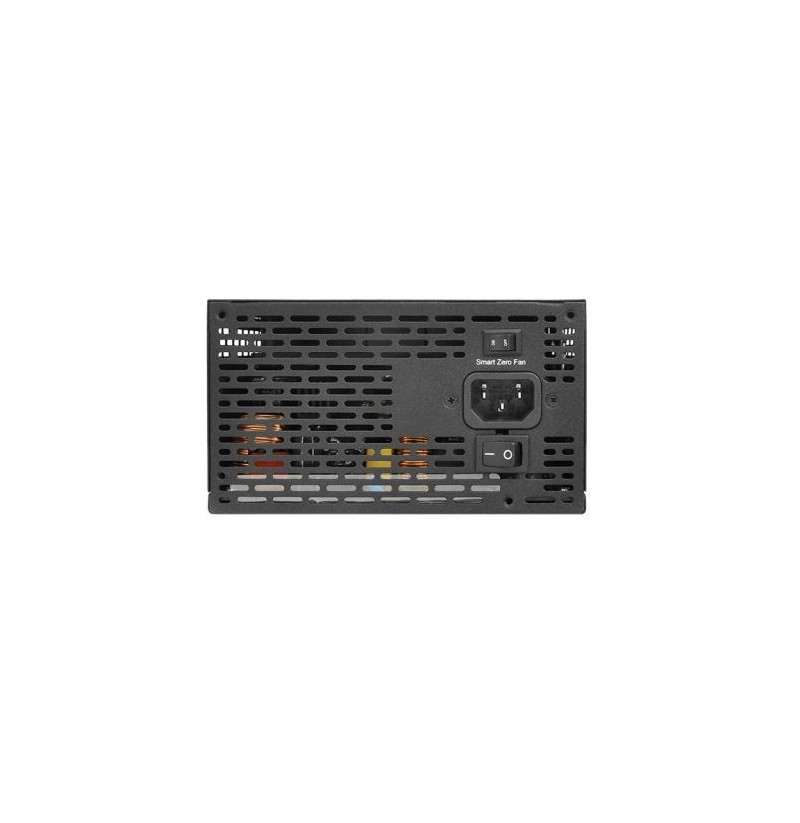

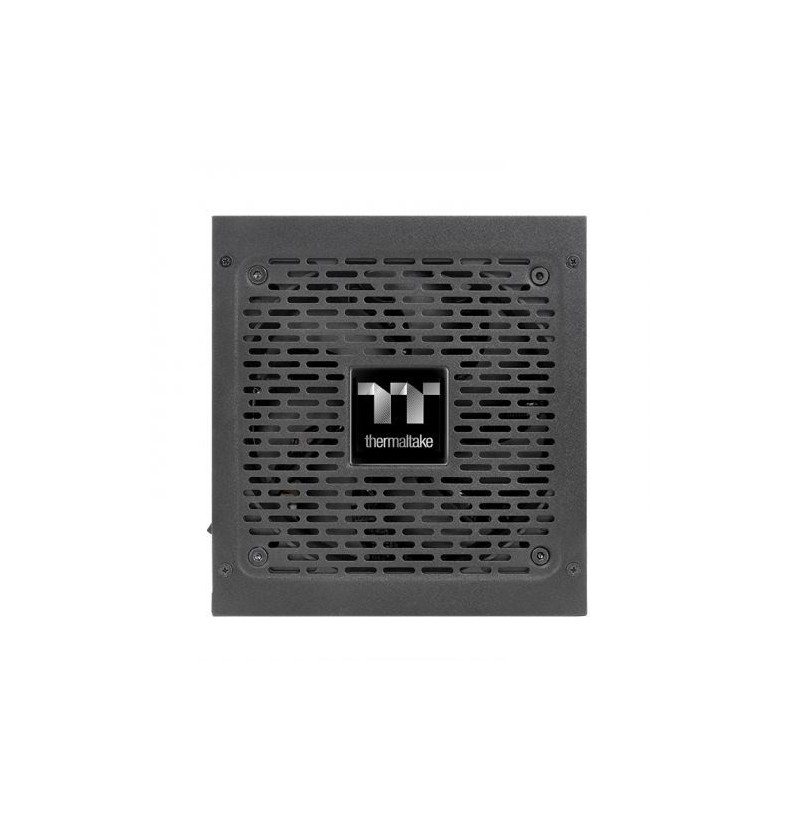

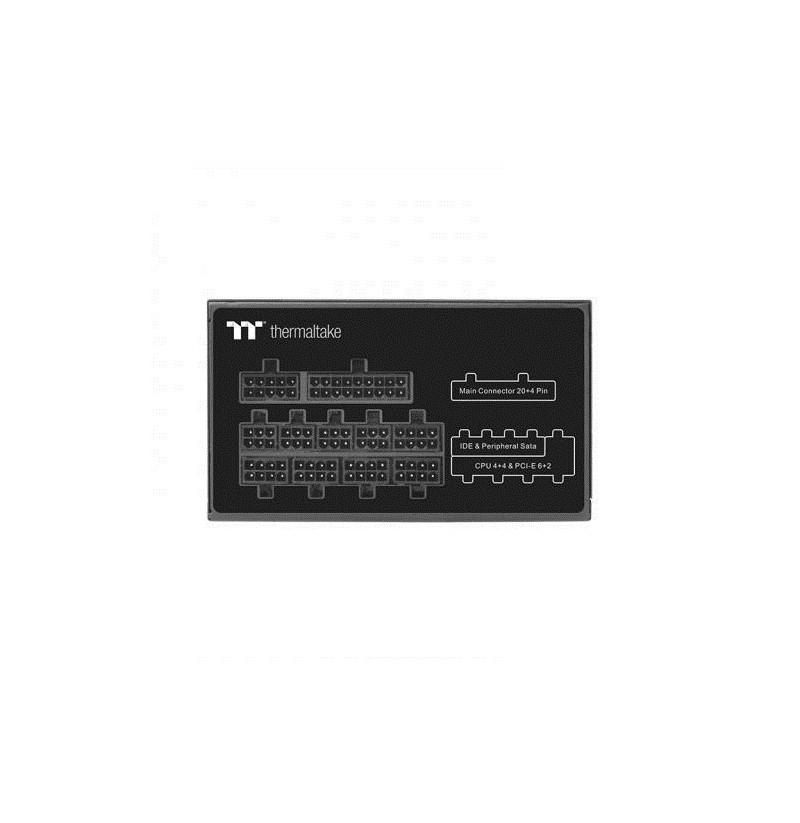

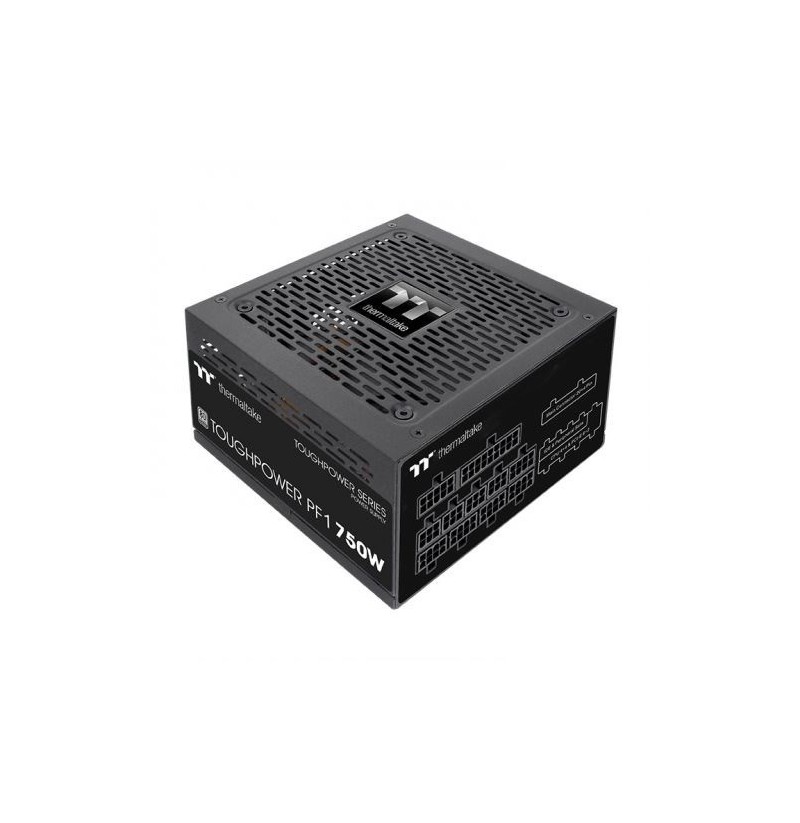

Thermaltake Toughpower PF1 power supply unit 850 W 24-pin ATX ATX Black

On/off switch: Yes
Product colour: Black
Fan location: Top
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Power protection features: Over current, Over voltage
AC input frequency: 50 - 60 Hz
Combined power (-12V): 3.6 W
Hold time: 16 ms
Max output current (+3.3V): 20 A
AC input voltage: 100 - 240 V
Total power: 850 W
Peak power: 900 W
Max output current (+5V): 20 A
Input current: 10 A
Combined power (+3.3V): 100 W
Max output current (+12V): 62 A
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 744 W
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -40 - 55 °C
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 20 - 85%
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Certification: CE, UL, TÜV, FCC, CCC, EAC, S-Mark, BSMI
Bearing technology: HDB
Noise level: 27.8 dB
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 120000 h
Silent mode: Yes
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
SATA power cable length: 500, 150
CPU power cable length: 65 cm
Floppy disk drive cable length: 15 cm
Cabling type: Fully-Modular
Floppy disk drive connector: Yes
PCI Express power connectors (6-pin): 2
Motherboard power connector: 24-pin ATX
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 3
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150 mm, 500
Motherboard power cable length: 60 cm
Harmonized System (HS) code: 84733020
