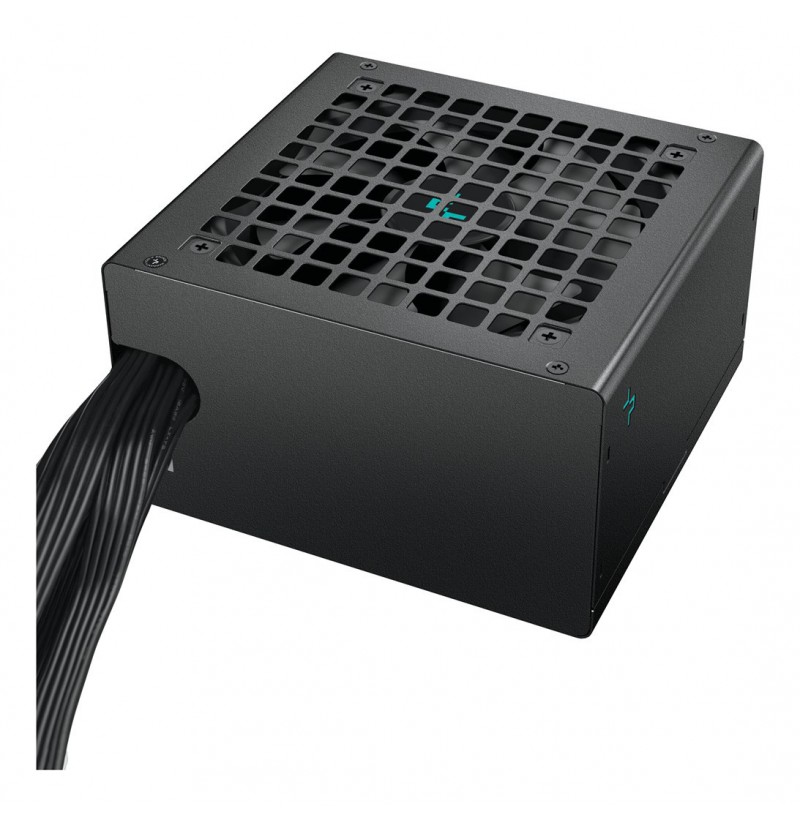

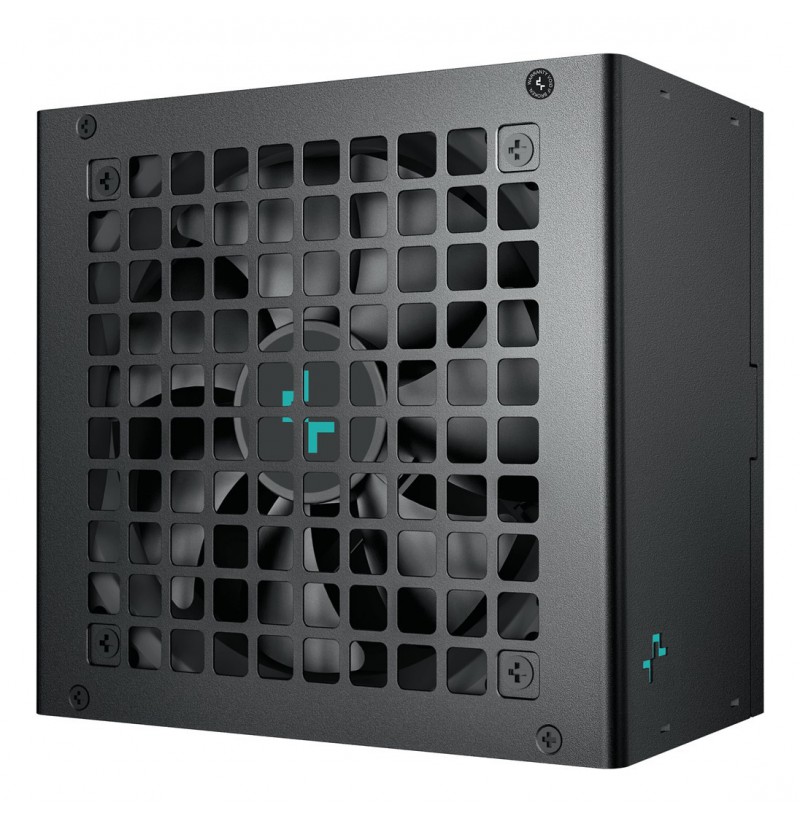

DeepCool PL750D power supply unit 750 W 20+4 pin ATX ATX Black

Sustainability certificates: ErP, Triman
Sustainability compliance: Yes
Product colour: Black

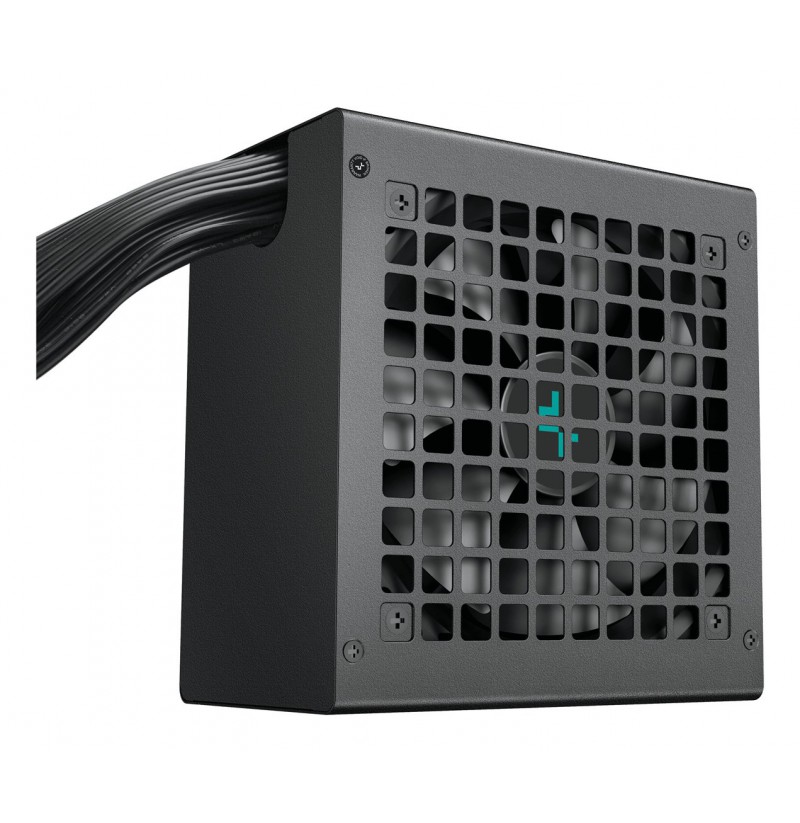

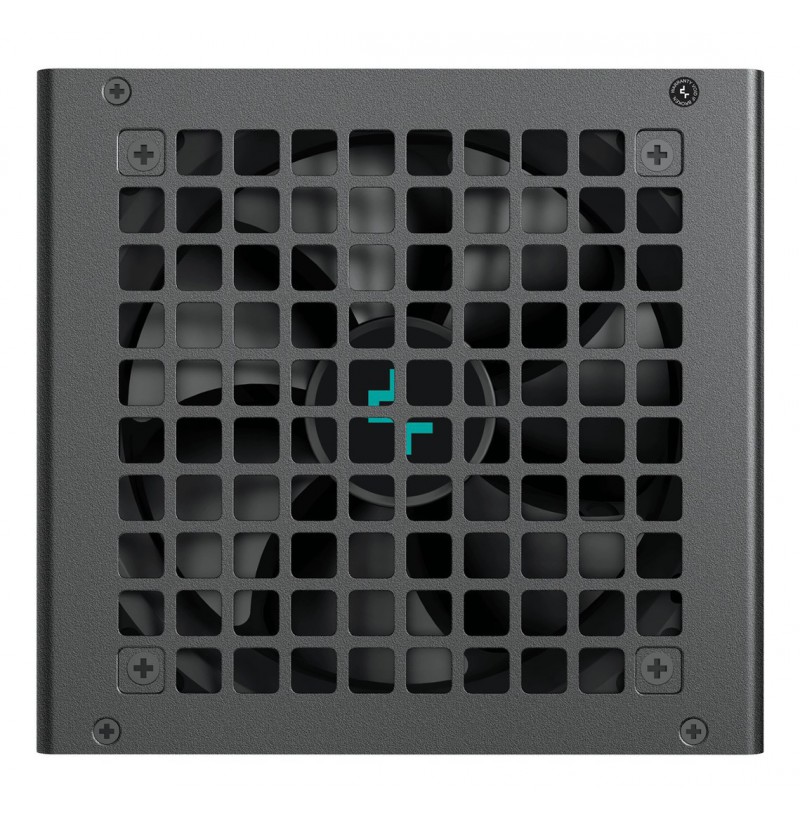

Fan diameter: 12 cm
Fan location: Top
Number of fans: 1 fan(s)
Cooling type: Active

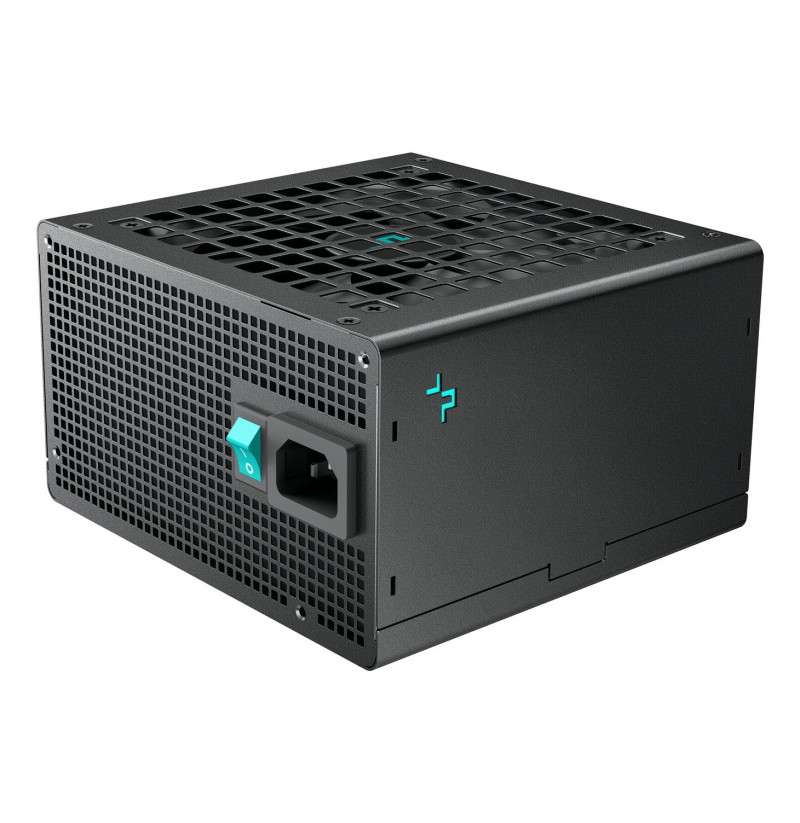

On/off switch: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active

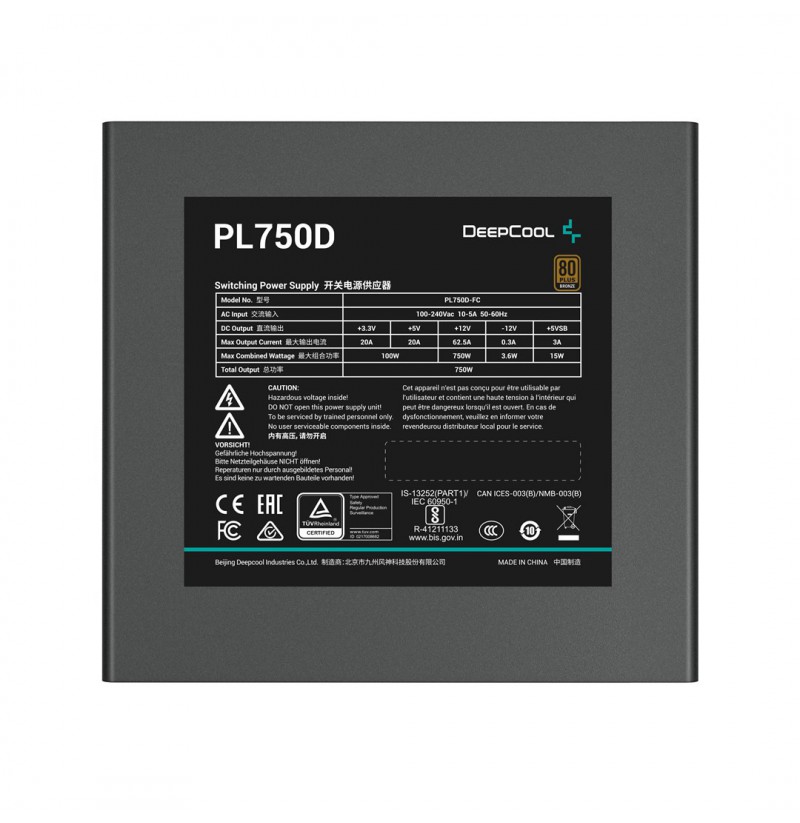

Combined power (+3.3V): 100 W
Power protection features: Over power, Over voltage, Under voltage, Over current, No load operation, Overheating, Surge protection, Surge & inrush protection (SIP)
Total power: 750 W
Max output current (+12V): 62.5 A
Power Good signal delay range: 100 - 150 ms
Combined power (-12V): 3.6 W
Input current: 10 - 5 A
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Efficiency: 85%
Combined power (+5V): 100 W
Max output current (+5Vsb): 3 A
Combined power (+12V): 750 W
Max output current (+3.3V): 20 A
Max output current (-12V): 0.3 A
Hold time: 16 ms
Operating temperature (T-T): 0 - 40 °C
Depth: 140 mm
Height: 86 mm
Width: 150 mm
ATX version: 3.0
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: HYB
Power supply unit (PSU) form factor: ATX
Package type: Box
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Compliance certificates: WEEE, RoHS
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
SATA power cable length: 650, 750 mm, 550, 450 mm
Cabling type: Non-Modular
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 8
PCI Express power connectors (6+2 pin): 3
Country of origin: China
