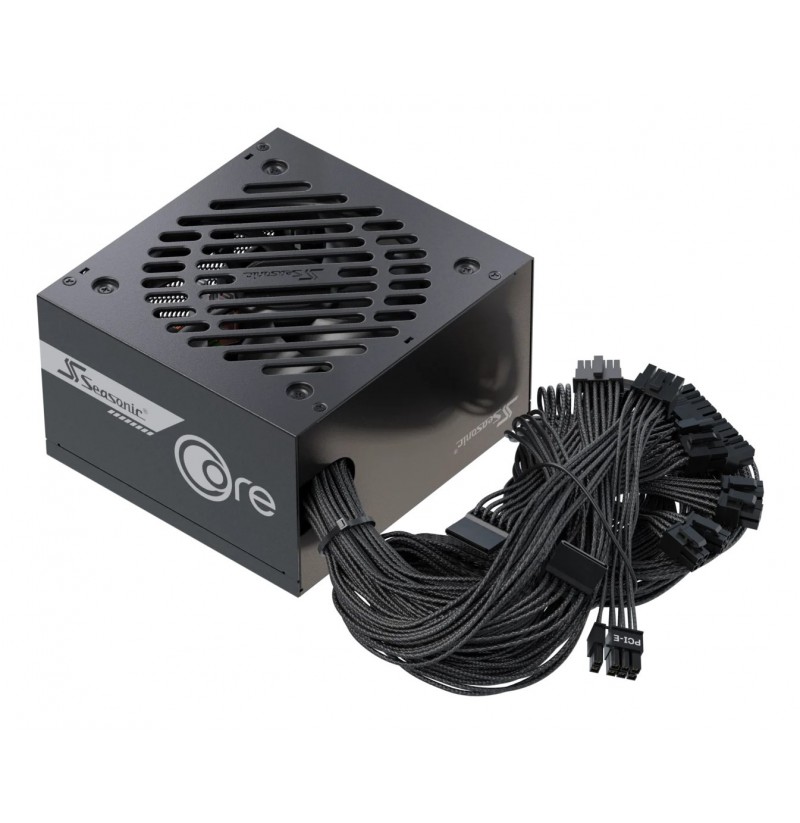

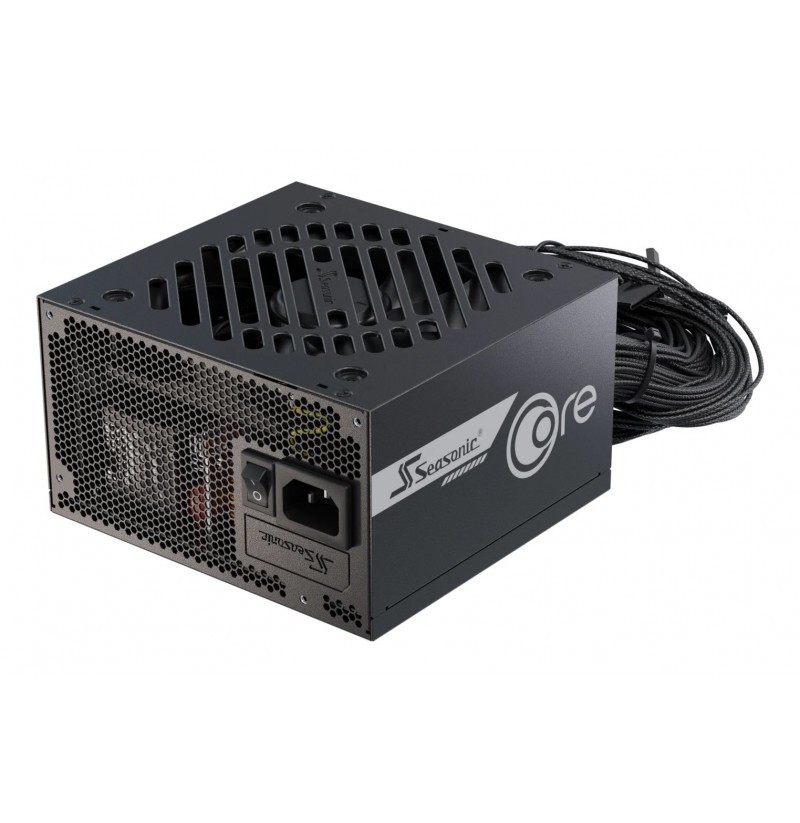

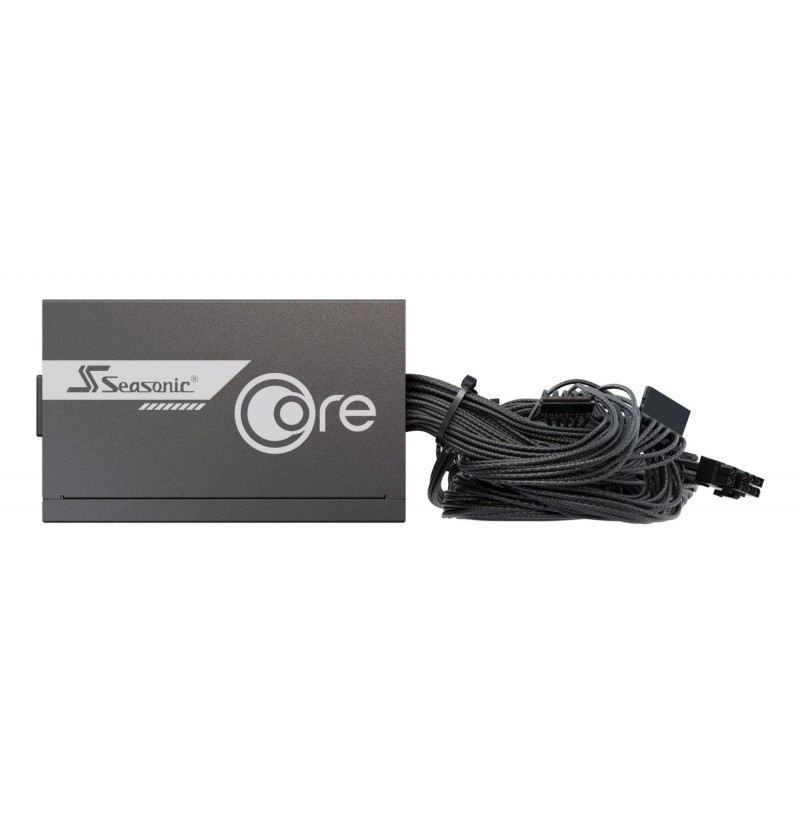

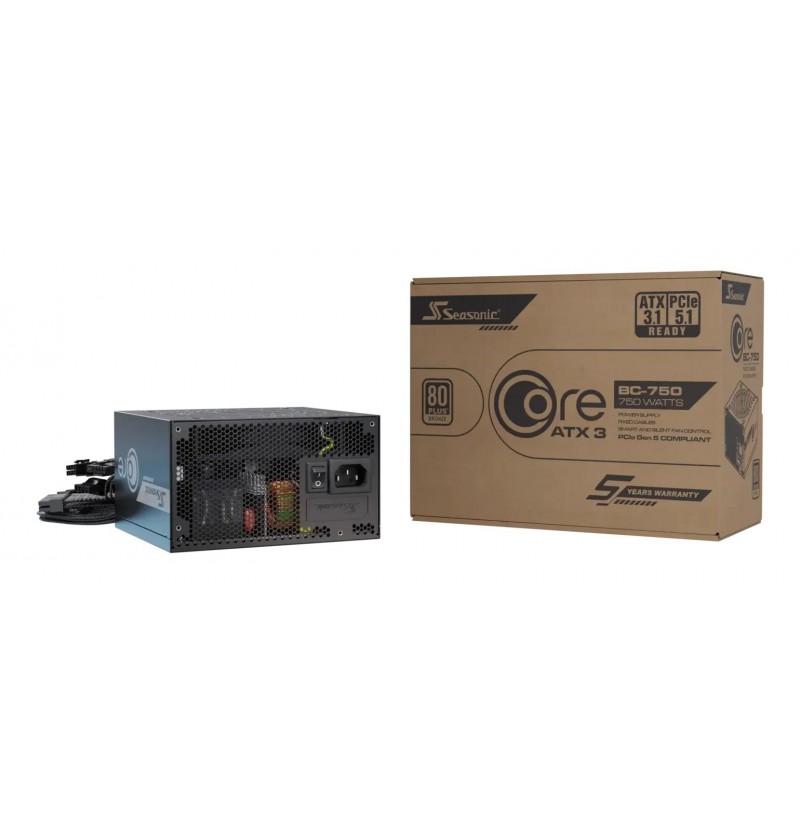

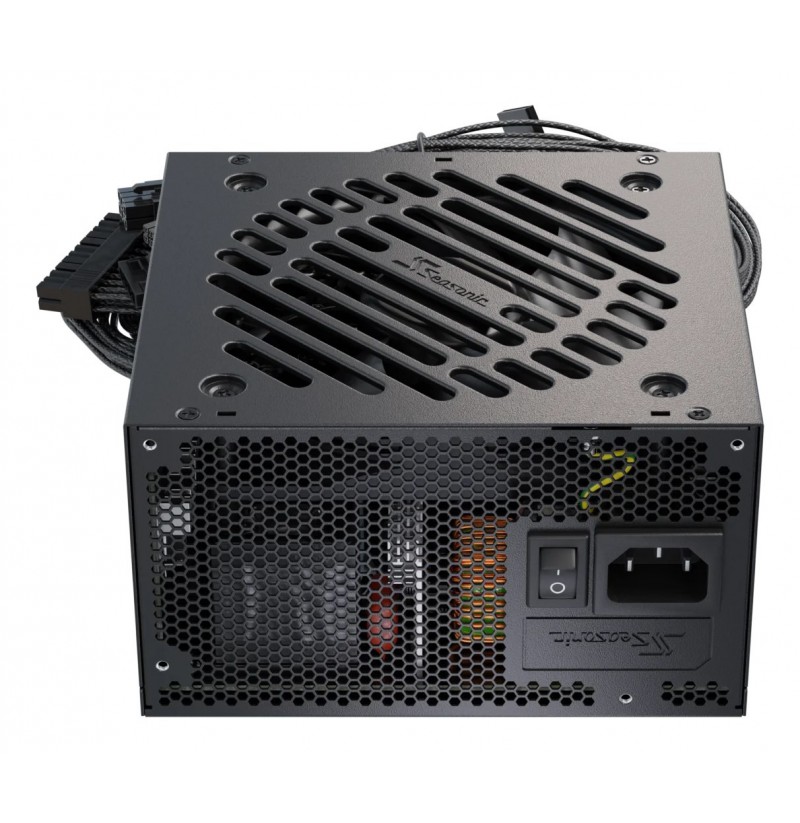

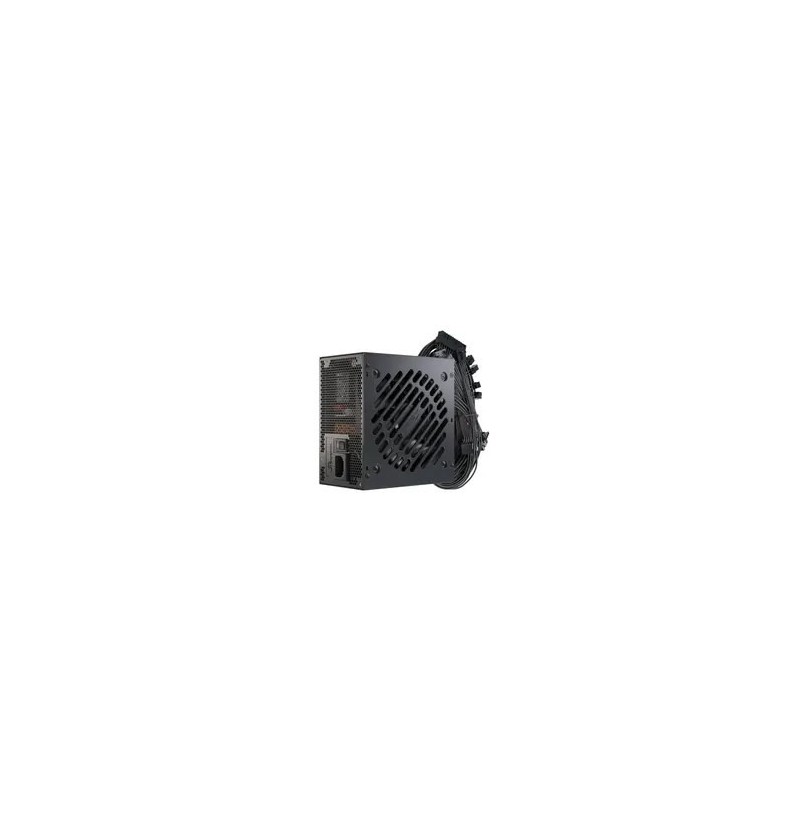

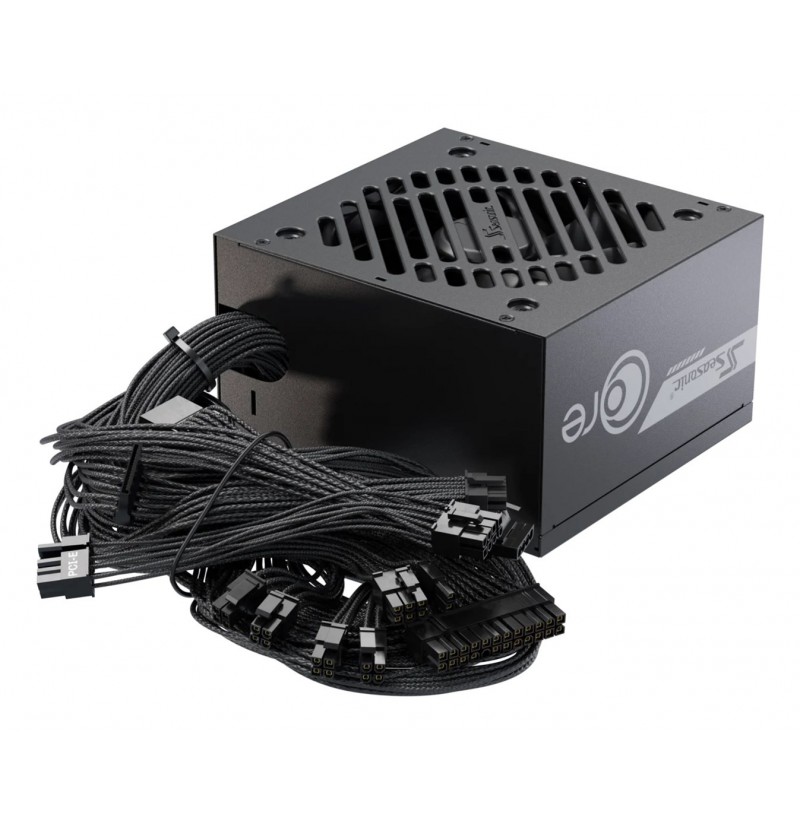

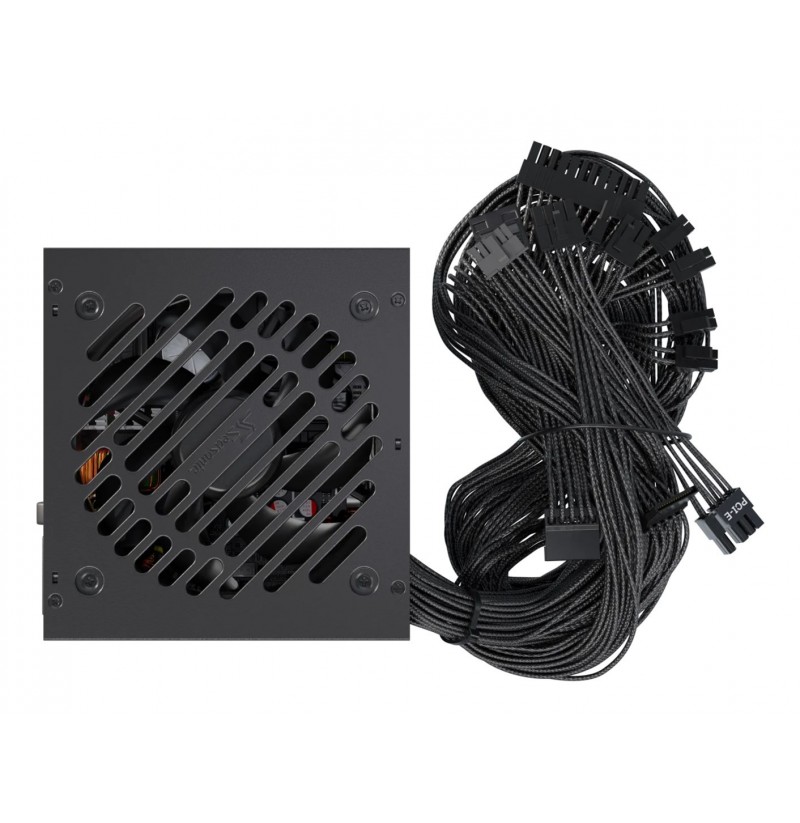

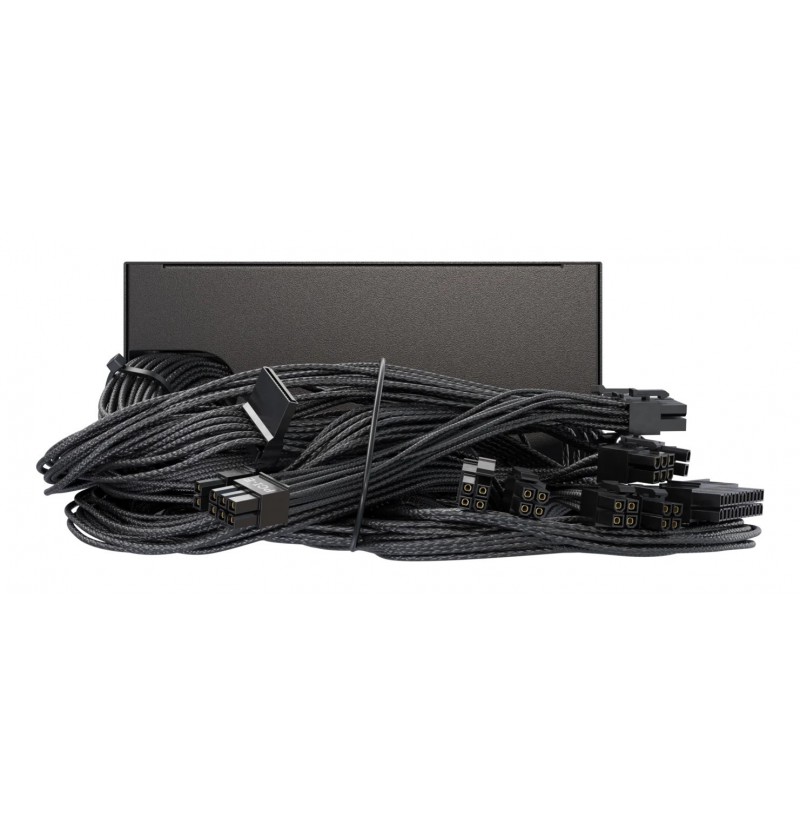

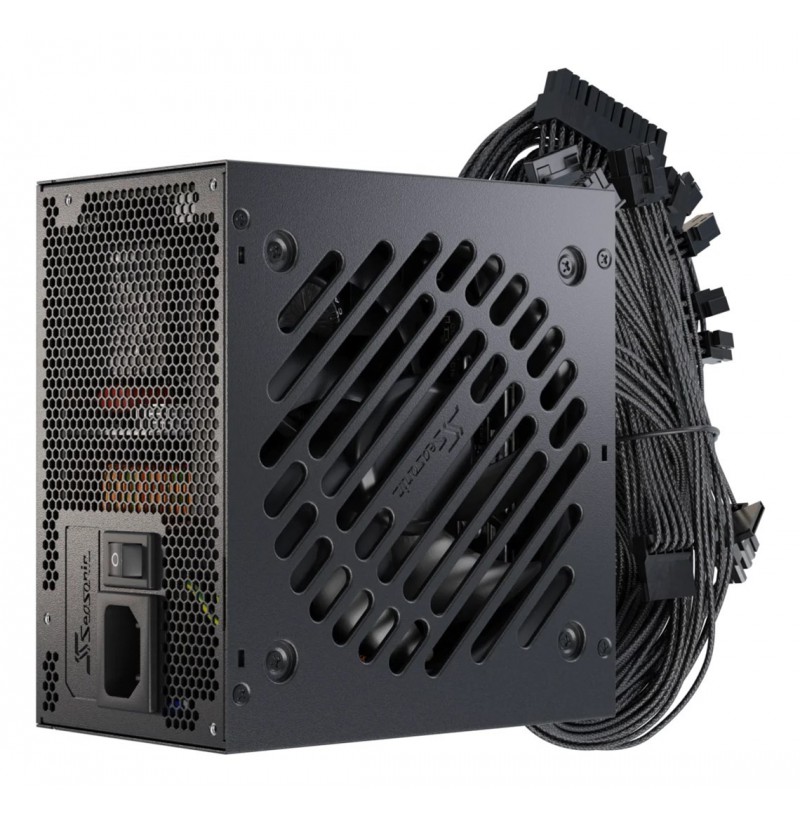

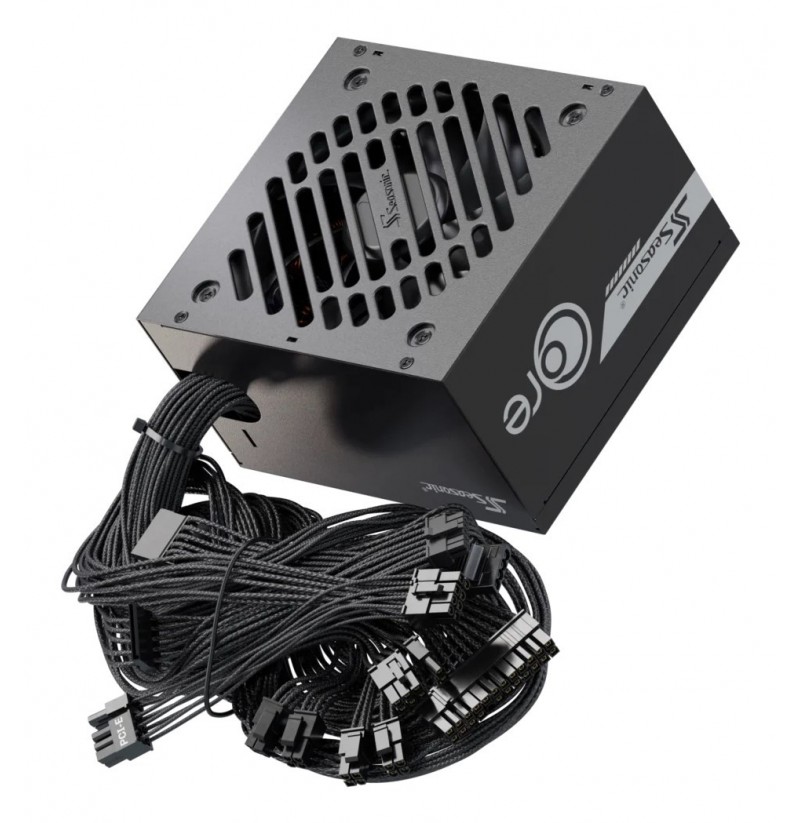

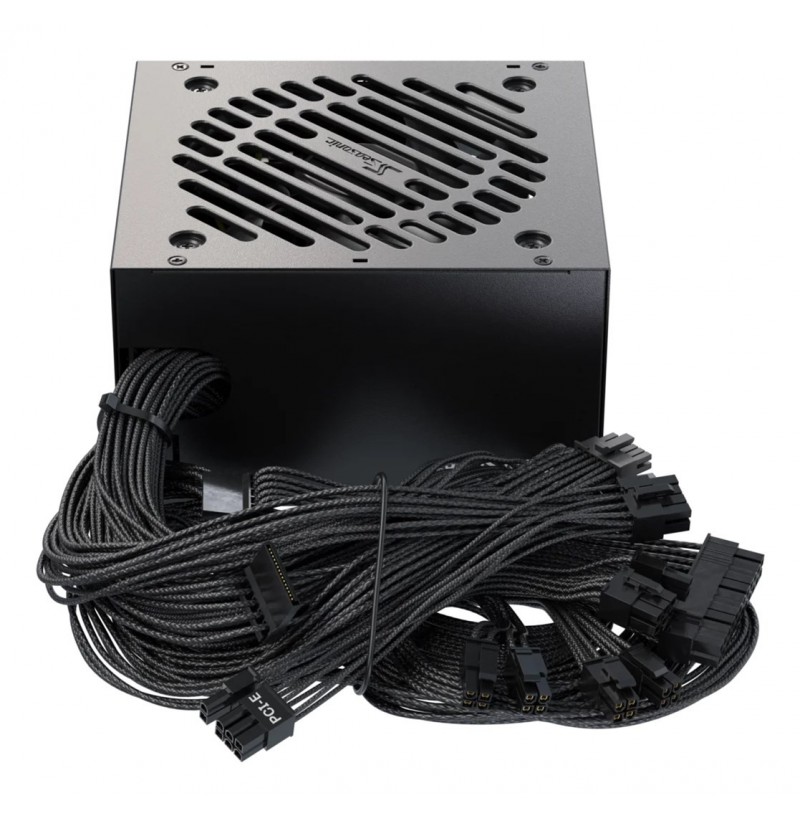

Seasonic CORE BC-750 ATX 3.1 power supply unit 750 W 20+4 pin ATX Black

Sustainability certificates: ENERGY STAR
On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Fan location: Top
Number of fans: 1 fan(s)
Product colour: Black
AC input frequency: 50/60 Hz
Power protection features: Short circuit, Over voltage, Over power, Over current
Total power: 750 W
Combined power (-12V): 3.6 W
Combined power (+12V): 744 W
Input current: 11 - 5.5 A
Combined power (+3.3V): 100 W
AC input voltage: 100 - 240 V
Max output current (+5V): 20 A
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 40 °C
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Bearing technology: Sleeve
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC
Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Compliance certificates: cTUVus, CB, EAC, RoHS, CE, WEEE, BSMI, CCC, REACH, UKCA
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 3
CPU power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
PCI Express connector: Yes
EPS power connector (4+4 pin): Yes
