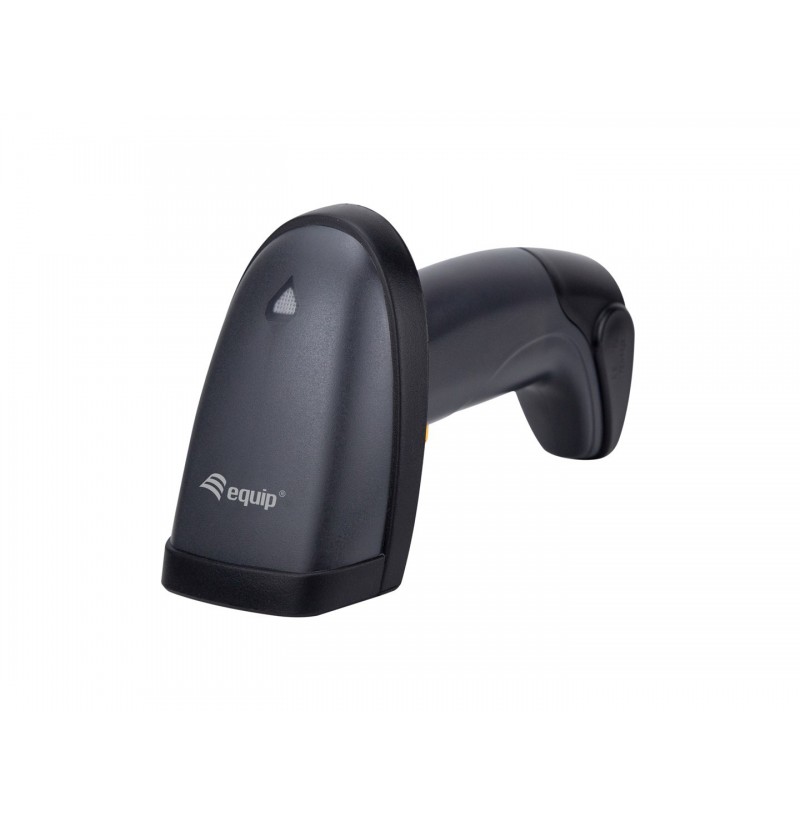

Equip Wireless Barcode Scanner 2D

Sustainability compliance: Yes
Compliance certificates: RoHS, CE
Power source type: Battery
Battery voltage: 3.7 V
Battery technology: Lithium-Ion (Li-Ion)
Number of batteries supported: 1
Battery type: Built-in battery
Battery capacity: 1500 mAh
Battery life: 20 h
Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Weight: 445 g
Width: 111 mm
Height: 180 mm
Depth: 175 mm
Product colour: Black
Country of origin: China
Protection features: Water resistant, Drop proof
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Package weight: 685 g
Package depth: 262 mm

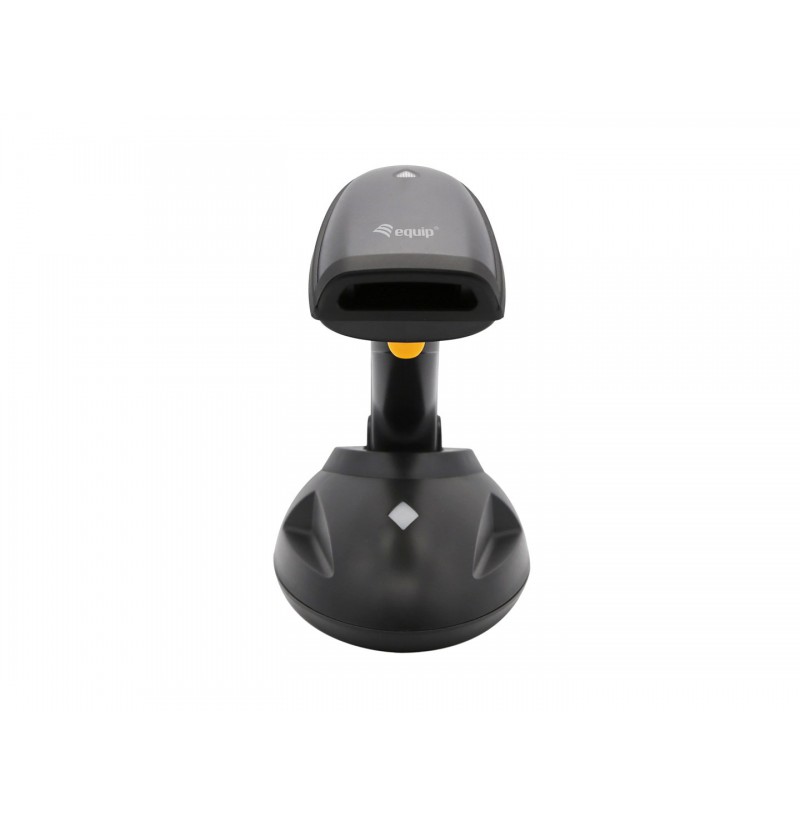

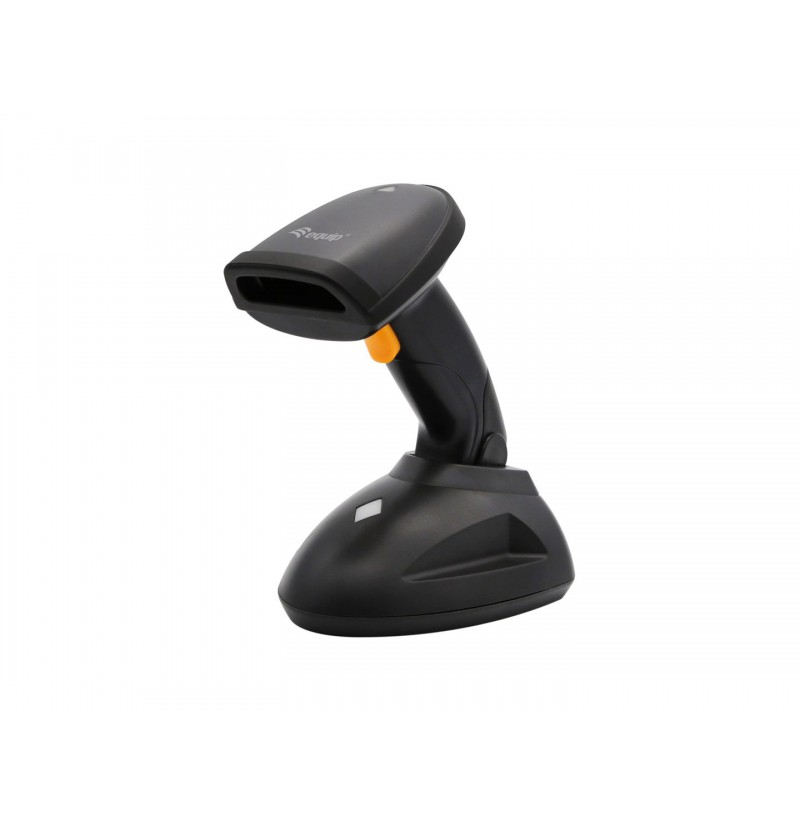

Charging base: Yes
Package height: 80 mm
Package width: 231 mm
Cable length: 1.8 m
Connectivity technology: Wireless
Standard interfaces: Wireless LAN
Operating frequency: 433 MHz
Wireless range: 200 m
Battery capacity: 5.55 Wh
Standby time: 3 month(s)
Quick start guide: Yes
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Windows XP Professional x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10 Education x64, Windows XP Home x64, Windows 10 Education, Windows XP Professional, Windows XP, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 7 Ultimate x64, Windows 7 x64, Windows 10 Pro x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Home x64, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 7 Professional, Windows 7, Windows 7 Professional x64, Windows 11 Enterprise, Windows 10, Windows 10 IOT Core, Windows 7 Enterprise, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 7 Home Basic, Windows 7 Ultimate
Linux operating systems supported: Yes
Products per master (outer) case: 20 pc(s)
Harmonized System (HS) code: 8471900090
Master (outer) case length: 550 mm
Master (outer) case gross weight: 15 kg
Master (outer) case height: 420 mm
Master (outer) case width: 485 mm
Pitch reading angle: -30 - 30°
Tilt reading angle: 0 - 360°
Type: Handheld bar code reader
Read rate (max): 220 reads/s
2D (matrix & stacked) barcodes supported: Data Matrix, QR Code, PDF417
Sensor type: LED
Scanner type: 1D/2D
Yaw reading angle: -35 - 35°
Scanner resolution: 5 mm
Linear (1D) barcodes supported: Code 128, EAN 128, Standard 2 of 5, GS1 DataBar, Codabar, ISSN, Matrix 2 of 5, MSI-Plessey, Interleaved 2 of 5, Plessey, UPC-E, ISBN, Code 93, Industrial 2 of 5, Code 11, EAN-13, EAN-8, UPC-A, Code 39
Working distance: 150 cm
Trigger mode: Auto-induction, Continuous, Manual
