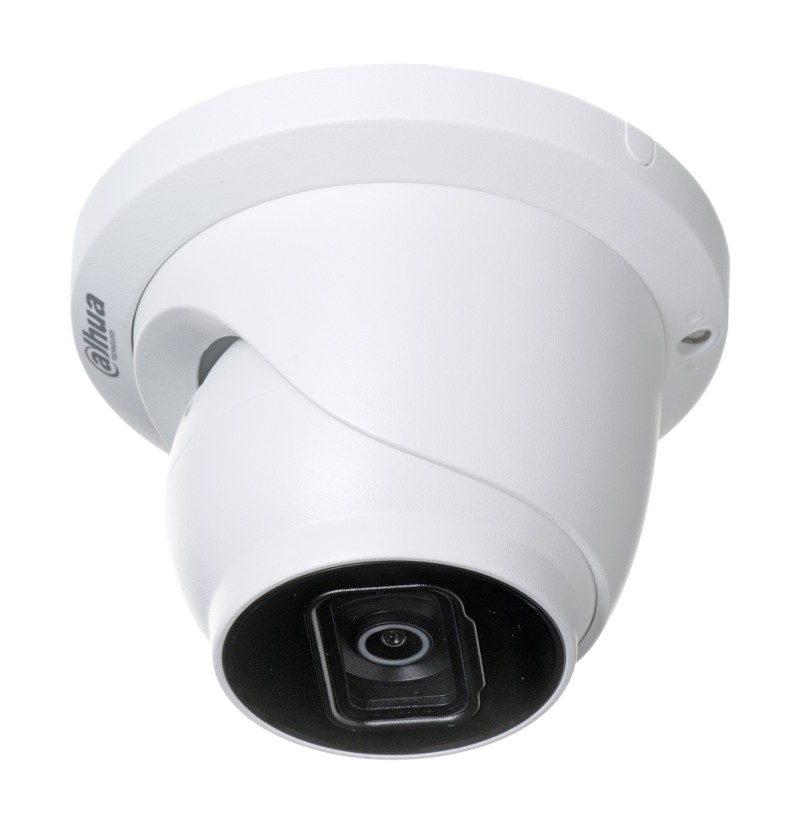

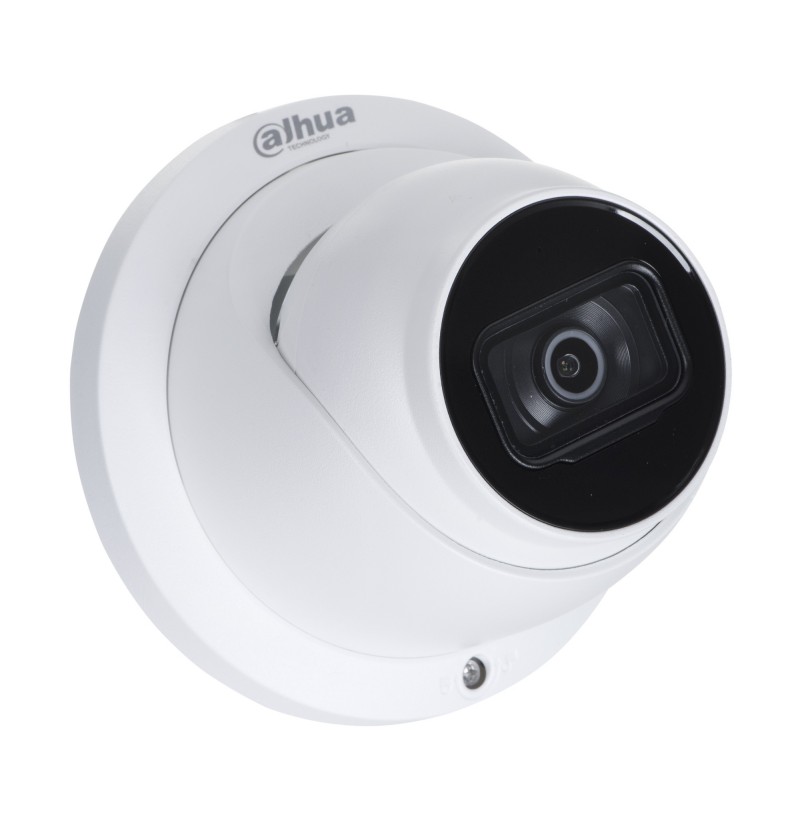

IPC-HDW1530T-0280B-S6

International Protection (IP) code: IP67
Product colour: Black, White
Form factor: Bullet
Mounting type: Ceiling/wall
Housing material: Metal
Power consumption (Power over Ethernet (PoE)): 2.3 W
Power source type: DC, PoE
Power consumption (typical): 1.9 W
Video motion detection: Yes
Security algorithms: HTTPS
Mirror: Yes
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Web browser: Yes
Management software: Smart PSS; DSS; DMSS
Depth: 162.1 mm
Weight: 320 g
Height: 70.1 mm
Diameter: 6.53 cm
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Ethernet LAN: Yes
Mobile operating systems supported: Android, iOS
Certification: CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Connectivity technology: Wired
Day/night mode: Yes
Type: IP security camera
Placement supported: Indoor & outdoor
Package weight: 450 g
Number of cameras: 1
Signal-to-Noise Ratio (SNR): 56 dB
Audio codecs: G.711a; G.711Mu; G.726; PCM
Built-in microphone: Yes
ROM capacity: 16 MB
Internal memory: 128 MB
Ethernet LAN (RJ-45) ports: 1
Angle of rotation: 360°
Field of view (FOV) angle: 106°
Tilt speed: 90 °/sec
Minimum illumination: 0.03 lx
White balance: Auto, Street lamp, Manual, Outdoor, Natural
Pan range: 0 - 360°
Lens viewing angle, diagonal: 125°
Lens viewing angle, vertical: 56°
Adjustment shutter speed: Auto/Manual
Camera shutter type: Electronic
Camera shutter speed: 1/3 s–1/100000 s
Lens viewing angle, horizontal: 106°
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video compression formats: H.265+, H.264, H.265, H.264+, H.264B, MPEG
Noise reduction: Yes
Supported graphics resolutions: 2880 x 1620, 704 x 576, 2560 x 1440, 2304 x 1296, 704 x 480, 2688 x 1520
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Privacy masking: Yes
Gain control type: Auto/Manual
Supported video modes: 720p, 1080p, 1520p, 1620p
Region of Interest (ROI) encoding: Yes
Frame rate: 20 fps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Maximum resolution: 2880 x 1620 pixels
Smart IR: Yes
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction technology: 3D noise reduction
Number of illumination LEDs: 1
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Maximum aperture number: 2
Recognize distance: 11.2 m
Closest focusing distance: 0.8 m
Focal length range: 2.8 mm
Identify distance: 5.6 m
Observe distance: 22.4 m
Detect distance: 56 m
