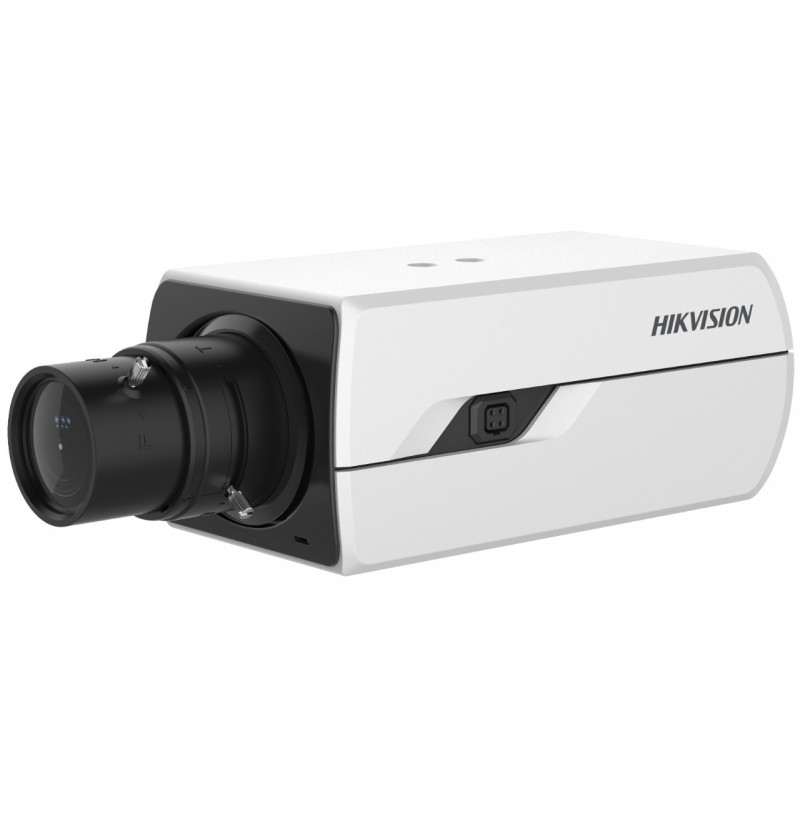

Hikvision box DS-2CD3843G0-AP

302,14 €

Produkto modelis: KIPDS2CD3843G0AP

Ean numeris: 6931847136024

Vaizdas
Pagrindinis srautas50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Antrinis srautas50 Hz: 25 fps ( 1280 × 720 , 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720 , 640 × 480, 640 × 360)
Trečiasis srautas50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)
Vaizdo suspaudimasMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
ROI1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Garso bitų greitis64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
Garso atrankos dažnis8 kHz/16 kHz
Pašalinio triukšmo pašalinimasYes

Tinklas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Tiesioginio vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Tinklo saugyklaAuto network replenishment (ANR)
KlientasiVMS-4200, Hik-Connect
Interneto naršklėsPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Dienos/Nakites režimasDay, Night, Auto, Schedule
WDR120 dB
Nuotraukos pagražinimaiBLC, 3D DNR

Sąsaja
Tinklo sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 256 GB
Garsas1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium.
Signalizacija1 alarm in, 1 alarm out, (max. 24 VAC/24 VDC, 500 mA)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Paleidimo iš naujo mygtukasYes
Maitinimo išvestis12 VDC, max. 200 mA

Įvykiai
Paprastos funkcijosMotion detection, video tampering alarm, exception
Išmaniosios funkcijosLine crossing detection, intrusion detection
SusiejimasUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output

Pagrindinis
Maitinimas12 VDC ± 25%, 0.58 A, max. 7 W, two-core terminal block, reverse polarity protection; 24 VAC ± 20%, 0.49 A, max. 7 W, two-core terminal block PoE: 802.3af, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Camera MedžiagaMetal
Kameros dydis69.8 mm × 58 mm × 137 mm (2.7" × 2.3" × 5.4")
Pakuotės matmenys315 mm × 140 mm × 140 mm (12.4" × 5.5" × 5.5")
SvorisApprox. 830 g (1.8 lb.)
Svoris su pakuoteApprox. 1120 g (2.5 lb.)
Laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Paleidimo ir veikimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
KalbosEnglish, Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
SaugumasCB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
AplinkosaugaCE-RoHS (2011/65/EU)

‹ ›
