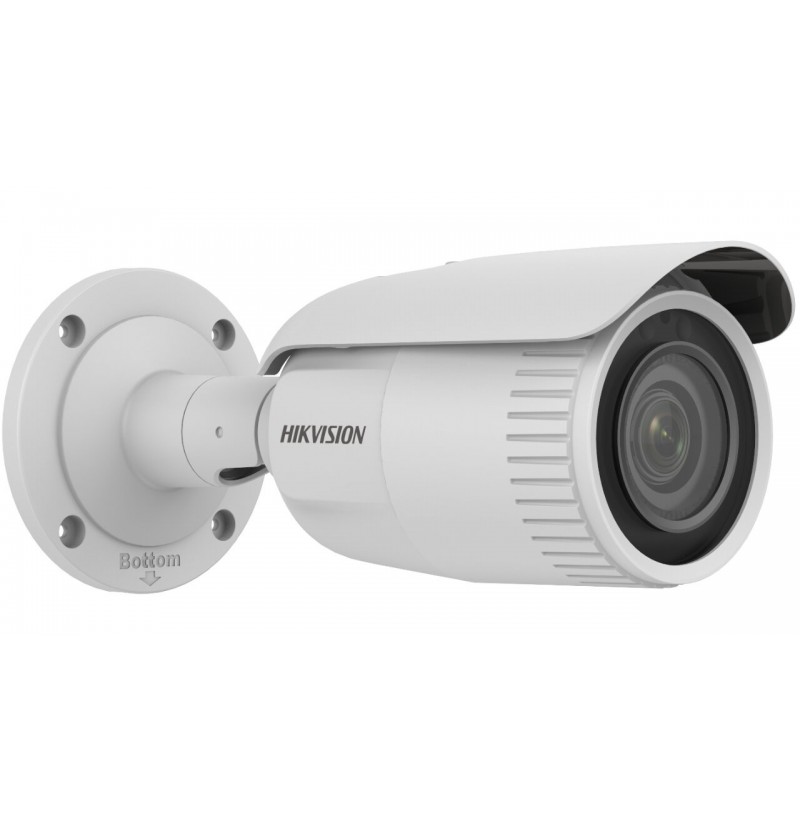

Hikvision bullet DS-2CD1653G0-IZ(C) F2.8-12

260,32 €

Produkto modelis: KIPDS2CD1653G0IZC

Ean numeris: 6931847134914

Lęšis
Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm
FOV2.8 to 12 mm: horizontal FOV 97° to 30°, vertical FOV 70° to 22.3°, diagonal FOV 128° to 37°
Lęšio montavimasØ14
Rainelės tipasFixed
DiafragamaF1.6

Vaizdas
Pagrindinis srautas
50 Hz: 20 fps (2560 × 1920)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1920)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain profile
ROI1 fixed region for main stream

Garsas
Garso suspaudimas-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Garso bitų greitis-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Garso atrankos dažnis-S: 8 kHz/16 kHz
Pašalinių garsų šalinimas-S: Yes

Tinklas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
3 user levels: administrator, operator, and user
KlientasiVMS-4200, Hik-Connect
Naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Diena/Naktis režimasAuto, Schedule, Day, Night
WDR120 dB
Nuotraukų pagražinimasBLC, 3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 256 GB
Garsas
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija-S: 1 input,1 output (max. 12 VDC, 30 mA)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection, video tampering, exception
SąsajaUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

Pagrindinis
Maitinimas
12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
DydisØ105 mm × 244.4 mm (Ø4.1" × 9.6")
Pakuotės dydis315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Approx. 715 g (1.6 lb.)
Svoris su įpakavimuApprox. 1125 g (2.5 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
KalbaEnglish, Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Patvirtinimai
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Saugumas
UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
Aplinkosauga
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
