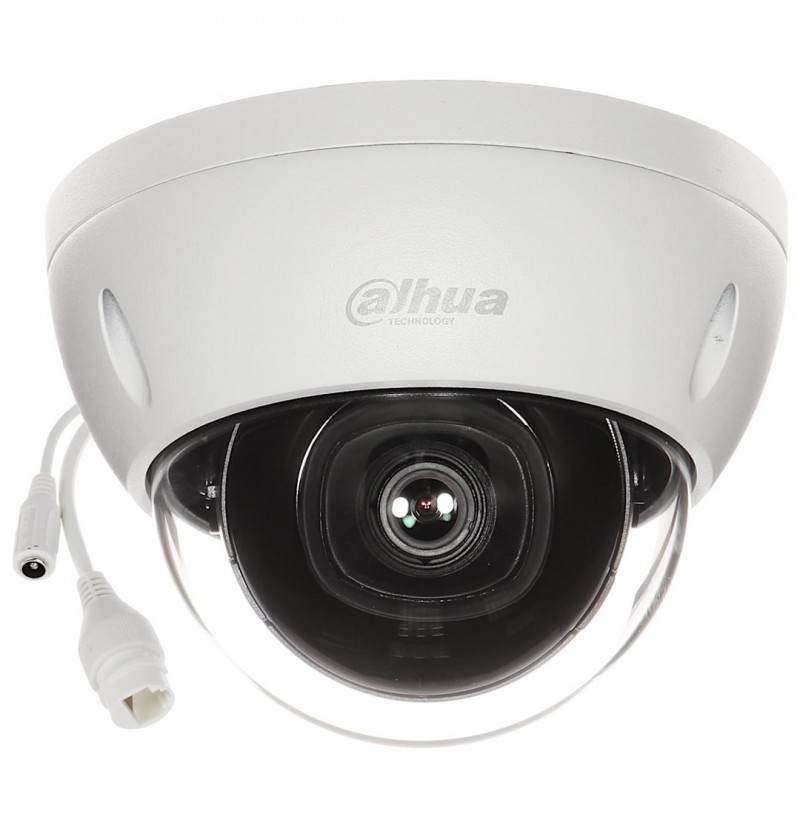

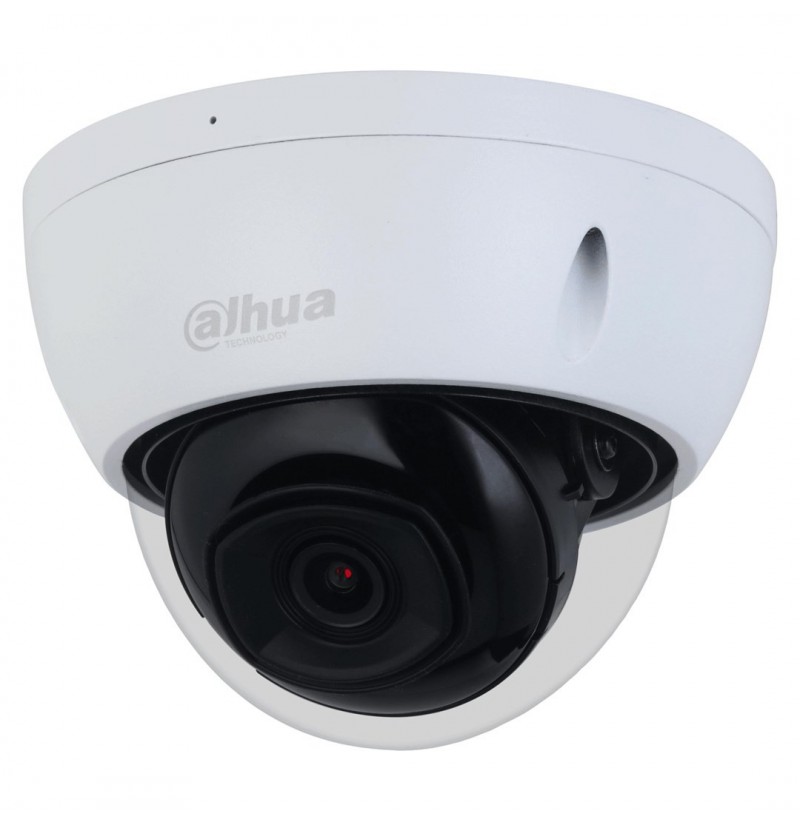

PC-HDBW2441E-S-0280B

Product colour: Black
Mounting type: Ceiling
IK code: IK10
International Protection (IP) code: IP67
Housing material: Metal
Form factor: Dome
Power consumption (Power over Ethernet (PoE)): 2.9 W
Power source type: DC, PoE
Power consumption (max): 5 W
Power consumption (typical): 2.3 W
Video motion detection: Yes
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Tripwire, Intrusion
IP address filtering: Yes
Active tampering alarm: Yes
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Web browser: Yes
Web-based management: Yes
Weight: 340 g
Diameter: 11 cm
Height: 81 mm
Bluetooth: No
Ethernet LAN: Yes
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Certification: CE-LVD: EN62368-1; CE-EMC: 2014/30/EU;FCC: 47 CFR FCC Part 15, B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Package weight: 490 g
Number of cameras: 1
Audio detection: Yes
Built-in microphone: Yes
Voice codecs: G.711a, G.726, PCM, G.711Mu
Signal-to-Noise Ratio (SNR): 56 dB
Built-in HDD: No
ROM capacity: 128 MB
Maximum memory card size: 256 GB
Internal memory: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Camera tilt control: Yes
Tilt angle range: 0 - 65°
Lens viewing angle, vertical: 54°
Lens viewing angle, horizontal: 102°
Lens viewing angle, diagonal: 121°
Camera pan control: Yes
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Angle of rotation: 355°
White balance: Regional custom, Manual, Street lamp, Outdoor, Natural, Auto
Adjustment shutter speed: Auto/Manual
Pan range: 0 - 355°
Number of Privacy masking areas: 4
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Video compression formats: H.265+, H.265, M-JPEG, H.264B, H.264, H.264H, H.264+
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Frame rate: 30 fps
Supported graphics resolutions: 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 1280 x 720 (HD 720), 704 x 480, 2688 x 1520, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2560 x 1440, 352 x 288
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Bit rate: 12 kbps–6144 kbps
Night vision: Yes
Number of illumination LEDs: 3
LED type: IR
Night vision distance: 30 m
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm
Identify distance: 6.4 m
Detect distance: 63.6 m
Recognize distance: 12.7 m
Number of lenses: 1
Closest focusing distance: 1.1 m
Fixed focus: Yes
Observe distance: 25.4 m
