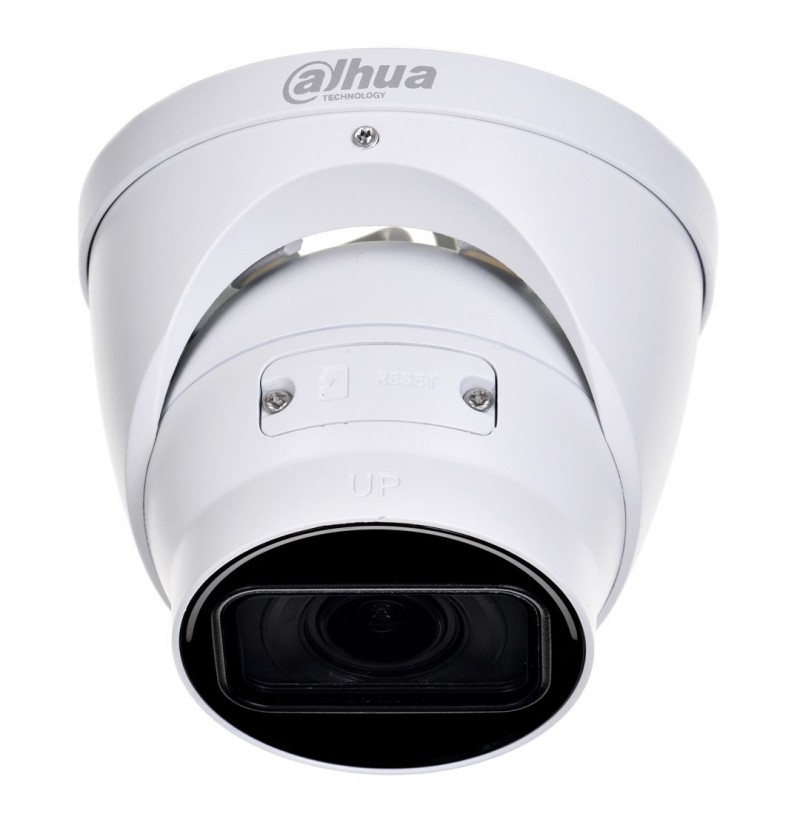

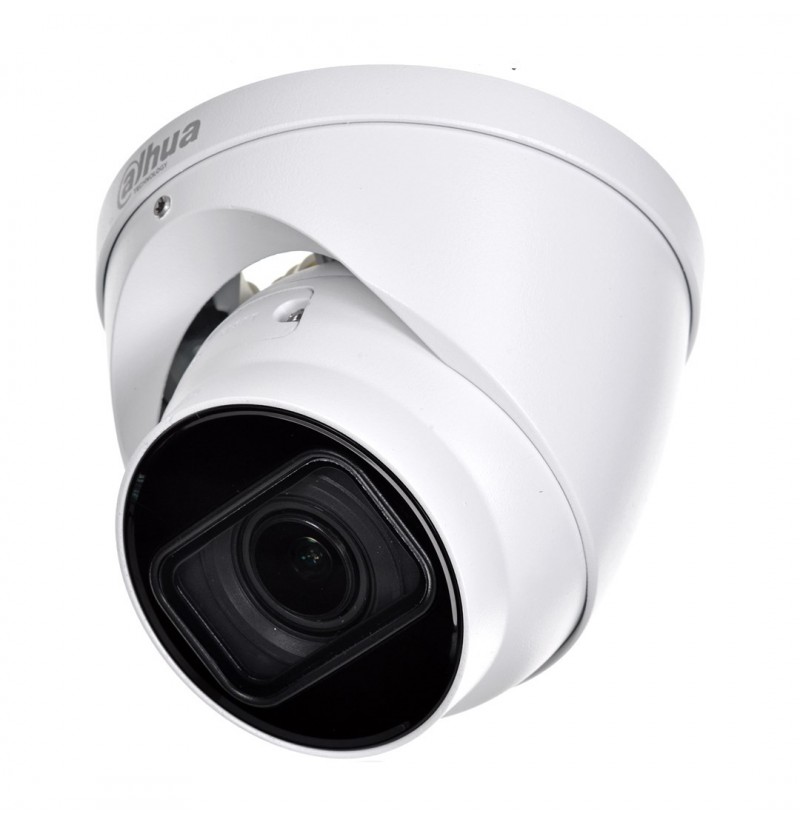

IPC-HDW3241T-ZAS-27135

Mounting type: Ceiling/Wall/Pole
Product colour: White
International Protection (IP) code: IP67
Housing material: Metal
Form factor: Turret
DC output voltage: 12
Power source type: DC, PoE
Power consumption (max): 7.8 W
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Tripwire
Video motion detection: Yes
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection
Web browser: Yes
Web-based management: Yes
Package weight: 828 g
Height: 108.3 mm
Diameter: 12.2 cm
Weight: 685 g
Number of users: 20 user(s)
Wi-Fi: No
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet interface type: Fast Ethernet
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Type: IP security camera
Number of cameras: 1
Built-in microphone: Yes
Voice codecs: G.711a, G.726, G.711Mu
ROM capacity: 128 MB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Card reader integrated: Yes
Maximum memory card size: 256 GB
Internal memory: 256 MB
Ethernet LAN (RJ-45) ports: 1
Camera tilt control: Yes
Camera pan control: Yes
Lens viewing angle, horizontal: 108°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 130°
Lens viewing angle, vertical: 57°
White balance: Outdoor, Natural, Auto, Manual
Tilt angle range: 0 - 78°
Adjustment shutter speed: Auto/Manual
Minimum illumination: 0.002 lx
Camera shutter type: Electronic
Angle of rotation: 360°
Pan range: 0 - 360°
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Gain control type: Auto/Manual
Privacy masking: Yes
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Frame rate: 30 fps
Bit rate: 3 Kbps–8192 Kbps
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Maximum resolution: 1920 x 1080 pixels
Highlight Compensation (HLC): Yes
Total megapixels: 2 MP
Supported graphics resolutions: 352 x 288, 1280 x 720 (HD 720), 352 x 240, 640 x 480 (VGA), 704 x 576, 1280 x 960, 704 x 480, 1920 x 1080 (HD 1080)
Video compression formats: H.264, M-JPEG, H.265
Noise reduction technology: 3D noise reduction
Night vision: Yes
Night vision distance: 40 m
LED type: IR
Number of illumination LEDs: 2
Closest focusing distance: 0.8 m
Identify distance (wide): 4.4 m
Identify distance (tele): 15.3 m
Number of lenses: 1
Observe distance (tele): 61.2 m
Recognize distance (tele): 30.6 m
Recognize distance (wide): 8.8 m
Detect distance (tele): 153.1 m
Detect distance (wide): 44.1 m
Focal length range: 2.7 - 13.5 mm
Maximum aperture number: 1.5
Observe distance (wide): 17.6 m
