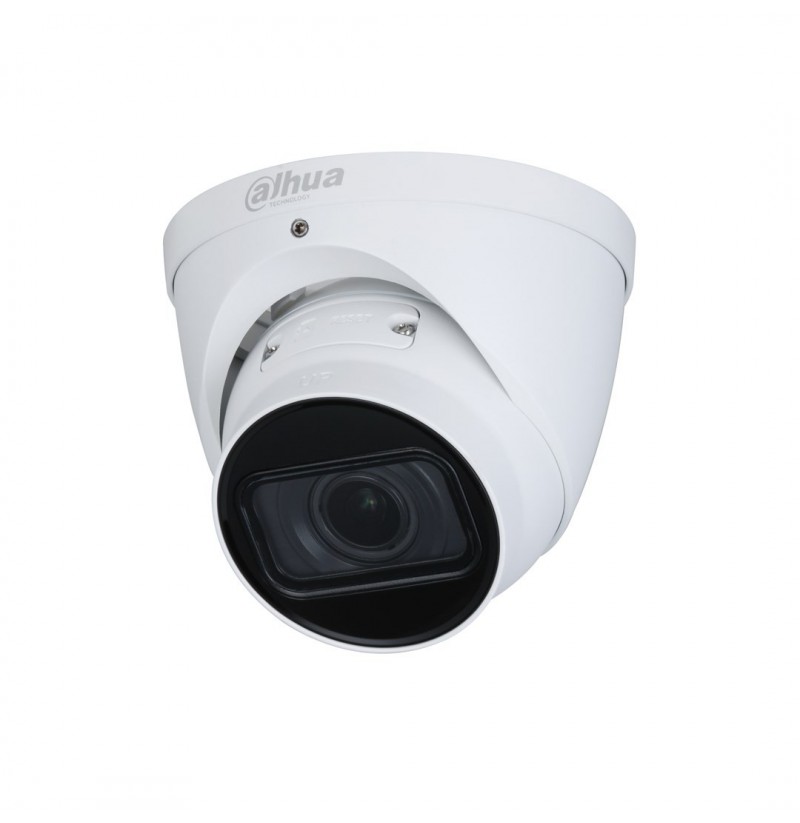

CAMERA IP DAHUA IPC-HDW1431T-ZS-2812-S4

Mounting type: Ceiling
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Form factor: Turret
Product colour: White
DC output voltage: 12
Power consumption (typical): 6.9 W
Power source type: DC, PoE
Video motion detection: Yes
Security algorithms: HTTPS, 802.1x RADIUS
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Web browser: Yes
Depth: 122 mm
Height: 108.3 mm
Diameter: 12.2 cm
Weight: 690 g
Width: 122 mm
Ethernet LAN: Yes
Streaming method: Multicast
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes
Mobile operating systems supported: iOS, Android
Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB
Type: IP security camera
Connectivity technology: Wired
Package weight: 870 g
Number of cameras: 1
Internal memory: 128 MB
Built-in HDD: No
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports: 1
Angle of rotation: 360°
Adjustment shutter speed: Auto/Manual
White balance: Natural, Auto, Manual, Outdoor
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Minimum illumination: 0.03 lx
Lens viewing angle, diagonal: 116 - 36°
Lens viewing angle, horizontal: 98 - 31°
Lens viewing angle, vertical: 55 - 18°
Tilt angle range: 0 - 78°
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Bit rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Frame rate: 30 fps
Smart IR: Yes
Total megapixels: 4 MP
Supported video modes: 720p, 1080p
Privacy masking: Yes
Video formats supported: H.265, H.264
Video compression formats: H.265, H.264B, M-JPEG, H.264
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video recording: Yes
Gain control type: Auto/Manual
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 704 x 576, 1280 x 960, 704 x 480, 2688 x 1520, 352 x 240, 2304 x 1296, 2560 x 1440, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 352 x 288
Maximum resolution: 2688 x 1520 pixels
LED type: IR
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 2
Observe distance (tele): 80 m
Recognize distance (wide): 13.2 m
Focal length range: 2.8 - 12 mm
Identify distance (tele): 20 m
Closest focusing distance: 0.8 m
Detect distance (tele): 200 m
Detect distance (wide): 66 m
Maximum aperture number: 1.7
Observe distance (wide): 26.4 m
Identify distance (wide): 6.6 m
Recognize distance (tele): 40 m
Number of lenses: 1
Number of Privacy masking areas (panoramic camera): 4
