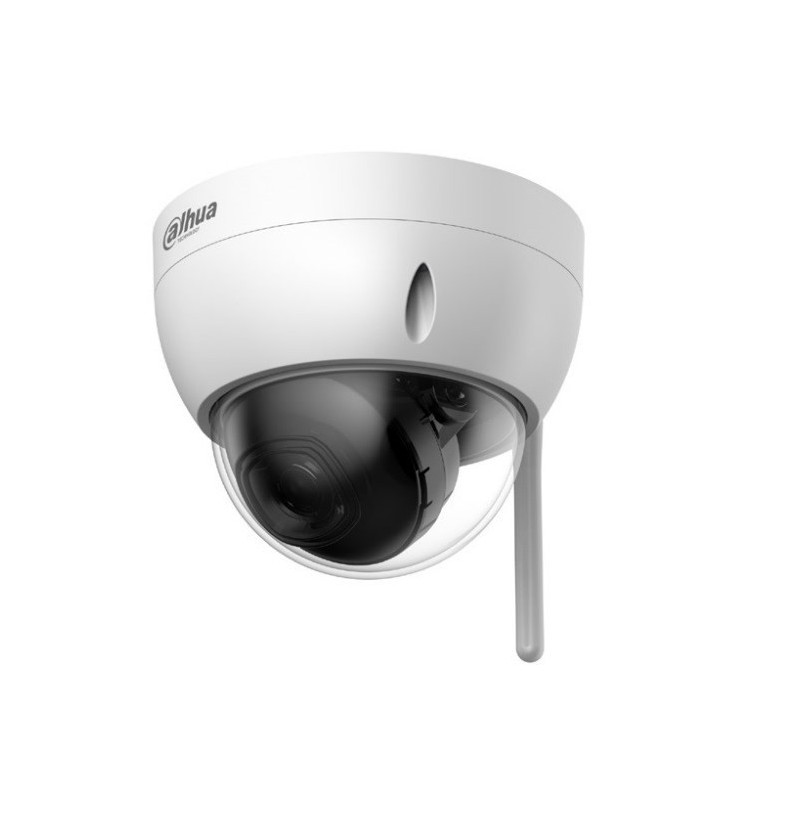

CAMERA IP DAHUA IPC-HDBW1230DE-SW-0280B

Product colour: White
Mounting type: Ceiling
IK code: IK10
International Protection (IP) code: IP67
Form factor: Dome
Housing material: Metal
DC output voltage: 12
Power consumption (typical): 2 W
Power source type: DC
Power consumption (max): 4.9 W
Security algorithms: HTTPS
Motion sensor: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -40 - 60 °C
Web-based management: Yes
Firmware upgradeable: Yes
Web browser: Yes
Management software: Smart PSS; DSS; DMSS
Smartphone/tablet remote support: Yes
Weight: 414 g
Diameter: 11.1 cm
Height: 88.7 mm
Wi-Fi data rate (max): 2400 Mbit/s
Bluetooth: No
Number of users: 6 user(s)
Supported network protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Ethernet LAN: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi: Yes
Channel bandwidth: 36 MHz
Ethernet interface type: Fast Ethernet
Live view: Yes
Mobile operating systems supported: iOS, Android
Antenna type: External
Connectivity technology: Wired & Wireless
Placement supported: Outdoor
Type: IP security camera
Antennas quantity: 1
Wide Dynamic Range (WDR): Yes
Dynamic range: 56 dB
Luminous flux: 0.0025 lm
Package weight: 592 g
Number of cameras: 1
Signal-to-Noise Ratio (SNR): 56 dB
ROM capacity: 16 MB
Maximum memory card size: 256 GB
Built-in HDD: No
Card reader integrated: Yes
Flash memory: 64 MB
Compatible memory cards: MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports: 1
Tilt angle range: 0 - 75°
Lens viewing angle, horizontal: 100°
White balance: Custom modes, Natural, Outdoor, Manual, Street lamp
Camera tilt control: Yes
Lens viewing angle, vertical: 53°
Pan range: 0 - 355°
Field of view (FOV) angle: 120°
Lens viewing angle, diagonal: 120°
Camera shutter type: Electronic
Adjustment shutter speed: Auto/Manual
Minimum illumination: 0.0025 lx
Angle of rotation: 355°
Camera shutter speed: 1/3 s–1/100,000 s
Camera pan control: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Number of sensors: 1
Maximum resolution: 1920 x 1080 pixels
Region of Interest (ROI) encoding: Yes
Flip & mirror: Yes
Smart IR: Yes
Video compression formats: H.264, H.264H, H.264B, H.265
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Supported graphics resolutions: 1280 x 960, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
Frame rate: 30 fps
Supported video modes: 960p, 720p, 1080p
Privacy masking: Yes
Video formats supported: H.264, H.264B, H.265
Bit rate: 9 - 4096
Gain control type: Auto
Total megapixels: 2 MP
Video recording: Yes
Digital Wide Dynamic Range (DWDR): Yes
Back Light Compensation (BLC): Yes
Night vision: Yes
LED type: IR
Number of illumination LEDs: 3
Recognize distance: 9.4 m
Fixed focus: Yes
Focal length range: 2.8 mm
Observe distance: 18.8 m
Detect distance: 46.9 m
Maximum aperture number: 2
Identify distance: 4.7 m
Lens diameter: 2.8 mm
Zoom capability: No
Number of lenses: 1
Compliance certificates: CE, Federal Communications Commission (FCC)
