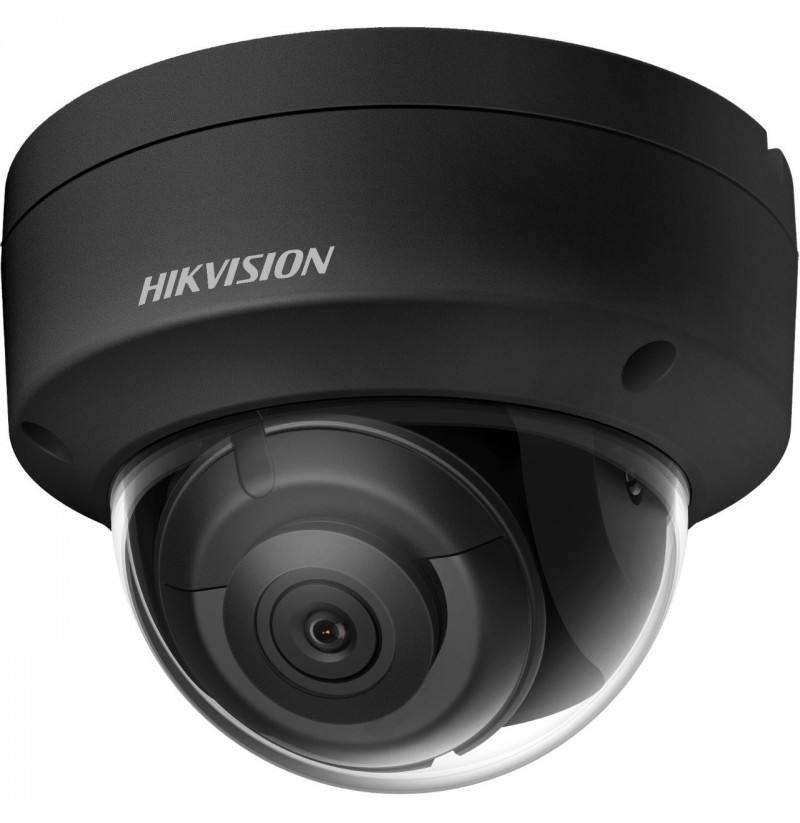

Hikvision dome DS-2CD1143G2-I F2.8 (juoda, 4 MP, 30 m. IR)

142,18 €

Produkto modelis: KIPDS2CD1143G2IBF28

Ean numeris: 6942160411774

Lęšis
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Lęšio montavimasM12
Rainelės tipasFixed
DiafragamaF2.0

DORI
DORI
2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Vaizdas
Pagrindinis srautas
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR/VBR
Region of Interest (ROI)1 fixed region for main stream

Garsas
Garso tipas-U: Mono sound
Pašalinių garsų šalinimas-U: Yes
Garso atrankos dažnis-U: 8 kHz/16 kHz
Garso suspaudimas-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Garso bitų greitis-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Internetas
SaugumasPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 levels: administrator, operator, and user
KlientasiVMS-4200, Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Diena/Naktis režimasDay, Night, Auto, Schedule
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Įmontuotas mikrofonas-U: Yes
Perkrovimo mygtukas-F: Yes

Funkcijos
Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
SąsajaUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MedžiagaMetal & Plastic
Dydis170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Pakuotės dydis216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
SvorisApprox. 270 g (0.6 lb.)
Svoris su įpakavimuApprox. 481 g (1.1 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
KalbaEnglish, Ukrainian
Pagrindinės funkcijosHeartbeat, anti-banding, mirror, password protection, password reset via email

Patvirtinimai
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Saugumas
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Aplinkosauga
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013

‹ ›
