Reolink Trackmix Series W760 Wi-Fi Camera

Form factor: Turret
International Protection (IP) code: IP65
Mounting type: Wall
Product colour: White
Power source type: DC
DC output current: 1 A
DC output voltage: 12
Video motion detection: Yes
Security algorithms: WPA2-PSK, WPA-PSK
Human and vehicle targets classification: Yes
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Reset button: Yes
Width: 147 mm
Weight: 1.21 kg
Depth: 228 mm
Height: 129 mm
User access level: Administrator, User
Bluetooth: No
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a
Number of users: 20 user(s)
Wi-Fi: Yes
Networking standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P
Live view: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: iOS, Android
Windows operating systems supported: Yes
Placement supported: Outdoor
Type: IP security camera
Day/night mode: Yes
Virtual assistant: Google Assistant
Auto-tracking: Yes
Connectivity technology: Wireless
Infrared (IR) cut-off filter: Yes
Antenna type: External
Antennas quantity: 2

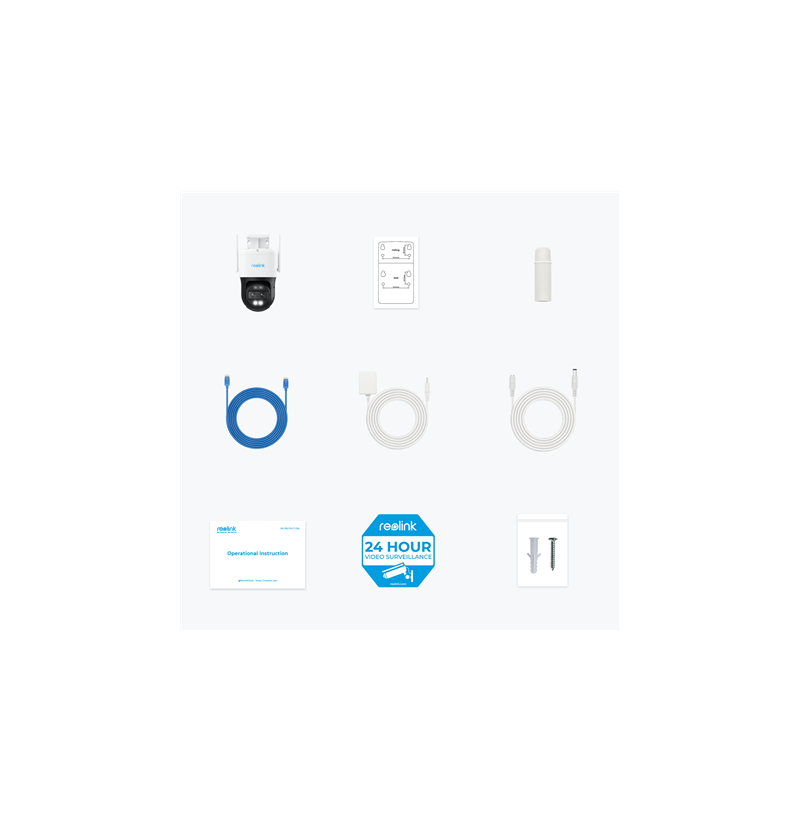

Packaging content: 1* Trackmix Series W760 1* Mounting Template 1* Waterproof Lid 1* Power Adapter 1* 1m Network Cable 1* 4.5m Power Extension Cable 1* Surveillance Sticker 1* Quick Start Guide 1* Pack of Screws
Mounting kit: Yes
Screws included: Yes
Number of cameras: 1
Manual: Yes
Built-in speaker(s): Yes
Built-in microphone: Yes
Audio system: 2-way
Maximum memory card size: 256 GB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Card reader integrated: Yes
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Camera tilt control: Yes
Camera pan control: Yes
Pan range: 0 - 355°
Pan speed: 90 °/sec
Tilt angle range: 0 - 90°
Tilt speed: 1.5 °/sec
Lens viewing angle, vertical: 21 - 60°
Lens viewing angle, horizontal: 38 - 104°
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Video compression formats: H.265, H.264
Video streaming: Yes
Bit rate: 128Kbps - 8192Kbps
Total megapixels: 8 MP
Frame rate: 25 fps
Supported video modes: 2160p
Video formats supported: H.264, H.265
Supported graphics resolutions: 3840 x 2160
Maximum resolution: 3840 x 2160 pixels
Video recording: Yes
LED type: IR/White
Night vision: Yes
Number of illumination LEDs: 2
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Zoom capability: Yes
Number of lenses: 1
