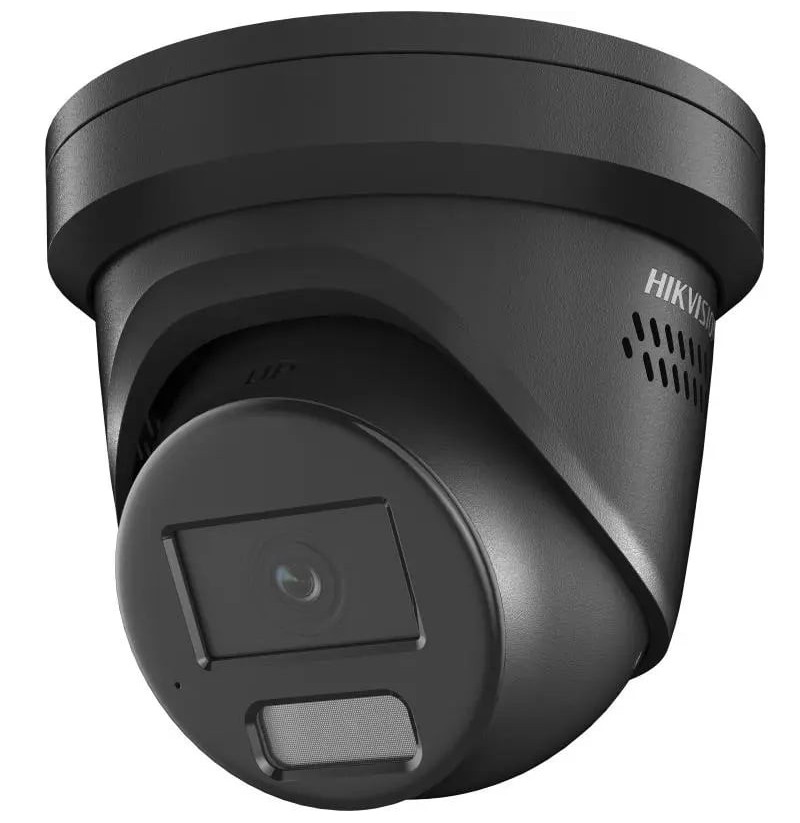

Hikvision dome DS-2CD2347G2H-LIU F2.8 (juoda, 4 MP, 30 m. IR, 30 m. LED, Hybrid Light) Padidinti

Hikvision dome DS-2CD2347G2H-LIU F2.8 (juoda, 4 MP, 30 m. IR, 30 m. LED, Hybrid Light)

281,60 €

  • MP (MegaPixel): 4 MP
  • Objektyvas: 2.8 mm
  • Technologija: AcuSense, Hybrid Light, ColorVu
  • Integruotas mikrofonas: Taip
  • Naktinis pašvietimas: 40 m. IR; 40 m. LED
  • Vieta microSD talpai: Taip, 512GB
  • Darbo sąlygos: -30 °C to 60 °C
  • Saugos lygis: IP67
  • Vaizdo suspaudimas: H.265+
  • WiFi: Ne
  • Laikiklis/bazė (papildomai): DS-1280ZJ-PT6
  • Lauko/vidaus: Lauko

Smulkiau

KIP2CD2347G2HLIUB

6942160436500

Galimas pasirinkimas

  • Kamera
  • Sensorius1/1.8" Progressive Scan CMOS
  • Maks. rezoliucija2688 × 1520
  • Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Užrakto greitis1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Kampo keitimasPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lęšis
  • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°

    4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

  • Lęšio montavimasM16
  • Rainelės tipasFixed
  • DiafragamaF1.0
  • Ryškumo gylis

    2.8 mm: 2.5 m to ∞

    4 mm: 3.1 m to ∞

  • DORI
  • DORI

    2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

    4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

  • Apšvietimas
  • Papildomo apšviešimo tipasIR,White Light
  • Papildomo apšvietimo diapazonasUp to 30 m
  • Išmanus papildomas apšvietimasYes
  • IR bangos ilgis850 nm
  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Antrinis srautas

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Trečias srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *The third stream is supported under certain settings.

  • Vaizdo suspaudimas

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    *Third stream is supported under certain settings.

  • Vaizdo bitų greitis32 Kbps to 8 Mbps
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Garsas
  • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso tipasMono sound
  • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Pašalinių garsų šalinimasYes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • KlientasiVMS-4200,Hik-Connect
  • Naršyklė

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Diena/Naktis režimasDay,Night,Auto,Schedule
  • Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)130 dB
  • Privatumo kaukė4 programmable polygon privacy masks
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintis

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

  • Įmontuotas mikrofonasYes,1 built-in microphone
  • Įmontuotas garsiakalbisMax. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
  • Garsas

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Signalizacija1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
  • Išmaniosios funkcijos

    Scene change detection

  • Išmaniosios funkcijos
  • Veido atpažinimasYes
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • Pagrindinis
  • Sistemos parametrai

    12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 10.5 W

  • Medžiaga

    Cover: metal, main body: metal

  • DydisØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
  • Pakuotės dydis170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
  • SvorisApprox. 820 g (1.8 lb.)
  • Svoris su įpakavimuApprox. 1316 g (2.9 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Patvirtinimai
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Saugumas

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • AplinkosaugaCE-RoHS: 2011/65/EU
  • ApsaugaIP67: IEC 60529-2013
