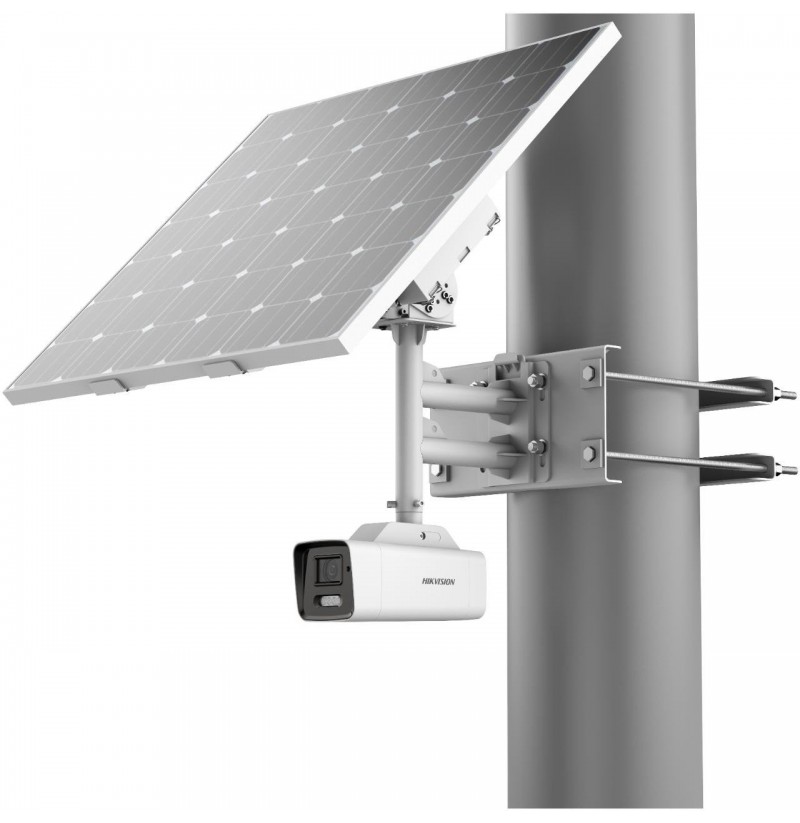

Hikvision bullet DS-2XS6A47G1-LS/C36S80 (su saulės panele, 4G)
2 994,36 €
- 2560 × 1440@ 15 fps rezoliucija
- 24/7 ColorfuVu
- 130dB WDR
- Žmonių ir mašinų atpažinimas ir klasifikacija
- 80 W fotovoltinė plokštė, 360 W įkraunama ličio baterija
- LLTE-TDD / LTE-FDD / WCDMA / GSM 4G belaidžio tinklo perdavimas, palaiko mikro SIM kortelę
- IP67
- 64 GB eMMC vidinė atimintis
KIP2XS6A47G1LSC36S80
6931847177058
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija2560 × 1440
- Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
- Užrakto greitis1 s to 1/100,000 s
- Lęšis
- Focal Length & FOV
2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°
4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Rainelės tipasFixed
- DiafragamaF1.0
- Lęšio montavimasM16
- DORI
- DORI
2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m
- Apšvietimas
- Papildomo apšviešimo tipasWhite Light
- Papildomo apšvietimo diapazonasUp to 30 m
- Išmanus papildomas apšvietimasYes
- Vaizdas
- Pagrindinis srautas
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
- Vaizdo suspaudimas
Main stream: H.264/H.265
Sub-stream: H.264/H.265/MJPEG
Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR/VBR
- SVCH.264 and H.265 encoding
- ROI4 fixed regions for main stream
- Garsas
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
- Vidinė atmintis
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasHik-Connect (proactive mode also supports), Hik-central Professional
- Naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Mobilusis ryšys
- SIM kortelės tipasMicroSIM
- Dažnis
DS-2XS6A47G1-LS/C32S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800MHz
DS-2XS6A47G1-LS/C32S80 (US):
LTE-FDD: Band2/4/5/12/13/66/71
WCDMA: Band2/4/5
DS-2XS6A47G1-LS/C32S80 (LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900MHz
DS-2XS6A47G1-LS/C32S80 (JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/6/8/19
- Standartas
DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA
DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA
- Nuotrauka
- WDR130 dB
- Diena/Naktis režimasDay, Night, Auto, Schedule
- Nuotraukų pagražinimasBLC, HLC, 3D DNR, Defog
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR≥ 52 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Sąsaja
- RS-4851 RS-485 (half duplex, connect to external battery)
- Garsas
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija1 input(s), 1 output(s) (max. 12 VDC, 1 A)
- Vidinė atmintis
Built-in memory card slot, support microSD card, up to 256 GB;
Built-in 64 GB eMMC storage
- Perkrovimo mygtukasYes
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Galia12 VDC, max. 1000 mA
- Funkcijos
- Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
- Išmaniosios funkcijos
Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
*Smart events are only supported under performance mode.
- SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Pagrindinis
- Sistemos parametrai
12 VDC ± 20%, 4-pin M8 waterproof connector
1. Standby power consumption: 53 mW
2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
3. The max. power consumption: 3.2 W
- MedžiagaFront cover: metal, body: metal, bracket: metal
- Dydis882.6 mm × 706.3 mm × 760 mm (34.8" × 27.8" × 29.9") (Max. size of the camera after it is completely assembled)
- Pakuotės dydis862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
- SvorisApprox. 30.2 kg (66.5 lb.)
- Svoris su įpakavimuApprox. 36.3 kg (80.0 lb.)
- Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Baterija
- Baterijos tipasLithium
- Talpa360 WH (90 WH for each battery)
- Baterijos įtampa10.8 V
- Maks. Išėjimo įtampa12.6 V
- Darbo sąlygos drėgmė
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Baterijos veikimo laikasMore than 500 cycles
- Ciklo tarnavimo laikas
Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days
*in cloudy/rainy days (25 °C)
- Baterijos svorisApprox. 3.3 kg (7.3 lb.)
- Dydis221 mm × 84 mm × 37.3 mm (8.7" × 3.3" × 1.5")
- Patvirtinimai
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
FCC (47 CFR Part 15, Subpart B);
IC (ICES-003: Issue 7)
- RF
CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);
ICASA: same as CE-RED
FCC ID (47 CFR Part15 Subpart C);
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Saugumas
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)
- Aplinkosauga
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Apsauga
Camera: IP67 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance
