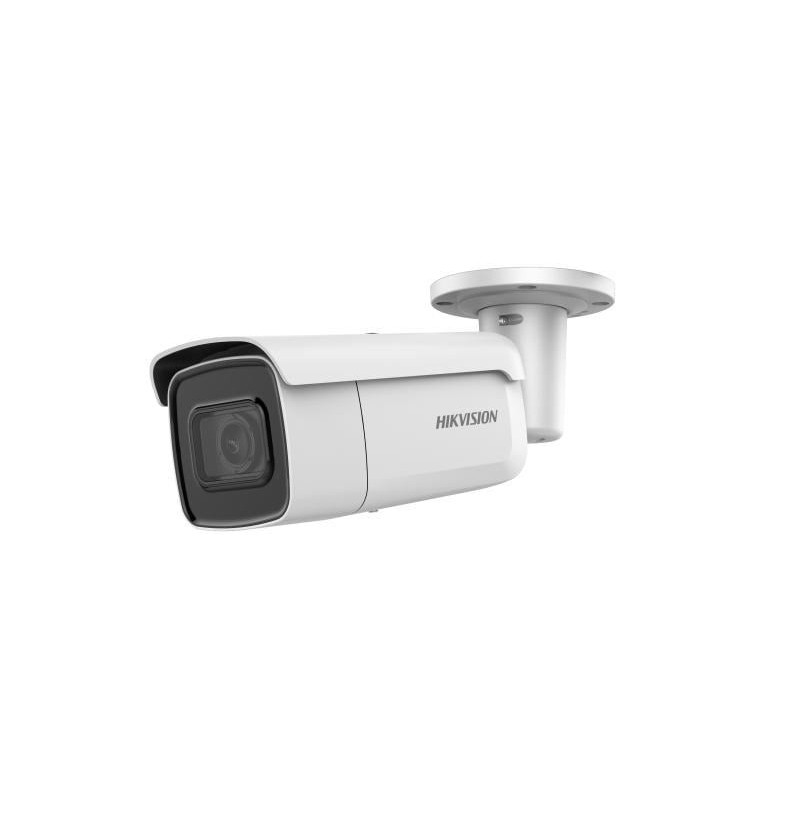

IP Camera: HIKVISION DS-2CD2646G2HT-IZS(2.8-12mm)(eF)

Form factor: Bullet
Protection features: Water resistant, Vandal proof, Dust resistant
Mounting type: Ceiling/wall
Housing material: Metal
International Protection (IP) code: IP67
Product colour: White
IK code: IK10
Power source type: DC, PoE
Power consumption (max): 13 W
Power consumption (Power over Ethernet (PoE)): 15 W
DC output voltage: 12
DC output current: 1.08 A
Security algorithms: EAP-LEAP, EAP-TLS, EAP-MD5
Intelligent Video Surveillance (IVS) system features: Scene change, Face detection
Alarm output channels: 1
IP address filtering: Yes
Alert notification type: E-mail
Mirror: Yes
Pixel counter: Yes
Video motion detection: Yes
Alarm input channels: 1
Password reset via email: Yes
Password protection: Yes
Heartbeat: Yes
Digital watermark: Yes
Active tampering alarm: Yes
Privacy protection: Yes
HTTPS encryption: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
Audit log: Yes
Network access storage (NAS): Yes
Automatic Network Replenishment (ANR): Yes
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Web-based management: Yes
Height: 95.7 mm
Length: 298 mm
Width: 97.9 mm
Weight: 1.49 kg
Live view: Yes
Wi-Fi: No
Networking standards: IEEE 802.3af
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Bluetooth: No
Wide Dynamic Range (WDR): Yes
Languages support: Multi
Type: IP security camera
Placement supported: Outdoor
Number of languages: 33
Dynamic range: 120 dB
Alarm input/output: Yes
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Connectivity technology: Wired
Package depth: 190 mm
Package weight: 2.35 kg
Package height: 180 mm
Package width: 385 mm
Number of cameras: 1
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Audio formats supported: G.722.1, G.711, PCM, G.711 μ-law, G.726, MP2L2, MP3, AAC-LC, G.711 A-law
Audio output channels: 1.0 channels
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Built-in HDD: No
Card reader integrated: Yes
Maximum memory card size: 512 GB
Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 355°
Lens viewing angle, vertical: 56.1 - 19.3°
Lens viewing angle, diagonal: 125.8 - 39.4°
Lens viewing angle, horizontal: 105.4 - 34.3°
Tilt angle range: 0 - 90°
Number of Privacy masking areas: 4
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Image quality adjustment: Sharpness, Contrast, Brightness, Saturation
Region of Interest (ROI) encoding: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Maximum resolution: 2688 x 1520 pixels
Bit rate: 32 Kbps - 8 Mbps
Video recording: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720), 2688 x 1520
Video streaming: Yes
Frame rate: 30 fps
Noise reduction: Yes
Video compression formats: H.264, H.265+, H.265, M-JPEG, H.264+
Night vision distance: 60 m
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
Detect distance (tele): 180.6 m
Recognize distance (tele): 36.1 m
Recognize distance (wide): 12.7 m
Number of lenses: 1
Observe distance (tele): 71.7 m
Identify distance (wide): 6.3 m
Identify distance (tele): 18.1 m
Focal length range: 2.8 - 12 mm
Maximum aperture number: 1
Detect distance (wide): 63.4 m
Observe distance (wide): 25.2 m
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.
Compliance certificates: WEEE, RCM, RoHS, CE, REACH, Electromagnetic Compatibility (EMC), Industry Canada (IC), Low Voltage Directive (LVD), CB
