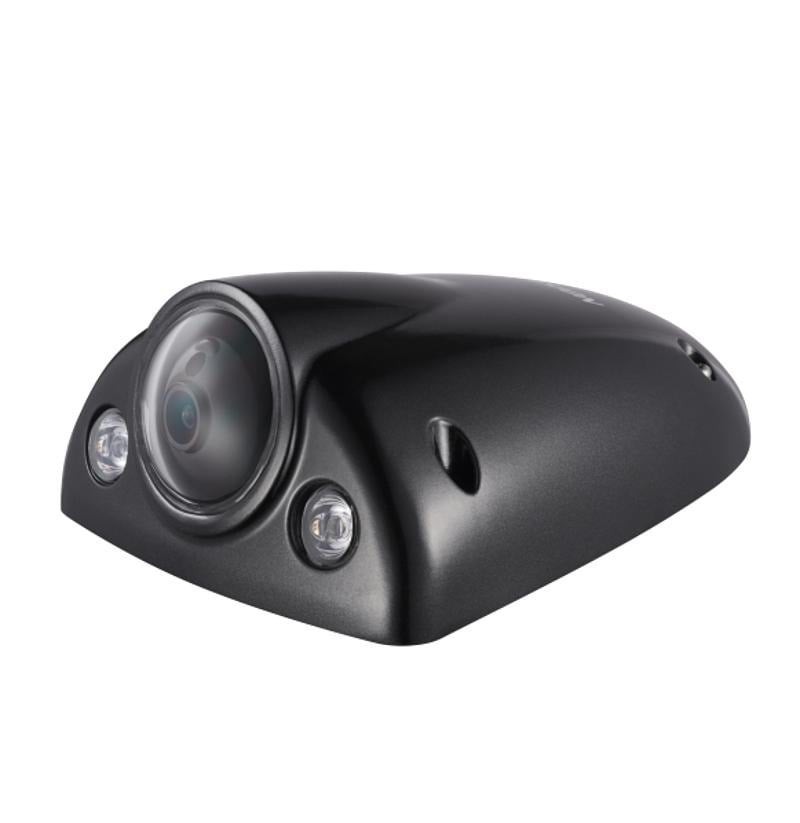

IP kamera DS-2XM6522G1-ID F2.8 Padidinti

IP kamera DS-2XM6522G1-ID F2.8

420,70 €

  • IP kamera 2MP
  • 2.8mm(~105°) objektyvas
  • 120 dB WDR
  • IR iki 10m
  • H.265+
  • IP68, IK10
  • PoE

Smulkiau

KIPDS2XM6522G1ID28

6931847106591

Galimas pasirinkimas

  • Kamera
  • Min. apšvietimas0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • P/N

    PAL: 25fps

    NTSC: 30fps

  • Sensorius1/2.8″ Progressive Scan CMOS
  • Užrakto greitis 1/3 s to 1/100,000 s
  • Case TypeWedge
  • Lėtas užraktasYes
  • Rezoliucija2MP
  • Day & NightIR Cut Filter
  • Kampo keitimas

    2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°

    4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

  • Lęšis
  • Focal Length & FOV

    2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°

    4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°

    6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

  • Lęšio montavimasM12
  • Lęšio tipasFixed Lens
  • Max. Aperture

    2.8 mm/4 mm/6 mm: F 1.6

  • Apšvietimas
  • Išmanus papildomas apšvietimasYes
  • IR bangos ilgis850nm
  • IR distancijaUp to 30m
  • Vaizdas
  • Maks. rezoliucija 1920 × 1080
  • Pagrindinis srautas

    50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720)

    60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720)

  • Antrinis srautas

    50Hz:25fps(704 x 576, 640x480, 352 x 288, 320x240)

    60Hz:30fps(704 x 576, 640x480, 352 x 288, 320x240)

  • Trečias srautas

    50Hz:25fps(1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240)

    60Hz:30fps(1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240)

  • Vaizdo suspaudimas

    Main Stream: H.265 /H.264/H.264+/H.265+

    Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG

    Third Stream: H.265 /H.264/H.264+/H.265+

  • Vaizdo bitų greitis

    Main Stream: 256 Kbps to 12 Mbps

    Sub-Stream: 256 Kbps to 4 Mbps

    Third Stream: 256 Kbps to 12 Mbps

  • H.264 tipasBaseLine Profile/Main Profile/High Profile
  • H.265 tipasMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
  • Internetas
  • Protokolai TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
  • Tiesioginis vaizdo žiūrėjimas Up to 8 channels
  • APIHIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI
  • User Management

    Up to 16 users

    3 levels: Administrator, Operator and User

  • Naršyklė IE8+, Chrome45+, Edge41+, Firefox45+
  • Nuotrauka
  • Wide Dynamic Range (WDR)120 dB
  • Išmanusis IRNo
  • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Diena/Naktis režimasDay/Night/Auto/Schedule
  • SNR＞50dB
  • Nuotraukų pagražinimasBLC, HLC, 3D DNR
  • Privatumo kaukė4 regions of privacy mask
  • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • DNR 3D DNR
  • Sąsaja
  • Interneto sąsaja

    Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port

    -M: 1 four-core M12 aviation plug

  • SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • GarsasNo
  • SignalizacijaNo
  • RS-485No
  • Perkrovimo mygtukasYes
  • ŠildytuvasYes
  • Funkcijos
  • Susiejimo metodasUpload to FTP, notify monitoring center center, send email, trigger recording
  • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error)
  • Išmaniosios funkcijos

    Line crossing detection,

    Intrusion detection,

    Region entrance detection,

    Region exiting detection,

    Unattended baggage detection,

    Object removal detection,

    Object detection: detects faces and upload images

    Scene change detection, defocus detection

  • Pagrindinis
  • Produkto matmenys

    Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8\" × 2.6\")

    With package: 252 mm × 190 mm × 108 mm (9.9 × 7.5\" × 4.3\")"

  • Maitinimas

    -I/ND: RJ45 interface, PoE power supply

    -ID: Ø 5.5 mm coaxial power plug, DC

    power supply

    -IDM: two-core Molex connector, DC power supply

    -IM/ND: four-core M12 aviation plug, PoE power supply

  • Energijos sunaudojimas

    -ID, -IDM: 9~36 V DC, max. 10 W

    -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W

  • ApsaugaIP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013)
  • Maitinimas

    -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af;

    -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3

  • Medžiaga iš kurios padaryta kamera Metal
  • Produkto svoris

    Camera: Approx. 905 g (2.0 lb.)

    With package: 1271 g (2.8 lb.)

  • Darbo sąlygos -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
  • KalbaSupport English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech
  • Pagrindinės funkcijos Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
  • Patvirtinimai
  • Electrical Safety ProtectionIK10(IEC 62262:2002）
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • SaugumasCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • Aplinkosauga CE-RoHS (2011/65/EU);
  • AutomatikaEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
