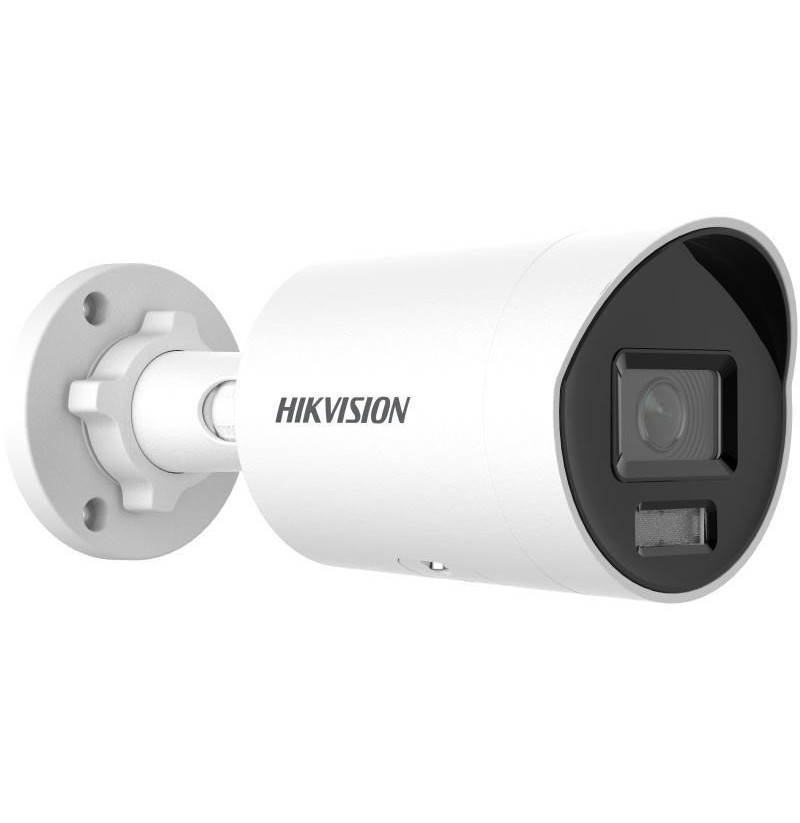

HIKVISION IP CAMERA DS-2CD2046G2H-IU(2.8mm)(eF)

Lens mount interface: M12
Mounting type: Ceiling/wall
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67
Housing material: Metal
Product colour: White, Black
Form factor: Bullet
Power consumption (Power over Ethernet (PoE)): 7 W
DC output voltage: 12
DC output current: 0.45 A
Power source type: DC, PoE
Power consumption (max): 5.5 W
Intelligent Video Surveillance (IVS) system features: Face detection
Password protection: Yes
Heartbeat: Yes
IP address filtering: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Privacy protection: Yes
Mirror: Yes
Active tampering alarm: Yes
Security algorithms: HTTPS, TLS
Password reset via email: Yes
Pixel counter: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes
Automatic Network Replenishment (ANR): Yes
Flash log: Yes
Audit log: Yes
Network access storage (NAS): Yes
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes
Weight: 525 g
Diameter: 7.44 cm
Length: 179.2 mm
Live view: Yes
Number of users: 32 user(s)
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Bluetooth: No
Networking standards: IEEE 802.3af, IEEE 802.1x
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
Wi-Fi: No
User access level: Administrator, Operator, User
Quality of Service (QoS) support: Yes
Placement supported: Outdoor
Languages support: Multi
Day/night mode: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Package depth: 120 mm
Package width: 234 mm
Package weight: 750 g
Package height: 117 mm
Number of cameras: 1
Audio formats supported: AAC-LC, MP3, G.722.1, PCM, G.726, G.711 A-law, G.711 μ-law, MP2L2
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 360°
Lens viewing angle, vertical: 54.7°
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 100.2°
Lens viewing angle, diagonal: 119.7°
Number of Privacy masking areas: 4
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Smart IR: Yes
Noise reduction: Yes
Image quality adjustment: Saturation, Brightness, Sharpness, Contrast
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Video compression formats: H.264, H.265+, H.265, H.264+, M-JPEG
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Maximum resolution: 2688 x 1520 pixels
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8192 Kbps
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 40 m
LED type: IR
Number of lenses: 1
Fixed focal length: 2.8 mm
Observe distance: 25 m
Detect distance: 63 m
Identify distance: 6 m
Maximum aperture number: 1
Recognize distance: 12 m
Compliance certificates: Low Voltage Directive (LVD), UL, CB, RoHS, CE
