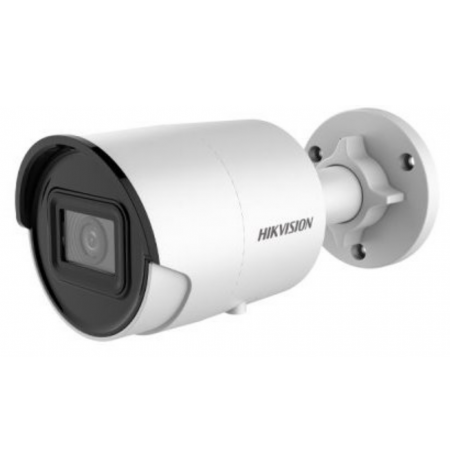

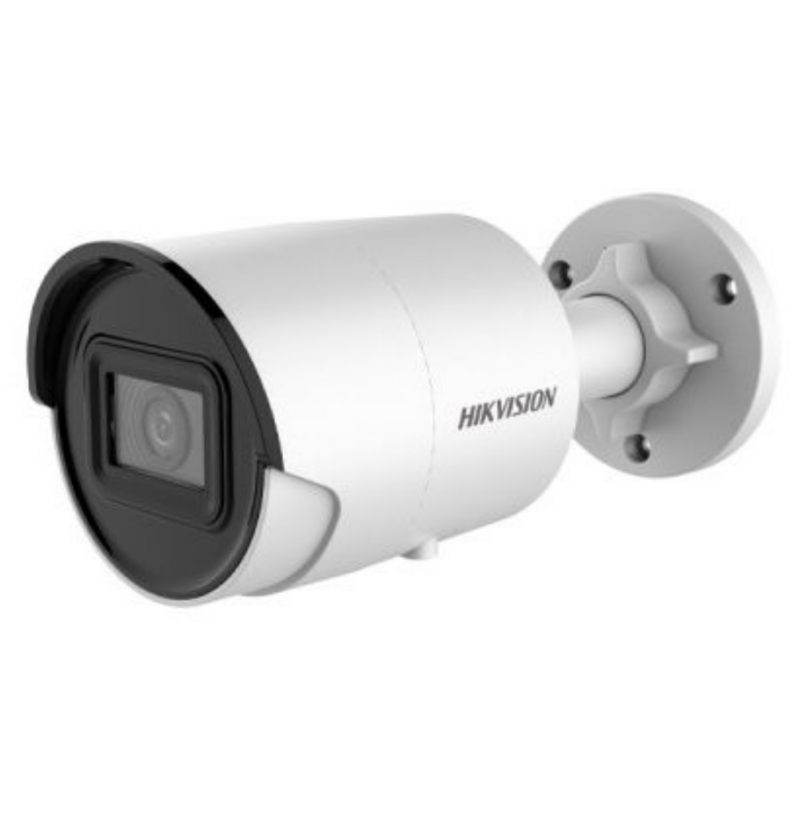

DS-2CD2086G2H-IU(4mm)(eF) IP Camera

Lens mount interface: M12
Protection features: Water resistant, Dust resistant
Product colour: White, Black
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Metal
Mounting type: Ceiling/wall
Power consumption (Power over Ethernet (PoE)): 8.5 W
Power source type: DC, PoE
DC output current: 0.58 A
DC output voltage: 12
Power consumption (max): 7 W
IP address filtering: Yes
Active tampering alarm: Yes
Security algorithms: TLS, EAP-TLS, EAP-LEAP, EAP-MD5, HTTPS
Heartbeat: Yes
Password protection: Yes
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Privacy protection: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Digital watermark: Yes
Automatic Network Replenishment (ANR): Yes
Audit log: Yes
Network access storage (NAS): Yes
Pixel counter: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes
Password reset via email: Yes
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Length: 179.2 mm
Diameter: 7.44 cm
Weight: 525 g
Networking standards: IEEE 802.3af, IEEE 802.1x
Wi-Fi: No
Quality of Service (QoS) support: Yes
Ethernet interface type: Fast Ethernet
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Ethernet LAN: Yes
Number of users: 32 user(s)
Live view: Yes
Bluetooth: No
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Languages support: Multi
Day/night mode: Yes
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Built-in light: Yes
Number of languages: 33
Dynamic range: 120 dB
Wide Dynamic Range (WDR): Yes
Placement supported: Outdoor
Connectivity technology: Wired
Package weight: 750 g
Package depth: 120 mm
Package height: 117 mm
Package width: 234 mm
Number of cameras: 1
Audio formats supported: AAC-LC, G.726, G.711 A-law, G.711 μ-law, MP2L2, G.722.1, PCM, MP3
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Maximum memory card size: 512 GB
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Tilt angle range: 0 - 90°
Minimum illumination: 0 lx
Angle of rotation: 360°
Number of Privacy masking areas: 4
Lens viewing angle, diagonal: 109.4°
Lens viewing angle, horizontal: 90°
Lens viewing angle, vertical: 45.8°
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Supported graphics resolutions: 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 2688 x 1520, 640 x 480 (VGA)
Image quality adjustment: Contrast, Sharpness, Brightness, Saturation
Total megapixels: 8 MP
Video compression formats: H.265, H.265+, M-JPEG, H.264+, H.264
Highlight Compensation (HLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Video streaming: Yes
Maximum resolution: 3840 x 2160 pixels
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Frame rate: 30 fps
Night vision distance: 40 m
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Identify distance: 10 m
Observe distance: 43 m
Maximum aperture number: 1
Recognize distance: 21 m
Number of lenses: 1
Detect distance: 109 m
Fixed focal length: 4 mm
Compliance certificates: RoHS, CE, Low Voltage Directive (LVD), CB, UL
