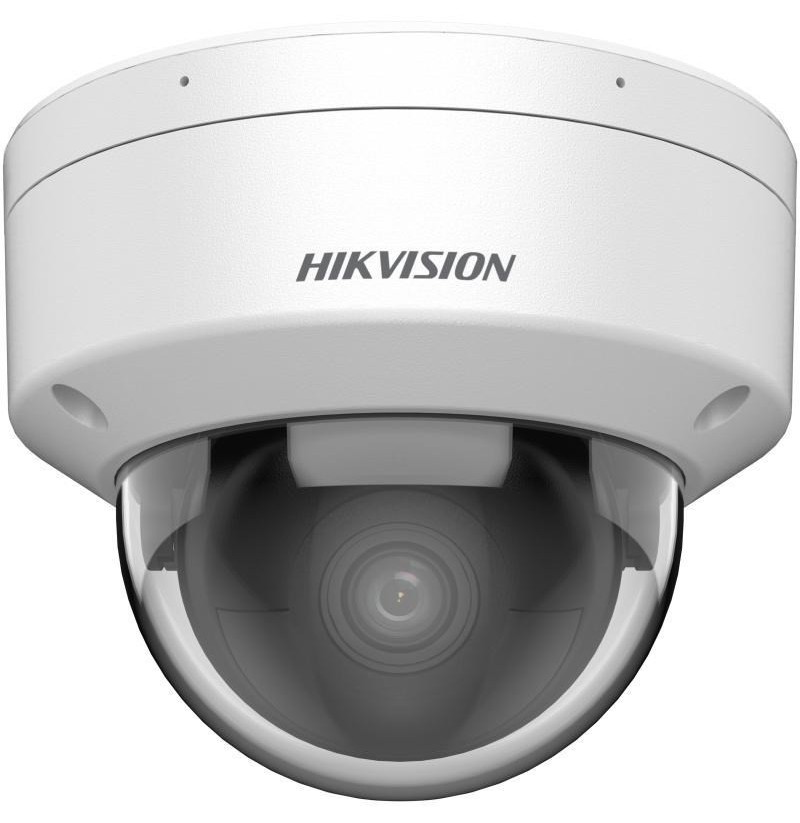

Hikvision AcuSense DS-2CD2186G2H-ISU(2.8mm)(eF) 8MP dome camera

Lens mount interface: M12
Mounting type: Ceiling/wall
IK code: IK10
International Protection (IP) code: IP67
Product colour: White
Form factor: Bullet
Protection features: Water resistant, Dust resistant
Housing material: Aluminium
DC output current: 0.66 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 9.5 W
Power consumption (max): 8 W
Power source type: DC, PoE
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Digital watermark: Yes
Human and vehicle targets classification: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Heartbeat: Yes
Privacy protection: Yes
Active tampering alarm: Yes
Pixel counter: Yes
Password protection: Yes
Password reset via email: Yes
Mirror: Yes
Digest authentication: Yes
Alarm input channels: 1
Security algorithms: TLS, HTTPS
Flash log: Yes
Audit log: Yes
Automatic Network Replenishment (ANR): Yes
Alarm output channels: 1
Network access storage (NAS): Yes
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes
Height: 97.6 mm
Weight: 525 g
Diameter: 12.2 cm
Number of simultaneous live view channels: 6 channels
Number of users: 32 user(s)
Live view: Yes
User access level: Administrator, Operator, User
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Wi-Fi: No
Networking standards: IEEE 802.1x, IEEE 802.3af
Bluetooth: No
Quality of Service (QoS) support: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Languages support: Multi
Day/night mode: Yes
Placement supported: Outdoor
Dynamic range: 130 dB
Alarm input/output: Yes
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Package weight: 750 g
Package depth: 120 mm
Package width: 234 mm
Package height: 117 mm
Number of cameras: 1
Audio formats supported: AAC-LC, MP3, G.711 μ-law, G.726, G.711 A-law, G.722.1, MP2L2, PCM
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Audio output channels: 1.0 channels
Built-in microphone: Yes
Audio input channels: 1.0 channels
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Card reader integrated: Yes
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, horizontal: 105.1°
Lens viewing angle, vertical: 54.8°
Lens viewing angle, diagonal: 128.2°
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0 lx
Number of Privacy masking areas: 4
Angle of rotation: 355°
Pan range: 0 - 355°
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Privacy masking: Yes
Video compression formats: H.265+, H.264+, H.264, M-JPEG, H.265
Noise reduction: Yes
Image quality adjustment: Saturation, Sharpness, Brightness, Contrast
Frame rate: 30 fps
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Supported graphics resolutions: 3200 x 1800, 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 640 x 360, 3840 x 2160, 1920 x 1080 (HD 1080)
Maximum resolution: 3840 x 2160 pixels
Back Light Compensation (BLC): Yes
Total megapixels: 8 MP
Bit rate: 32 Kbps - 16 Mbps
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Maximum aperture number: 1
Identify distance: 8 m
Observe distance: 35 m
Recognize distance: 17 m
Number of lenses: 1
Fixed focal length: 2.8 mm
Detect distance: 89 m
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: RoHS, CE, UL, CB, Low Voltage Directive (LVD)
