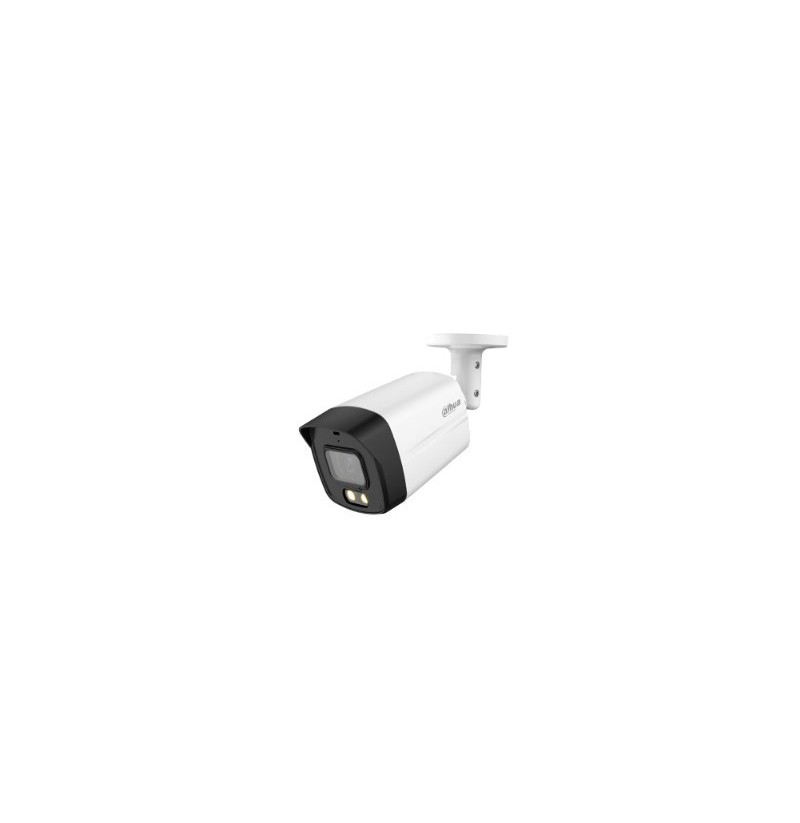

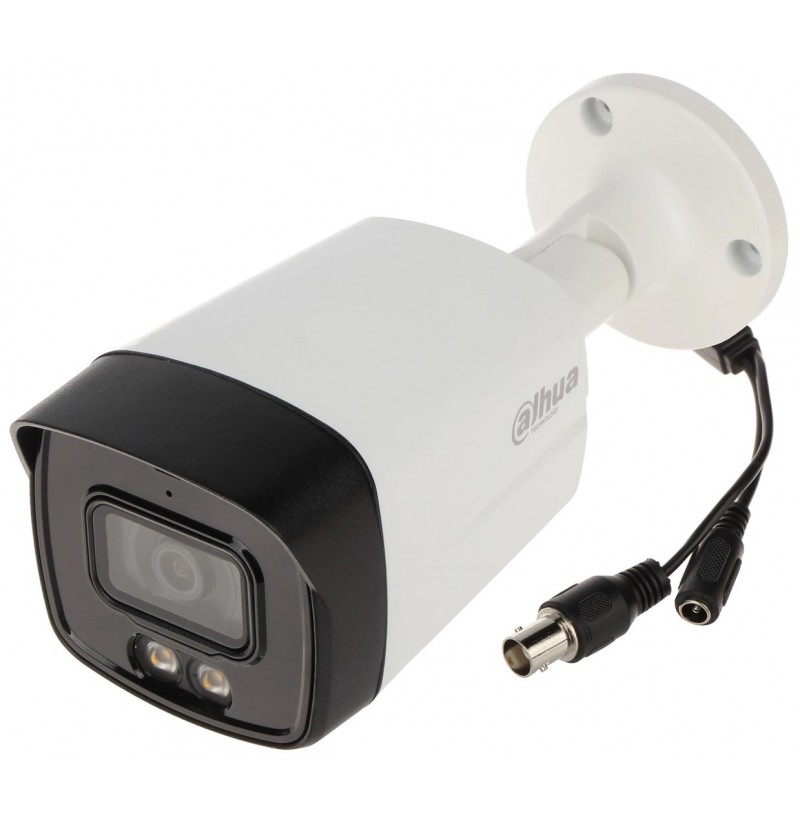

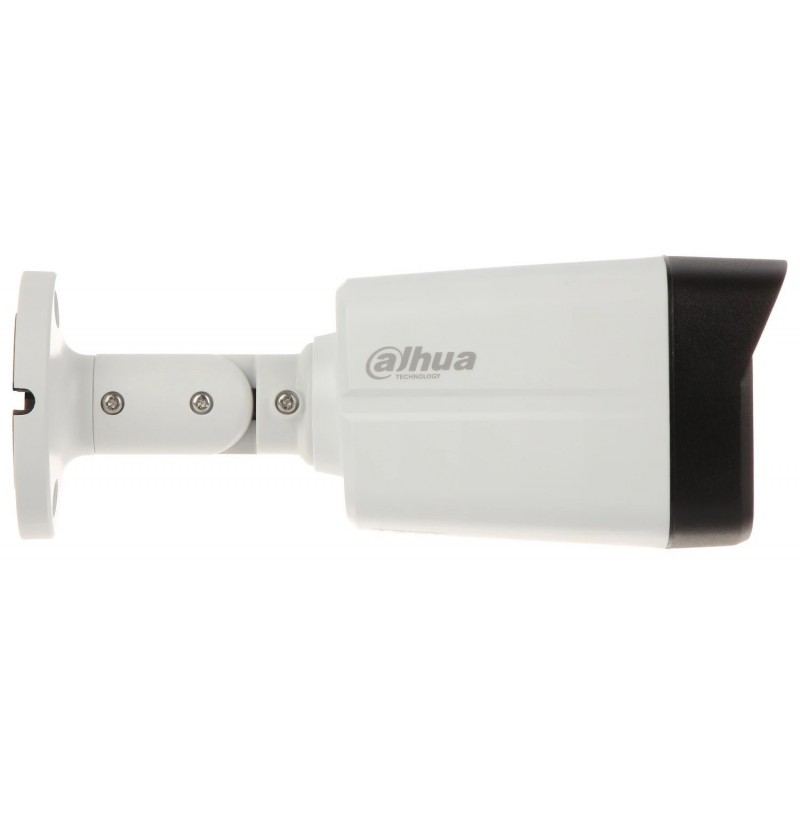

KAMERA HDCVI DAHUA HAC-HFW1509TLM-A-LED-0360B-S2

Form factor: Bullet
International Protection (IP) code: IP67
Mounting type: Ceiling/Wall/Pole
Number of illumination LEDs: 2
Product colour: White
Housing material: Metal
Power source type: DC
Power consumption (max): 6.4 W
DC output voltage: 12
Display language: Polish, English, Chinese, French, German, Spanish, Portuguese, Italian, Korean, Japanese, Russian
Mirror: Yes
OSD menu accessible from the recorder (CoC support): Yes
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Weight: 330 g
Depth: 80.2 mm
Height: 76.2 mm
Package weight: 520 g
Width: 198.4 mm
Wi-Fi: No
Ethernet LAN: No
Bluetooth: No
Certification: CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Day/night mode: Yes
Placement supported: Outdoor
Type: HDCVI security camera
Connectivity technology: Wired
Operating modes: AHD, CVI, TVI, CVBS
Dynamic range: 120 dB
Wide Dynamic Range (WDR): Yes
Mounting kit: Yes
Number of cameras: 1
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 65 dB
Management via coaxial cable: Y
Built-in HDD: No
BNC output ports: 1
Audio output: 1
Angle of rotation: 360°
Minimum illumination: 0.002 lx
White balance: Auto
Pan range: 0 - 360°
Camera shutter type: Electronic
Camera shutter speed: 1/25 - 1/100000 s
Tilt angle range: 0 - 90°
Lens viewing angle, vertical: 57°
Lens viewing angle, diagonal: 132°
Lens viewing angle, horizontal: 112°
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Supported graphics resolutions: 2560 x 1440, 960 x 480, 1920 x 1080 (HD 1080), 2880 x 1620, 960 x 576
Maximum resolution: 2880 x 1620 pixels
Back Light Compensation (BLC): Yes
Smart IR: N
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Supported video modes: 480p, 1080p, 1440p, 1620p, 576p
Frame rate: 30 fps
Analog signal format system: PAL, NTSC
Total megapixels: 5 MP
Gain control type: Auto/Manual
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Recording in colour: Yes
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 2
Maximum aperture number: 1
Auto focus: Yes
Number of lenses: 1
