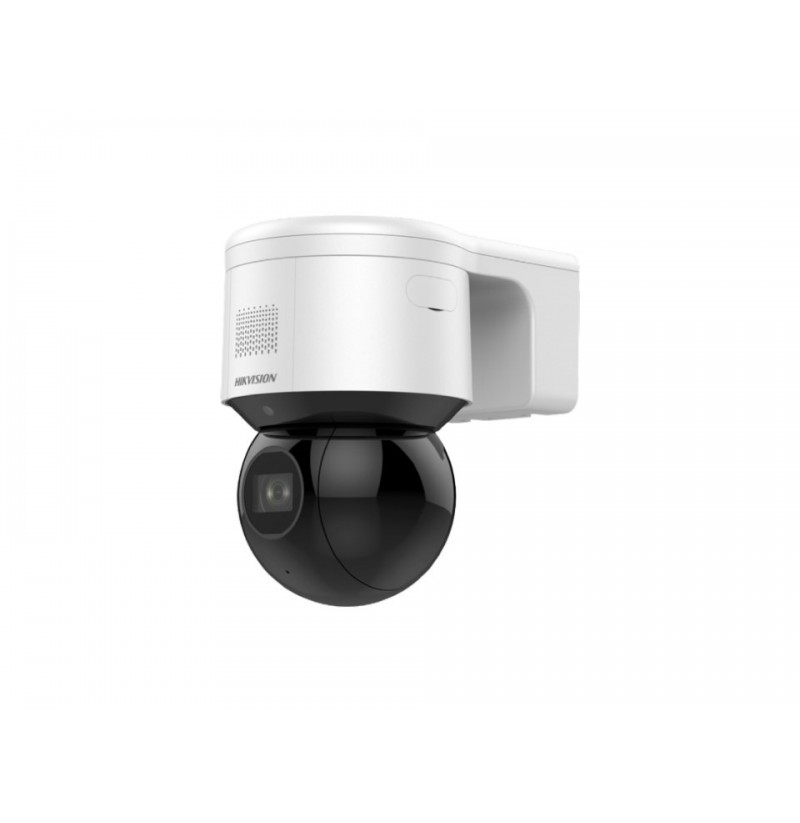

IP Camera: HikVision DS-2DE3A404IWG-E

Form factor: Spherical
Fog proof: Yes
Protection features: Waterproof
Product colour: Black, White
International Protection (IP) code: IP66
Mounting type: Ceiling
Power source type: DC, PoE
Power consumption (max): 14 W
DC output current: 3.33 A
DC output voltage: 12
Audit log: Yes
Digest authentication: Yes
Automatic Network Replenishment (ANR): Yes
Security algorithms: EAP-MD5, EAP-TLS, EAP-LEAP
Alarm input channels: 1
Alarm output channels: 1
Intelligent Video Surveillance (IVS) system features: Crossing line, Face detection, Intrusion, Region entrance detection, Region exiting detection
IP address filtering: Yes
HTTPS encryption: Yes
Digital watermark: Yes
Active tampering alarm: Yes
Password protection: Yes
Video motion detection: Yes
Privacy protection: Yes
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): -30 - 65 °C
Web-based management: Yes
Depth: 179.3 mm
Weight: 1.12 kg
Height: 182 mm
Width: 12.5 mm
Number of simultaneous live view channels: 20 channels
User access level: Administrator, Operator, User
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Bluetooth: No
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Quality of Service (QoS) support: Yes
Client interoperability: iVMS-4200, HikCentral, Hik-Connect
Number of users: 32 user(s)
Live view: Yes
PTZ status display: Yes
Preset freezing function: Yes
Connectivity technology: Wired
Type: IP security camera
PTZ modes: Preset point
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
PTZ control: Yes
Placement supported: Indoor & outdoor
Alarm input/output: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Number of cameras: 1
Bit rate range: 16 - 160 Kbit/s
Built-in microphone: Yes
Audio formats supported: PCM, G.711 μ-law, MP2L2, G.722.1, G.711 A-law, G.726
Built-in speaker(s): Yes
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 256 GB
Ethernet LAN (RJ-45) ports: 1
Number of Privacy masking areas: 24
Lens viewing angle, vertical: 51.1 - 17.7°
Lens viewing angle, horizontal: 96.7 - 31.6°
Lens viewing angle, diagonal: 115.1 - 36.3°
Minimum illumination: 0 lx
Pan range: 0 - 350°
Tilt angle range: 0 - 90°
Tilt speed: 50 °/sec
Pan preset speed: 60 °/sec
Camera shutter speed: 1 - 1/30000 s
Preset programs quantity: 300
Pan speed: 60 °/sec
Tilt preset speed: 60 °/sec
Camera pan control: Yes
Camera tilt control: Yes
I/O ports: line in, line out
Browser supported: IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Number of sensors: 1
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 2560 x 1440, 704 x 576, 1280 x 960, 704 x 480, 352 x 288, 352 x 240, 1920 x 1080 (HD 1080)
Total megapixels: 4 MP
Back Light Compensation (BLC): Yes
Maximum resolution: 2560 x 1440 pixels
Highlight Compensation (HLC): Yes
Bit rate: 32 Kbps - 16 Mbps
Video compression formats: H.265+, H.264+, H.264, H.265, M-JPEG
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Frame rate: 30 fps
Image quality adjustment: Contrast, Brightness, Saturation, Sharpness
Privacy masking: Yes
B/W night vision distance: 6 m
Night vision distance: 50 m
LED type: IR
Night vision: Yes
Zoom speed: 2 s
Proportional zoom: Yes
Optical zoom: 4x
Identify distance: 18 m
Observe distance: 71.4 m
Digital zoom: 16x
Detect distance: 180 m
Focal length range: 2.8 - 12 mm
Maximum aperture number: 1.5
Zoom capability: Yes
Focus: Motorized/Manual
Number of lenses: 1
Auto focus: Yes
Recognize distance: 36 m
