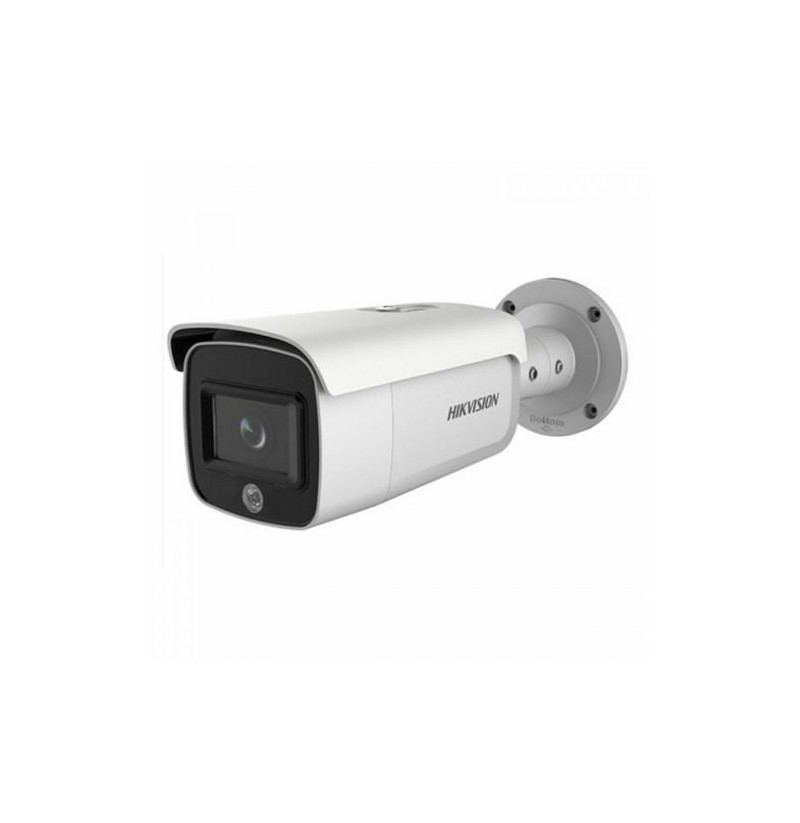

DS-2CD2027G1-L(2.8mm) IP Tube Camera

Form factor: Bullet
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/Wall/Pole
Power consumption (Power over Ethernet (PoE)): 6.5 W
Power consumption (max): 5 W
Power source type: DC, PoE
DC output current: 0.4 A
DC output voltage: 12
Anti-flicker: Yes
Digital watermark: Yes
Heartbeat: Yes
Mirror: Yes
Active tampering alarm: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Password protection: Yes
Video motion detection: Yes
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Behavior analysis: Intrusion detection, Line crossing detection
Reset button: Yes
Web-based management: Yes
Firmware upgradeable: Yes
Web browser: Yes
Width: 85 mm
Weight: 680 g
Depth: 218 mm
Height: 85 mm
Bluetooth: No
Networking standards: IEEE 802.3af
Streaming method: Multicast
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Certification: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Connectivity technology: Wired
Type: IP security camera
Day/night mode: Yes
Remote viewing: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Package height: 141 mm
Package width: 315 mm
Package weight: 1 kg
Package depth: 137 mm
Number of cameras: 1
Card reader integrated: Yes
Maximum memory card size: 128 GB
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Built-in HDD: No
Ethernet LAN (RJ-45) ports: 1
RS-232 ports: 1
Camera tilt control: Yes
Lens viewing angle, vertical: 57°
Camera pan control: Yes
Lens viewing angle, diagonal: 138°
Lens viewing angle, horizontal: 112°
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0.0035 lx
Angle of rotation: 360°
Pan range: 0 - 360°
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 320 x 240, 640 x 360, 1920 x 1080 (HD 1080)
Noise reduction: Yes
Image quality adjustment: Saturation, Sharpness, Brightness, Contrast
Video compression formats: H.265+, H.264, M-JPEG, H.265, H.264+
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8 Mbps
Frame rate: 30 fps
Highlight Compensation (HLC): Yes
Total megapixels: 2 MP
Gain control type: Auto
Privacy masking: Yes
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Number of lenses: 1
Maximum aperture number: 1
Fixed focal length: 2.8 mm
Compliance certificates: RoHS
