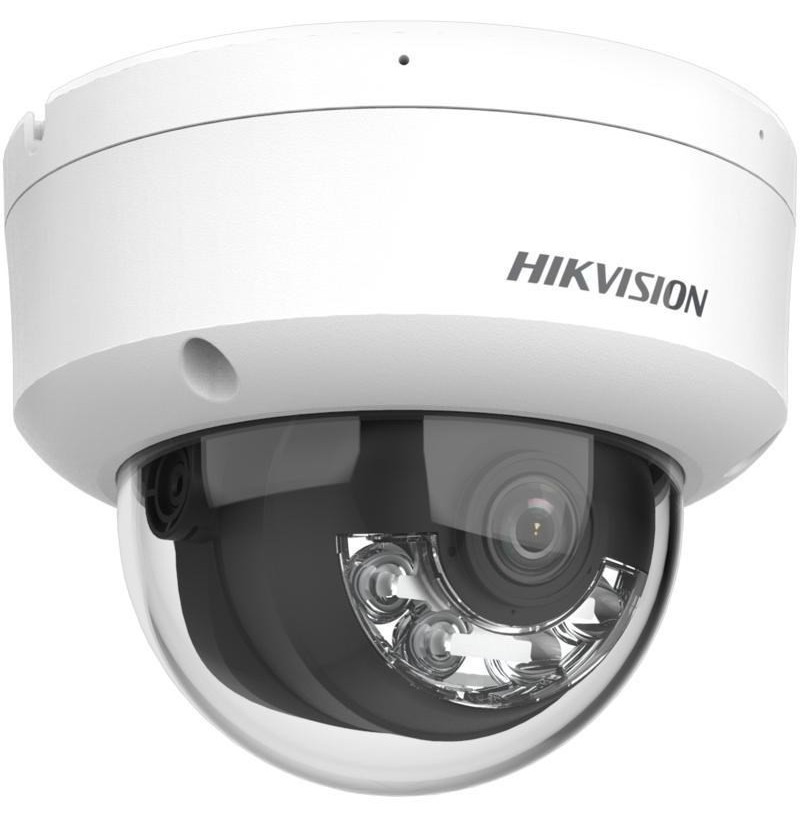

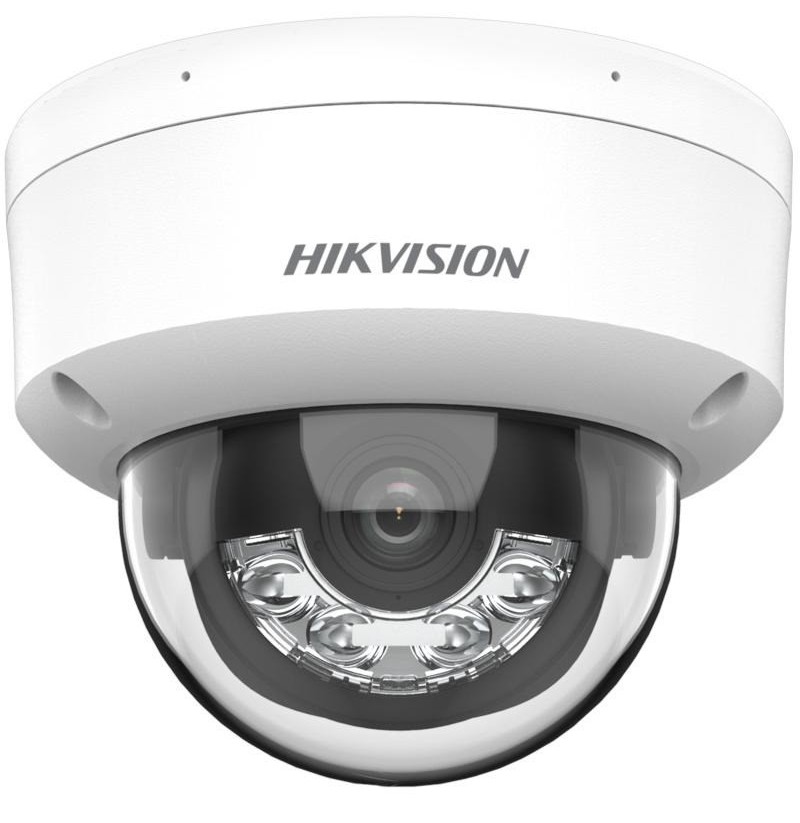

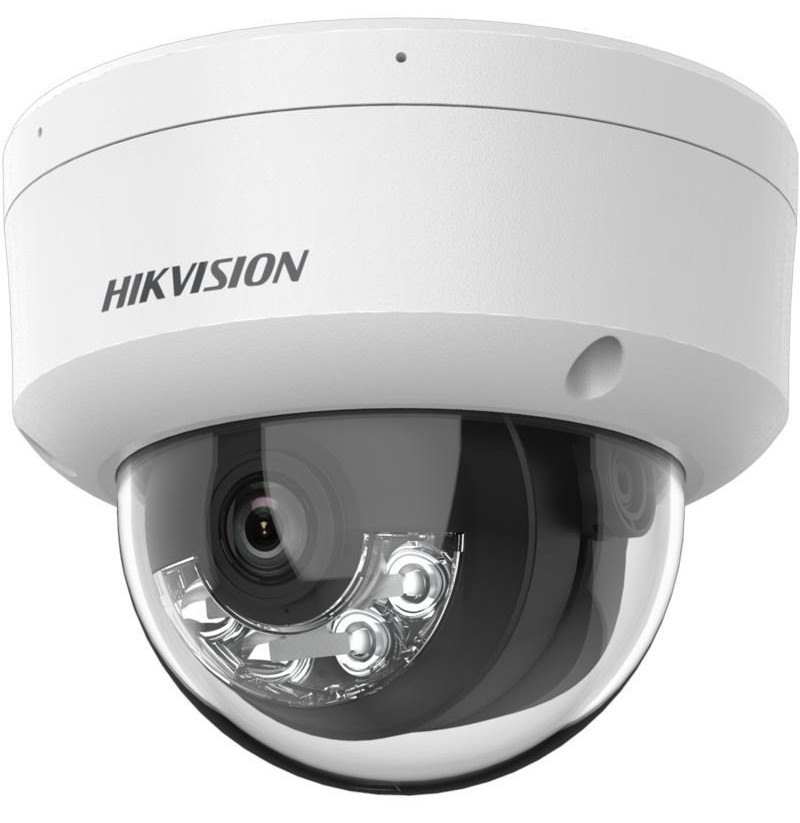

IP CAMERA HIKVISION DS-2CD1143G2-LIU (2.8MM)

Housing material: Plastic, Metal
International Protection (IP) code: IP67
IK code: IK08
Product colour: White
Form factor: Dome
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output current: 0.5 A
DC output voltage: 12
Power consumption (max): 6 W
Power source type: DC, PoE
Anti-flicker: Yes
Video motion detection: Yes
Heartbeat: Yes
Password protection: Yes
Mirror: Yes
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Package depth: 150 mm
Package height: 141 mm
Diameter: 12.1 cm
Height: 97.7 mm
Weight: 550 g
Package weight: 800 g
Package width: 150 mm
Number of users: 32 user(s)
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Bluetooth: No
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes
Certification: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Wide Dynamic Range (WDR): 120 dB
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Placement supported: Outdoor
Connectivity technology: Wired
Type: IP security camera
Number of cameras: 1
Voice codecs: G.711ulaw, G.711alaw, MP2L2, PCM, G.722.1, G.726
Sample rate: 8 kHz / 16 kHz
Ethernet LAN (RJ-45) ports: 1
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, horizontal: 98°
Camera tilt control: Yes
Angle of rotation: 355°
Lens viewing angle, diagonal: 114°
Pan range: 0 - 355°
Tilt angle range: 0 - 75°
Lens viewing angle, vertical: 54°
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of sensors: 1
Progressive scan: Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Total megapixels: 4 MP
Video compression formats: H.264, H.265+, H.265, H.264+, M-JPEG
Bit rate: 32 Kbps - 8 Mbps
Noise reduction: Yes
Frame rate: 25 fps
Maximum resolution: 2560 x 1440 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 2560 x 1440, 640 x 360, 640 x 480 (VGA), 1920 x 1080 (HD 1080)
LED type: IR/White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
