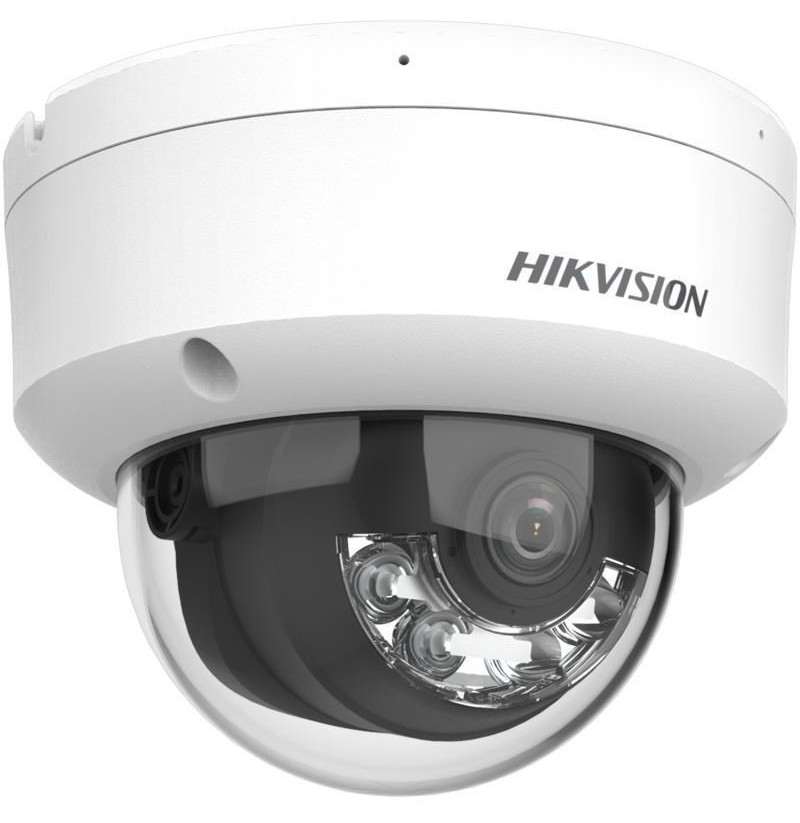

DS-2CD2143G2-LI(2.8mm) IP Camera

Protection features: Dust resistant, Vandal proof, Water resistant
Mounting type: Ceiling/wall
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White
DC output current: 0.6 A
Power consumption (Power over Ethernet (PoE)): 8.5 W
DC output voltage: 12
Power consumption (max): 7 W
Power source type: DC, PoE
Intelligent Video Surveillance (IVS) system features: Face detection
HTTPS encryption: Yes
IP address filtering: Yes
Alarm input channels: 1
Audit log: Yes
Video motion detection: Yes
Heartbeat: Yes
Mirror: Yes
Anti-flicker: Yes
Human and vehicle targets classification: Yes
Privacy protection: Yes
Flash log: Yes
Automatic Network Replenishment (ANR): Yes
Active tampering alarm: Yes
Password reset via email: Yes
Pixel counter: Yes
Alarm output channels: 1
Network access storage (NAS): Yes
Password protection: Yes
Digest authentication: Yes
Security algorithms: HTTPS, TLS
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Behavior analysis: Intrusion detection, Line crossing detection
Web-based management: Yes
Reset button: Yes
Diameter: 12.1 cm
Height: 100.1 mm
Weight: 600 g
Number of simultaneous live view channels: 6 channels
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
User access level: Administrator, Operator, User
Number of users: 32 user(s)
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Live view: Yes
Wi-Fi: No
Bluetooth: No
Networking standards: IEEE 802.1x, IEEE 802.3af
Certification: FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1)
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Number of languages: 33
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Alarm input/output: Yes
Languages support: Multi
Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Package depth: 150 mm
Package weight: 820 g
Package width: 150 mm
Package height: 141 mm
Number of cameras: 1
Voice codecs: G.726, G.711ulaw, G.711alaw, G.722.1, MP2L2
Audio formats supported: MP3, PCM, AAC
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Audio output channels: 1.0 channels
Built-in HDD: No
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Lens viewing angle, vertical: 75°
Pan range: 0 - 355°
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 102°
Lens viewing angle, diagonal: 355°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 355°
Tilt angle range: 0 - 75°
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Image quality adjustment: Sharpness, Saturation, Contrast, Brightness
Video streaming: Yes
Privacy masking: Yes
Video compression formats: H.265+, H.264, M-JPEG, H.264+, H.265
Frame rate: 30 fps
Total megapixels: 4 MP
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Bit rate: 32 Kbps - 8 Mbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Maximum resolution: 2680 x 1520 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720)
LED type: White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Observe distance: 26 m
Identify distance: 6 m
Maximum aperture number: 1
Recognize distance: 13 m
Fixed focal length: 2.8 mm
Fixed focus: Yes
Detect distance: 67 m
Number of lenses: 1
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE, Industry Canada (IC), UL, KC, Low Voltage Directive (LVD), CB, WEEE
Sustainability compliance: Yes
